Swapping GSA80 Roll & GSA80 Yaw Servo on Citation CJ3+

Garmin G3000 Software Version 10

Caution: Before starting the software or configuration loading process, certain

items may be required to be recorded first, to prevent loss of

information or settings. See Section 1 for details.

Caution: Make certain that all SD cards are available before starting. These are

usually located in a blue pouch onboard the aircraft (usually in AFM).

Caution: Follow all steps in a given section for specific loadings. Failure to do so

will result in probable rework.

Caution: Ensure that power is available through a GPU so that power is not

interrupted during the loading process.

Note: This document is to supplement, not replace, the Cessna Citation CJ3+

MM, and Garmin G3000 LMM.

Note: Reference latest revision of the Garmin G3000 LMM 190-01785-00.

Table of Contents

Introduction G3000 System Familiarization

Section 1 Determining Options Installed

Section 2 Software and Configuration Loading

Section 3 Final Verification / Return to Service

Section 4 FLEET ID / CRC Numbers

Section 5 Troubleshooting

REFERENCE ONLY

Version 1.0 REFERENCE ONLY

Introduction G3000 System Familiarization

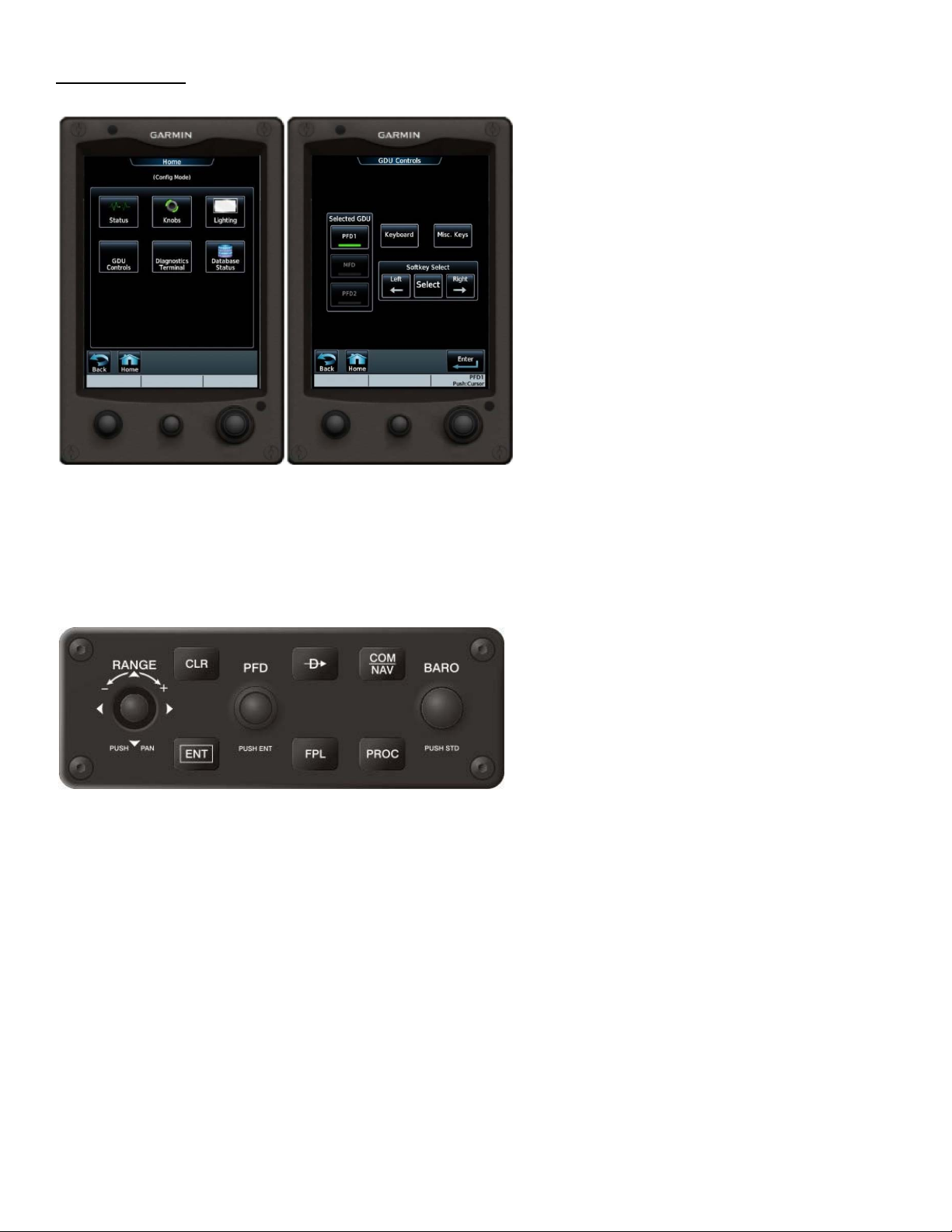

When in configuration mode, select GDU controls on left side of GTC 1. Ensure that PFD 1 is

selected on the screen. The dual concentric knobs on the lower right bezel will be utilized, and

throughout this document will be referred to as the FMS small and large knob. The Enter

button will be in the lower right part of the screen.

As an alternative, you can use the dual concentric knobs (labeled PFD) and Enter button on the

GCU-275 controller mounted above PFD 1.

REFERENCE ONLY

Version 1.0 REFERENCE ONLY

Section 1 Determining Options Installed

Determine Options Installed

Note: This is with the G3000 powered up in normal mode.

•Synthetic Vision

oOn the PFD, select PFD Settings, then select Attitude Overlays. If Synthetic Terrain

button is displayed, mark YES.

•Checklist

oFrom the Home screen of either GTC 570, look for Checklist button to be

displayed. It may be grayed out, but if the button is present, mark YES.

YES

REFERENCE ONLY

Version 1.0 REFERENCE ONLY

•CPDLC

oMark YES if the CPDLC button is available on the home screen of either GTC.

•Single GSR56 (Iridium Phone)

oOn either GTC 570, select the SERVICES / TELEPHONE button, then select

Telephone. Mark YES if a single Iridium transceiver is displayed on the left side.

•Dual GSR56 (Iridium Phone)

oOn either GTC 570, select the SERVICES / TELEPHONE button, then select

Telephone. Mark Yes if a double Iridium transceiver is displayed on the left & right

side.

•ACARS

oFrom the Home screen of either GTC 570, look for a Services button. If it is

located, select it and look for a button marked ACARS. If it is present, mark YES.

oThe service provider will be determined later on page 11.

YES

REFERENCE ONLY

Version 1.0 REFERENCE ONLY

•GDL69 (XM Receiver)

oFrom the Home screen of either GTC 570, touch the Weather button. Then touch

Weather Selection. If Sirius XM Settings is displayed, mark YES.

•GSR56 Weather

oFrom the Home screen of either GTC 570, touch the Weather button. Then touch

Weather Selection. If CONNEXT WEATHER is displayed, mark YES.

•Stormscope (Lightning Detect)

oFrom the Home screen of either GTC 570, touch the Weather button. Then touch

Weather Selection. If Stormscope is displayed, mark YES.

•Doppler & Turbulence (Includes Ground Clutter Suppression)

oFrom the Home screen of either GTC 570, select the Weather button. Select

Weather Selection button. Select the WEATHER RADAR SETTINGS button & if the

Turbulence Detection & GND Clutter Suppression buttons are visible, mark YES.

YES

REFERENCE ONLY

Version 1.0 REFERENCE ONLY

•Ground Clutter Suppression (Stand Alone Option Without Doppler & Turbulence)

oFrom the Home screen of either GTC 570, select the Weather button. Select

Weather Selection button. Select the WEATHER RADAR SETTINGS button & the

GND Clutter Suppression button will be visible, without the Turbulence

Detection button. Do not select YES if Doppler & Turbulence is selected YES

above.

•Cabin Briefing

oFrom the Home screen of either GTC 570, select AIRCRAFT SYSTEMS. If the Cabin

Briefing button is displayed, mark YES.

•SurfaceWatch

oFrom the Home screen of either GTC 570, select Utilities. Select Setup & then

Avionics Settings. Then select the Alerts tab. If the SurfaceWatch Inhibit button is

visible, mark YES. Note the Inhibit box will not be illuminated (resets at power up).

YES

REFERENCE ONLY

Version 1.0 REFERENCE ONLY

•Becker ADF

oIf ADF is seen on the AUDIO & RADIO screen of either GTC 570, mark YES.

•GDR66 (VHF Datalink (Datalink/COMM 3))

oIf GDR or Datalink are seen on the AUDIO & RADIO screen of either GTC 570, mark

YES. They should appear as one of the 2 images below and labeled as COM3 with

frequencies, or Datalink showing on the right side.

•HF9000

oIf HF9000 is seen on the AUDIO & RADIO screen of either GTC 570, mark YES.

•DME 2

oIf DME2 is seen on the AUDIO & RADIO screen of either GTC 570, mark YES.

YES

REFERENCE ONLY

Version 1.0 REFERENCE ONLY

•TAWS Class A

oFrom the Home screen of either GTC 570, select the TAWS button. Then select

TAWS Selection button. If there are 6 buttons displayed on the page, then TAWS

A is loaded, and mark YES. Otherwise TAWS B is loaded as default. Note: First

image is TAWS B, and second image is TAWS A.

•EROS Oxygen Mask

oLook at the crew mask and determine if EROS brand. If the mask is an EROS, mark

YES. Note: The option changes the gains for the microphone if EROS is installed.

Placing System Into Configuration Mode

Note: Anytime that software or configurations are being loaded, all three displays, and both

touch controllers must be in configuration mode.

•When GCU 1 is replaced, then software and configuration loading is required.

1) Pull the following circuit breakers:

L PFD

MFD

R PFD

L Touch Control

R Touch Control

2) Insert the 010-01293-10 software loader card into the upper slot of PFD 1.

3) Turn on aircraft power.

YES

REFERENCE ONLY

Version 1.0 REFERENCE ONLY

4) Press and hold the right knob on the left GTC and push the L Touch Control circuit

breaker in.
