2. For Your Safety

Checks before each operation:

Before use, an inspection is always to be

performed In order to determine that all

nuts, bolts and working tools are not worn

down or damaged. Worn down or damaged

blades are to be replaced in sets.

Inspect the surface on which the lawn mower

is to be used be-forehand. Stones, pieces of

wood and wires as well as other solid matter

are to be removed.

Objects, which are contacted by the cutting

tools, could be thrown out uncontrollably.

Proper use / Responsibility

WARNING !

Take note that the rotating blade

cylinder could cause injuries.

VVNever place your hands or feet

on or under moving parts.

Correct use:

Please note

GARDENA Cylinder Lawnmower 300 C / 380 C

Welcome to the Garden of GARDENA...

Translation of the original instructions from German.

Please read these operating instructions carefully and observe the

notes given. Use these instructions to familiarise yourself with the

cylinder lawnmower, its correct use and the notes on safety.

For safety reasons, children under the age of 16 as well as

persons not familiar with these operating instructions should

not use this cylinder lawnmower.

vPlease keep these operating instructions in a safe place.

1. Where to Use Your GARDENA Cylinder Lawnmower . . . . . . . . . 8

2. For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3. Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5. Putting into Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

9. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

10. Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1. Where to Use Your GARDENA Cylinder Lawnmower

The GARDENA Cylinder Lawnmower has been designed

for cutting lawn and grass areas of private houses.

Compliance with these instructions provided by GARDENA

is a prerequisite for using the cylinder lawnmower correctly.

The cylinder lawnmower may not be used for cutting

climbing plants or grass on roofs, due to the danger

of bodily harm.

Contents

Do not use the lawnmower while people,

especially children, or animals are nearby.

The operator is liable for damages.

The safety distance between the blade

cylinder and the operator that is created

by the guiding spar is to be always

maintained.

When mowing embankments and slopes,

special care must be taken:

vMake sure you always keep a safe

distance and wear shoes with a non-

slip sole.

Always cut diagonally to the slope.

Take special care when moving backwards

and when pulling the lawn mower. Danger

of stumbling!

If the cutting tools or the lawnmower run into

an obstruction and / or solid objects, the lawn

mower should be properly and thoroughly

inspected.

vOnly work when visibility is good.

Never leave the lawnmower unattended.

If your work is interrupted, store the mower

in a safe place.

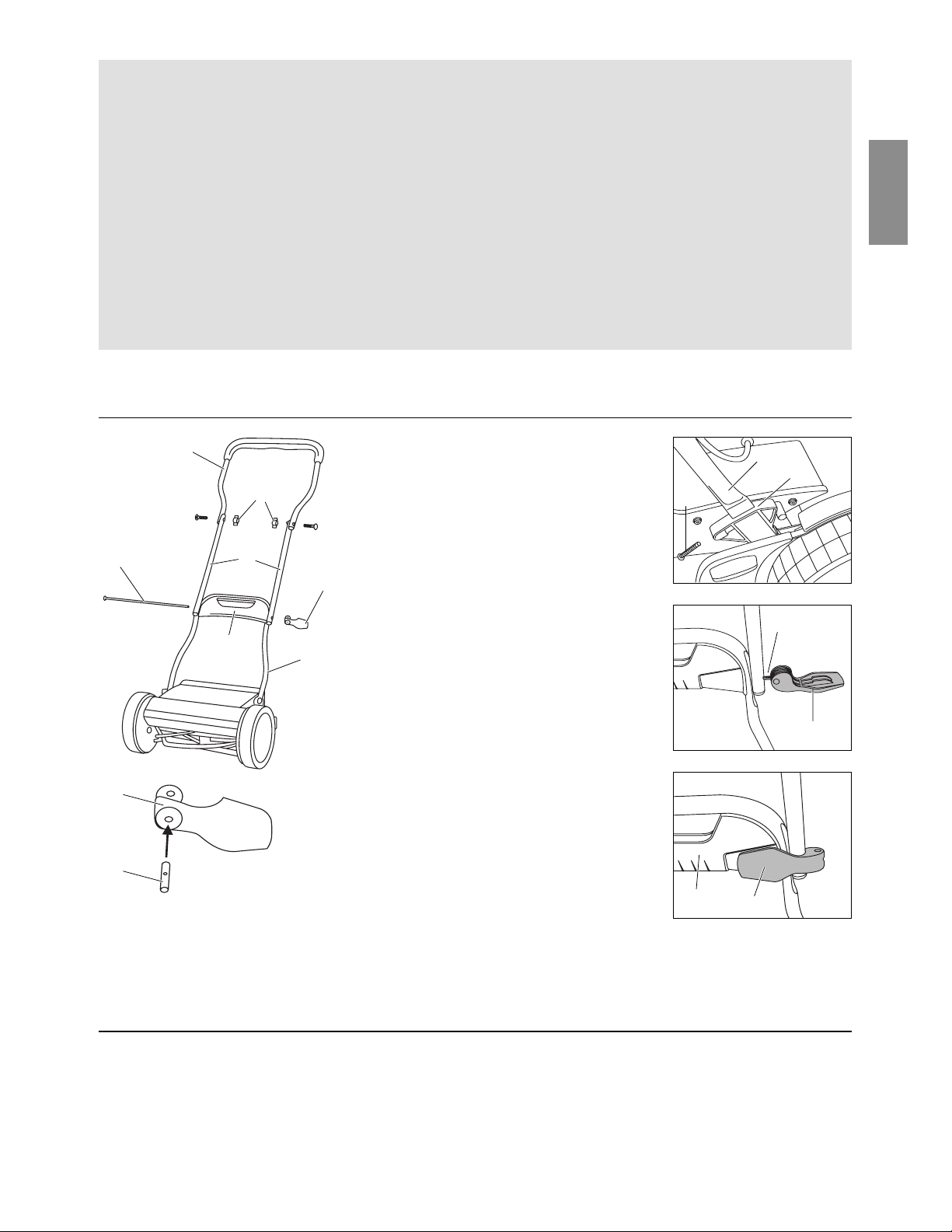

3. Assembly

1. Insert lower part of bottom upright 1

into upright holders aup to stop and

secure with the screws z

2. Push connector 2from underneath

into upper part of bottom upright 1.

3. Insert threaded rod 4from left

through lower parts of central

upright 3, upper part of bottom

upright 1and connector 2right

up to the stop.

4. Slide threaded bearing 7into

clamping lever 5.

5. Screw clamping lever 5onto

threaded rod 4approx. 4 turns.

6. Move clamping lever 5onto

connector 2and check whether

clamping lever 5locks.

7. If clamping lever 5does not yet lock,

screw another turn onto threaded rod

4. Repeat procedure until clamping

lever 5locks on connector 2.

8 Firmly attach bottom part of top

upright 6to upper parts of central

upright 3using 2 wing nuts z

4. Operation

To produce a well-maintained lawn we recommend cutting the

lawn regularly once a week if possible. The lawn becomes thicker

if cut frequently.

Relatively long cut grass (> 1 cm) must be removed so that the

lawn does not become yellow and matted.

Mowing correctly:

Storage:

Adjusting the cutting height:

Cleaning the mower:

After relatively long intervals between mowing (e.g. holiday), first of

all cut in one direction with the cutting height as high as possible

(42 mm), then cut in the crosswise direction at the cutting height

required. The blades of grass should not be more than 12 cm

long if they are to be cut with a cylinder mower.

If possible only cut the grass when it is dry. If the grass is damp,

the cutting pattern will be uneven.

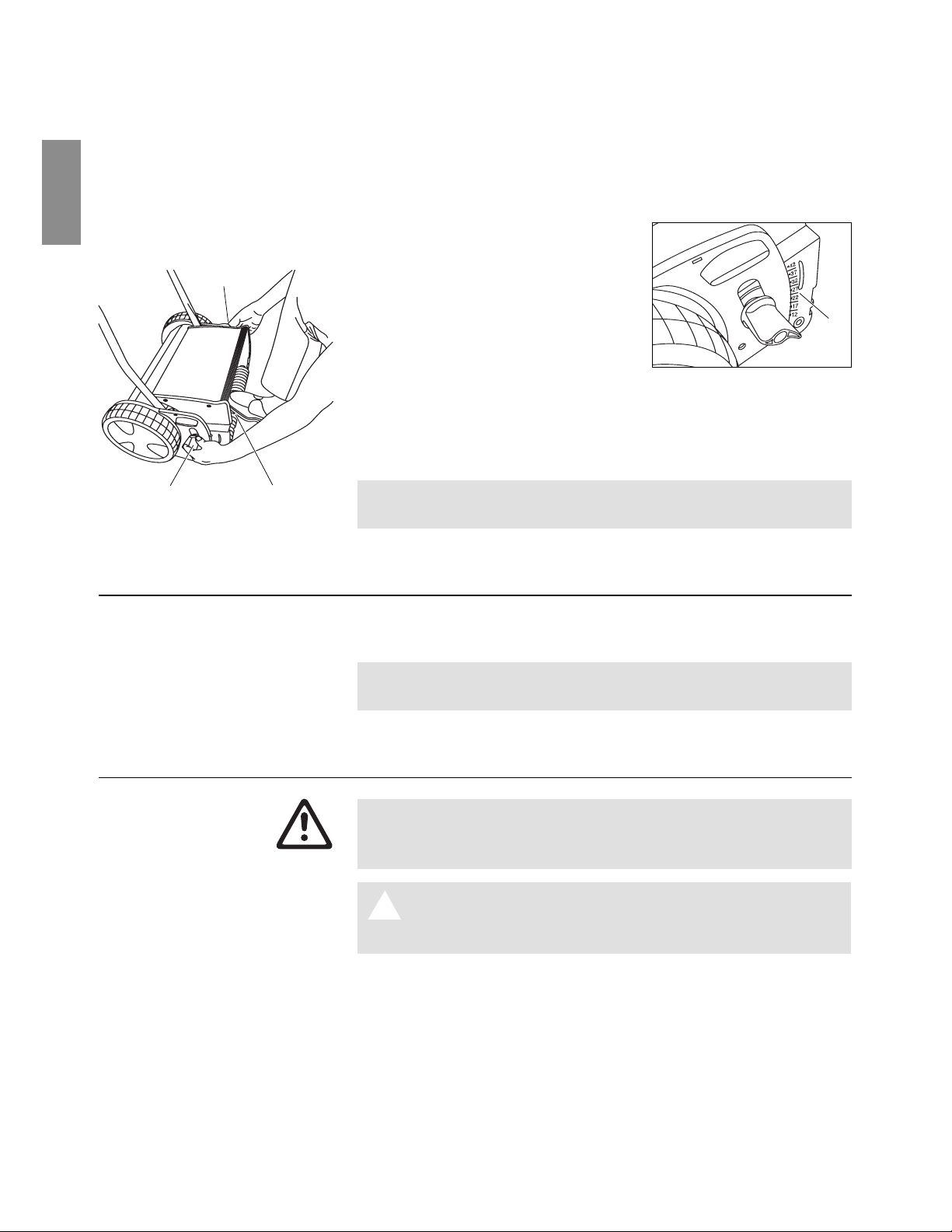

The cutting height can be set to any

position between 12 mm and 42 mm.

1. Stand behind the cylinder mower

with one foot on the roller 8.

2. Slacken the two locking screws 9

and set to the height required on

the scale 0.

3. Tighten the two locking screws 9

on both sides to the same height.

The locking screws 9must always be set to the same height on

both sides.

The mower may only be adjusted to a depth in which the lower

blade does not touch the ground when it is uneven.

5. Putting into Storage

vClean cylinder mower before storage (see 6. Maintenance) and

store in a dry place.

To save space the cylinder mower can be collapsed by opening

up the clamping nuts.

6. Maintenance

DANGER ! Cutting mechanism can cause injuries!

VWear suitable work gloves when undertaking

maintenance.

WARNING ! Damage to cylinder lawnmower.

AVNever clean your cylinder lawnmower with running

water, in particular with water under high pressure.

Always keep the lawnmower clean and remove grass deposits.

Deposits affect the cutting result as well as discharge of grass

clippings. Residual dirt and grass is easily removed immediately

after mowing.

1. Remove grass deposits with a brush and a cloth.

2. Oil the red cutting mechanism lightly with thin oil (e.g. sprayed

oil).

7. Troubleshooting

DANGER ! Cutting tool can cause injuries!

VWear suitable work gloves when rectifying faults.

Fault Possible Cause Rectification

Abnormal Noises Screws / components loose. vTighten screws.

Foreign bodies on the blade. vRemove foreign bodies.

Notch in the blade. vRemove notches with

grindstone.

Blades are striking each other vAdjust cutting mechanism.

too hard.

Lawn is not cleanly cut Blade adjustment incorrect. vAdjust cutting mechanism.

Blade blunt. vRegrind or replace blade.

Grass too long (e.g. after a vCut lawn shorter with a

relatively long absence). sickle.

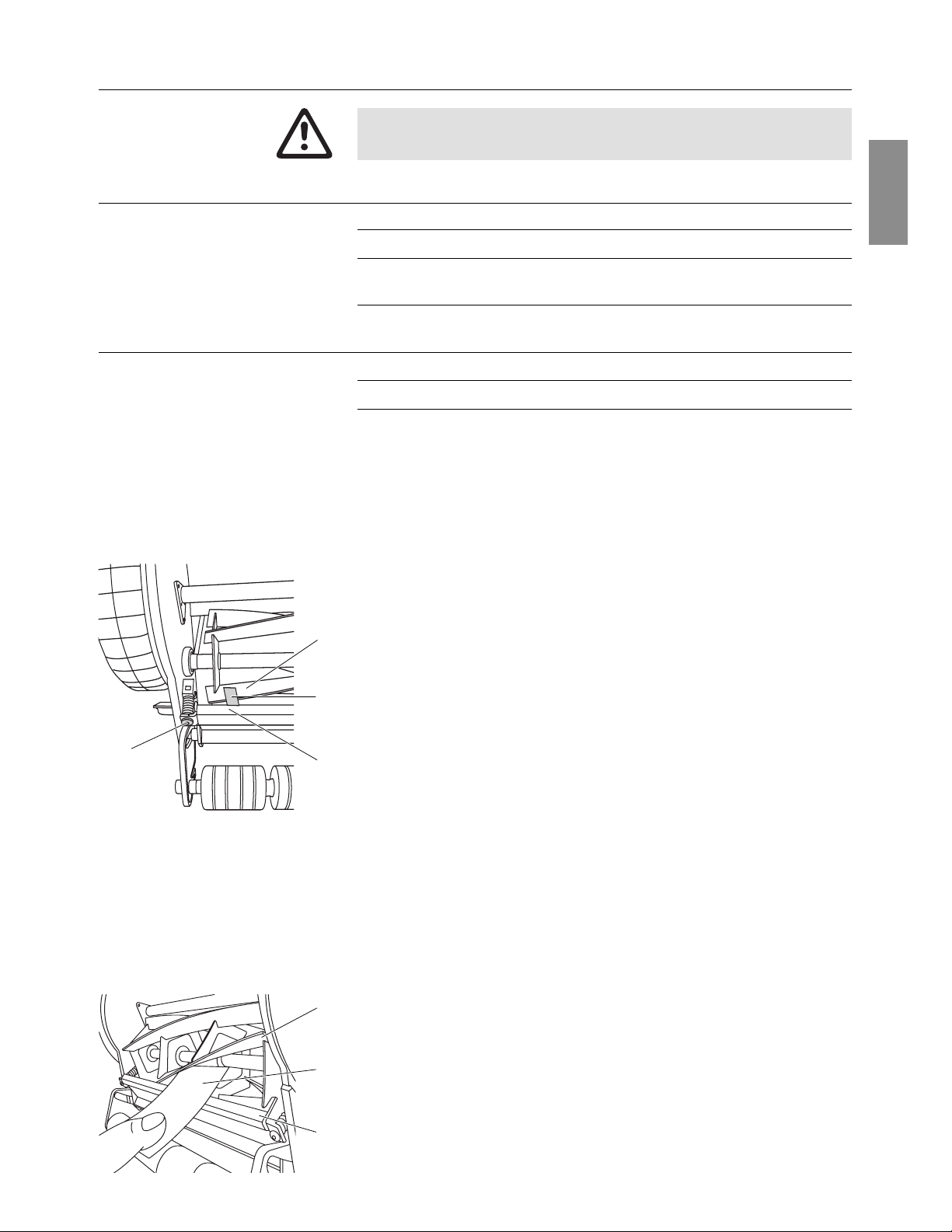

The cutting gear of your lawn mower was optimally adjusted be-

fore leaving our company. If, after longer use, a clean cut of the

grass is no longer possible or the blade roller contacts the lower

blade, then the lower blade should be adjusted as follows:

1. Unhook upright and clean cylinder mower.

2. Check cylinder Band lower blade Cfor notches and remove

these with a grindstone if necessary.

3. Unscrew internal hexagon screws Dwith an internal hexagon

wrench (5 mm) anticlockwise until the cylinder Bturns freely.

4. Push the feeler gauge supplied (thin strip of metal) A

between one blade Bon the cylinder and the lower blade C.

5. Tighten left internal hexagon screw Dwith an internal hexa-

gon wrench (5 mm) until the feeler gauge Ais held gently.

6. Continue turning the cylinder until the blade B, already

adjusted on the left side, is exactly above the lower blade C

on the right side.

7. Tighten the right internal hexagon screw Dwith an internal

hexagon wrench (5 mm) until the feeler gauge Ais held

gently.

8. Rotate cylinder B. If a banging noise is produced during this,

open up the internal hexagon screw Dslightly on the side

affected.

When the cylinder and the lower blade can hardly be heard

touching each other, the cutting mechanism has been adjusted

correctly.

9. Cutting test:

Place a strip of paper Ein such a way on the lower blade C

that it points towards the spindle of the cylinder B.

10. Turn cylinder Bcarefully.

If the lower blade is set correctly

the paper will be cut off

as if with scissors.

11. Repeat the cutting test on the other blades B.

Adjusting the cutting

mechanism:

Regrinding / repairs:

On safety grounds, only original GARDENA spares

Amay be used.

Please contact GARDENA Service if it is necessary to replace

the cutting tool, which will only become blunt after several years

use if well-maintained. Repairs to the cylinder mower and the

installation of the blades can be undertaken by suitable specia-

list workshops.

Have the cylinder mower checked over in the autumn if possible

so that it is ready for use immediately when the next lawn-mowing

season starts.

If you have any problem with your cylinder mower, please contact

our Customer Service.

8. Accessories

GARDENA Grass Saves raking up the cut grass. Art. No. 4029

collecting bag

9. Technical Data

300 C (Art. No. 4021) 380 C (Art. No. 4024)

Cutting width / Cutting height 30 cm /12

42 mm 38 cm / 12

42 mm

Cutting height adjustment infinitely variable infinitely variable

Weight 9.5 kg 10 kg

10. Warranty

GARDENA guarantees this product for 2 years (starting from the

date of purchase). This guarantee covers all serious defects of

the unit that can be proved to be material or manufacturing faults.

Under warranty we will either replace the unit or repair it free of

charge if the following conditions apply:

•The unit must have been handled properly and in keeping

with the requirements of the operating instructions.

•Neither the purchaser or a non-authorised third party have

attempted to repair the unit.

The wearing parts blade cylinder (complete) and lower blade are

excluded from the warranty.

This manufacturer’s guarantee does not affect the user’s existing

warranty claims against the dealer/seller.

If a fault occurs with your Cylinder Lawn Mower, please

return the faulty unit together with a copy of the receipt and

a description of the fault, with postage paid to one of the

GARDENA Service Centres listed on the back of these

operating instructions.

Otros manuales para 300 C

Tabla de contenidos

Otros manuales de Cortacésped de Gardena

Gardena

Gardena PowerMax 32V P4A Manual de usuario

Gardena

Gardena PowerMax 36 E Manual de usuario

Gardena

Gardena SILENO city Manual de usuario

Gardena

Gardena PowerMax 1800/37 G2 Manual de usuario

Gardena

Gardena HandyMower 22/18V P4A Manual de usuario

Gardena

Gardena R40Li Manual de usuario

Gardena

Gardena SILENO minimo Manual de usuario

Gardena

Gardena LZ12597 Manual de usuario

Gardena

Gardena 380 AC Manual de usuario

Gardena

Gardena PowerMax 34 E Manual de usuario

Gardena

Gardena RM 380 4040 Guía de inicio rápido

Gardena

Gardena PowerMax 36 E Manual de usuario

Gardena

Gardena PowerMax 1200/32 Manual de usuario

Gardena

Gardena 380 AC 4026 Manual de usuario

Gardena

Gardena ES 500 Manual de usuario

Gardena

Gardena 380 EC Manual de usuario

Gardena

Gardena PowerMax 30 Manual de usuario

Gardena

Gardena SILENO city Manual de usuario

Gardena

Gardena 36 A Li Manual de usuario

Gardena

Gardena HandyMower Li-18 Manual de usuario

Gardena

Gardena PowerMax 34 E Manual de usuario

Gardena

Gardena PowerMax Li-18/32 Manual de usuario

Gardena

Gardena 34 A easyMove Manual de usuario

Gardena

Gardena SILENO city Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
