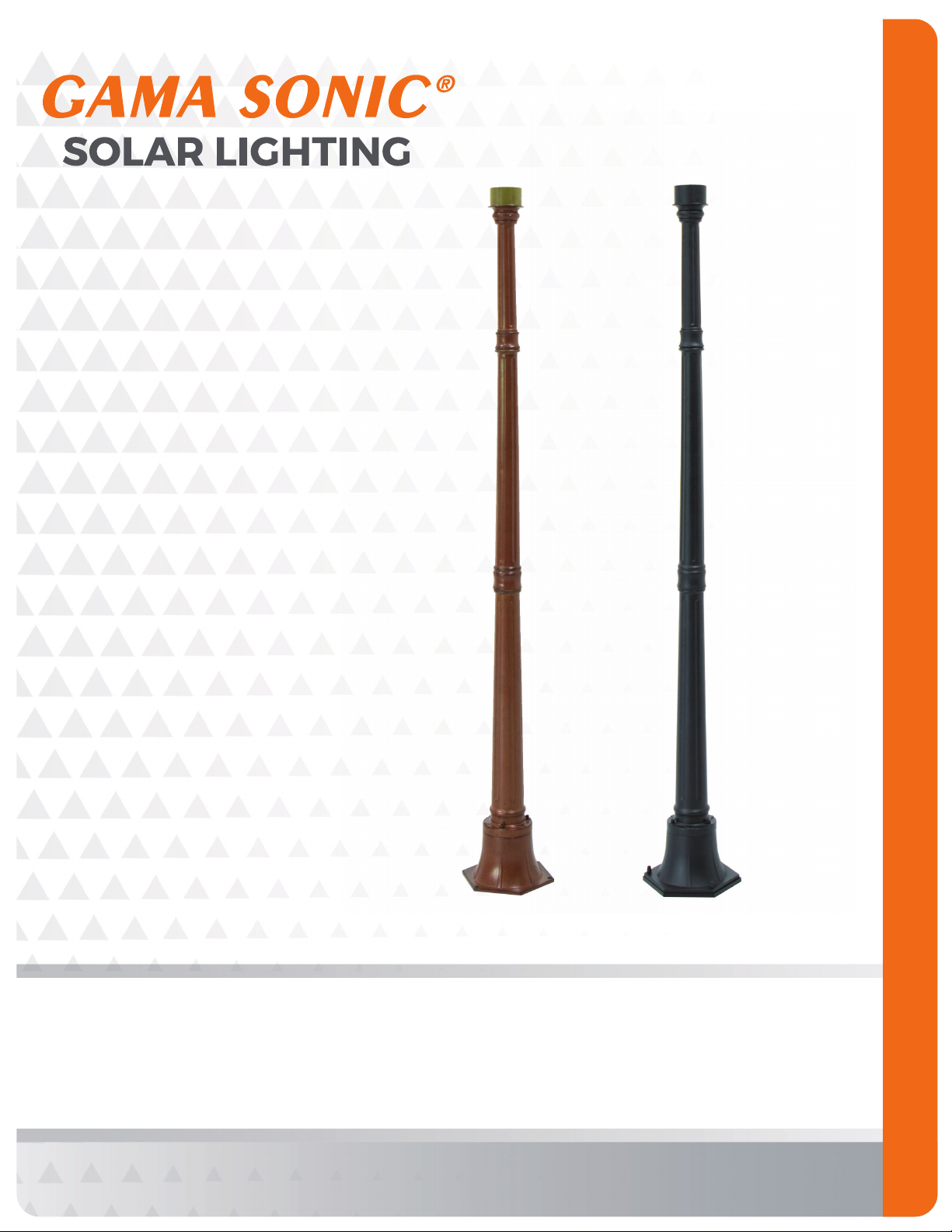

Gama Sonic DPEZ5F0 Manual de usuario

5’ DECORATIVE POST WITH EZ KIT

Part #: DPEZ5F0, DPEZ5F5

Version 1.1

Instruction Manual

page 2

Thank you for your purchase! GAMA SONIC®solar charged lights are brighter and last

all night with a typical solar charge. Unique design, superior light output and numerous

installation options conﬁrm the outstanding value of our product. GAMA SONIC®has

been recognized as a worldwide leader in the lighting industry for over 20 years.

Technical Assistance/Warranty Claims/Replacement Parts

Toll Free Number: +1-800-835-4113 (only within the US) or www.gamasonic.com

Visit our website or download the latest version of your instruction manual:

www.gamasonic.com or www.gamasonic.com/user-guides

Please read the instruction manual carefully to obtain the best results from your purchase.

For best results, the solar light must

be charged in the “ON” position (High

or Low) for at least 2 days of full direct

sunlight.

Gama Sonic’s EZ Anchor allows you to

mount your solar lamp anywhere in your

yard without needing to pour concrete.

Simply install the EZ Auger into the

ground where you want your lamp and

secure the post to it.

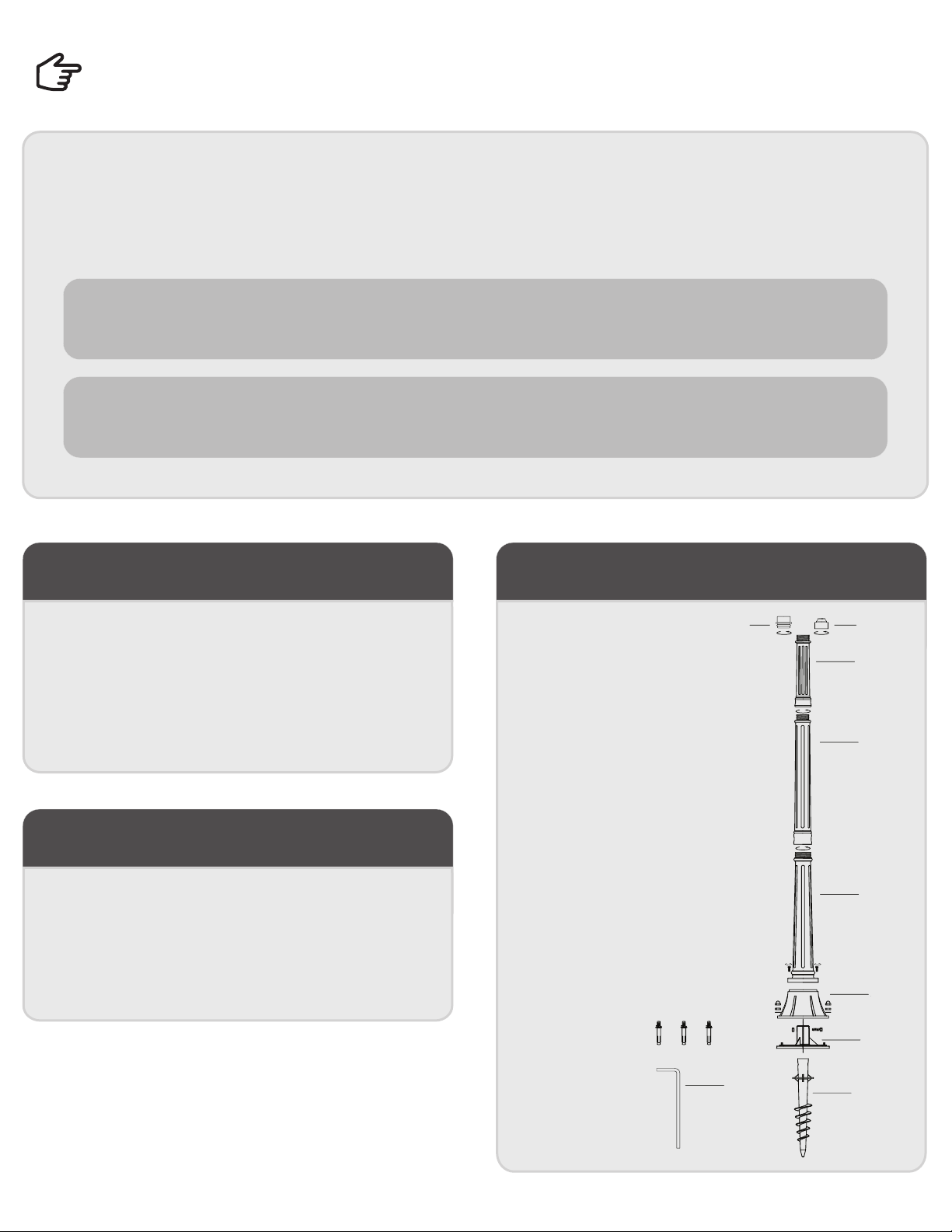

A= Base Pole

B= Middle Pole

C= Top Pole

D= Spacer Pole

E= Fitter Adapter

F= Mini Fitter

G= Auger

H= Base Plate

I= Turning Bar

Anchors

For optimum light duration throughout

the night, it is very important to mount

your solar lamp in a spot where it will

receive the maximum amount of direct

sunlight throughout the day.

GAMA SONIC’S EZ ANCHOR 2. What's in the Box

1. Solar Lamp Location

3. Assembly Instructions

page 3

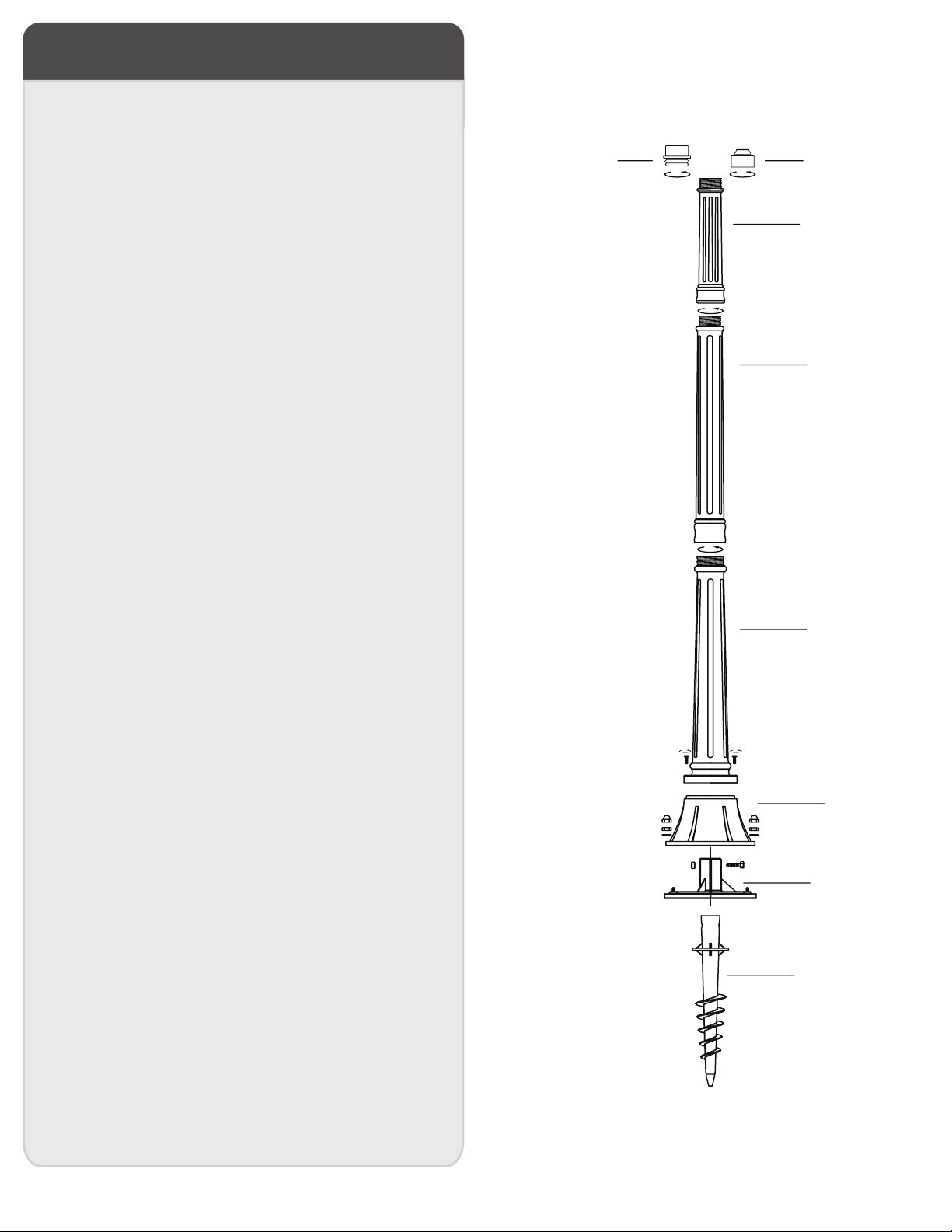

1. Remove the base plate (H) from the base pole (A) by

removing the screw caps, nuts, and washers from each of

the three screw studs.

Installing in concrete

- Using the base plate (H) as a template and mark where

the three holes will need to be drilled.

- Drill three holes in the concrete no larger than the

provided anchors.

- Insert the three anchors into the holes and secure

the base pole to the concrete by tightening the three

anchors.

- Continue to Step 2

Installing using the EZ Anchor

- Place the turning (I) bar through the hole at the top

of the auger (G) and begin twisting the auger (G) into

the ground clockwise. Use downward pressure while

turning.

- Occasionally check the level tool on the auger (G) to

ensure the auger is vertical.

- Stop turning once the ring on the auger (G) is ﬂush

with the ground.

- Slide the base plate (H) over the auger and secure it

with the large nut and bolt.

- Re-install the base pole (A) to the base plate (H) and

secure with the washer, nut, and screw caps removed

in step 1.

2. Attach the middle pole (B) to the base pole (A) and secure

with the three provided screws.

3. Attach the top pole (C) to the middle pole (B) by screwing

them together.

4. Attach the spacer pole (D) to the top pole (C) by screwing

them together.

5. Attach the ﬁtter adapter (E) to the spacer pole (D) by

screwing them together.

6. Mount your 3” lamp to the ﬁtter adapter (E) and secure

using the setscrews on the lamp.

E F

Optional Mini Fitter

This lamp post comes with an optional mini ﬁtter to attach your Gama Sonic lamp with a smaller ﬁtter for a sleeker look. Follow

the instructions below to install it.

• Remove the ﬁtter adapter (E) from the post and remove the 3” Fitter from your Gama Sonic lamp.

• Attach the mini ﬁtter (F) to the lamp and secure using the lamps hardware.

NOTE: in the event you cannot secure the mini ﬁtter with your lamp’s hardware, you can replace it with the nut and bolt

included with the mini ﬁtter. Each lamp is different and may require additional steps to remove the old ﬁtter and install

the mini ﬁtter.

• Attach the lamp with mini ﬁtter (F) to the spacer pole (D) by twisting clockwise.

Maintenance

Clean the solar panels regularly with a damp towel to guarantee optimum performance. Do not

use any type of solvent for cleaning and be careful not to put too much pressure on the solar

panels while cleaning.

Troubleshooting

If your solar light does not come on as expected despite observance of all the instructions,

please try the following steps:

1. Make sure that the solar lamp is not being affected by any other light source.

2. Ensure the solar lamp is not positioned in the shade during the day.

3. Check that the batteries are installed correctly.

NOTE: The performance of the solar lamp will vary with the time of year. It will last longer

when it has had a full day in the sun rather than a day in overcast weather.

WINTERTIME TIPS: For optimal performance, be sure to remove any snow or debris

accumulation from solar panel(s). A solar panel free of debris will charge the batteries much

more efﬁciently.

WARNING: Please keep out of reach of children. Do not dispose of the Li-Ion battery in the regular trash,

municipal waste stream or by ﬁre as batteries may leak or explode. Do not open, short circuit, or mutilate

batteries as injury may occur. Preserve our environment by recycling Li-Ion batteries or disposing of them in

accordance with local, State and federal regulations. Do not mix old and new batteries.

page 4

Replacement parts are available at

www.gamasonic.com or call +1-800-835-4113 (only within the US)
