GALTRONICS MK-07286 Manual de usuario

Model No: MK-07286 | Mounting kit for outdoor Base Station Panel Antennas page 1 of 3

WWW.GALTRONICS.COM

A90-00075: 23MAR-2020; Revision: R1

Mounting Bracket

For Outdoor Base Station Panel Antennas

DESCRIPTION:

This steel mounting bracket is suitable for all

Galtronics outdoor Base Station Panel antennas

with height 6’and above, and can be assembled

onto poles ranging from 2-3/8” (60.3 mm) to

4.5”(114.3 mm).

Specifications

Model Number

MK-07286

Environmental

Conditions

Outdoor

Weight

14.0lbs (6.36kg)

Material

Galvanized Steel

Wind Speed

Resistance

150mph (240kmh)

Dimensions

(LxHxW)

12.52” x 5.71” x 11.38”

(318.0mm x 145.0mm x

289.1mm)

Pole Diameter Range

−”(mm)to

−” (mm)

Mounting Style

Pole Mount

Mounting Hardware

to Antenna

Supplied with Bracket

Mounting Hardware

to Pole without Tilt

Supplied with Bracket

Mounting Hardware

to Pole with Tilt

Supplied with Bracket

Mounting Hardware

to Wall

Partially supplied with

Bracket

Down Tilt Range

0° to 10°

COMPATIBLE ANTENNA MODELS* GALTRONICS 6’and ABOVE BASE STATION ANTENNAS

TOP

BOTTOM

Model No: MK-07286 | Mounting kit for outdoor Base Station Panel Antennas page 2 of 3

WWW.GALTRONICS.COM

A90-00075: 23MAR-2020; Revision: R1

Assembly Drawing

Figure 1. Exploded View of Mounting Bracket Assemblies

Table 1 - Top Bracket Hardware

ITEM

QTY

DESCRIPTION

INDEXED TILT BRACKET

REAR CLAMP

BOTTOM ANTENNA

BRACKET

TOP ANTENNA BRACKET

NUT, HEX, 1/2"-13 UNC

SCREW, HEX HEAD,

1/2"-13 UNC, 1-3/4" L

SCREW, HEX HEAD,

1/2"-13 UNC, 8" L

WASHER, FLAT, 1/2"

SCREW

WASHER, SPLIT LOCK,

1/2" SCREW

WASHER, FLAT, 1/2"

SCREW, 1.5" OD

Model No: MK-07286 | Mounting kit for outdoor Base Station Panel Antennas page 3 of 3

WWW.GALTRONICS.COM

A90-00075: 23MAR-2020; Revision: R1

Assembly Instructions

Step 1 –Fasten Bracket assemblies to pole:

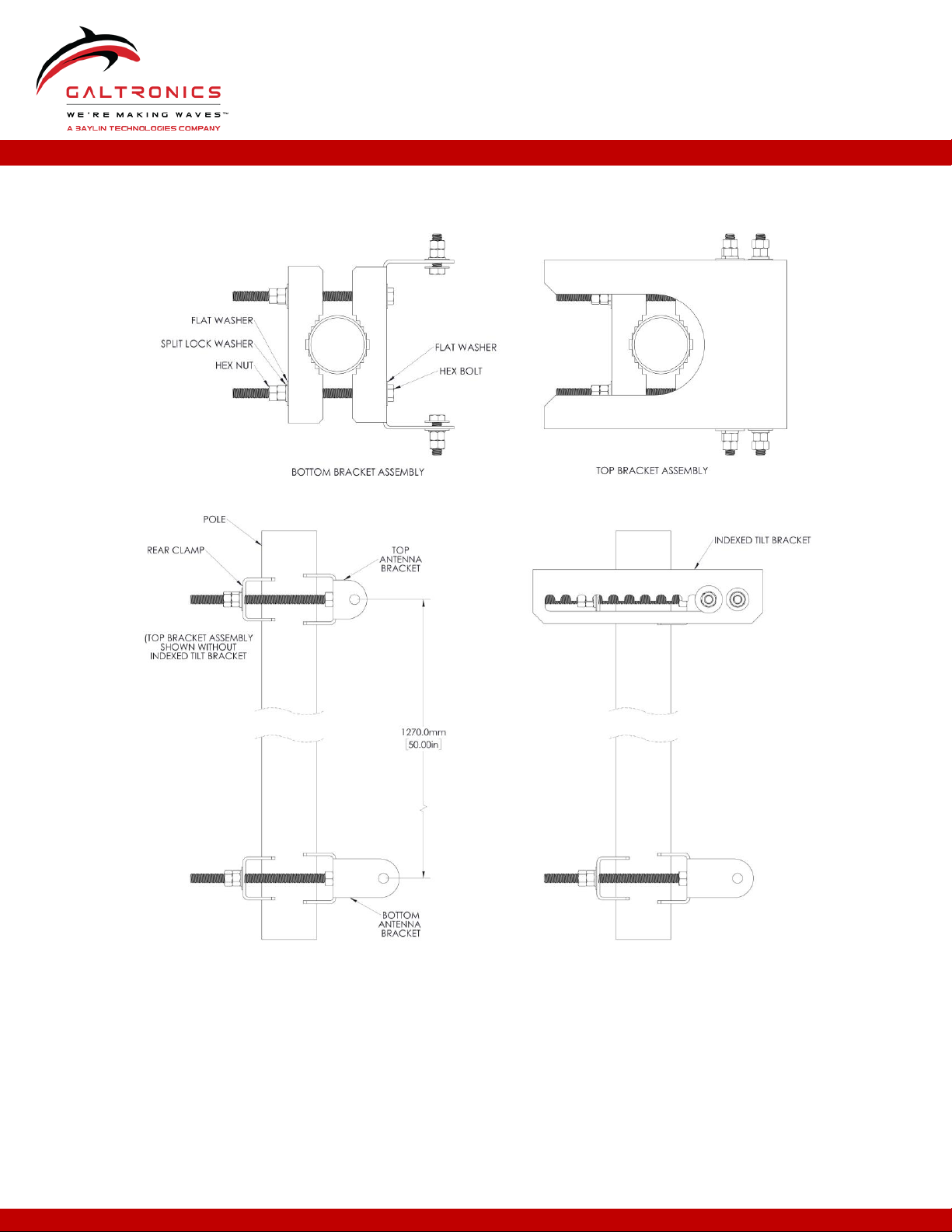

Figure 2. Mounting bracket to pole installation, Bottom and Top bracket assemblies –TOP VIEW

Figure 3. Mounting bracket to pole installation - SIDE VIEW

Step 2 –Attach antenna to brackets:

Attach the antenna onto the pole mounted bracket using the 1/2 “- 13 X 1 - 3/4” hex head. Apply a

thread lubricant and tighten the Hex Nuts to proper torques (40 ft/lb).
