GB TECHNICAL MANUAL

HIGH WALL-MOUNTED FAN COIL UNITS

WITH BLDC MOTOR AND INCORPORATED VALVE

All copying, even partial, of this manual is strictly forbidden FC66003740 - Rev 01

TABLE OF CONTENTS

1 GENERALITIES..................................................................... 3

2 CONSTRUCTIVE FEATURES ................................................. 3

3 ACCESSORIES ..................................................................... 4

4 RATED TECHNICAL DATA..................................................... 5

5 PERFORMANCES................................................................. 6

5.1 Cooling .................................................................................6

5.2 Heating..................................................................................7

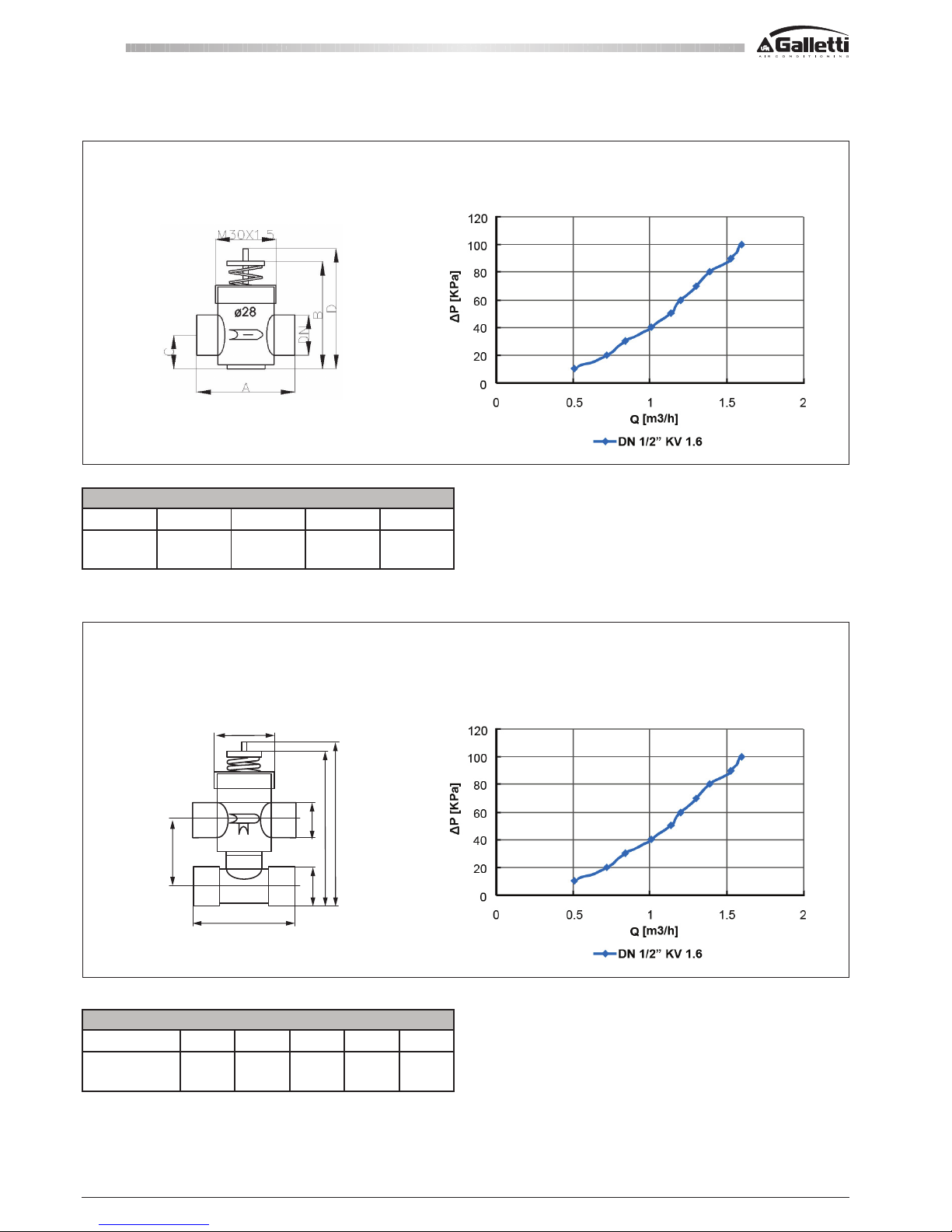

5.3 Valve information...................................................................8

5.4 Sound levels..........................................................................9

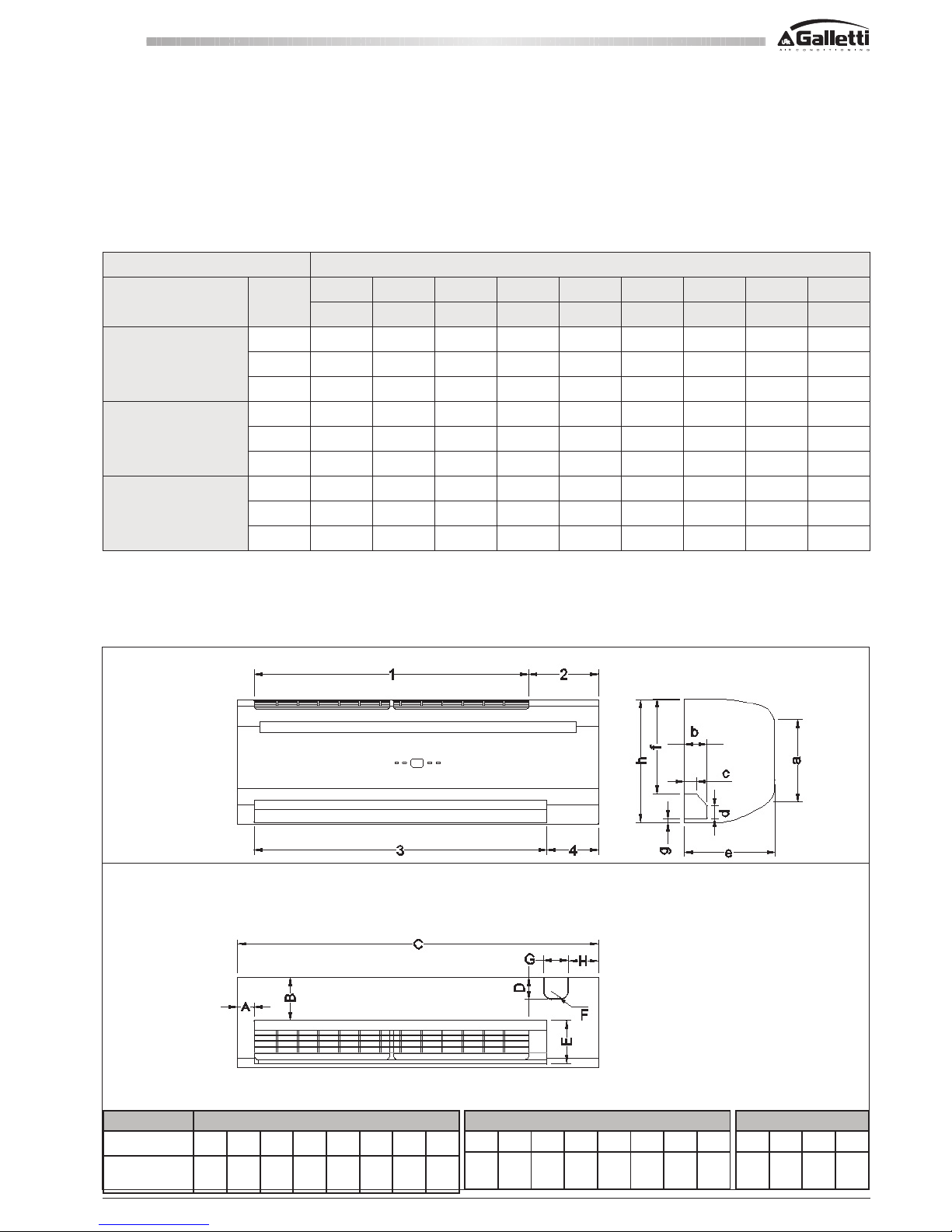

6 OVERALL DIMENSIONS ...................................................... 10

6.1 Mounting plate dimensions ..................................................10

7 WIRING DIAGRAMS............................................................ 11

8 MASTER/SLAVE NETWORKS.............................................. 11

9 WALLPAD ........................................................................... 13

10 INSTALLATION REqUIREMENTS......................................... 14

11 ROUTINE MAINTENANCE.................................................... 15

12 MODBUS ............................................................................ 16

The technical and dimensional data provided herein may undergo changes in connection

with product improvements.

OPERATING LIMITS

Minimum inlet water temperature = 5°C

Maximum Inlet water temperature = 70°C

Minimum air intake temperature = 5°C

Maximum air intake temperature = 35°C

Maximum wet bulb air intake temperature = 24°C

Supply voltage = 230 Vac

- For any further information, contact the manufacturer: [email protected]

- To get the weight of the unit, refer to the User Manual, Rated technical data table.

All copying, even partial, of this manual is strictly forbidden

FC66003740 - Rev 01

1 GENERALITIES

High wall-mounted FM fan coil units are available in 3 models with cooling

capacities ranging from 2.1 to 4.4 kW, complete with electronically controlled

inverter motor (BLDC, 2 or 3-way ON/OFF solenoid valve and infrared remote

control.

The performance features of FM fan coil units are certified by EUROVENT

which guarantees the reliability of the data shown on this documentation.

2 CONSTRUCTIVE FEATURES

CABINET

The ABS cabinet features attractive design, rounded shape, for every type

of environment.

The integrated air outlet is equipped with a motor driven flap that can sweep

automatically or be positioned manually, and adjustable fins for a uniform

distribution of air in the room.

The front panel is complete with display to show all the functions of the unit

and the room temperature.

HEAT EXCHANGER

Uprated heat exchanger made with copper piping and high efficiency alumi-

nium fins with hydrophilic surface treatment, complete with air vent valve

and facilitated emptying valve.

ON/OFF SOLENOID VALVE ASSEMBLY

All units are equipped with 2 or 3-way solenoid valve with electrothermal ON/

OFF actuator (230 V) directly installed on the heat exchanger inside the unit

and controlled by the microprocessor controller. Hoses for the connection

to the system facilitate the installation operations.

DECLARATION OF CONFORMITY

Galletti S.p.A. hereby declares, under its sole responsibility, that the

high wall-mounted fan coil units belonging to the FM series, have

been designed, built and tested in conformity with the specifications

of European Directives: 2006/42/CE, 2004/108/CE, 2006/95/CE

Bentivoglio, 08/01/2014

Galletti S.p.A.

Luca Galletti

FM high wall-mounted

1234567891011

S K A F M 0 3 2 T 0 0

Revision Name of series Size No. of valves Control

included Motor Other

All copying, even partial, of this manual is strictly forbidden FC66003740 - Rev 01

2 CONSTRUCTIVE FEATURES

FAN-DRIVE ASSEMBLY

Tangential fan directly coupled to an electronically controlled electric motor

of synchronous brushless type (BLDC) controlled by inverter.

The great advantage of brushless motors is the significant reduction in power

consumption, which reaches up to a 2/3 of that of asynchronous motors with

the corresponding reduction in CO2 emissions. The DC Inverter technology

allows to continuously adjust the air flow and heating capacity to the actual

needs of the environment by considerably reducing the fluctuations in room

temperature that are typical of step-by-step adjustments.

The direct consequence is the reduction in the noise emission of the fan coil,

which is proportional to the demands of the environment.

CONTROL SYSTEM

The microprocessor control system with infrared user interface enables the

automatic control of the fan coil unit.

The main control specifications are:

- Selection of the cooling, heating, dehumidification mode or the automatic

mode.

- PID control algorithm to regulate the BLDC fan: the control logic adapts

the fan rpm to the difference between measured temperature and set

temperature, integrate over time the deviation measured and adapt the

rpm accordingly. The derivative logic analyzes the change speed thus

assuring little variations.

- Water temperaturereading and definition ofminimum working temperatures

- Auxiliary contacts for signalling of heating or cooling mode

- Inlet contact for remote on/off operation ( (for instance signalling of room

occupied)

- Serial port for the implementation of master/slave networks

- Autorestart after power cut.

REMOTE CONTROL

Infrared remote control with LCD display, to set all the functions of the fan coil:

- Switching on and off

- Temperature Set point

- Operatingmode(cooling-dehumidification-ventilation-heating-automatic)

- Ventilation (automatic-maximum-medium-minimum)

- Switching on and off via Timer

- Air outlet flap sweep

- Clock

When, in a maser/slave system, the fan coil with remote control is the master

unit, the settings are automatically sent to the slave units.

The flap sweep function is not applicable.

AIR FILTER

The filter is washable and can be easily removed for cleaning operations, by

lifting the front panel of the cabinet.

3 ACCESSORIES

available as an option is a wired wallpad with a large display, which can be

used to control and set all the functions of each individual fan coil unit in

master/slave systems.

WALLPAD supplied with cable for the connection to the fan coil unit.

Temperature pattern with 3-speed motor and brushless motor

3-speed

motor

Noise pattern with 3-speed motor and brushless motor

3-speed

motor

All copying, even partial, of this manual is strictly forbidden

FC66003740 - Rev 01

4 RATED TECHNICAL DATA

1Water temperature 7-12°C, air temperature D.B. 27°C, W.B. 19°C (47% relative humidity)

2Water temperature 50°C, water flow rate same as in cooling mode, air inlet temperature 20°C

3Sound power measured according to standards ISO3741 and ISO3744

4Sound pressure level measured at a distance of 1 m with a directivity factor of 4

RATED TECHNICAL DATA OF FM FAN COIL UNITS

Model 22 / 23 32 / 33 42 / 43

Supply voltage V - ph - Hz 230-1-50 / 220-1-60

Speeds 123123123

Total cooling capacity (1) kW 1,37 1,64 2,07 1,94 2,40 3,02 2,68 3,28 3,74

Sensible cooling capacity (1) kW 0,99 1,20 1,52 1,40 1,47 2,22 1,95 2,40 2,74

Water flow rate (1) l/h 234 281 356 335 414 518 457 565 641

Pressure drop (1) kPa 11 15 22 18 26 38 25 36 45

FCEER - nominal value 168 187 183

FCEER - Class B A B

Heating capacity (2) kW 1,75 2,12 2,70 2,48 2,61 3,93 3,45 4,20 4,87

Pressure drop (2) kPa 9 12 18 15 22 32 20 29 36

FCCOP - nominal value 216 230 238

FCCOP - Class B

Air flow rate m3/h 290 370 500 370 445 645 570 740 876

Power input W 8 10 13 10 13 20 13 20 30

Sound power level (3) dB/A 35 40 48 38 43 53 45 52 57

Sound pressure level (4) dB/A 27 32 40 30 35 45 37 44 49

Water content dm3 0,43 0,86

Water connections (female gas) inches 1/2

Condensate drainage connection inches (mm) 5/8 (16)

Dimensions H x L x P mm 876/228/300

Net weight kg 12,00 13,00 14,00

Tbs1/ Tbu1(UR1) 25°C (51%)

Tw1/ Tw26°C / 11°C 7°C / 12°C

Vr PFT PFS qw Dpw PFT PFS qw Dpw

W W l/h kPa W W l/h kPa

FM 22 / FM 23

1 1290 910 223 10 1010 810 173 6

2 1560 1110 266 14 1270 1000 220 10

3 1980 1410 338 21 1650 1290 284 15

FM 32 / FM 33

1 1830 1290 313 16 1390 1120 238 10

2 2290 1370 392 24 1850 1200 317 16

3 2890 2060 497 36 2390 1870 410 26

FM 42 / FM 43

1 2570 1820 439 24 2190 1670 374 18

2 3160 2240 544 34 2720 2070 464 26

3 3600 2550 619 43 3110 2360 533 33

Tbs1/ Tbu1(UR1) 25°C (51%)

Tw1/ Tw28°C / 13°C 9°C / 14°C

Vr PFT PFS qw Dpw PFT PFS qw Dpw

W W l/h kPa W W l/h kPa

FM 22 / FM 23

1 820 740 140 4 810 810 140 4

2 1040 1040 180 7 940 940 162 6

3 1260 1140 216 9 1200 1200 205 9

FM 32 / FM 33

1 1190 1050 205 8 1180 1180 202 7

2 1310 1000 223 9 1080 920 187 6

3 1760 1640 302 15 1760 1760 302 15

FM 42 / FM 43

1 1750 1510 302 12 1500 1500 259 9

2 2230 1890 382 18 1860 1860 320 13

3 2570 2170 439 23 2130 2130 367 17

Tbs1/ Tbu1(UR1) 27°C (47%)

Tw1/ Tw26°C / 11°C 7°C / 12°C

Vr PFT PFS qw Dpw PFT PFS qw Dpw

W W l/h kPa W W l/h kPa

FM 22 / FM 23

1 1590 1080 274 14 1370 990 234 11

2 1890 1300 324 19 1640 1200 281 15

3 2370 1630 407 29 2070 1520 356 22

FM 32 / FM 33

1 2270 1530 389 24 1940 1400 335 18

2 2770 1620 475 33 2400 1470 414 26

3 3470 2400 594 49 3020 2220 518 38

FM 42 / FM 43

1 3030 2090 518 32 2680 1950 457 25

2 3700 2560 634 45 3280 2400 565 36

3 4210 2910 724 56 3740 2740 640 45

Tbs1/ Tbu1(UR1) 27°C (47%)

Tw1/ Tw28°C / 13°C 9°C / 14°C

Vr PFT PFS qw Dpw PFT PFS qw Dpw

W W l/h kPa W W l/h kPa

FM 22 / FM 23

1 1100 890 187 7 970 970 166 6

2 1350 1100 234 11 1160 1160 198 8

3 1740 1400 299 16 1350 1260 230 11

FM 32 / FM 33

1 1520 1240 263 12 1210 1130 209 8

2 1970 1310 338 18 1320 1080 227 9

3 2520 2040 432 28 2140 2140 367 21

FM 42 / FM 43

1 2290 1810 392 19 1860 1660 320 13

2 2830 2240 486 28 2330 2060 400 20

3 3240 2560 554 35 2690 2360 461 25

All copying, even partial, of this manual is strictly forbidden FC66003740 - Rev 01

5 PERFORMANCES

5.1 COOLING

Tbs1Air inlet temperature (dry bulb)

Tbu1Air inlet temperature (wet bulb)

Ur Relative humidity

Tw1Water inlet temperature

Tw2Water outlet temperature

PFT Total cooling capacity

PFS Sensible cooling capacity

qw Water flow rate

∆pw2-∆pw3

Pressure drop water side, unit without valve

Vr Fan speed

Tbs120°C

Tw1/ Tw245 / 40°C 50°C / 40°C

Vr PH qw Dpw PH qw Dpw

W l/h kPa W l/h kPa

FM 22 / FM 23

1 1470 256 10 1530 133 3

2 1790 310 14 1870 162 5

3 2280 396 22 2400 209 7

FM 32 / FM 33

1 2080 364 18 2170 187 6

2 2130 371 18 2200 191 6

3 3320 576 40 3490 302 13

FM 42 / FM 43

1 2900 504 24 3100 270 8

2 3530 612 34 3770 328 11

3 4110 713 45 4410 385 15

Tbs120°C

Tw1/ Tw260°C / 50°C 70°C / 60°C

Vr PH qw Dpw PH qw Dpw

W l/h kPa W l/h kPa

FM 22 / FM 23

1 2290 202 6 3000 263 10

2 2780 245 9 3640 320 14

3 3550 310 13 4640 407 21

FM 32 / FM 33

1 3240 284 11 4260 374 17

2 3310 288 11 4360 382 18

3 5160 450 24 6740 590 38

FM 42 / FM 43

1 4520 396 15 5880 515 23

2 5490 479 21 7140 626 33

3 6390 558 28 8330 731 42

Tbs122°C

Tw1/ Tw245 / 40°C 50°C / 40°C

Vr PH qw Dpw PH qw Dpw

W l/h kPa W l/h kPa

FM 22 / FM 23

1 1330 230 8 1380 119 3

2 1620 281 12 1690 148 4

3 2070 360 18 2170 187 6

FM 32 / FM 33

1 1880 328 15 1950 169 5

2 1920 335 15 1970 173 5

3 3000 522 33 3150 274 11

FM 42 / FM 43

1 2630 457 20 2810 245 7

2 3200 554 29 3420 299 10

3 3720 648 38 4000 349 13

Tbs122°C

Tw1/ Tw260°C / 50°C 70°C / 60°C

Vr PH qw Dpw PH qw Dpw

W l/h kPa W l/h kPa

FM 22 / FM 23

1 2140 187 6 2860 252 9

2 2600 227 8 3460 302 13

3 3330 292 12 4420 389 19

FM 32 / FM 33

1 3040 266 10 4060 356 16

2 3090 270 10 4150 364 16

3 4840 421 22 6410 562 35

FM 42 / FM 43

1 4240 371 13 5600 490 21

2 5150 450 19 6800 598 30

3 6000 526 25 7930 695 39

All copying, even partial, of this manual is strictly forbidden

FC66003740 - Rev 01

5 PERFORMANCES

5.2 HEATING

Tbs1Air inlet temperature (dry bulb)

Tw1Water inlet temperature

Tw2Water outlet temperature

PT Heating capacity

qw Water flow rate

∆pw2-∆pw3 Pressure drop water side, unit without valve

Vr Fan speed

M30x1.5

Ø28

DNDN

All copying, even partial, of this manual is strictly forbidden FC66003740 - Rev 01

2 Way Valve Body

3 Way / 4 Outlet

Differential pressure Chart

Valve Dimensions (mm)

DN A B C D

D15

(G1/2”)

52 47 19.5 63

Valve Dimensions (mm)

Valve Model DN A B C D

DFPS-HWS-007b D15

(G1/2”)

52 70 35 86

5 PERFORMANCES

3.5 VALVE INFORMATION

FM Vr

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz LwA LpA

dB dB dB dB dB dB dB dB/A dB/A

FM 22 / FM 23

1 43,8 46,1 45,2 42,3 33,9 23,1 17,0 46 38

2 36,9 38,9 37,5 32,4 23,6 16,4 17,4 38 30

3 36,3 36,7 34,0 28,4 21,7 17,3 19,2 35 27

FM 32 / FM 33

1 51,2 52,9 50,5 48,4 41,3 32,0 21,5 52 44

2 41,6 44,0 42,5 37,5 28,7 20,4 19,1 43 35

3 37,7 39,2 37,9 32,9 24,3 17,8 17,5 38 30

FM 42 / FM 43

1 54,8 55,8 53,7 54,3 47,5 38,1 26,8 57 49

2 48,6 50,0 49,4 48,1 40,5 30,3 20,3 51 43

3 43,0 44,4 44,1 41,3 32,5 21,8 18,6 45 37

All copying, even partial, of this manual is strictly forbidden

FC66003740 - Rev 01

6 OVERALL DIMENSIONS

5 PERFORMANCES

5.4 SOUND LEVELS

LpA Total sound pressure level, weighted A, measured at a distance of

1 m, with a directivity factor of 2.

Lw Sound power level by octave band, not weighted

LwA Total sound power level, weighted A

Vr Fan speed

Model Unit dimensions (mm)

A B C D E F G H

FM 22 / 23 / 32 /

33 / 42 / 43 40 105 875 55 105 R20 60 74

Unit dimensions (mm)

1234

665 170 710 125

Unit dimensions (mm)

a b c d e f g h

200 55 30 30 220 229 10 300

All copying, even partial, of this manual is strictly forbidden FC66003740 - Rev 01

6 OVERALL DIMENSIONS

6.1 MOUNTING PLATE DIMENSIONS

Hot water 4-pipe convector

sensor

Hot/chilled water 2-pipe

convector sensor

Return air sensor

ON/OFF electric

control board

(20/24).

Connection to stepper motor of air

outlet flap

Connect

LED Display/IR receiverWall-mounted cable control

Yellow/green

Auxiliary heating contact

Auxiliary cooling contact

7 WIRING DIAGRAMS

Make the electrical connections with the power supply disconnected, in accordance with current safety regulations.

Check that the mains electricity supply is compatible with the voltage shown on the unit rating plate.

Each fan coil requires an individual electric socket and a switch with a suitable safety fuse.

--------- Factory wiring

- - - - - Field wiring

Each fan coil requires an omnipolar main switch classified as overvoltage category III to be mounted on the power supply line.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Galletti

Galletti

Galletti FM Instrucciones de funcionamiento

Galletti

Galletti IWC032 Manual de usuario

Galletti

Galletti ART-U Series Manual de usuario

Galletti

Galletti UTN Guía de inicio rápido

Galletti

Galletti ESTRO FA Guía de inicio rápido

Galletti

Galletti UTN Guía de inicio rápido

Galletti

Galletti IWC Series Manual de usuario

Galletti

Galletti ACQVARIA AQ10Q0B0 Manual de usuario

Galletti

Galletti FLAT S Guía de inicio rápido

Galletti

Galletti ESTRO BLDC FLI Manual de usuario

Galletti

Galletti LCP Series Guía de inicio rápido

Galletti

Galletti ART-U 10 Manual de usuario

Galletti

Galletti 2x1 Manual de usuario

Galletti

Galletti MPI DC 08 Manual de usuario

Galletti

Galletti Estro FU Guía de inicio rápido

Galletti

Galletti LCWC055 Manual de instrucciones

Galletti

Galletti IWC Series Manual de usuario

Galletti

Galletti PWN Manual de usuario

Galletti

Galletti CSW 136 Manual

Galletti

Galletti FM 22/23 Instrucciones de funcionamiento

Galletti

Galletti AREO S 12 Manual de usuario

Galletti

Galletti WH SERIES Manual de usuario

Galletti

Galletti AREO 12 Manual de usuario

Galletti

Galletti MPE series Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
