Fusion MS-FR4021 Guía

MS-FR4021 MS-FR6021 MS-FR7021

Tweeter Type Titanium Dome Titanium Dome Titanium Dome

Max Power (watts) 120 200 260

Efﬁciency (1W/1M) 87db 90db 91db

Frequency Response 90 – 22kHz 70 – 22kHz 60 – 22kHz

Min. Mounting

Depth Allowing

Clearance (mm/in)

54mm (2-1/8”) 71.5mm (2-13/16”) 78mm (3-1/16”)

Impedance 4 ohms 4 ohms 4 ohms

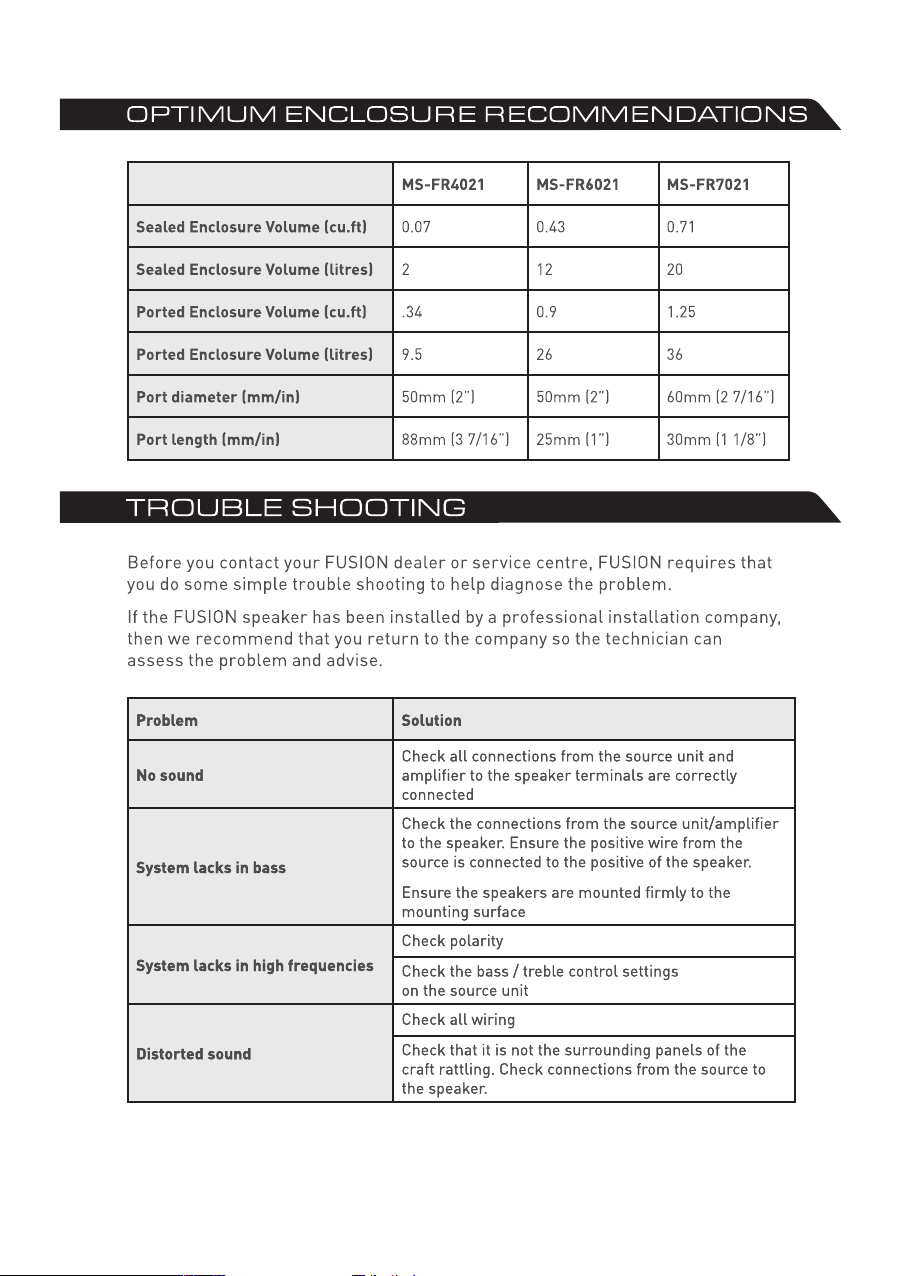

MS-FR4021 MS-FR6021 MS-FR7021

Sealed Enclosure Volume (cu.ft) 0.07 0.43 0.71

Sealed Enclosure Volume (litres) 2 12 20

Ported Enclosure Volume (cu.ft) .34 0.9 1.25

Ported Enclosure Volume (litres) 9.5 26 36

Port diameter (mm/in) 50mm (2”) 50mm (2”) 60mm (2 7/16”)

Port length (mm/in) 88mm (3 7/16”) 25mm (1”) 30mm (1 1/8”)

Problem Solution

No sound

Check all connections from the source unit and

ampliﬁer to the speaker terminals are correctly

connected

System lacks in bass

Check the connections from the source unit/ampliﬁer

to the speaker. Ensure the positive wire from the

source is connected to the positive of the speaker.

Ensure the speakers are mounted ﬁrmly to the

mounting surface

System lacks in high frequencies

Check polarity

Check the bass / treble control settings

on the source unit

Distorted sound

Check all wiring

Check that it is not the surrounding panels of the

craft rattling. Check connections from the source to

the speaker.
