Furuno FR-1500 MARK-3 Manual de usuario

MARINE RADAR

MODEL FR-1505 MARK-3 Series

FR-1505/1510/1525 MARK-3

(IncludingAutomatic TrackingAidARP-10/17 and

Video Plotter RP-17)

9-52, Ashihara-cho,

Nishinomiya, Japan

Telephone: 0798-65-2111

Telefax: 0798-65-4200

Your Local Agent/Dealer

All ri

hts reserved.

PUB. No. SME-34500-B

FR-1500 MARK-3 SERIES

(KAOK)

FIRST EDITION : JAN. 1999

B : FEB. 1, 2000

Printed in Japan

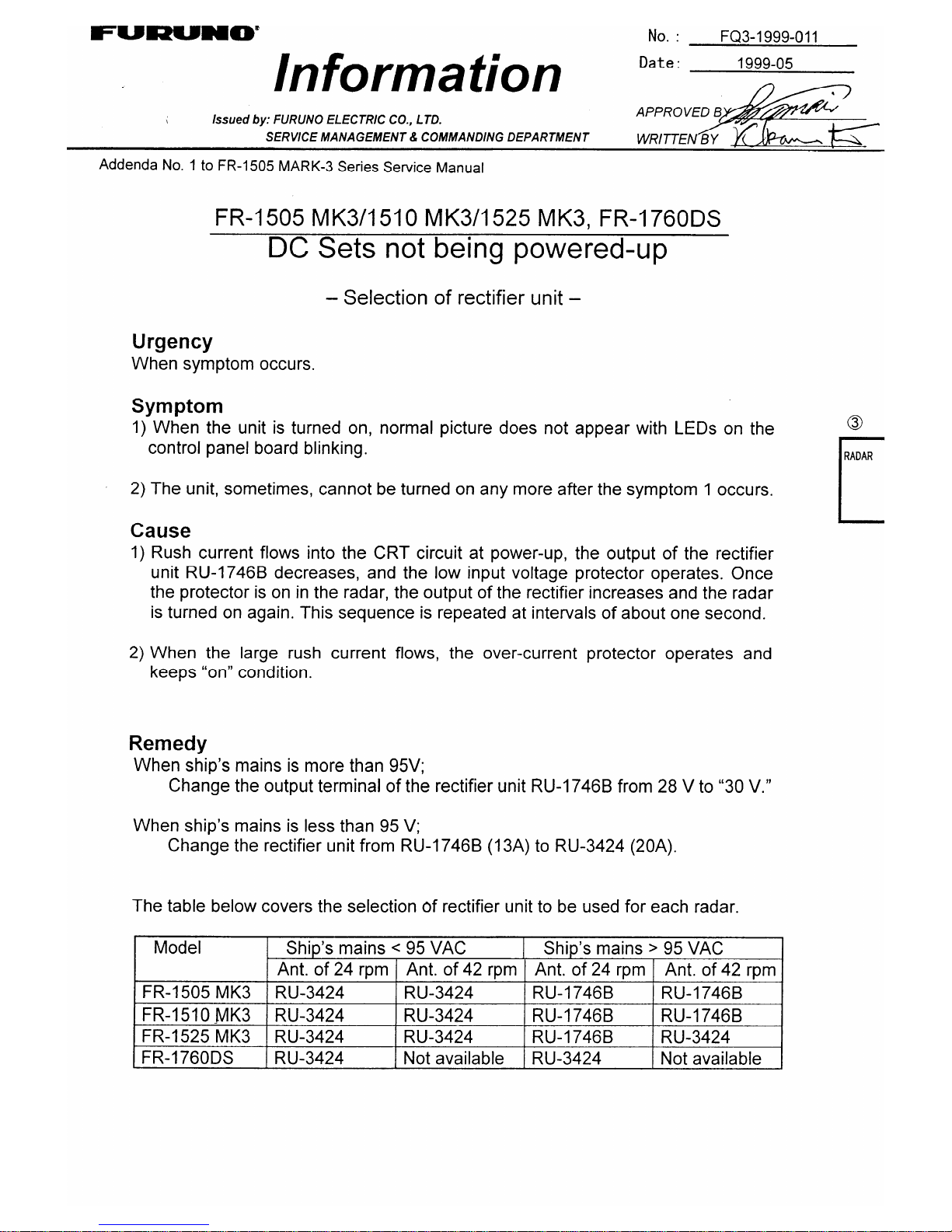

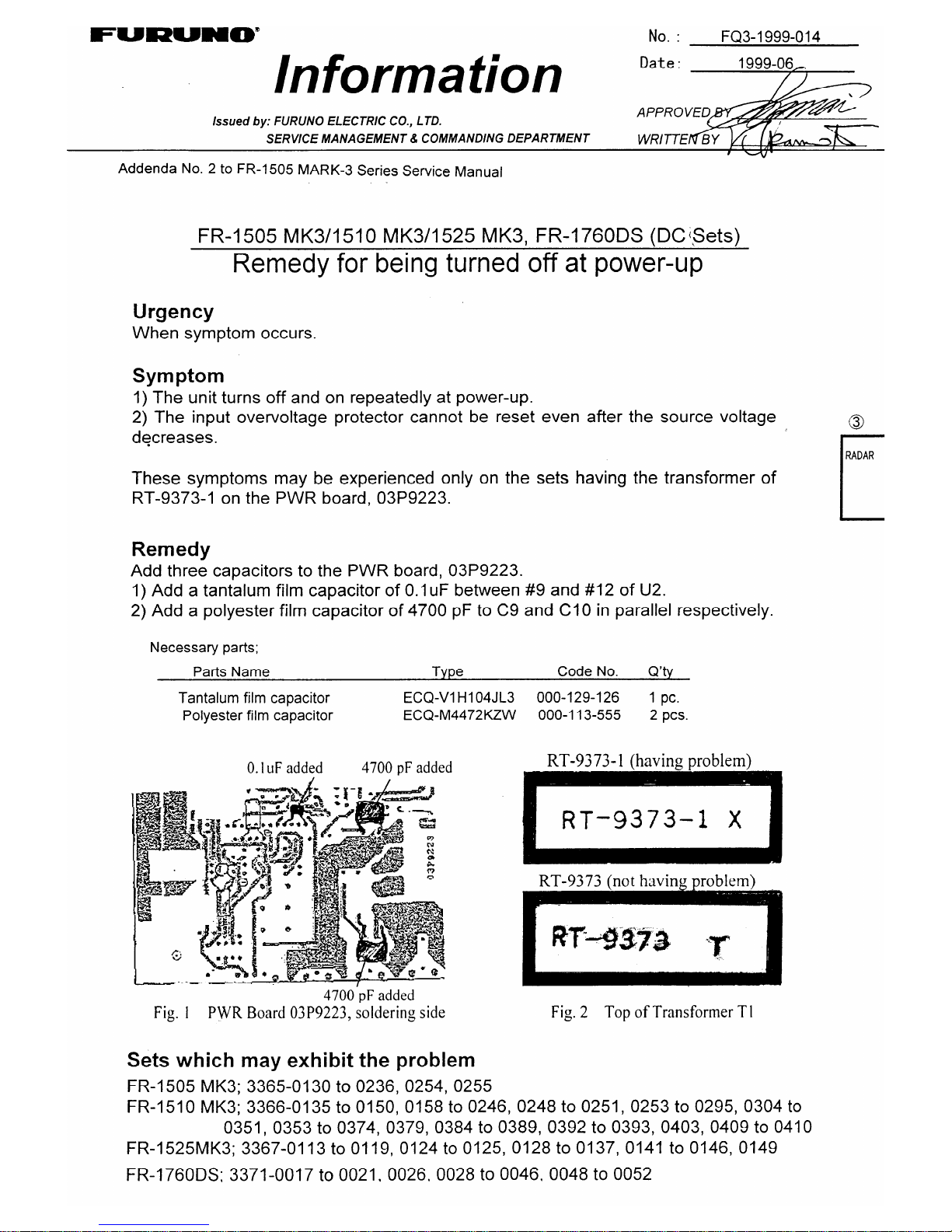

1-1

1.1 Outline

The antenna unit uses a Log IF amplifier. The scanner unit is the same as that of FR-2115

(12KW) and FR-2125 (25kW). The difference between 6 kW and 12 kW sets is the use of

different type of the magnetron, and different setting of magnetron current.

The features are;



6 pulselengths enabling echo size on the screen to be similar in all ranges.



Flash ROM enabling program update to use a PC.



Non-interlace, high-resolution display (1024

768 dots).



Improved short-range performance using shorter pulselength and higher repetition rate than

before.

The table below shows the major specifications of each model.

Functions FR-1505 MARK-3 FR-1510 MARK-3 FR-1525 MARK-3

Maximum Range 48 NM 72 NM 96 NM

Program Number 0359152102

Tuning Voltage

(displayed at manual tuning) 4.9 V to 32 V

RF Module RTR-067 RTR-062 RTR-063

Antenna Rotation Approx 24 rpm or Approx 42 rpm

Output Power 6 kW 12 kW 25 kW

TX-HV Board HV-9017 A HV-9017 B

Input Voltage (Ship’s Mains)

12 VDC : 10.8 to 15.6 V

24/32 VDC : 21.6 to 41.6 V

100 VAC : 90 to 126 V

200 VAC : 198 to 253 V

24/32 VDC : 21.6 to 41.6 V

100 VAC : 90 to 126 V

200 VAC : 198 to 253 V

Chapter 1. GENERAL

1-2

1.2 Boards & Major Components

DISPLAY UNIT

Board Name FR-1505 MARK-3 FR-1510 MARK-3 FR-1525 MARK-3

SPU Board 03P9230

PWR Board DC : 03P9223 C/D, AC : 03P9228 C/D

FILTER Board DC : 03P9224, AC : LF-205A

TX-HV Board HV-9017A HV-9017B

MAIN PANEL Board 03P9226

KEY PANEL Board 03P9227

ARPA Board (Option : ARP-10/ARP-17) 18P9004 (ARP-17), 18P9007 (ARP-10)

RP Board (Option : RP-17) 03P9259

Gyro Board 64P1106 A

PM Board (Option : PM-30/50) 03P9225

CRT Unit QA1510

SCANNER UNIT

Board Name FR-1505 MARK-3 FR-1510 MARK-3 FR-1525 MARK-3

MODULATOR Board 03P9244 D 03P9244 A 03P9244 B

RFC Board 03P9243 A 03P9243 B

IF AMP Board 03P9232

INTERFACE Board 03P9242

Limitter RU-9099

MIC RU-9253/RU-9371*

Magnetron MG5389/E3560 MG5241 MG5436

Circulator RC-3686

Scanner Motor D8G-516 (24 rpm)/D8G-571 (42 rpm)

Signal Cable RW-6895/RW-4873

* : No difference between two types in performance and electrical characteristics.

1-3

1.3 Specifications

SCANNER UNIT

ITEM FR-1505 MARK-3 FR-1510 MARK-3 FR-1525 MARK-3

Radiator Type Slotted Waveguide Array

Radiator Length 120 cm (XN12AF),

200 cm (XN20AF) 120 cm (XN12AF), 200 cm (XN20AF),

240 cm (XN24AF)

Horizontal Beamwidth 1.92 deg. (XN12AF),

1.24 deg. (XN20AF) 1.92 deg. (XN12AF), 1.24 deg. (XN20AF),

0.96 deg. (XN24AF)

Vertical Beamwidth 19.5 deg. (XN12AF),

20 deg. (XN20AF) 19.5 deg. (XN12AF), 20 deg. (XN20AF),

21 deg. (XN24AF)

Within +10 deg. to

–10 deg. of mainlobe –28 dB or less

(XN12AF/XN20AF) –28 dB or less

(XN12AF/XN20AF/XN24AF))

Sidelobe

Attenuation Outside +10 deg. to

–10 deg. of mainlobe –32 dB or less

(XN12AF/XN20AF) –32 dB or less

(XN12AF/XN20AF/XN24AF)

Polarization Horizontal

Antenna Rotation approx. 24 rpm/approx. 42 rpm

Scanner Housing Structure Open Radiator

Standard 1.65 m

Compass Safe Distance Steering 1.25 m

TRANSCEIVER

ITEM FR-1505 MARK-3 FR-1510 MARK-3 FR-1525 MARK-3

Magnetron MG5389/E3560 MG5241 MG5436

Frequency &

Modulation 9380 MHz to 9440 MHz, P0N (X band)

Peak Output Power 6 kW 12 kW 25 kW

0.07 µs, approx. 3000 Hz (S1 : 0.125 nm to 1.5 nm)

0.15 µs, approx. 3000 Hz (S2 : 0.5 nm to 3 nm)

0.3 µs, approx. 1500 Hz (M1 : 0.75 nm to 6 nm)

0.5 µs, approx. 1000 Hz (M2 : 3 nm to 24 nm)

0.7 µs, approx. 1000 Hz (M3 : 3 nm to 24 nm)

Pulselength & Pulse

Repetition Rate 1.2 µs,

approx. 600 Hz

(L : 12 nm to 32 nm)

approx. 500 Hz

(L : 48 nm)

1.2 µs,

approx. 600 Hz

(L : 12 nm to 48 nm)

approx. 500 Hz

(L : 72 nm)

1.2 µs,

approx. 600 Hz

(L : 12 nm to 48 nm)

approx. 500 Hz

(L : 120 nm)

Modulator FET Switch

Duplexer Circulator with diode limiter

Tuning Automatic or Manual

Intermediate

Frequency 60 MHz

Bandwidth 25 MHz (0.07 µs, 0.15 µs, 0.3 µs),

3 MHz (0.5 µ, 0.7 µ, 1.2 µ)

1-4

DISPLAY

ITEM FR-1505 MARK-3 FR-1510 MARK-3 FR-1525 MARK-3

Picture Tube PPI (Raster scan, Daylight display)

FR-1505 M3 : 48 nm, FR-1510 K3 : 72 nm, FR-1525 M3 : 96 nm

Range Scale (nm) 0.125 0.25 0.5 0.75 1 1.5 2 3 4 6 8 12 16 24 32 48 72 96

Range Ring lnterval 0.0250.050.10.250.20.50.250.51122448 8 12 16

Number of Rings 5 5 5 3 5 6 4 6 4646464 6 6 6

Bearing Resolution 1.92 deg. (XN12AF), 1.24 deg. (XN20AF), 0.96 deg. (XN24AF)

Range Discrimination Better than 20 m

Bearing Accuracy +1 deg to –1 deg.

Minimum Range Better than 25 m (0.25 nm range)

Range Ring Accuracy

VRM Accuracy 1 deg. or 10 m, whichever is the greater

Input/Output Terminal

NMEA (two input, J202/J203) : NMEA 0183 Ver 1.5/2.0

NMEA (output, J202) : NMEA 0183 ($RATLL, $RARSD, $RATTM: ARP-10

required)

NMEA (input, J208) : NMEA 0183 (HDT/HDG/HDM/VHW)

ARPA data (output, 18P9004/J2) : Hardware (RS-422),

Software (NMEA 0183 : $RATTM : ARP-17 required)

RS-232C (input/output, MAIN PANEL J305) : System program updating

Gyro port (input, J206) : AD-10

Speed Log data (input, J210) : Contact-closure signal

Alarm output (J211) : +12 V buzzer drive signal

Remote Display port (output, J204) : TRU-HD, BP, TRU-TRIG, VIDEO

Remote Display port (input, J205) : TRU-HD, BP, TRU-TRIG, VIDEO

Monitor port (J449) : For PC monitor, Buffer PCB required

NAV Data

NMEA 0183 Format

Own ship’s position : GGA>RMA>RMC>GLL (GLL of Ver 1.5)

Speed : RMA>RMC>VTG>VHW

Heading (True) : HDT>HDG>HDM>VHW

Heading (Magnetic) : HDM>HDG>HDT>VHW

Course (True) : RMA>RMC>VTG

Course (Magnetic) : VTG>RMA>RMC

Waypoint (Range/Bearing) : RMB>BWC>BWR

Time : ZDA

Loran time difference : RMA>GLC>GTD

Water depth : DPT>DBT>DBK>DBS

Water temperature : MTW>MDA

Standard 1.4 m

Compass

safe

Distance Steering 1.05 m

1-5

ENVIRONMENTAL CONDITIONS

ITEM FR-1505 MARK-3 FR-1510 MARK-3 FR-1525 MARK-3

Scanner Unit

25 deg. to +70 deg.

Ambient

Temperature Display Unit

15 deg. to +55 deg.

Humidity Relative humidity 95% or less at +40 deg.

Vibration IEC 945, Edition 3

POWER SUPPLY & POWER CONSUMPTION

ITEM FR-1505 MARK-3 FR-1510 MARK-3 FR-1525 MARK-3

AC Power Supply 110 VAC : 90 to 126 V

220 VAC : 198 to 253 V

DC Power Supply 12 VDC : 10.8 V to 15.6 V

24/32 VDC : 21.6 V to 41.6 V 24/32 VDC : 21.6 V to

41.6 V

DC Power

(12 V) 24 rpm : 15.4 A (no wind)

19.6 A (100 knots) 24 rpm : 17.5 A (no wind)

22.0 A (100 knots)

24 rpm : 7.1 A (no wind)

9.2 A (100 knots) 24 rpm : 8.3 A (no wind)

10.2 A (100 knots) 24 rpm : 9.2 A (no wind)

11.0 A (100 knots)

DC Power

(24 V) 42 rpm : 7.5 A (no wind)

10.4 A (100 knots) 42 rpm : 8.8 A (no wind)

11.5 A (100 knots) 42 rpm : 9.6 A (no wind)

12.3 A (100 knots)

24 rpm : 5.3 A (no wind)

6.9 A (100 knots) 24 rpm : 6.3 A (no wind)

7.7 A (100 knots) 24 rpm : 6.9 A (no wind)

7.8 A (100 knots)

DC Power

(32 V) 42 rpm : 5.6 A (no wind)

7.8 A (100 knots) 42 rpm : 6.6 A (no wind)

8.6 A (100 knots) 42 rpm : 7.2 A (no wind)

9.2 A (100 knots)

24 rpm :

approx. 270 VA (no wind)

approx. 345 VA

(100 knots)

24 rpm :

approx. 310 VA (no wind)

approx. 385 VA

(100 knots)

24 rpm :

approx. 340 VA (no wind)

approx. 415 VA

(100 knots)

Power

Consumption

AC Power

(AC100-

115/200-

230) 42 rpm :

approx. 285 VA (no wind)

approx. 390 VA

(100 knots)

42 rpm :

approx. 325 VA (no wind)

approx. 435 VA

(100 knots)

42 rpm :

approx. 355 VA (no wind)

approx. 465 VA

(100 knots)
