Installation Instructions subject to change without notice. Page 1 of 7
INS-FHEZ, Rev A
HotSpot EZ Exit
Installation Instructions
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Telephone: 1-323-779-2980 Fax: 1-323-754-9060 [email protected] www.fulham.com
FHEZ17A48FHEZ10A24
11/09/18
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Telephone: 1-323-779-2980 Fax: 1-323-754-9060 [email protected] www.fulham.com
Installation Instructions subject to change without notice. Page 2 of 7
INS-FHEZ, Rev A
HotSpot EZ Exit
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
1. Do not mount near gas or electric heaters.
3. Equipment should be mounted in locations and at heights where it will not be subjected to tampering by
unauthorized personnel.
2. Do not attempt to service the battery. Replace entire Battery Unit when necessary. Contact the manufacturer
for information on service.
4. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
5. Do not use this equipment for other than its intended use.
SAVE THESE INSTRUCTIONS
1. Ne pas monter près de radiateurs à gaz ou électriques
3. L'équipement doit être monté à des endroits et à des hauteurs où il ne sera pas possible être soumis à
des altérations par du personnel non autorisé.
2. N'essayez pas de réparer la batterie. Remplacez la batterie entière lorsque nécessaire. Contactez le fabricant
pour obtenir des informations sur le service.
4. L’utilisation d’équipements accessoires non recommandés par le fabricant peut provoquer une condition dangereuse.
5. N'utilisez pas cet équipement pour un usage autre que celui auquel il est destiné.
Maximum mounting height / Hauteur maximale de montage:
GARANTIES IMPORTANTES
LISEZ ET SUIVEZ TOUTES LES INSTRUCTIONS
CONSERVEZ CES INSTRUCTIONS
DE SÉCURITÉ.
a) For 2 ft version
20ft for FHEZ10y24
b) For 4 ft version
25ft for FHEZ17y48
11/09/18
Installation Instructions subject to change without notice. Page 3 of 7
11/09/18 INS-FHEZ, Rev A
HotSpot EZ Exit
2. Locate the location where the EZ EXIT luminaire will
be installed and remove the surrounding ceiling tiles.
3. Identify your power source and junction box for the
driver and extension harness; be sure the junction box
is within the given distance of the extension harness.
4. Using your flat head screwdriver, pry the tabs apart on
each end of the piece of grid you are removing.
A. Be sure when you remove this piece you leave the tabs
from the opposite grid pieces in place; this will help align
your EZ Exit luminaire and keep it straight for the existing
tiles.
1. Locate and gather the necessary Tools and Contractor Supplied Materials:
A. Lineman, Wire Splicers, Flat Head Screwdriver
B. 8 Wirenuts, Supporting materials for the driver.
a. Driver can be installed different ways to meet each individual need:
• Surface mounted to a beam or wall
• Supported to ceiling drop wire with the (2) caddy clips supplied using (2) ¼-20 machine screws and hex nuts to bolt the
driver to the caddy clips when secured to the drop wire.
• Supported to (2) T-Grid Standoffs by installing the T-Grid Standoffs to the top of the grid and using (2) ¼-20 Machine Screws
and Hex Nuts to bolt the fixture to the standoffs.
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Telephone: 1-323-779-2980 Fax: 1-323-754-9060 [email protected] www.fulham.com
Installation Instructions subject to change without notice. Page 4 of 7
INS-FHEZ, Rev A
HotSpot EZ Exit
5. Unbox your EZ EXIT luminaire and remove your 2’
or 4’ fixture and place it in the ceiling where the
grid piece was removed, or the new fixture is to be
installed. Line up the L bracket at the end of the EZ
Exit luminaire with the tab of the opposite grid. See
photos below.
6. Use the two of the provided short tek screws to
secure the luminaire to the grid by using one screw
on each side
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Telephone: 1-323-779-2980 Fax: 1-323-754-9060 [email protected] www.fulham.com
11/09/18
Installation Instructions subject to change without notice. Page 5 of 7
INS-FHEZ, Rev A
HotSpot EZ Exit
7. Take the 10’ extension harness and plug in the WAGO
Quick Connect to the end coming off the fixture.
Run the 10’ extension harness to your junction box
location. In route to the junction box you can utilize
the caddy clips to support the wire above the ceiling.
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Telephone: 1-323-779-2980 Fax: 1-323-754-9060 [email protected] www.fulham.com
Note: Extension harness is to be mounted
at least 6in away from the EZ luminaire,
and Emergency Driver.
11/09/18
Installation Instructions subject to change without notice. Page 6 of 7
INS-FHEZ, Rev A
HotSpot EZ Exit
8. Open the junction box with your emergency power
circuit and identify the circuit you will be using is
turned off at this time.
9. Remove (2) ½” knockouts from your junction box.
One will be used for the ½” 2-screw connector with
the low voltage wires from the luminaire. The second
knockout will be for the flex whip from the driver.
10. Mount the driver in one of the three mounting types
and make sure it is secure. Fasten the flex connector
in the junction box and identify your wires.
11. For wiring instructions please reference the Wiring
Diagram Bellow.
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Telephone: 1-323-779-2980 Fax: 1-323-754-9060 [email protected] www.fulham.com
11/09/18
TOP VIEW
EZEXIT
FHSCP-UNV
Test
Switch
TOP VIEW
White/Black
White(Common)
Blue
Black
Yellow
Yellow/Black
Inverter
Connector
Brown
Violet
LED
Test Switch
WIRE EXTENSION
To Unswitched
AC Power
Cap
Unused
Leads
LED
Module
EZ Exit Wiring Diagram
Installation Instructions subject to change without notice. Page 7 of 7
INS-FHEZ, Rev A
HotSpot EZ Exit

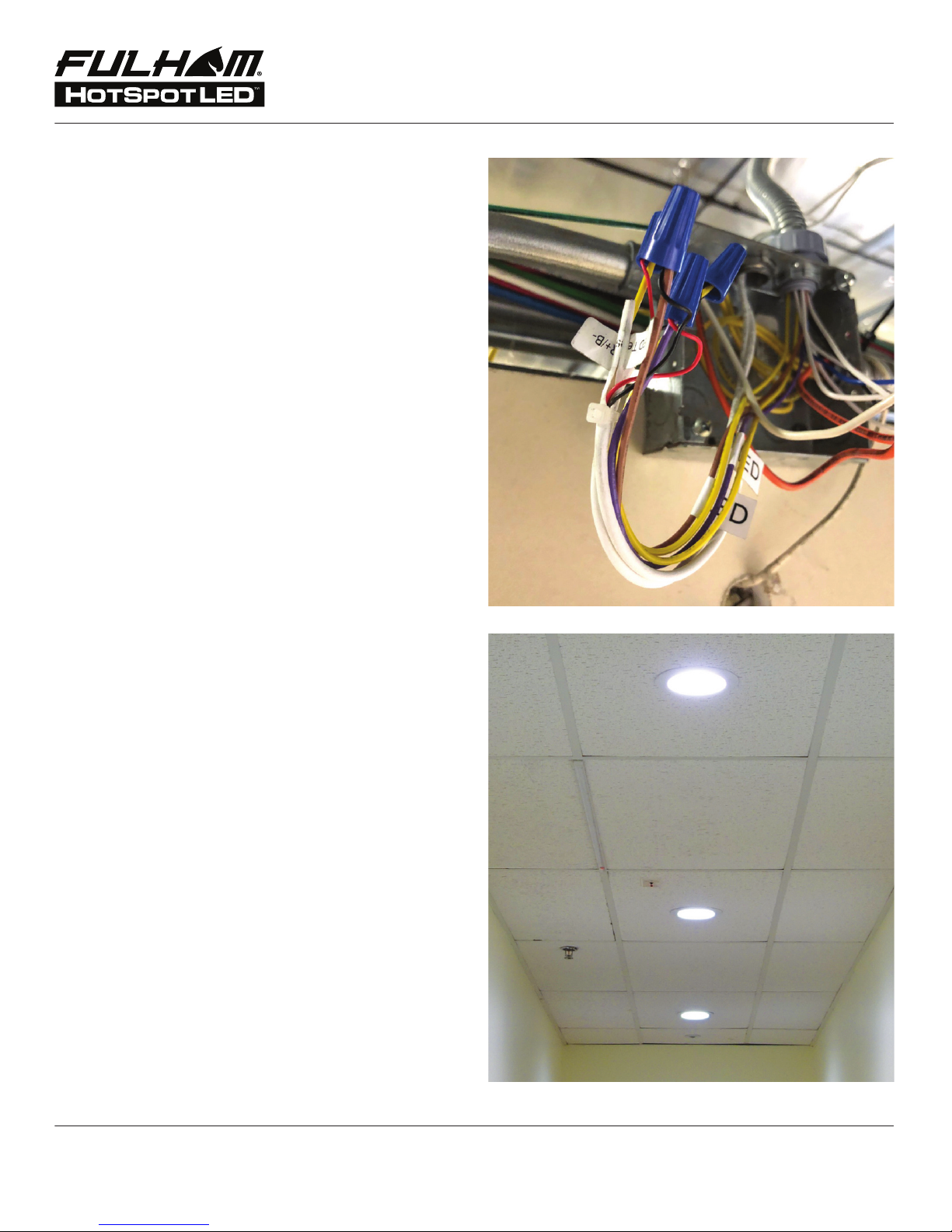

12. Connector the two-battery quick connects together
and close the junction box.
13. Restore power to the circuit. Verify the red “Test”
button is illuminated and test the fixture by pushing
the test button to illuminate the fixture. Turn the
power off and verify the fixture turns on when power
is lost.
14. Re-install all ceiling tiles, and the install is complete.
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Telephone: 1-323-779-2980 Fax: 1-323-754-9060 [email protected] www.fulham.com
Note: Please make sure that all electrical
connections conform to National Electrical
Code and local regulations.
11/09/18
