Fujitsu D3003-S Manual de usuario

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 1 of 15

ts.fujitsu.com/mainboards

How To

Assembly advice for

Fujitsu Industrial Mainboard D3003-S

& DASH-Manageability LAN Card 2907-Adapter

Contents

Assembly 2

Contact 15

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 2 of 15

ts.fujitsu.com/mainboards

Assembly

To assemble the LAN Card D2907-Adapter into the Fujitsu Industrial Mainboard D3003-S

please perform the following steps:

IPC Chassis closed

Open chassis with kit accessories

HDD bracket

If you would like to configure the

system with a HDD you have to use

the HDD bracket.

Therefore unscrew the HDD bracket

and remove it.

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 3 of 15

ts.fujitsu.com/mainboards

D3003-S Mainboard with cooling

unit

Please mount the cooling unit with

four screws as shown on the picture

D3003-S in IPC Chassis

Insert the mainboard into the

chassis

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 4 of 15

ts.fujitsu.com/mainboards

Be aware of the exact fitting of the

board within the I/O-shield

Mount the Mainboard into the

chassis with four screws

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 5 of 15

ts.fujitsu.com/mainboards

Main memory –optional

Insert the main memory from an

oblique angle into the slot

Main memory –optional

Push the memory carefully from top

onto the mainboard until the clamp

click into it form the side

mSATA –optional

Insert the mSATA card from an

oblique angle into the slot

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 6 of 15

ts.fujitsu.com/mainboards

mSATA –optional

Push the memory carefully from top

onto the mainboard until the clamp

click into it.

Take special care for the plasic tips!

WLAN module –optional

If you want to use the WLAN

module,

please break out carefully the metal

part

WLAN module –optional

Remove the screw for the WLAN

module

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 7 of 15

ts.fujitsu.com/mainboards

WLAN module –optional

Insert the WLAN module

Pay attention that the metal nose

clicks into the module

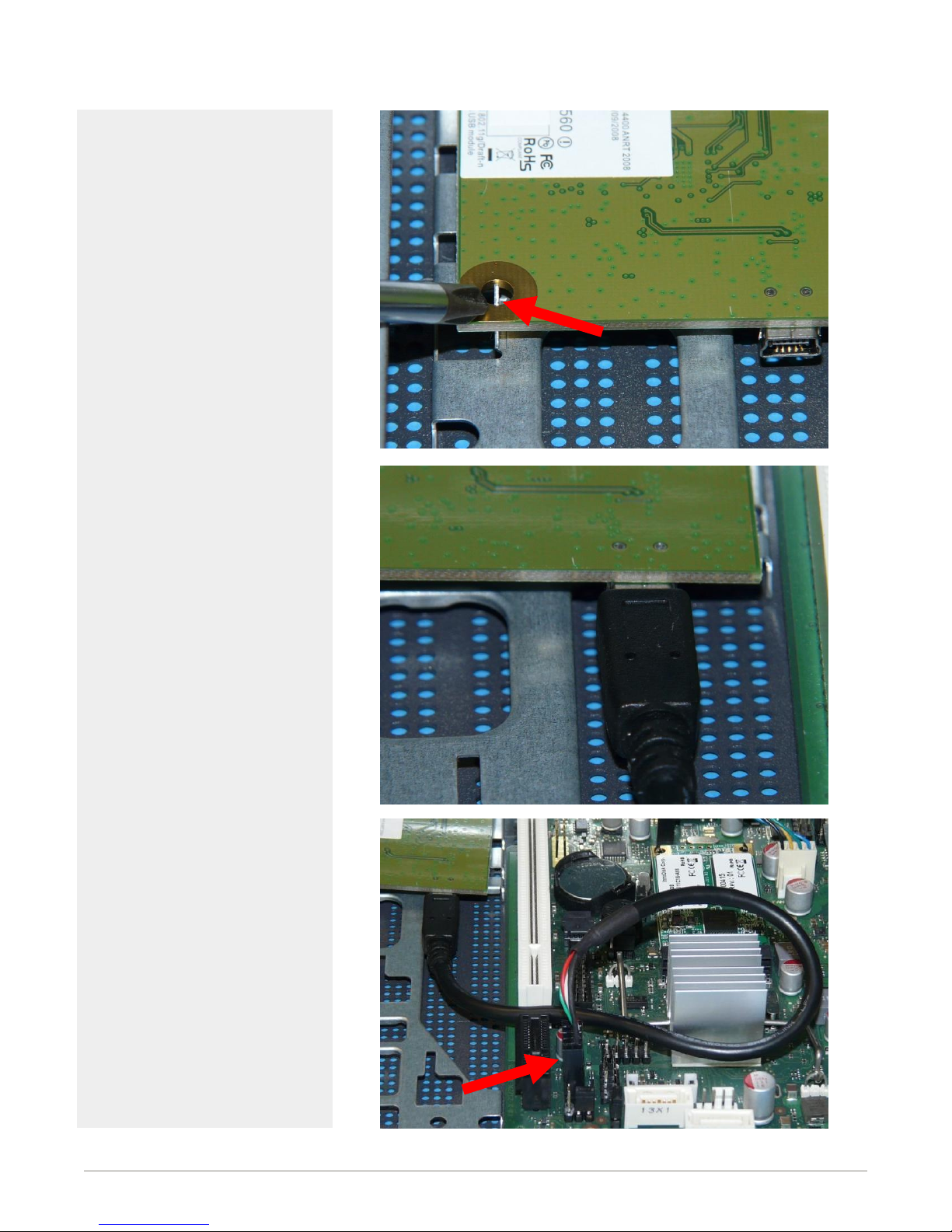

WLAN module –optional

Connect the WLAN module with the

USB cable

WLAN module –optional

Connect the WLAN USB cable with

the mainboard

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 8 of 15

ts.fujitsu.com/mainboards

WLAN module –optional

Cover the WLAN module with the

plastic over

WLAN module –optional

Fix the plastic cover with two screws

HDD –optional

HDD bracket

If you would like to configure the

system with a HDD you have to use

the HDD bracket.

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 9 of 15

ts.fujitsu.com/mainboards

HDD –optional

The HDD can be fixed with four

screws at the bottom site of the

bracket.

HDD –optional

Slide the HDD bracket into the

mounting form

HDD –optional

Fix the HDD bracket to the

mounting form with a screw

How To Assembly advice for D2907 PCI Express Gigabit Ethernet Adapter

Page 10 of 15

ts.fujitsu.com/mainboards

HDD –optional

Connect the HDD with the

mainboard

HDD –optional

Connect the HDD with the

mainboard
