Fujitsu Plasmavision P50XCA30WH Manual de usuario

Before using the display, read the User’s manual (1/2) and the User’s manual (2/2) carefully so that you know how

to use the display correctly.

Refer to these manuals whenever questions or problems about operation arise. Be sure to read and observe the

safety precautions.

Keep these manuals where the user can access them readily.

* Installation and removal require special expertise. Consult your product dealer for details.

Contents

USER’S MANUAL (1/2)

(Specification and Part Names)

63”/50” WIDE PLASMA DISPLAY

P63XCA30W/P63XCA30E/P63XCA30A/

P50XCA30W/P50XCA30E/P50XCA30A

Page

• Accessories ······················································ E-2

•Part Names and Functions ······················ E-3–E-5

• Installation ······················································· E-6

• Options ····························································· E-7

•Main Supported Signals ································· E-8

• Specification ··········································· E-9–E-10

English

Before Use

•Safety Precautions ··············· User’s manual (2/2)

Usage

•Handy Tips ···························· User’s manual (2/2)

•Connecting the Display to External

Equipment ···························· User’s manual (2/2)

• Using the Remote Control ··· User’s manual (2/2)

•Basic Operations ·················· User’s manual (2/2)

•Watching Pictures on the Wide Screen

··············································· User’s manual (2/2)

Adjustments

•Adjusting Pictures (PICTURE Menu)

··············································· User’s manual (2/2)

•Adjusting Screen Position and Size

(POSITION/SIZE Menu) ········ User’s manual (2/2)

•Other Adjustments

(FEATURES Menu) ··············· User’s manual (2/2)

•Initialization of User Adjustment Value

(FACTORY DEFAULT) ··········· User’s manual (2/2)

•Cleaning and Maintenance ·· User’s manual (2/2)

E-MHD00897(01) 04.1.13, 10:49 AMPage 1 AdobePageMaker6.5J/PPC

E-2

ACCESSORIES

CHECKING ACCESSORIES

One remote control Two AA batteries Two user’s manuals One power cable Two ferrite cores

CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT

Carefully check the terminals for position and type before making any connections.

Loose connectors can result in picture or color problems. Make sure that all connectors are securely inserted into their terminals.

Ferrite cores

These ferrite cores are used to attenuate undesired signals.

Two ferrite cores

When connecting a cable to the power input terminal, RS-232C terminal, attach one of these ferrite cores to the cable near the terminal.

RS-232C Cable

Ferrite Core

Power Cable

Ferrite Core



(A Type)

(E Type)

(W Type)

E-MHD00897(0210) 03.12.26, 2:13 PMPage 2 AdobePageMaker6.5J/PPC

E-3

English

PART NAMES AND FUNCTIONS

Front

1Power indicator lamp

This lamp shows the state of the power supply.

Lit (red): Power OFF (stand-by)

Lit (green): Power ON.

Lit (orange): Power saving (DPMS: Power

saving function) mode ON.

Please refer to E-17 of the User's

Manual(2/2).)

Flashing (red or green): Malfunction (Flashes differently

depending on the type of

malfunction.)

2Remote control signal receiver

Receives signals from the remote control.

Warning

If the power indicator lamp flashes red or green, this signifies that the display has developed a problem. When this happens, be sure to

remove the power plug from the receptacle and contact your dealer. Leaving the display power ON can result in fire or electric shock.

①

②

E-MHD00897(0210) 03.12.26, 2:13 PMPage 3 AdobePageMaker6.5J/PPC

E-4

1OFF/STD-BY switch

OFF :

The power indicator lamp goes off, and the power can’t be turned on by the power button. The power is partly supplied.

STD-BY :The power indicator lamp lights red, and the power can be turned on or off by the power button.

2RS-232C terminal (RS-232C)

This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC.

When connecting a cable, attach a ferrite core to the cable. (See P. E-2.)

3RGB1 input terminal (RGB1 INPUT/mD-sub)

Connect this terminal to the PC’s display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.

4Power input terminal

Connect this terminal to the power cable supplied with the display.

When connecting a cable, attach a ferrite core to the cable. (See P. E-2)

PART NAMES AND FUNCTIONS (Continued)

Bottom

E-MHD00897(0210) 03.12.26, 2:13 PMPage 4 AdobePageMaker6.5J/PPC

E-5

English

Description of Input Terminals

Pin No. Signal

1DCD (Data Carrier Detect)

2RD (Received Data)

3 TD (Transmit Data)

4DTR (Data Terminal ready)

5GND (Ground)

6DSR (Data Set Ready)

7RTS (Request To send)

8CTS (Clear To Send)

9RI (Ring Indication)

RS-232C terminal (RS-232C)

Pin No. Input signal Pin No. Input signal

1Red 9 —

2Green 10 Ground

3Blue 11 —

4— 12—

5Ground 13 Horizontal synchronization

6Ground 14 Vertical synchronization

7 Ground 15 —

8Ground Frame Ground

RGB1 terminal (RGB1 INPUT/mD-sub)

*Terminal layout may differ and functions may not be available with some models and some device options.

E-MHD00897(0210) 03.12.26, 2:13 PMPage 5 AdobePageMaker6.5J/PPC

E-6

INSTALLATION

To prevent the display’s internal components from overheating, make sure that the display is installed in a well-ventilated location.

Be sure to use the optional desktop stand, ceiling-mounting unit, wall-mounting unit and other unit when installing this display. Also, be

sure that your dealer performs the installation.

See the appropriate instruction manual for more information on the installation hardware you select.

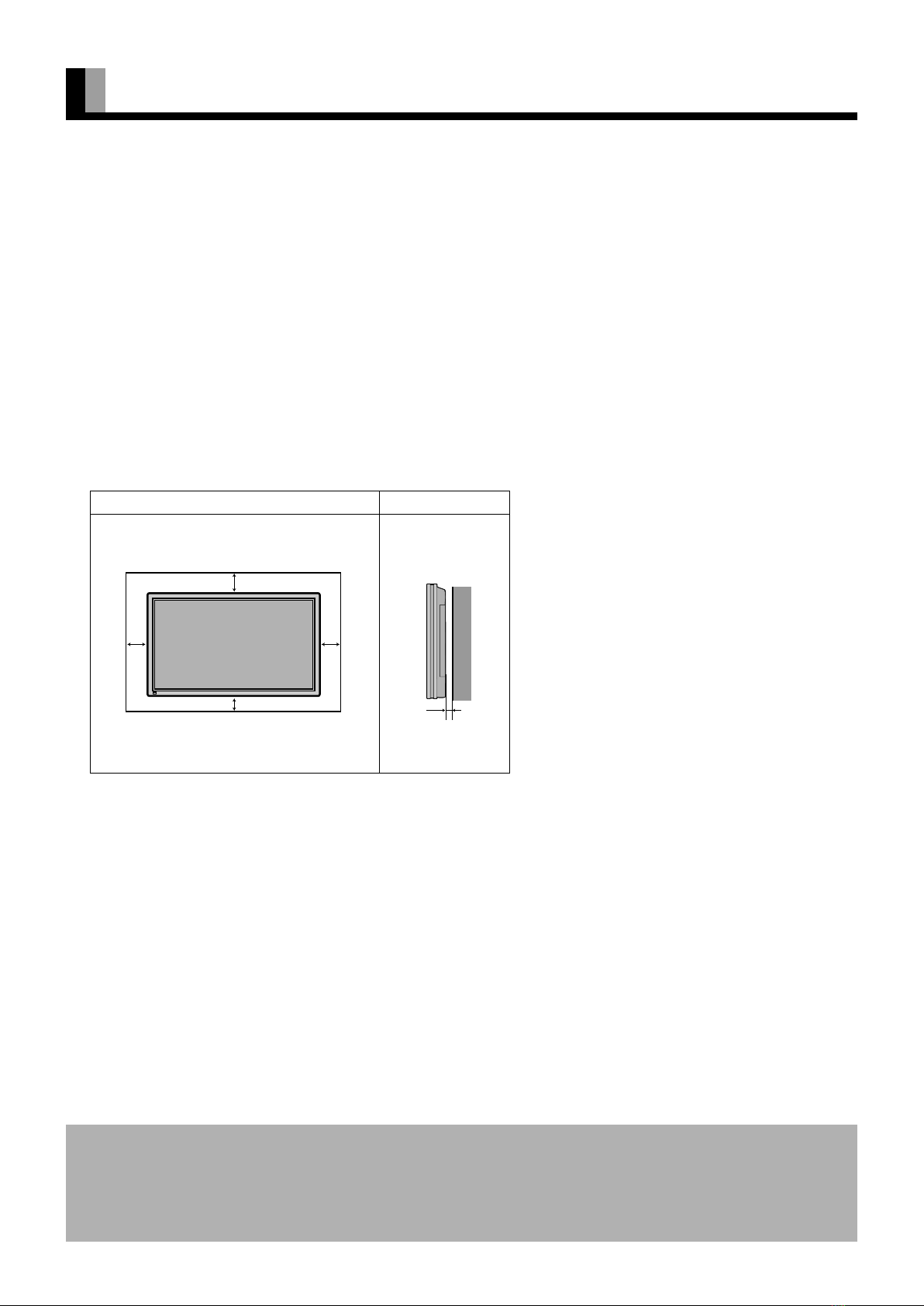

To ensure proper heat radiation, provide at least as much space around the display as shown below.

* Make sure that the display is installed in a location where the temperature can be maintained between 0°C and 40°C.

*Install this device in a well-ventilated area. Keep the air vents of the device free from obstruction.

*Never attempt to tilt the display sideways or backward.

*To prevent the power and other cables from being accidentally pulled, be sure to make the wiring work along the wall or through the

corners of floor.

*To prevent an accident and ensure safety in the event of an earthquake, fix the display securely into position as described below.

Note

The display is a highly precise piece of equipment and therefore must be packed properly before transportation. Be sure to use only those packing

materials originally supplied with the display when repacking it.

Reference

See P.E-7 for more information on options.

Front Side

(cm) (cm)

Upper

Left 10 Right

Lower

5 (for 63”)

3.5 (for 50”)

Wall

Horizontal type

E-MHD00897(0210) 04.1.6, 11:37 AMPage 6 AdobePageMaker6.5J/PPC

E-7

English

OPTIONS

Wall-mounting Bracket 0° to 15° mounting angle P-WB6300 (for 63”)

P-WB4201 (for 50”)

Ceiling-mounting unit 0° to 15° mounting angle P-CT6300 (for 63”)

P-CT4200 (for 50”)

Desktop Stand unit P-TT6300 (for 63”)

P-TT4200 (for 50”)

*When installing an option, make sure that all installation requirements for that option (as given in the relevant instruction manual) are met.

*The colors of options do not match the display colors perfectly.

*To improve the function and performance of optional accessories, specifications and part names may change. Consult your local dealer

before purchasing.

Warning

To prevent injury, fire, and electric shock, arrange for options to be initially installed (or installed at a different location) by your dealer.

CAUTION: This display (P63XCA30) is for use only with Fujitsu General Limited’s option (P-WB6300, P-

CT6300, P-TT6300).

This display (P50XCA30) is for use only with Fujitsu General Limited’s option (P-WB4201, P-

CT4200, P-TT4200).

Using this display with other option can cause instability resulting in possible injury.

E-MHD00897(0210) 04.1.6, 11:37 AMPage 7 AdobePageMaker6.5J/PPC

E-8

MAIN SUPPORTED SIGNALS

This display can store the latest four types of signals for RGB adjustment value. The fifth input signal will delete the adjustment value of

the first input signal.

To do this, select a desired signal and follow the instructions in “Adjusting Screen Position and Size” on the User’s Manual (2/2) to adjust

the parameters. When you finish, the settings will be automatically stored. Thus, when the display receives that signal, pictures will be

displayed in accordance with the settings you most recently selected.

Main corresponding signals (RGB mode)

*With some input signals, “Out of range” may appear even when the horizontal and vertical frequencies are within their permissible ranges. In this

event, match the input signals to another frequency rather than those listed above.

•Depending on the input signal, the display may show pictures of reduced size due to size reduction and interpolation.

•“Out of range” appears if the display receives a signal whose characteristic does not fall within the display’s permissible range.

•You can check input signals through “Information” on the FEATURES Menu screen. (See User’s Manual (2/2))

•In order to facilitate the explanations, pictures and diagrams in this manual may differ slightly from the actual items.

•All terms (i.e., company and product names) used in this document are trademarks or registered trademarks.

•Functions may be different or unavailable with some models and some device options.

640 x 480 31.47 59.94 VGA

640 x 480 37.50 75.00 VGA 75 Hz

640 x 480 43.27 85.01 VGA 85 Hz

720 x 400 31.47 70.09 400 lines

800 x 600 37.88 60.32 SVGA 60 Hz

800 x 600 46.88 75.00 SVGA 75 Hz

800 x 600 53.67 85.06 SVGA 85 Hz

1024 x 768 48.36 60.00 XGA 60 Hz

1024 x 768 60.02 75.03 XGA 75 Hz

1024 x 768 68.68 84.99 XGA 85 Hz

1280 x 1024 63.98 60.02 SXGA 60 Hz

1280 x 1024 79.98 75.03 SXGA 75 Hz

1600 x 1200 75.00 60.00 UXGA 60 Hz

1600 x 1200 106.25 85.00 UXGA 85 Hz

848 x 480 31.02 60.00

852 x 480 31.72 59.97

1360 x 768 47.71 60.01

720 x 485 15.73 59.94 60 fields

720 x 575 15.63 50.00 50 fields

Signal

Display (dots x lines) Horizontal frequency (kHz) Vertical frequency (Hz)

E-MHD00897(0210) 03.12.26, 2:13 PMPage 8 AdobePageMaker6.5J/PPC

E-9

English

SPECIFICATION

Model P63XCA30W/P63XCA30E/P63XCA30A

Screen size 63" wide screen:

139.3 cm (W) x 78.3 cm (H) (159.8 cm diagonal)

54.8 inch (W) x 30.8 inch (H) (62.9 inch diagonal)

Aspect ratio 16:9 (wide)

Weight 72 kg / 159 lbs

Outer dimensions 150.4 (W) x 89.4 (H) x 12.0 (D) cm

59.2 (W) x 35.2 (H) x 4.7 (D) inch (does not include outer projections)

Power supply 110-240 VAC 50/60Hz

Current rating 7.9–3.0 A

Number of pixels 1366 (H) x 768 (V)

Operating conditions Temperature: 0 to 40 °C / 32 to 104 °F

Humidity: 20 to 80 %

External equipment terminals

RGB1 input mD-sub, 3 rows, 15-pin

Picture signal: 0.7 Vp-p/75 Ω

Synchronization signal:TTL level

Constrol terminal 1 RS-232C connector (D-sub 9-pin)

• Specifications and external appearance may be change for the sake of improvement.

•Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 2.4 m or 7.9 feet for 63”) from

the screen and to look occasionally away while working.

• is a worldwide trademark of Fujitsu General Limited and is a registered trademark in Japan, the U.S.A. and other countries or areas.

Regulation

• UL, CSA Safety: UL6500, C-UL

EMC: FCC Part 15 Class A, ICES-003 Class A

•CE Safety: EN60065

EMC: EN55022 1998, Class A

EN61000-3-2 1995

EN61000-3-3 1995

EN55024 1998

EN61000-4-2 1995

EN61000-4-3 1996

EN61000-4-4 1995

EN61000-4-5 1995

EN61000-4-6 1996

EN61000-4-8 1993

EN61000-4-11 1994

•AS Safety: IEC60065

EMC: AS/NZS 3548

E-MHD00897(0210) 03.12.26, 2:13 PMPage 9 AdobePageMaker6.5J/PPC

E-10

SPECIFICATION (Continued)

Model P50XCA30W/P50XCA30E/P50XCA30A

Screen size 50" wide screen:

110.6 cm (W) x 62.2 cm (H) (126.9 cm diagonal)

43.5 inch (W) x 24.5 inch (H) (50 inch diagonal)

Aspect ratio 16:9 (wide)

Weight 45 kg / 99 lbs

Outer dimensions 121.2 (W) x 72.6 (H) x 9.8 (D) cm

47.7 (W) x 28.6 (H) x 3.9 (D) inch (does not include outer projections)

Power supply 110-240 VAC 50/60Hz

Current rating 5.2–2.1 A

Number of pixels 1366 (H) x 768 (V)

Operating conditions Temperature: 0 to 40 °C / 32 to 104 °F

Humidity: 20 to 80 %

External equipment terminals

RGB1 input mD-sub, 3 rows, 15-pin

Picture signal: 0.7 Vp-p/75 Ω

Synchronization signal:TTL level

Constrol terminal 1 RS-232C connector (D-sub 9-pin)

• Specifications and external appearance may be change for the sake of improvement.

•Viewing the screen constantly for extended periods can strain your eyes. Be sure to stay at a proper distance (at least 1.9 m or 6.2 feet for 50”) from

the screen and to look occasionally away while working.

•is a worldwide trademark of Fujitsu General Limited and is a registered trademark in Japan, the U.S.A. and other countries or areas.

Regulation

• UL, CSA Safety: UL6500, C-UL

EMC: FCC Part 15 Class A, ICES-003 Class A

•CE Safety: EN60065

EMC: EN55022 1998, Class A

EN61000-3-2 1995

EN61000-3-3 1995

EN55024 1998

EN61000-4-2 1995

EN61000-4-3 1996

EN61000-4-4 1995

EN61000-4-5 1995

EN61000-4-6 1996

EN61000-4-8 1993

EN61000-4-11 1994

•AS Safety: IEC60065

EMC: AS/NZS 3548

E-MHD00897(0210) 03.12.26, 2:13 PMPage 10 AdobePageMaker6.5J/PPC

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Fujitsu

Fujitsu

Fujitsu Plasmavision PDS4233W Manual de usuario

Fujitsu

Fujitsu Plasmavision P42VHA10E Manual de usuario

Fujitsu

Fujitsu MCM1514V Manual de usuario

Fujitsu

Fujitsu Plasmavision PDS4201U Manual de usuario

Fujitsu

Fujitsu Plasmavision W P42HHS30E Manual de usuario

Fujitsu

Fujitsu Plasmavision P63XHA70W Manual de usuario

Fujitsu

Fujitsu Plasmavision PDS4204 Manual de usuario

Fujitsu

Fujitsu Plasmavision PDS4213 Manual de usuario

Fujitsu

Fujitsu B19-7 LED Manual de usuario

Fujitsu

Fujitsu B24-9 WE Manual de usuario

Fujitsu

Fujitsu Plasmavision W P50XHA30E Manual de usuario

Fujitsu

Fujitsu MCM1514V D556Q 154V/C551 Manual de usuario

Fujitsu

Fujitsu E22 Touch Manual de usuario

Fujitsu

Fujitsu P19-5P ECO Manual de usuario

Fujitsu

Fujitsu Plasmavision PDS4208W-B Manual de usuario

Fujitsu

Fujitsu B20T-6 LED Manual de usuario

Fujitsu

Fujitsu B17-5 ECO Manual de usuario

Fujitsu

Fujitsu SCALEOVIEW C17-7 Manual de usuario

Fujitsu

Fujitsu B27-9 TE QHD Manual de usuario

Fujitsu

Fujitsu Plasmavision P42HTS40G Manual de usuario

Fujitsu

Fujitsu P27-9TQ Manual de usuario

Fujitsu

Fujitsu SCENICVIEW A24W-3A Manual de usuario

Fujitsu

Fujitsu AMILO LXL 3220W Manual de usuario

Fujitsu

Fujitsu PDS4241 Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
