Fujitsu FMW43VA1 Manual de usuario

The VGA Adapter allows you to connect an external

monitordirectly to your pen tablet without using a docking

device.

Note: In order to use an external monitor simultaneously

with the flat panel display, you must set it up from

either within the BIOS or using the display hotpad.

See your system user’s guide for more information.

On one side of the adapter is a plug which fits into the

system interface port (see Figure 1). On the opposite side of

the adapter is a port for a video connector (see Figure 2).

To install the adapter,

1. If the pen tablet is running, either suspend operation or

power down the system.

INSTRUCTIONS

VGA Adapter

Installation Guide

FMW43VA1

For use with StylisticTM LT Pen Tablet PCs

Fujitsu PC Corporation

VGAOut.fm Page 1 Monday, August 27, 2001 9:05 AM

2

2. If the external monitor you wish to connect has power

applied, power it down.

3. Remove the plastic cover that is located over the system

interfaceportonthebottomedgeofthepentablet.Keep

the cover in a safe place for future reinstallation.

4. Plug the VGA Adapter into the system interface port.

The plug is keyed so that it will only fit when it is posi-

tioned properly (see Figure 3).

5. Insert the video plug into the video connector (see

Figure 2).

6. Restart the system and the external monitor.

To remove the adapter,

1. If the pen tablet is running, either suspend operation or

power down the system.

2. If the monitor you wish to disconnect has power

applied, remove power.

3. Pull the plug from the connector. Replace the plastic

cover over the system interface port.

4. Restart your system.

Note: When the VGA Adapter is attached to the pen

tablet, the tablet cannot be used in the compact desk

stand because the connector/cable assembly extends

too far from the bottom of the system. The system

should be held or laid flat when the VGA Adapter is

installed.

VGAOut.fm Page 2 Monday, August 27, 2001 9:05 AM

3

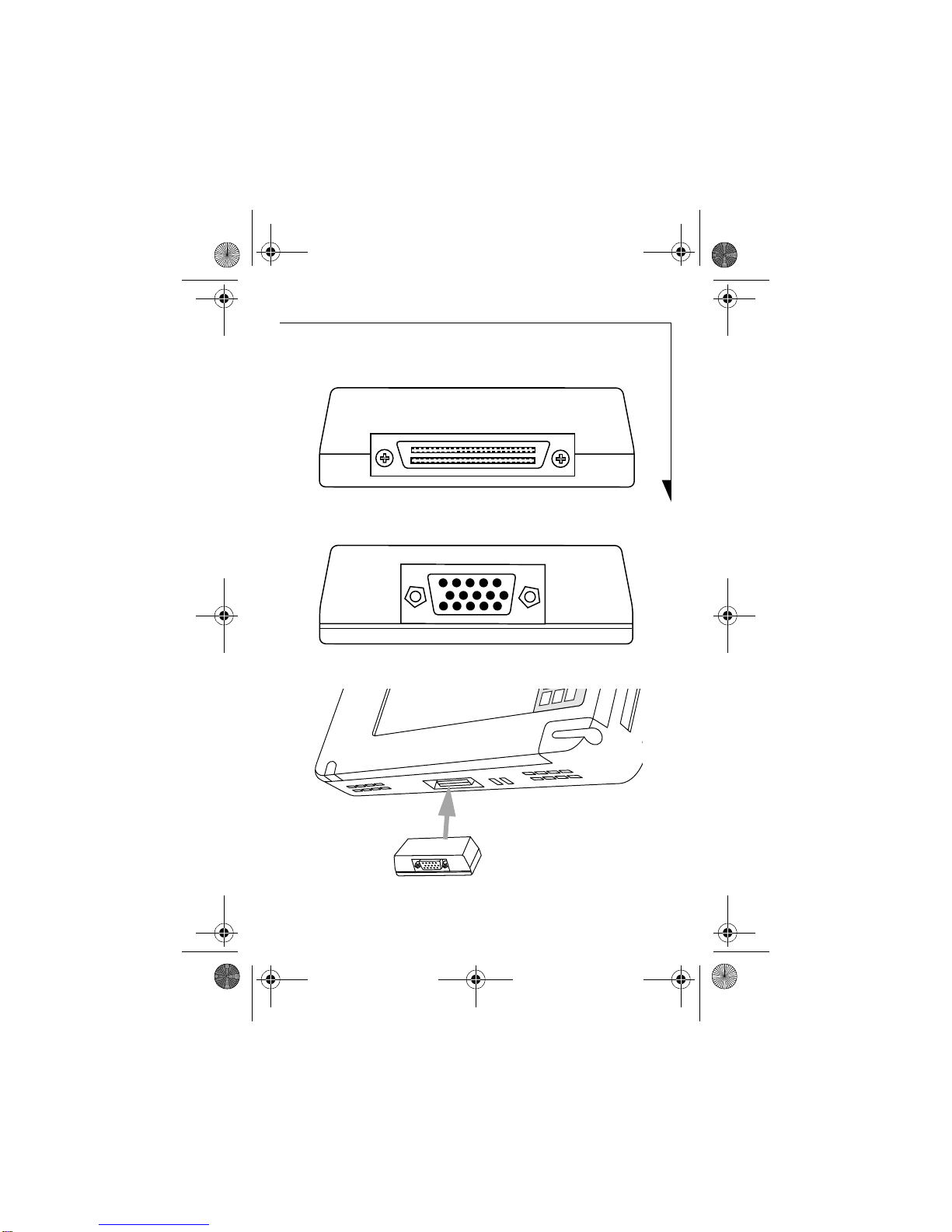

Figure 1. System Interface Connector Side

Figure 2. Video Connector Side

Figure 3. Installing the VGA Adapter

VGAOut.fm Page 3 Monday, August 27, 2001 9:05 AM

4

5200 Patrick Henry Drive

Santa Clara, CA 95054

For more information, visit our Web site

at: www.fujitsupc.com

For technical support call:

1-800-8Fujitsu (1-800-838-5487)

or e-mail us at: 8fujitsu@fujitsupc.com

Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu, Ltd. Stylistic is a

trademark of Fujitsu PC Corporation. All other trademarks mentioned herein are the

property of their respective owners. We cannot guarantee the accuracy of the contents of

this document. We disclaim liability for errors, omissions or future changes.

© 2001 Fujitsu PC Corporation. Allrightsreserved. FPC58-0617-01

B5FY-1741-01EN-00
