Fujitsu FMW43VA01 Manual de usuario

Stylistic is a trademark and Fujitsu is a registered trademark of Fujitsu Ltd. © 2000 Fujitsu PC Corporation

8/00 58-0764-00A

FMW43VA01

VGA Adapter

Installation Instructions

Stylistic LT Series

The VGA Adapter allows you to connect an external

monitor directly to your pen tablet without using a

docking device.

Note: In order to use an external monitor simultaneously

with the flat panel display, you must set it up from

either within the BIOS or using the display hotpad. See

your system user’s guide for more information.

Ononesideoftheadapterisaplugwhichfitsintothe

system interface port (see Figure 1). On the opposite side

of the adapter is a port for a video connector (see Figure

2).

To install the adapter,

1. If the pen tablet is running, either suspend

operation or power down the system.

2. If the external monitor you wish to connect has

power applied, power it down.

3. Remove the plastic cover that is located over the

system interface port on the bottom edge of the

pen tablet. Keep the cover in a safe place for future

reinstallation.

4. Plug the VGA Adapter into the system interface

port. The plug is keyed so that it will only fit when

it is positioned properly (seeFigure3).

5. Insert the video plug into the video connector (see

Figure 2).

6. Restart the system and the external monitor.

To remove the adapter,

1. If the pen tablet is running, either suspend

operation or power down the system.

2. If the monitor you wish to disconnect has power

applied, remove power.

3. Pull the plug from the connector. Replace the

plastic cover over the interface port.

4. Restart your system.

Note: When the VGA Adapter is attached to the pen tablet,

the tablet cannot be used in the compact desk stand

because the connector/cable assembly extends too far

from the bottom of the system. The system should be

held or laid flat when the VGA Adapter is installed.

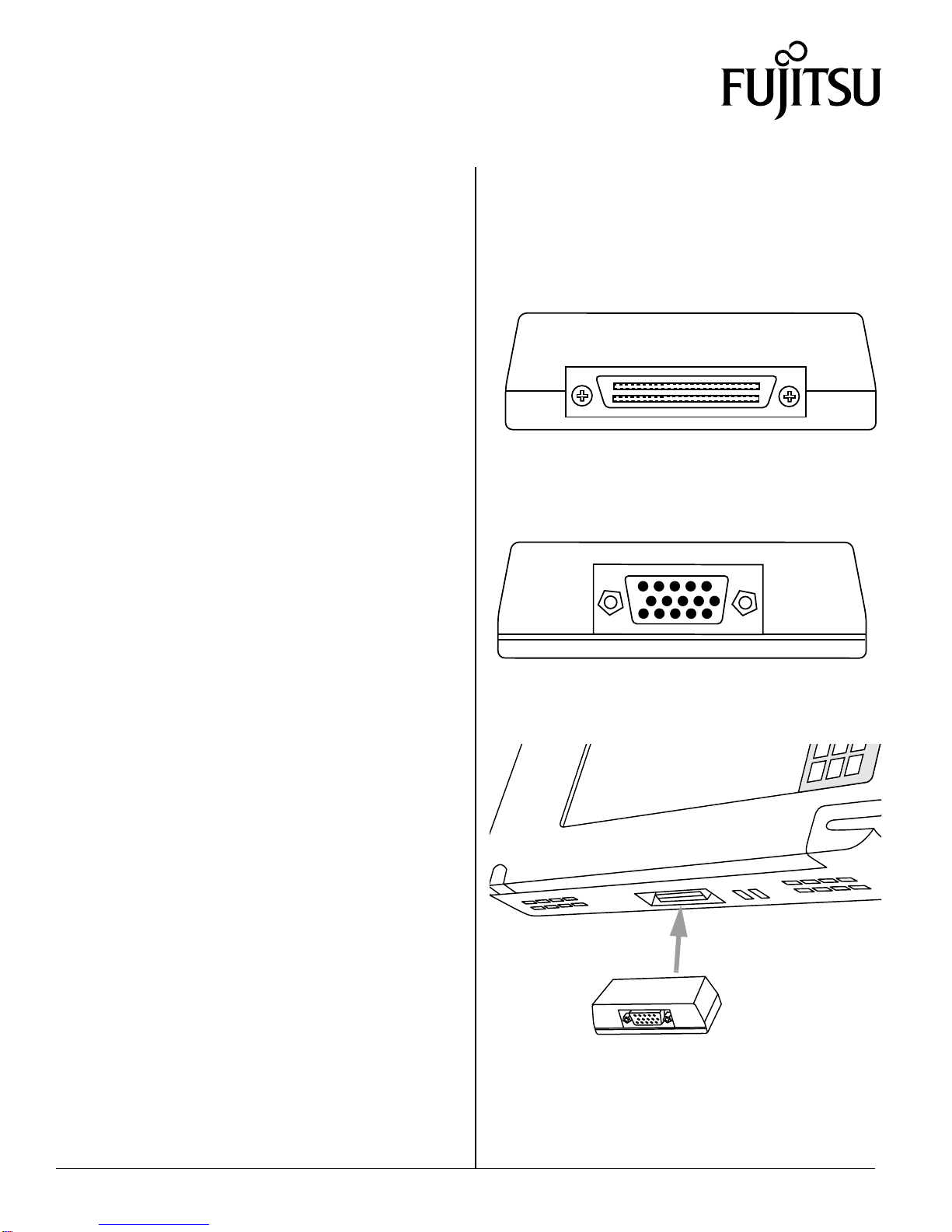

Figure 1. System Interface Connector Side

Figure 2. Video Connector Side

Figure 3. Installing the VGA Adapter
