FujiFilm Mount Adapter Manual de funcionamiento

BL01765-200

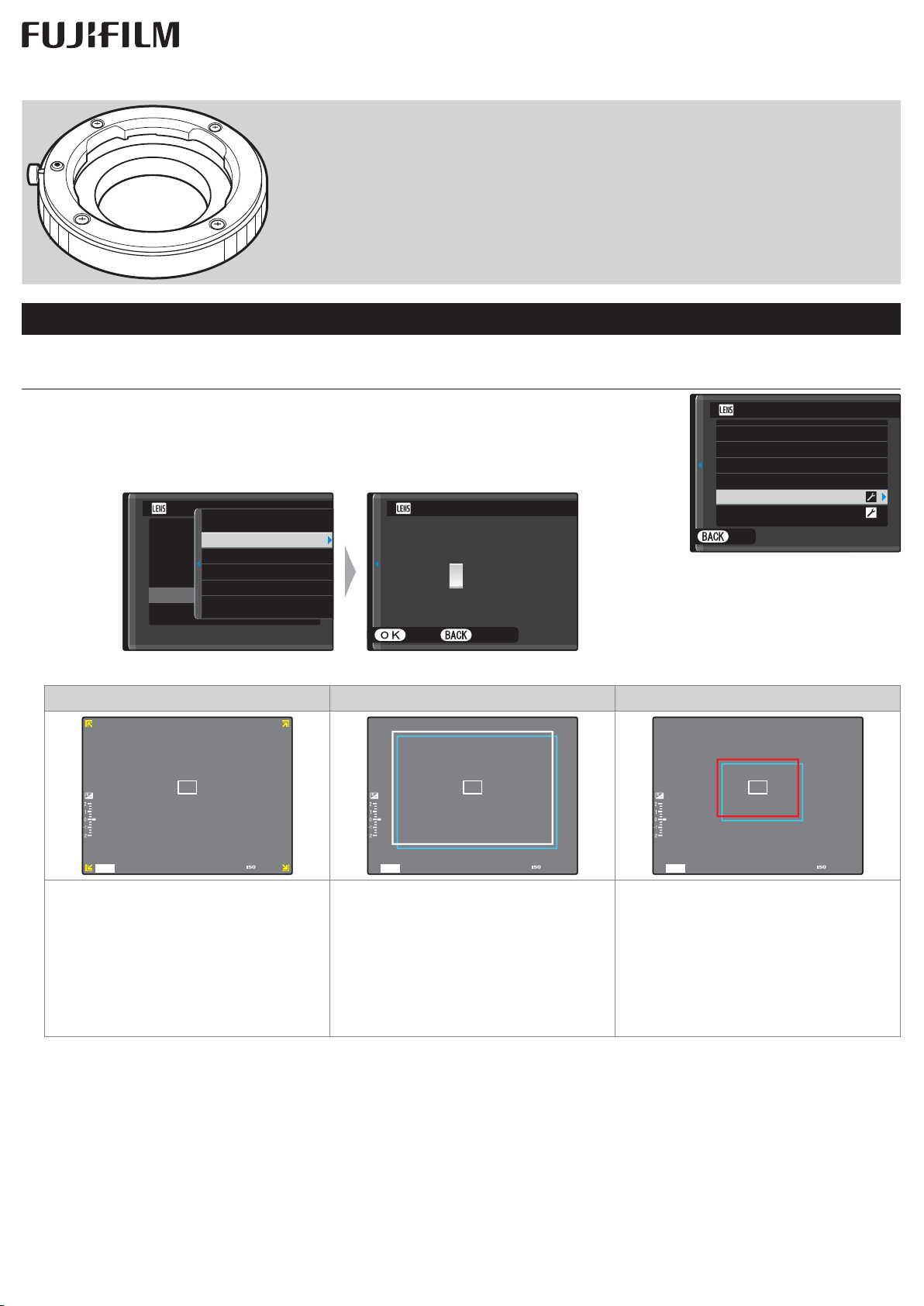

Using a Mount Adapter

Thank you for buying a FUJIFILM product. The FUJIFILM M MOUNT ADAPTER

allows M-mount lenses to be mounted on the X-Pro1, which in turn can process

images taken with M-mount lenses as required to maintain image quality and

correct for a variety of eects. Note that using the M-mount adapter requires

camera rmware version 1.10 or later; check the rmware version before pro-

ceeding.

MOUNT ADAPTER SETTING Options

Pressing the function button on the mount adapter displays lMOUNT ADAPTER SETTINGS options.

g g

Choosing a Focal Length

If the lens has a focal length of 21, 24, 28, or 35mm, choose a matching option in the

menu at right. For other lenses, select option 5 or 6 to display the menu shown below

at left, press the selector right to display focal length settings, and use the selector to

enter the focal length.

LENS

MOUNT ADAPTOR SETTING

DISTORTION CORRECTION

FOCAL LENGTH SETTING

PERIPHERAL ILLUMINATION CORRECTION

COLOR SHADING CORRECTION

050mm

LENS

INPUT FOCAL LENGTH

SET CANCEL

SET

LENS

MOUNT ADAPTOR SETTING

RThe camera adjusts the size of the bright frame in the optical viewnder according to lens focal length.

17mm or less

18mm–60mm

61mm or more

200

2000

F5.6

200

2000

F5.6

200

2000

F5.6

Bright frame not displayed. Both white and blue frames are dis-

played, the former for innity and

the latter for distances of about

2m/6.6ft.

RThe camera does not automati-

cally correct for parallax.

Both red and blue frames are dis-

played. The frames are not adjusted

for focal length, making the elec-

tronic viewnder the recommend-

ed choice for framing pictures.

Distortion Correction

Choose from STRONG, MEDIUM, or WEAK options to correct BARREL or PINCUSHION

distortion.

OFF

PINCUSHION WEAK

BARREL MEDIUM

BARREL WEAK

PINCUSHION MEDIUM

BARREL STRONG

LENS

DISTORTION CORRECTION

SET CANCEL

❚❚Barrel Distortion

Choose BARREL STRONG, BARREL MEDIUM, or BARREL WEAK to correct barrel distortion. In barrel distortion,

vertical and horizontal lines not passing through the center of the image bow outwards; correction reduces this

distortion as shown below.

❚❚Pincushion Distortion

Choose PINCUSHION STRONG, PINCUSHION MEDIUM, or PINCUSHION WEAK to correct pincushion distortion. In

pincushion distortion, vertical and horizontal lines not passing through the center of the image bow inwards; cor-

rection reduces this distortion as shown below.

RTo determine the amount required, adjust distortion correction while taking photos of graph paper or other objects

featuring repeating vertical and horizontal lines, such as the windows in a high-rise.

Color Shading Correction

Color (shading) variations between the center and edges of the frame can be adjusted

separately for each corner.

SET CANCEL

To use color shading correction, follow the steps below.

1Choose a corner.

Rotate the command dial to choose a corner. The selected corner is indicated by a

triangle.

SET CANCEL

2Adjust shading.

Use the selector to adjust shading until there is no visible dierence in color be-

tween the selected corner and the center of the image. Press the selector left or

right to adjust colors on the cyan–red axis, up or down to adjust colors on the blue–

yellow axis. There are a total of 19 positions available on each axis.

SET CANCEL

RTo determine the amount required, adjust color shading correction while taking photos of blue sky or a sheet of gray

paper.

Peripheral Illumination Correction

Choose from values between –5 and +5. Choosing positive values increases peripher-

al illumination, while choosing negative values reduces peripheral illumination. Posi-

tive values are recommended for vintage lenses, negative values to create the eect

of images taken with an antique lens or a pinhole camera.

SET CANCEL

RTo determine the amount required, adjust peripheral illumination correction while taking photos of blue sky or a

sheet of gray paper.

Using a Mount Adapter: Cautions

• Attaching a mount adapter enables mSHOOT WITHOUT LENS and hides the distance indicator in the standard

displays for the LCD monitor and optical/electronic viewnder.

• Before checking focus, set the focus mode selector to M.

• If you nd it hard to see the display in the viewnder when a mount adapter is attached, follow these steps to

increase viewnder brightness:

1Use the VIEW MODE button to enable automatic display selection using the eye sensor.

2Press the Qbutton.

3Put your eye to the viewnder.

4Highlight JLCD BRIGHTNESS with the selector and use the command dial to adjust brightness.
