Fuji Electric RSG14LMCA Manual de usuario

SPLIT TYPE

ROOM AIR CONDITIONER

WALL MOUNTED TYPE

CONTENTS

SPECIFICATIONS. . . . . . . . . . . . . . . . . . .

DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . 2

REFRIGERANT SYSTEM DIAGRAM. . . .3

CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . 4

ERROR DETECTION . . . . . . . . . . . . . . .

INDOOR PCB CIRCUIT DIAGRAM . . . . .

OUTDOOR PCB CIRCUIT DIAGRAM . . .

PARTS (INDOOR UNIT) . . . . . . . . . . . . .13

PARTS (OUTDOOR UNIT) . . . . . . . . . . .17

ACCESSORIES . . . . . . . . . . . . . . . . . . .

Indoor unit Outdoor unit

RSG14LMCA ROG14LMCA

SPECIFICATIONS

TYPE Cool & heat inverter

INDOOR UNIT RSG14LMCA

OUTDOOR UNIT ROG14LMCA

COOLING CAPACITY 4.00 kW

HEATING CAPACITY 5.00 kW

POWER SOURCE 230 V

FREQUENCY 50 Hz

RUNNING CURRENT

MAXIMUM

CURRENT

5.3 A

6.3 A

INPUT WATTS

1.14 kW

1.37 kW

E.E.R. Cooling 3.52 kW/kW

COP Heating

Cooling

Heating

Cooling

Heating

Cooling

Heating

3.66 kW/kW

MOISTURE REMOVAL

AIR CIRCULATION HIGH

9.0 A

10.5 A

2.1 L/h

770 m3/h

FAN MOTOR

POWER SOURCE 230 V

High

INDOOR UNIT

Cooling

Medium

Low

Quiet

High

INDOOR UNIT

Heating

Medium

Low

Quiet

High

Medium

Low

Quiet

1,360 r.p.m.

1,220 r.p.m.

990 r.p.m.

750 r.p.m.

1,360 r.p.m.

1,220 r.p.m.

1,040 r.p.m.

770 r.p.m.

OUTDOOR UNIT Heating 750 r.p.m.

OUTDOOR UNIT Cooling 850 r.p.m.

ELECTRICAL DATA

INDOOR UNIT

Cooling

OUTDOOR UNIT

Heating

OUTDOOR UNIT Heating

NOISE LEVEL

44 dB

40 dB

33 dB

25 dB

High

Medium

Low

Quiet

44 dB

40 dB

35 dB

27 dB

50 dB

OUTDOOR UNIT Cooling 50 dB

2013.04.17 1

COMPRESSOR TYPE

Hermetic type,

4 pole, 3 phase,

DC inverter motor,

Rotary

DISCRIMINATION

PRECHARGED REFRIGERANT

REFRIGERANT TYPE R410A

WEIGHT (with oil)

COMPRESSOR AND REFRIGERANT

Pipe length 15 m

FULL CHARGE 20 m

MAXIMUM PIPING HEIGHT 15m

ADDITIONAL CHARGE 20 g/m

WEIGHT

INDOOR UNIT Shipping / Net

Shipping / Net

10.5 kg / 8.5 kg

OUTDOOR UNIT

37 kg / 34 kg

INDOOR UNIT H x W x D

H x W x D

268 x 840 x 203 mm

OUTDOOR UNIT 540 x 790 x 290 mm

DIMENSIONS

DA89X1C-20FZ2

1,050 g

9.2 kg

1,150 g

DIMENSIONS

2013.04.03 2

INDOOR UNIT

OUTDOOR UNIT

19.5

540 mm

290 mm790 mm20

540 mm

15.8 to 16.7

Drain hose

Diameter

Outside

Inside : 13.8 mm

600

268 mm

203 mm840 mm

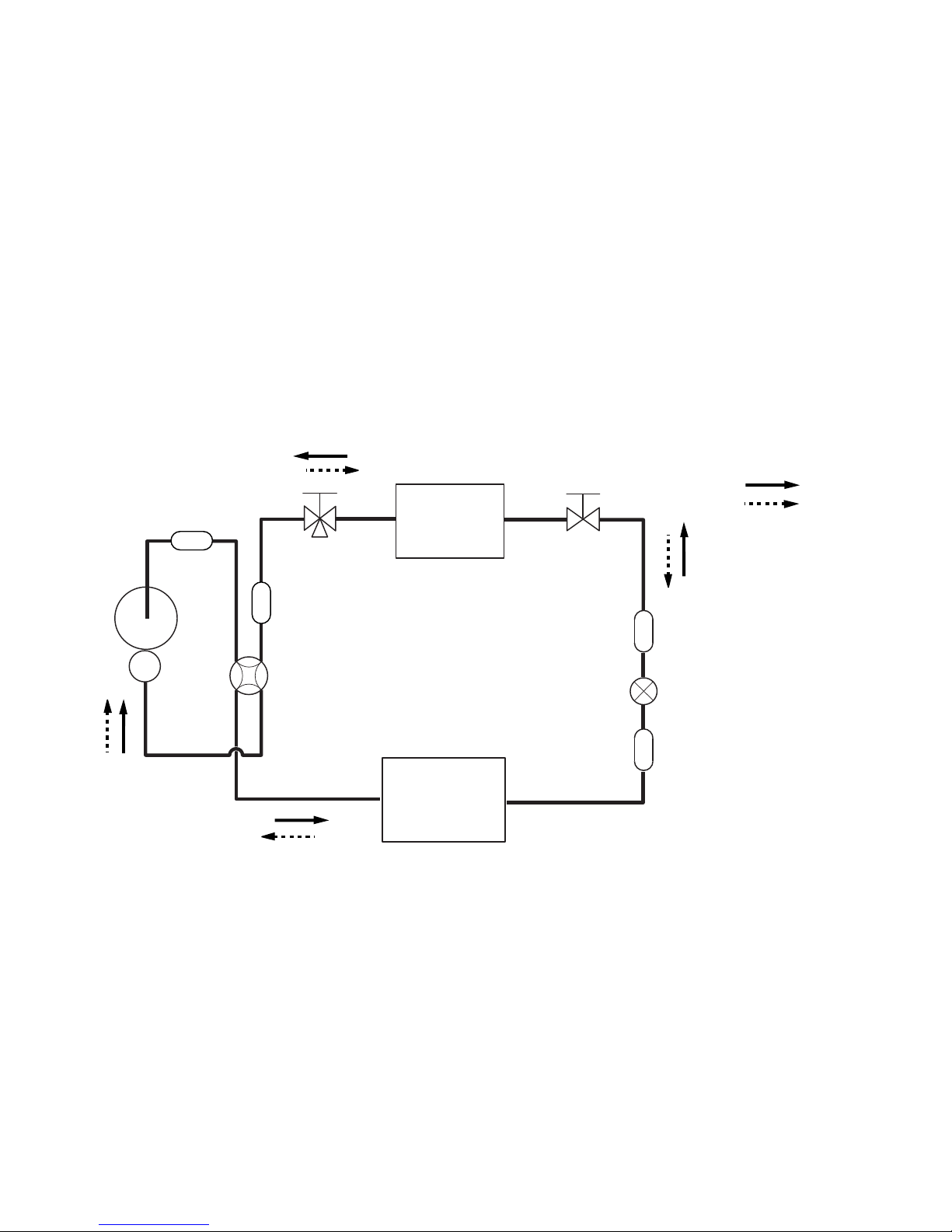

REFRIGERANT

SYSTEM DIAGRAM

2-way valve

Strainer

3-way valve

Muffler

4-way valve

Expansion valve

Refrigerant flow

Heat exchanger

(indoor unit)

Heat exchanger

(outdoor unit)

Compressor

Cooling

Heating

Refrigerant pipe diameter

Liquid : 1/4" (6.35 mm)

Gas : 1/2" (12.7 mm)

2012.08.04 3

WHITE

BLUE

YELLOW

WHITE

BLACK

RED

ORANGE

YELLOW

PINK

BLUE

GREEN

BLACK

WHITE

RED

ORANGE

YELLOW

PINK

BLUE

BLACK

1 2 3 4 5

CN1

CN201

CN3

CN7

CN5

CN10

CN6

CN4

CN2

LOUVER

( UP / DOWN )

TEST

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( ROOM TEMP. )

TO COMMUNICATION KIT

( OPTION )

TERMINAL

DIFFUSER

FAN MOTOR

EARTH TERMINAL

INDICATOR PCB

MAIN PCB

1 2 3

CNA01 CNB02

CNB01

CNC01

1 2 3 4 5

INDOOR UNIT OUTDOOR UNIT

2013.04.17 4

CND01

COMMUNICATION PCB

UTY-XCBXZ2 ( OPTION )

TO MAIN PCB

REMOTE CONTROL

( OPTION )

EX IN ( OPTION )

EX OUT ( OPTION )

OPERATION STATUS

EX OUT ( OPTION )

ERROR STATUS CIRCUIT DIAGRAM

RED

BLACK

WHITE

YELLOW

BROWN or BLUE

RED

BLUE

ORANGE

YELLOW

WHITE

BLACK

WHITE

RED

WHITE

GREEN

WHITE

RED

WHITE

BLACK

CN71

CN70

W10

W11

W101

W102

CN30

CN40

CN800

REACTOR

THERMISTOR ( PIPE TEMP. )

THERMISTOR

( DISCHARGE TEMP. )

THERMISTOR

( OUTDOOR TEMP. )

TERMINAL

POWER SOURCE

123 L N

PMV

4WV

FAN MOTOR

EXPANSION

VALVE

4-WAY VALVE

COMPRESSOR

MAIN PCB

BLACK

RED

ORANGE

YELLOW

PINK

BLUE

WHITE

RED

BLACK

WHITE

YELLOW

BLUE

RED

ORANGE

YELLOW

PINK

BLUE

CN201

S7B-PH-K-S

CN7

B5 ( 6-5 ) B-XARK

RED

CN5

B6B-PH-K-S

WHITE

CN2

B7 ( 9-7.8 ) B-PL I SK

9pin

CN3

B7B-PH-K-S

WHITE

CN10

B5B-PH-K-S

WHITE

CN4

B4B-PH-K-S

WHITE

CN6

B5B-PH-K-S

RED TEST

LOUVER

( UP / DOWN )

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( ROOM TEMP. )

DIFFUSER

FAN MOTOR

F M

OUTDOOR

UNIT

TERMINAL

EARTH TERMINAL

CN1

2013485-1

SC25-05WSA

WHITE

GREEN

RED

WHITE

BLACK

1 2 3 4 5

MAIN PCB

K12JY-1203HSE-C1

INDICATOR PCB

K12JZ-1200HSE-D0

CONTROL UNIT

EZ-0124DHSE

INDOOR PCB

CIRCUIT DIAGRAM

2013.01.17 5

COMMUNICATION KIT

( OPTION )

3.15A

250V

FH1 FH2

VA1

470V

<TNR>

C29

1000p

<E>

D10

D1F60

R12

1.0k

<1/2W>

R590 - R592

13k <1/3W> x 3

C55

1000p

<X7R>

R69

100

<1/10W>

I C17

TLP165J

R65

200

<1/8W>

I C15

TLP181

D11

D1F60

R593 - R595

13k <1/3W> x 3

R67

560

<1/10W>

UL1015

AWG22

GREEN

L=160

R63

220k

<2W>

I C16

TLP181

D12

DAN202U

R64

12k

<1/16W>

C54

0.022

<R>

R62

12k

<1/10W>

R15

1.0k

<1/16W>

C21

0.01

R61

1.0k

<1/16W>

C53

0.047

<R>

I C13-1

uLN2003

RT1N241M

R13

10k

<1/16W>

C20

0.01

R14

1.0k

<1/16W>

I C8

TNY274PN

C16

22/

450V

C12

0.1

<F> Q5

2SC4081

<R>

1.0k

<1/16W>

340V

S1NBC60

D20

ST03D-200

15V

LLC-1 D3

RF101L2S

C10

220/

25V

330/

25V

RF101L2S

BLm18

<BD102>

R10

10k

<1/16W>

10k

<1/16W>

C11

0.1

<F>

I C6

TL431

2SA1576A

<R>

150

<1/10W>

1.0k

<1/16W>

15V 15V

15V 15V-2

R57

470

<1/8W>

UDZS12B

C26

0.1

<F>

R45

10k

<1/16W>

R46

1.0k

<1/16W>

15V-2

C41

0.1

<F>

C25

1000p

R36

10k

<1/16W>

R37

<1/16W>

R25

1.8k

<1/16W>

C50

1000p

DTA124EUA

RT1N241M

R26

2.2k

<1/16W>

47/

35V

R21

10k

<1/16W>

R20

1.0k

<1/16W>

C23

1000p

340V

15V

340V

R81

1.0k

<1/16W>

R82

1.0k

<1/16W>

5V 5V

R55

10k

<1/16W>

C36

0.1

<F>

I C12

M93C66

I C13-7

uLN2003

15V

R44

10k

<1/16W>

R43

10k

<1/16W>

BZ1

PS1240P02BT

R75 - R77

330 <1/16W> x 3

R49 - R51

10k <1/16W> x 3

5V 5V

R78

1.0k

<1/16W>

R48

100

<1/16W>

R79

1.0k

<1/16W>

R80

100

<1/16W>

R38

1.0k

<1/16W>

R40

1.0k

<1/16W>

R39

10k

<1/16W>

C28

0.1

<F>

R41

49.9k

<1/16W>

15V

C31

0.1

<F>

R71 - R74

47 <1/10W> 1% x 4

I C14-7 uLN2003A

I C14-1 uLN2003A

I C14-3 uLN2003A

I C14-5 uLN2003A

SS21V-R060330

0.6A - 10mH

20*20*18

R29 270 <1/10W>

R28 1.0k <1/10W>

R27 270 <1/10W>

I C13-2 uLN2003A

I C13-3 uLN2003A

I C13-4 uLN2003A

I C13-5 uLN2003A

R31 - R34

47 <1/10W> 1% x 4

15V

R88 100 <1/16W>

R87 100 <1/16W>

R85 1.0k <1/16W>

R84 1.0k <1/16W>

R86 100 <1/16W>

C63

0.01

C64

0.1

<F>

R89

10k

<1/16W>

R91

100k

<1/16W>

R90

10k

<1/16W>

R92

100k

<1/16W>

R1, R2

10k <1/16W>

x 2

C17

1.0

C19

1.0

<F>

I C13

uLN2003A

I C14

uLN2003A

16 1

D I

VCC

TEST

GND

BP_M

EN_UV

1REF

10 7

2 15

3 14

4 13

5 12

10 7

12 5

14 3

16 1

I C 2

R 5 F 1 0 0 G E A F B

P120 P41 P40 *RST P124 P123 P137 P122 P121 REGC VSS VDD

P60

P61

P62

P63

P31

P75

P74

P73

P72

P71

P70

P30

P147 P146 P10 P11 P12 P13 P14 P15 P16 P17 P51 P50

P27

P26

P25

P24

P23

P22

P21

P20

P130

P01

P00

P140

37 38 39 40 41 42 43 44 45 46 47 48

24 23 22

21 20 19 18 17 16 15 14 16

CN1

SC25-05WSA

TERMINAL

BLACK

WHITE

RED C1

0.1

<LE-MX>

FC51FL x 2

4700p

<E>

4700p

<E>

CN4

B4B-PH-K-S

WHITE

THERMISTOR ( ROOM TEMP. )

THERMISTOR ( PIPE TEMP. )

TEST

CN6

B5B-PH-K-S

RED

CN5

B6B-PH-K-FN

WHITE

CN10

B5B-PH-K-S

WHITE

LOUVER

( UP / DOWN )

CN3

B7B-PH-K-FN

WHITE

INDICATOR PCB

CN7

B5 ( 6-5 ) B-XARK-1-A

RED

FAN MOTOR

CN2

B7 ( 9-7.8 ) B-PL I SK

WHITE

DIFFUSER CONTROL

INDOOR UNIT

MAIN PCB

K12JY-1203HSE-C1

2012.11.30 6

SW201

KSHC611BT

I C201

GP1UM261R

+R202

<1/4W>

C203

0.1

C202

47/

10V

D201 SL I-343M GREEN

D202 SL I-343D ORANGE

D203 SL I-343M GREEN

VCC

OUT

GND

CN201

S7B-PH-K-S

INDOOR UNIT

INDICATOR PCB

K12JZ-1200HSE-D0

2012.11.27 7

13V

12V

13V

12V

I C308

PS2501L-1

I C309

PS2501L-1

R315

2.7k

<1/10W>

R316

1.2k

<1/4W>

I C304-1

BA10393F

13V

R318

15.4k

<1/10W>

R319

28k

<1/10W>

1% 13V

R317

10k

<1/10W>

13V

C304

0.1

<F>

I C304

D307

D1F60

L303

0R0

D306

DAN217U

I C304-2

BA10393F

C310

1000p

<R>

R322

10k

<1/10W>

R330

2.7k

<1/10W>

C309

0.01

Q303

DTC143EUA

R320

390

<1/4W>

Q302

DTC143EUA

Q304

DTC143EUA R331

22k

<1/10W>

CNC01

B05B-XASK-1-A

WIRED REMOTE

CONTROL

390V

13V

JM303

0R0

12V

R309

18k

<1/10W>

D303

RF101L2S

+C306

100/

25V

T301

SW1614-1

BP_M

I C301

LNK603

12V

R303

18k

<1/10W>

13V

C305

1.0

R306

1.0k

R304

36k

R305

6.2k

D302

RF101L2S

C311

100/

25V

L301

0R0

R312

1.2k

<1/4W>

C313

0.01

CNA01

B3B-XH-AM

I C306

PS2501L-1

L302

0R0

12V

K301

FTR-F3

Q301

DTC123EUA

CNB01

B2B-XH-AM

CNB02

B2B-XH-AM

12V

K304

FTR-F3

Q305

DTC123EUA

CN301

SJH20-09WSF

+C301

47/

450V

R301

390k

<1/4W>

R302

270

<1/4W>

D301

UF4007

3 2

C302

1000p

<E>

EX ( I N )

EX ( OUT )

EX ( ERROR OUT )

TO MAIN PCB

(Option)

Communication kit

UTY-XCBXZ2

Communication PCB

K10DC-1000HSE-CA0

2013.03.13 8

BROWN or BLUE

YELLOW

WHITE

BLACK

RED

BLUE

ORANGE

YELLOW

WHITE

BLACK

UL3271

AWG16

BLACK

UL3271

AWG16

RED

UL3271

AWG16

WHITE

UL3271

AWG14

RED

UL3271

AWG14

WHITE

UL1015

AWG20

BLACK

UL1015

AWG20

WHITE

UL1015

AWG20

RED

UL1015

AWG14

BLACK

UL1015

AWG14

WHITE

UL1015

AWG16

GREEN

BLACK

REACTOR

15mH, 10A

W10

W11

FRAME FRAME

W101

W102

DC FAN MOTOR

4-WAY VALVE

EXPANSION

VALVE

TERMINAL COMPRESSOR

CN71

B04B-PL I RK-1

RED

CN70

B03B-PL I RK-1

WHITE

CN40

B05B-PL I RK-1

WHITE

CN800

B5 ( 7-2.3 ) B-XASK-1-A

WHITE

CN30

2-1747052-3

1747052-1

BLUE or WHITE

THERMISTOR ( PIPE TEMP. )

THERMISTOR

( DISCHARGE TEMP. )

THERMISTOR

( OUTDOOR TEMP. )

SERIAL

TO OUTDOOR UNIT

EARTH

POWER

SOURCE

WIRE w/TERMINAL

( CORE )

1015#22

GREEN

EMI FILTER EMI FILTER

EMI FILTER

MAIN PCB

K10BO-120LHUE-C1

F M

INVERTER ASSEMBLY

EZ-0122DHUE

2013.04.01 www

OUTDOOR PCB CIRCUIT DIAGRAM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Fuji Electric

Fuji Electric

Fuji Electric RKA07CBT Manual de usuario

Fuji Electric

Fuji Electric RSG07KPCA Manual de servicio

Fuji Electric

Fuji Electric RGG09KVCB Manual de usuario

Fuji Electric

Fuji Electric RS-14LB Manual de usuario

Fuji Electric

Fuji Electric RCF18LBL x 2 Manual de usuario

Fuji Electric

Fuji Electric RSG09KHCA Manual de usuario

Fuji Electric

Fuji Electric RSG07KMTA Manual de servicio

Fuji Electric

Fuji Electric RS-18FA Manual de usuario

Fuji Electric

Fuji Electric RSW-9RC Manual de usuario

Fuji Electric

Fuji Electric RYT-14 Manual de usuario

Fuji Electric

Fuji Electric RS-9LB Manual de usuario

Fuji Electric

Fuji Electric RS-9UB Manual de usuario

Fuji Electric

Fuji Electric ARYA36LCTU Manual de usuario

Fuji Electric

Fuji Electric RO-36FA Manual de usuario

Fuji Electric

Fuji Electric RSA12LCC Manual de usuario

Fuji Electric

Fuji Electric RD-45LA Manual de usuario

Fuji Electric

Fuji Electric RCG36KRLB Manual de usuario

Fuji Electric

Fuji Electric RD-90EC Manual de usuario

Fuji Electric

Fuji Electric RDA36LCTU Manual de usuario

Fuji Electric

Fuji Electric RSA07LACM Manual de usuario

Fuji Electric

Fuji Electric RC-30FA Manual de usuario

Fuji Electric

Fuji Electric RDG09KLLAP Manual de usuario

Fuji Electric

Fuji Electric RDA24LATU Manual de usuario

Fuji Electric

Fuji Electric RSM-7LA Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
