FSP Technology HPT1200M Manual de usuario
1200W
RGBRGB
Liquid
Cooled
Intel
Latest CPU
Ready
The World's Only Liquid Cooled ATX PSU
with 80 PLUS® Platinum Certificated
The World's Only Liquid Cooled ATX PSU
with 80 PLUS® Platinum Certificated
Hydro
Power Supply Users’ Manual
Index
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
Model Descriptions / Specification
Installation
RGB LED Controller Installation
Connectors
English
Deutsch
Français
Česky
Español
Ελληνικά
Italiano
Türkçe
Svenska
Português
Nederlands
Polski
Български
Magyar
Română
Српски
Danske
Suomi
Norsk
Slovenščina
Slovenský
Bosanski
Hrvatski
Lietuvos
Македонски
íslenska
latviešu valoda
Қазақ тілі
繁體中文
简体中文
日本語
한국어
Русский
Україна
ﺍﻟﻌ ﺭﺑﻳﺔ
RoHS
Warranty Card / Global Branch Office
The World's Only Liquid Cooled ATX PSU
with 80 PLUS® Platinum Certificated
Hydro
Dazzling RGB LED Design
Built-in multiple LED modes for various lighting
options to fit your build.
RGBRGB
The World's Only Liquid Cooled
ATX PSU with 80 PLUS® Platinum Certificated
Meet the highest security and safety standards.
Liquid
Cooled
Model Descriptions
Specification
Attention
HPT1200M：1200W Active PFC Power Supply
•Complies with ATX12V v2.4 & EPS12V v2.92
•High efficiency ≧92%
•Active PFC ≧ 0.9
•Comply with 80PLUS® platinum certification
•Hybrid cooling system with 135mm FDB silent fan & liquid cooling
•+12V single-rail design
•Full Japanese capacitors
•World’s 1st Platinum liquid PSU
•Build in RGB lighting & controller
•Dimension: 150*200*86mm (5.9*7.9*3.4 in)
•Operation temperature: 0~40°C(Normal input voltage)
•Complete protections: OCP, OVP, SCP, OPP, OTP
01
100-240V~ 15-9A 60-50HzAC Input
DC Output +3.3V
24A
+5V
24AMax. Output Current
120W
+12V
100A
1200W
-12V
0.3A
3.6W
+5Vsb
3A
15WMax. Combined Power
1200WTotal Power
HPT1200M
• Please make sure the modular connector must be connected with
flat cable closely.
HYDRO PTM+ Series is full modular design, each cable, connector
come with its connector design, please:
1) Make sure connectors have been connected until hear ”Click”
2) If connectors broken, please stop using and contact with your
dealer immediately.
3) It’s recommended to check connectors per 6 months.
4) Connectors would be burned or short circuit occurred if connectors
loose.
• Warranty does not cover side stickers. Stickers should only be used
once.
• Intelligent fan will start to spin when loading operation is over 30%.

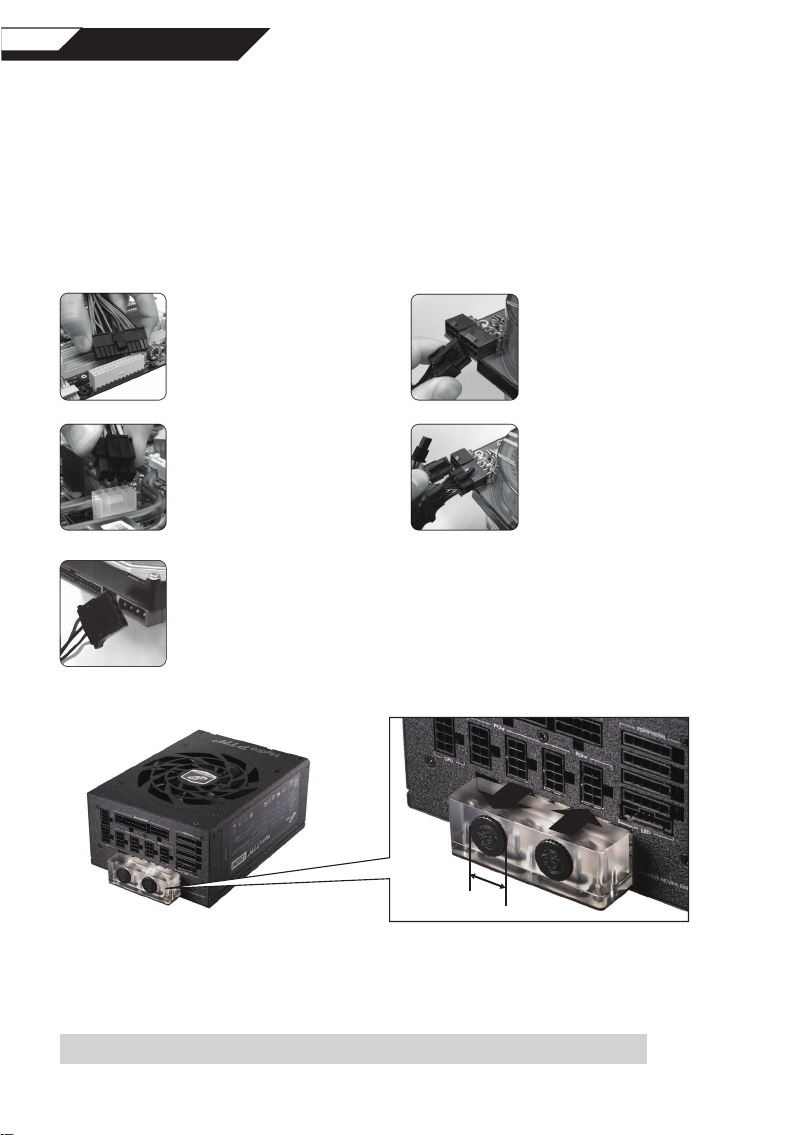

Installation
At first, remove the old PSU from the system case. Firstly, draw off all plugs from the PSU, that are connected
with the mainboard or other components in the PC. Now remove the screws at the back side of the case which
connects the PSU with the case. After the screws are removed, remove the old PSU from the case carefully
and replace it with your new FSP PSU.
Set the PSU into the intended position in the housing and tighten it with the supplied screws. If you purchased
a PSU with modular cables, put all necessary cables on the PSU. No need to connect cables that are not
intended to be used on the PSU.
Recommended installation direction for the Hydro PTM+ (see figure below)
Recommended installation for water cooling:
①Use a 12mm connector for the cooling head
②Check the in/out direction of the water-cooling system is correctly connected
Caution: This water-cooled power supply unit must be installed by a trained professional.
02
Connect the 8-pin plug to the
mainboard. If your mainboard
only has a 4-pin connector, then
use the 4-pin plug or split the
8-pin connector in half.
For graphic cards with 6-pin
connector or connectors, use the
suitable cables. Modern graphic
cards with 8-pin connectors are
also supported. In this case, use
the other two pins beside the
regular 6-pin plug in order to
create an 8-pin connector.
Put the 24-pin ATX plug through
the housing to the correct
connection of the mainboard.
Lastly connect the peripheral
devices such as hard disks and
optical drives with 4-pin
Molex-or 15-pin SATA
connectors.
12mm
RGB LED Controller Installation
【Step 1】
Connect the PSU RGB Connector to the LED Port on
the PSU module panel.
【Step 2】
Connect the PSU RGB Connector to the RGB LED
Control. Insert the connector by aligning the “▼”
mark with “+” mark.
【Step 4】
Read the Bitspower RGB LED Controller user manual.
【Step 3】
Connect the RGB LED Control to the PSU Molex
connector.
03
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
UV
W
B
R
G
V+
Y
B
12 3 4
v- v+
RGB LED Controller
PSU RGB Connector
Y
B
12 3 4
v- v+
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
UV
W
B
R
G
V+
Users’ Manual
Connectors
04
UV
W
B
R
G
V+
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Pin 10
Pin 11
Pin 12
+3.3V
+3.3V
GND
+5V
GND
+5V
GND
PG
+5VSB
+12V
+12V
+3.3V
Pin 13
Pin 14
Pin 15
Pin 16
Pin 17
Pin 18
Pin 19
Pin 20
Pin 21
Pin 22
Pin 23
Pin 24
+3.3V
-12V
GND
PS-ON
GND
GND
GND
N/C
+5V
+5V
+5V
GND
20+4 / 24-pin connection to mainboard (ATX)
4+4-pin connection to mainboard (EPS)
Pin 1
Pin 2
Pin 3
Pin 4
GND
GND
GND
GND
Pin 5
Pin 6
Pin 7
Pin 8
+12V
+12V
+12V
+12V
6+2-pin connection to graphics card (PCI-E)
Pin 1
Pin 2
Pin 3
Pin 4
GND
GND
GND
GND
Pin 5
Pin 6
Pin 7
Pin 8
+12V
+12V
+12V
GND
6-pin connection to graphics card (PCI-E)
GND
GND
GND
Pin 4
Pin 5
Pin 6
+12V
+12V
+12V
Pin 1
Pin 2
Pin 3
Serial-ATA connection for components (SATA)
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
+12V
GND
+5V
GND
+3.3V
4-pin molex connection for components (4P)
Pin 1
Pin 2
Pin 3
Pin 4
+12V
GND
GND
+5V
4-pin connector for floppy drives (4P)
Pin 1
Pin 2
Pin 3
Pin 4
+12V
GND
GND
+5V
Warranty Policy
05
Thank you for purchasing FSP product!
FSP ensures the materials and craftsmanship of Hydro PTM+ products are free of defects. The two-year
warranty period starts from the date of purchase (date of delivery). Warranty information may vary according
to region, so please consult your local authorized distributor for details.
The warranty is applied to damages caused through normal use and is void if it is resulted from, but not
limited to, the following situations:
• Wear and tear associated with normal use
• Any modification, abuse, accident, disassembly, misapplication, or unauthorized repair
• Removal of any manufacturer label(s) or sticker(s)
• Any improper operation, including any use not in accordance with any supplied product instructions
• Connection to any improper voltage supply
• Any other cause which does not relate to a product defect in materials or workmanship
The warranty will be voided if the built-in water block shows any sign of tampering, or any sign of external
forces.
＊The safety certification for this product was performed in a “dry state without any liquid added”.
＊Caution: This liquid cooled power supply unit must be installed by a trained professional.
Trouble Shooting
If the power supply unit fails to function properly, please check the following:
• Is the AC input connected securely and electrical outlet switched out?
• Check that the output connectors are connected properly to all the components.
• Disconnect the power cord from the unit to reset supply unit.
However, if the power supply unit still does not function properly, please contact your original vendor or
retailer for repair or replacement.
WEEE
ATTENTION!!!
The product contains hazardous waste and/or recycling goods. According to the law it is not allowed to be
disposed of in the household waste.
For more detailed information please contact the applicable collection point for hazardous waste or recycling
goods.
English
06
Trouble Shooting
WEEE
Garantierichtlinie
Vielen Dank für den Kauf eines FSP-Produktes!
FSP garantiert, dass Material und Verarbeitung von Hydro-PTM+-Produkten frei von Fehlern sind. Die
zweijährige Garantie beginnt mit dem Kaufdatum (Lieferdatum). Garantieinformationen können je nach
Region variieren. Bitte wenden Sie sich an Ihren örtlichen autorisierten Händler.
Die Garantie gilt für Schäden, die bei normaler Benutzung aufgetreten sind; sie gilt nicht/erlischt, falls u. a.
eine der folgenden Situationen vorliegt:
• Verschleiß in Verbindung mit normaler Benutzung
• Jegliche Modifikationen, Missbrauch, Unfälle, Demontage, unsachgemäße Benutzung oder unautorisierte
Reparaturen
• Entfernung von Herstelleretiketten oder -aufklebern
• Jegliche unsachgemäße Benutzung, einschließlich jeglicher Nutzung, die nicht mit beigefügten
Produktanweisungen übereinstimmt
• Anschluss an eine ungeeignete Spannungsversorgung
• Jegliche andere Ursachen, die nicht mit einem Material- oder Verarbeitungsfehler des Produktes in
Verbindung stehen
Die Garantie erlischt, falls der integrierte Wasserblock Anzeichen einer Manipulation oder einer äußeren
Gewalteinwirkung aufweist.
＊Die Sicherheitszertifizierung für dieses Produkt wurde in einem „trockenen Zustand ohne Zugabe jeglicher
Flüssigkeiten“ durchgeführt.
＊Achtung: Dieses flüssiggekühlte Netzteil muss von einem geschulten Experten installiert werden.
Bitte prüfen Sie Folgendes, falls das Netzteil nicht ordnungsgemäß funktioniert:
• Ist das Netzkabel ordnungsgemäß angeschlossen und wird die Steckdose mit Strom versorgt?
• Vergewissern Sie sich, dass sämtliche Ausgangsstecker ordnungsgemäß an die Komponenten
angeschlossen sind.
• Durch Trennen des Netzkabels vom Gerät können Sie das Netzteil zurücksetzen.
Sollte das Netzteil danach immer noch nicht ordnungsgemäß funktionieren, setzen Sie sich bitte mit Ihrem
Händler in Verbindung, um es reparieren oder ersetzen zu lassen.
ACHTUNG!!!
Das Produkt enthält gefährliche und/oder recyclingfähige Abfälle. Laut dem Gesetz darf es nicht mit dem
Hausmüll entsorgt werden.
Detaillierte Informationen erhalten Sie von Sammelstellen für gefährliche Abfälle oder recyclingfähige Abfälle.
Deutsch
