FS FS-BOX-V3 Manual de usuario
FIRMWARE UPGRADE TOOL KIT
Quick Start Guide V3.0
FS-BOX-V3
SFP+
XFP
QSFP+
QSFP28
SFP28

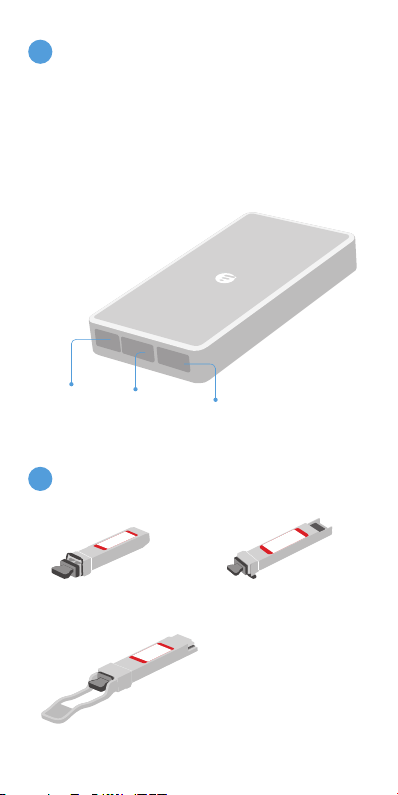

Introduction
1
Supported Transceiver Type
2
FS Box V3 only works with FS transceivers & DAC/AOC cables. It is designed
to solve real-time compatibility needs, wavelength tuning for tunable
transceiver and upgrade the transceiver rmware in data center. With its
instant online platform fsbox.com and a wide range of conguration
choices, FS Box V3 could help engineers congure in a timely and eective
way.
SFP28
SFP+
XFP
QSFP+
QSFP28
QSFP+/QSFP28
SFP+/SFP28 XFP
XFP
QSFP+/QSFP28
SFP+/SFP28
FS
SR
FS
SR
FS
SR4
If you don't have an account, click Create an account to create one.
You can download the driver on the home page or after signing in.
Operation Instructions
3
Login Operation
1
Step 3: Download and install the driver.
Step 1: Go to fsbox.com.
Step 2: Log in with your FS accoumt.
Sign in
Forgot password
Email address
Passwords
Login
Create an account
No FS_Service driver installed
Please reload the browser after the installation is complete.
It is recommended to activate your service in Google Chrome (68 version and later）
Online Conguration Diagnosing Conguration Box Pro
CongurationReadingConnecting Box
It is recommended to activate your service in Google Chrome
(68 version and later)
Windows Mac OS
Step 4: Status displays in green means that the driver is successfully installed
and activated normally.
FS Box
FS Box
Status
Driver Version
Program Version
V1.0.0.0 (Beta)
V1.0.0
SFP+
XFP
QSFP+
QSFP28
SFP28
Install MacOS Driver
Step 1: After downloading the driver, double-click the driver le FSInstall_
Mac_Beta.dmg.
Step 2: Long click the FS Box and drag to the Application folder.
Step 3: Find the FS Box application on the Launchpad, then double-click it
and a system pop-up prompt will appear, click Open.
ApplicationFS Box
Step 1: After downloading the driver, double-click the driver le FSInstaller
for installation.
Step 2: FS service will be automatically activated when the driver is
installed, and you can check the FS logo in the notication bar.
Install Windows driver
If FS service is not automatically activated, just reload the browser.
If you only need to recongure the compatibility of optics, please operate
as follow.
Step 1: Connect FS Box to your computer and insert your transceiver into
corresponding port of FS Box. After successful insertion, the indicator of
FS Box will be blinking.
SFP28
QSFP+
QSFP28
SFP+
XFP
Online Conguration Service
2
Step 2: Choose the compatible brand and click Start Conguration.
No
Please lling
Revise S/N
Batch Conguration ?
?
Yes
QSFP28-LR4-100G
P/N*
DELL (Force 10)
Huawei Netgear
Mellanox
Brocade Intel IBM
Alcatel-Lucent
Extreme
Arista H3C
Cisco Juniper
Start Conguration
Brand*
Please choose
Serial number
If you need to change more brands for compatibility, please go to
'Box Pro' for custom application
Generic
Some special brands or special transceiver types do not support revise
serial number in Online Conguration, and the Yes and No buttons can
not be clicked. In this case, you need to apply in Box Pro.
If you need to recongure multiple transceivers to same compatible
brand, you can turn on the Batch Conguration button, then follow the
the prompts to insert and remove the transceivers one by one. And if
you want to stop batch conguration, turn o the button after
conguration succeeds.
Juniper
Brand
F123456793
S/N P/N
QSFP28-LR4-100G
Step 3: Conguration succeeds, then pull out the transceiver.
If you need to congure channels for tunable transceivers, please operate
as follow.
Step 1: Connect FS Box to your computer and insert your tunable
transceiver into the corresponding port of FS Box. The platform can quickly
identify it. Then choose the P/N of the transceiver, and click the eidt icon
under the wavelength.
Wavelength Tuning
3
--
Brand
ASTT191213007
S/N P/N
AO-DTXX-R80
Wavelength
CH21 (1560.61nm)
Online Conguration Diagnosing Conguration Box Pro
CongurationReadingConnecting Box
√√
DWDM-SFP10G-C
P/N*
Step 2: Choose the wavelength and click Apply.
Step 3: You can check the updated wavelength and status after conguration
succeeds.
Cancel Apply
Tunable wavelength:
CH19.5 (1561.83nm)
Changing wavelength
Wavelength:
CH21 (1560.61nm)
Cancel Apply
Tunable wavelength:
Please choose
Changing wavelength
Wavelength:
CH19.5 (1561.83nm)
√Changed
If you need to solve compatibility issues with your problematic optics after
the sale, please operate as follow.
Step 1: Connect FS Box to your computer and insert an identical
transceiver that works well into the corresponding port of FS Box.
Diagnosing Conguration Service
4
SFP28
QSFP+
QSFP28
SFP+
XFP
