With bigger ships, more passengers and broader menu

offerings, a galley needs equipment that saves space, is

safe and easy to operate, and meets the United States

Public Health Service Guidelines. The E4Marine Fryer

is also prewired for connection to an external fire

protection system for SOLAS compliance.

The electric Marine Fryer by Frymaster has a stainless steel

cabinet, frame, frypot and plumbing, making it well suited

for the marine environment. The built-in filtering system

helps to reduce the need for holding oil on-board for dis-

posal on-shore.

MARINE FRYER FEATURES INCLUDE

• Ability to withstand shipboard vibration

• Operates at a 20 degree incline

• Sturdy tubular legs and a pad

for deck mounting

LONG-LIFE HEATING ELEMENTS

• Feature low-watt density

• Swing-up providing easy cleaning

and improved sanitation

• A power interruption if the

elements are raised

BUILT-IN, HANDS-OFF FILTERING

OPERATION

• Fast and easy encouraging frequent

filtering

• Extends oil quality and oil life

• Ensures quality fried products

• Minimizes the need for holding oil

on-board for disposal on-shore

• Features a boil-out mode for

easy cleaning

A heritage of reliability. Frymaster is the world’s most dependable fryer with an

unmatched worldwide service network, with internet service support for fast response time.

A spare “parts kit” and instructional videos are available to ensure the best and simplest

operations while at sea. Your ship engineers can make repairs as needed, and we will replace

any part used in warranty at no charge.

Call 1-800-221-4583 or visit

www.frymaster.com

87 00 Li ne Ave nue, P. O. Box 5 100 0

S hr ev ep o r t, L A 7 1 13 5 -1 00 0, U SA

318-865-1711, fax 318-868-5987

Built tough to meet the demands of a galley.

Frymaster E4Marine Fryers

RE117

RE217

Frymaster E4Marine Fryers

Specifications

• Stainless steel construction: frame,

plumbing, frypot and cabinet

• 1/3 H.P. filter motor

• 1 box of 25 pre-packaged applications

of Filter Magic® powder

• 1 box of 25 sheets Filter Magic® paper

• Stainless crumb catcher

• Twin baskets

• Remote digital controller can be mounted

on the site or at a remote location

Optional Features

• Front oil disposal wand • Full-size basket

• Cooking computer • Frypot covers

8700 Line Avenue

P.O. Box 51000

Shreveport, LA

71135-1000, USA

Tel: 318-865-1711

Fax: 318-868-5987

1-800-221-4583

www.frymaster.com

Bulletin No. 818 0512

POWER REQUIREMENTS FOR FILTER ONLY

Supply voltage for filter is obtained from a separate 220V 60 Hz (9.0 AMP)

cord supplied with the unit. Filter Motor -- 220V 60 Hz (4.5 AMP).

POWER REQUIREMENTS FOR FRYERS

*plus ground wire

MODEL SHORTENING Input NOMINAL AMPS Min.Wire Size

NO. CAPACITY kW PER LINE (awg.-mm2)

(MIN.-MAX.) 440V

3 Phase (3 wire)*

RE17/RE217 40-50 lbs. (22-28 ltrs) 17 22.3 440V - 8 (10)

RE22/RE222 40-50 lbs. (22-28 ltrs) 22 29 440V - 8 (10)

FP FILTER WITH FRYERS

SHIPPING INFORMATION

MODEL UNIT SHIPPING

NO. WEIGHT WEIGHT CLASS CUBE H W L

RE217/RE222 490 lbs. (223 kg) 522 lbs. (251 kg) 77.5 51.86 53”(1346 mm) 38”(965 mm) 44” (1118 mm)

RE117/RE122 150 lbs. (68 kg) 262 lbs. (119 kg) 85 21.31 46.5”(1181 mm) 22”(559 mm) 36” (914 mm)

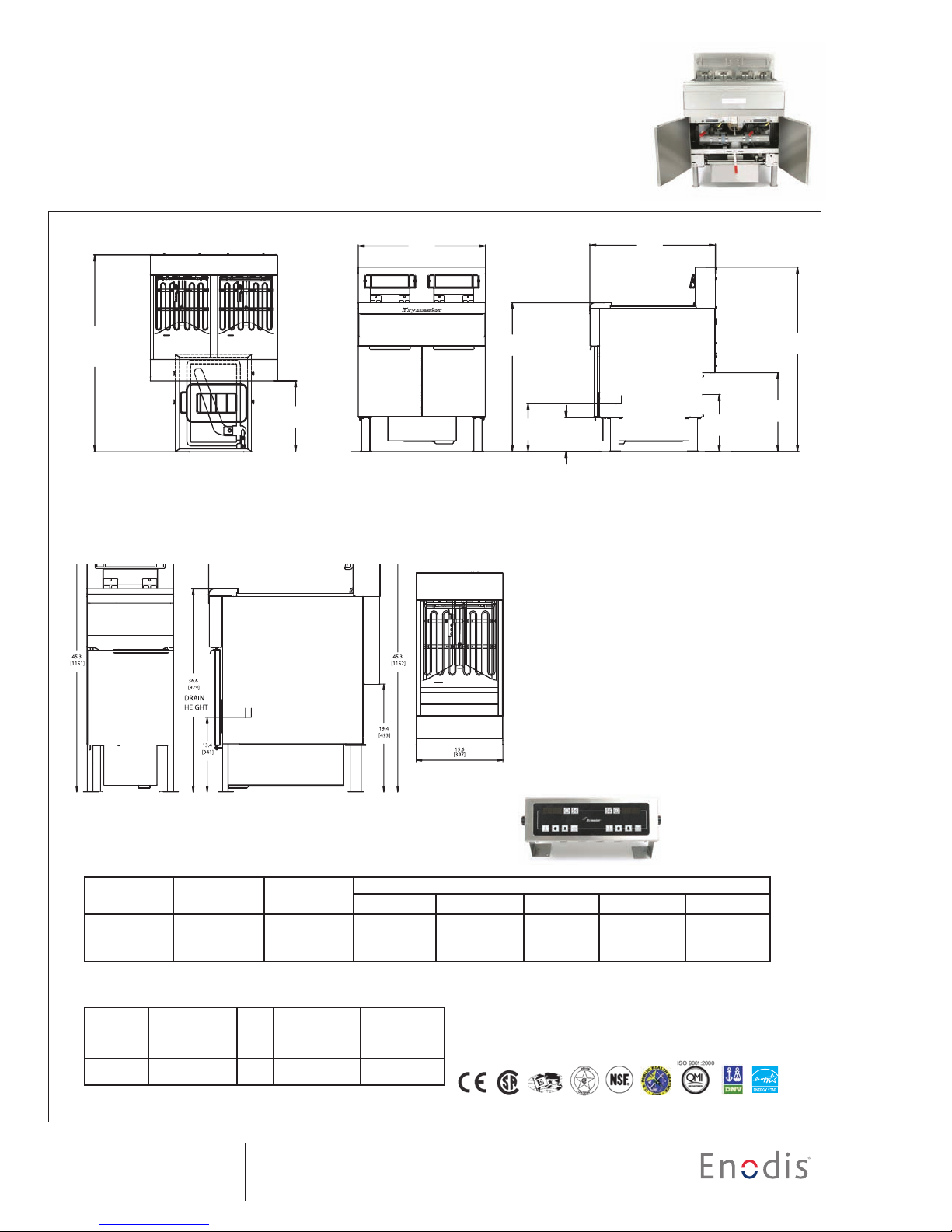

17.5

[443]

48.4

[1229]

FILTER PAN

ROLLED OUT

30.9

[785]

31.3

[794]

FRONT VIEW

TOP VIEW SIDE VIEW

8.4

[213]

11.8

[299]

36.6

[929]

DRAIN HEIGHT

14.0

[356]

POWER CORD

HEIGHT

19.4

[492]

45.3

[1151]

RE217
