Frigidaire LTF6000ES0 Manual de usuario

Product No. LTF6000ES0

Series Frigidaire

Market North America

Color white

Volts 115

Wiring Diagram 134604100

Owner's Guide 134610900

Energy Guide 134610500

Installation Instructions 134610800

Operating Instructions 134610700

P12L0054.eps P12C0358.eps P12V0083.eps P12T0085.eps 134604100.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995460598

06/02/09

(EN/SERVICE/KC)

361

FRONT-LOAD

WASHING MACHINE

Model No.

LTF6000E

Publication No: 5995460598 LTF6000ES0

02/06 2

CONTROL PANEL

LTF6000ES0 Publication No: 5995460598

# Functional Parts 3 02/06

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 134523106 Control Board, pc, with housing

2 134364800 Bracket, top front

3 134551200 Knob, program

4 134553100 Light Pipe, program

5 # 134556500 Interface Board, pc, auxiliary

6 134347700 Pin, program knob

7 134555600 Push Button, round, #2

8 134555500 Push Button, round, #1

9 134553400 Push Button, oval, #1

10 134555400 Push Button, oval, #2 (soil)

11 134595600 Push Button, oval, start

12 134553300 Spring, push button

13 134557500 Light Pipe, start group

14 134557400 Light Pipe, row of 3

15 134552800 Light Pipe, 5 x 4

16 134600000 Light Pipe, row of 5

17 # 134407800 Switch, pressure, analog

18 131302800 Screw, 10-16AB x 0.375

19 134402900 Screw, phillips, 6-19 x 0.650

20 134452600 Cover, hole plug

21 134407900 Dampener, vibration

22 # 134602100 Wiring Harness, interface board

23 # 134436600 Wiring Harness, controls

23*# 134543100 Wiring Harness, main

26 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

27 134593300 Panel, control console

28 131205300 Screw, 10-16 x 0.750

32 134371700 Hose, disp-to-bellows

33 131306216 Clamp

34 134446300 Clamp, hose, bellows

35 134371800 Gasket, disp hose seal

36 # 134371220 Valve, dispenser, NTC/short tube

36* 131311900 Screw, quadrex ph, 8-18AB x 0.500

37 134372300 Hose, disp-to-tub

38 134372400 Clamp, tub hose

39 134446120 Housing, dispenser, w/valve, cover

39* 134371300 Gasket, disp-to-valve

40 134372100 Tube, disp-to-overflo

41 134372200 O-ring, overflow tube

42 131168200 Screw, pan head, 8-18B x 0.31

44 134370200 Cover, dispenser

45 134370000 Drawer, dispenser

48 134556700 Handle/Drawer Assy

48* 134555800 Pad, drawer handle, soft touch

50 134370100 Conveyor, dispenser, lower

55 134553200 Lens, digital display

56 134557300 Light Pipe, digital display

57 # 134503300 Display, digital

Publication No: 5995460598 LTF6000ES0

02/06 4

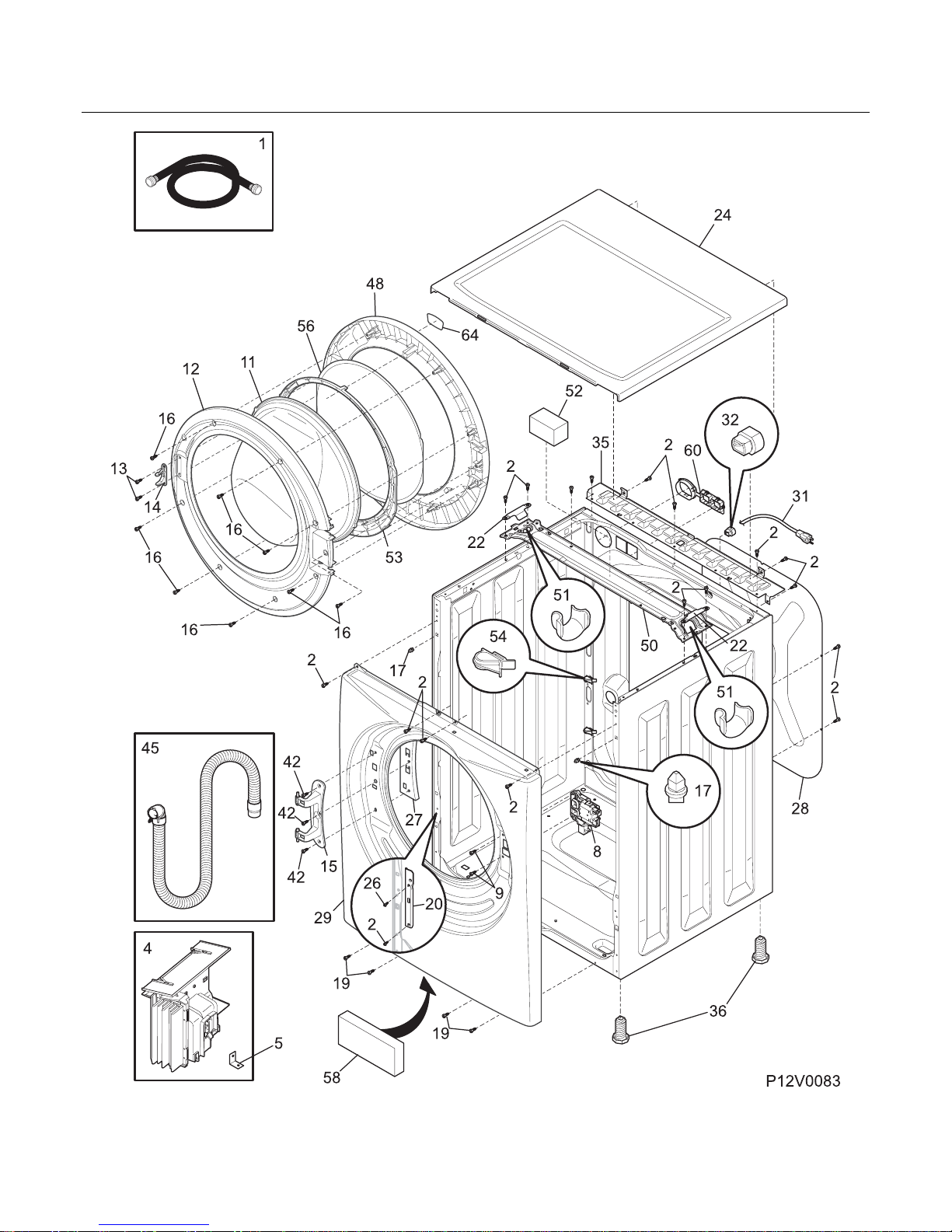

CABINET/TOP

LTF6000ES0 Publication No: 5995460598

# Functional Parts 5 02/06

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 131454100 Hose, water inlet, 4 ft., hose & washer

2 131168200 Screw, pan head, 8-18B x 0.31

4 # 134591200 Control Board, motor

4* # 134547600 Wiring Harness, motor control

5 134522900 Bracket, angle, motor control

5* 134178901 Screw, 8-18AB x 0.455

8 # 131763245 Door Lock/Switch Assy

8* # 134606800 Wiring Harness, door switch

9 131303300 Screw, pan head, 10-16AB x 0.500, locking

11 134366400 Panel, door glass

12 134550700 Frame, inner door

13 131302901 Screw, 10-16 x 0.750

14 131763310 Striker, door/lock/sw

15 134550800 Hinge, door, with bushings

16 131205300 Screw, 10-16 x 0.750

17 134408700 Clip, assembly

19 131258400 Screw, 10-16AB x 0.500

20 134434901 Bracket, LS panel, reinforcement

20* 134434900 Bracket, RS panel, reinforcement

22 134364700 Retainer, spring steel

24 134365000 Panel, work top, white

26 134521600 Screw, hex washer head, M5 0.8 x 15

27 134550900 Bracket, hinge, reinforcement

28 134364300 Panel, service access, rear

29 134550110 Panel, cabinet front, white

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

35 134365100 Bracket, top support, rear

36 134548800 Leveling Leg, screw, plastic

42 134601900 Screw, flat head, M5 x .8 x 17.5

45 # 134369400 Hose, drain, external

48 134550500 Panel, outer door, white

48* 134554500 Pad, outer door

50 134364600 Bracket, tub suspension

51 134562100 Protector, tub brkt, spring hook, (2)

52 131931202 Dampener, vibration, foam

53 134551300 Ring, door transition

54 134364900 Fastener, wire harn clip

56 134550600 Glass, outer door lens

58 131800405 Insulation, noise absorber

60 134372000 Grommet, dispenser, back panel

64 134601600 Nameplate, Affinity

* 134596200 Shipping Support Kit

* 134591500 Plug Assy, shippingholes, back

Publication No: 5995460598 LTF6000ES0

02/06 6

MOTOR/TUB

LTF6000ES0 Publication No: 5995460598

# Functional Parts 7 02/06

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131793303 Bolt, carriage, 1/4-20 x 2.60

6 134362200 Counterweight, front, one piece

7 134365300 Spring, bellows clamp, retainer

8 # 134515300 Bellows Kit, boot, no light hole

10 131304700 Nut, hex, 1/4-20 UNC-2B, (2)

11 131276900 Washer, Bellville, spring steel

12 134430600 Plate, counterweight

13 134362000 Shell, tub, front

14 # 134362800 Spring Assy, suspension

15 134408300 Screw, hex head, 6.5 x 51 mm

16 134360910 Drum Assy, spin basket

17 134509600 Vane Kit, drum

18 131302800 Screw, 10-16AB x 0.375

19 # 134362500 Motor, 120 V

20 131303500 Screw, 12-14AB x 1.50, motor mtg.

21 134361900 O-ring, tub

22 134509500 Shell, outer tub, rear, w/bearing, seal

25 # 134051001 Belt, drive, poly-V, 6-rib

26 # 134362600 Pulley, drum drive, large, rear

29 134408400 Screw, 10.9 class, M10 x 25 mm

30 134560400 Shock Absorber, dual stage

31 131268300 Pin, shock mtg.

32 134363200 Bracket, shock mtg.

33 134160900 Screw, quadrex, 10-16AB X 0.750

34 134446300 Clamp, hose, bellows

35 # 134051200 Pump, drain

40 134565200 Filter, pump

41 134455900 Hose, drain, tub>pump, coin trap

42 131333101 Clamp

43 134369000 Chamber, air

44 134369900 Hose, air pressure

45 131306202 Clamp, hose

46 134436100 Syphon Brake, hose, with clamps

48 131306234 Clamp, pump to trap

49 134527100 Clamp, bellows, spring held

52 131202300 Screw, 10-16AB x 0.625

55 134458300 Hose, internal drain

56 134369800 Fastener, hose clip, (3)

56* 134261300 Clip, drain hose, push-mount

* 134610500 Energy Guide

Publication No: 5995460598 LTF6000ES0

02/06 8

WIRING DIAGRAM
