Frigidaire Gallery FWT449GFS2 Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR

FWT449GFS2 FWT449GF White

Publication No.

5995331625

000111

ENG/SERVICE/JAB

361

FRONTLOAD WASHER

Model No.

FWT449GF

FACTORY PARTS CATALOG

WASHER

WIRING DIAGRAM # - 131788100

OWNER’S GUIDE # - 131842800

6000 Perimeter Drive

Dublin, OH 43017

01/2000 2

Publication No. FWT449GFS2

5995331625 CONTROL PANEL

# = Functional Part 3 01/2000

* = Non-Illustrated Part

FWT449GFS2 Publication No.

5995331625

POS. NO PART NO DESCRIPTION

1 131272100 Cover-bleach

2 131272000 Cover-softener

3 131271900 Drawer-dispenser

4 131271300 Pin

5 131271200 Spring

6 131374500 Latch-handle

7 131427500 Spring

8 131373800 Magnet

9 131691200 Handle-white

12 # 131505900 Switch-reed

13 131729000 Switch-water temp

14 # 131048300 Buzzer

15 131243200 Switch-on/off

16 131349000 Light-pilot

17 # 131273700 Switch-pressure

18 131800500 Timer

19 131670300 Screw-timer, 10-32 x .245, quadrex ph

21 131243700 Screw, pan head, 8-18AB x 0.375

cr/sq drive

23 131270200 Lever-cam

24 131856300 Cam-timer

25 131271400 Rod

26 131205100 Screw, #8 pan head, 10-10B x 0.50,

cr/sq drive

27 131691007 Asmy-cons frame/trim

29 131761704 Knob-rotary

30 131264300 Knob-timer-white

31 131716300 Dial-timer-white

32 # 131272400 Hose-siphon/fill

33 131306215 Clamp

34 131465200 Arm-pivot

35 131271500 Disp-eccentric

36 131270300 Dispenser assy, includes #1, 2,

3, 4, 5, 35 and 37

37 # 131271600 Hose-tub

39 131272300 Duct-fill

42 131168200 Screw, 8-18 x 0.31

43 131749200 Gasket-seal

45 5303321107 Bushing

46 131730600 Bracket-controls

53 131269601 Lens-pilot light

* 131785900 Harness-main-TAW, rot 850 rpm

* 131307900 Clip-bellows to fill duct

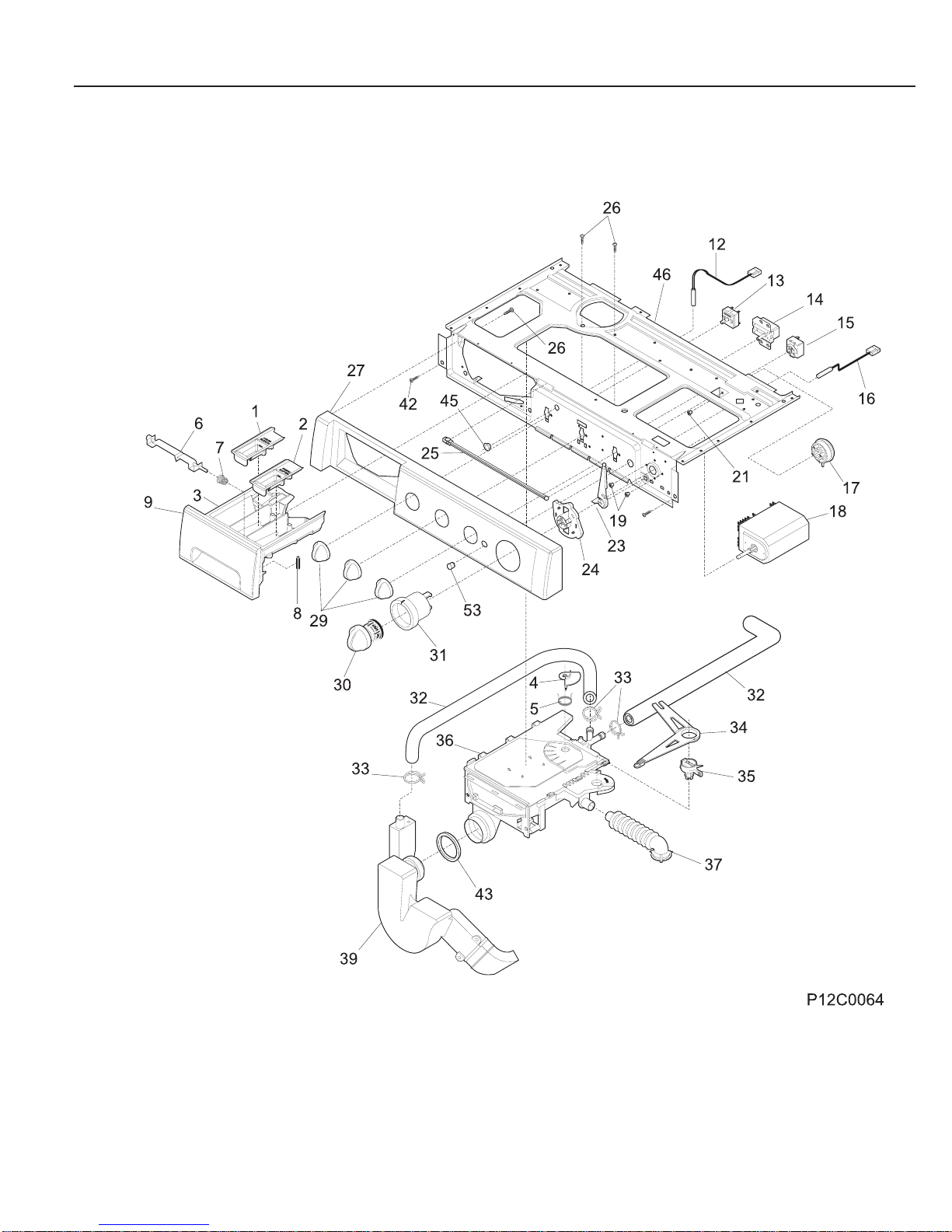

CONTROL PANEL

01/2000 4

Publication No. FWT449GFS2

5995331625 CABINET,DOOR &TOP

# = Functional Part 5 01/2000

* = Non-Illustrated Part

FWT449GFS2 Publication No.

5995331625

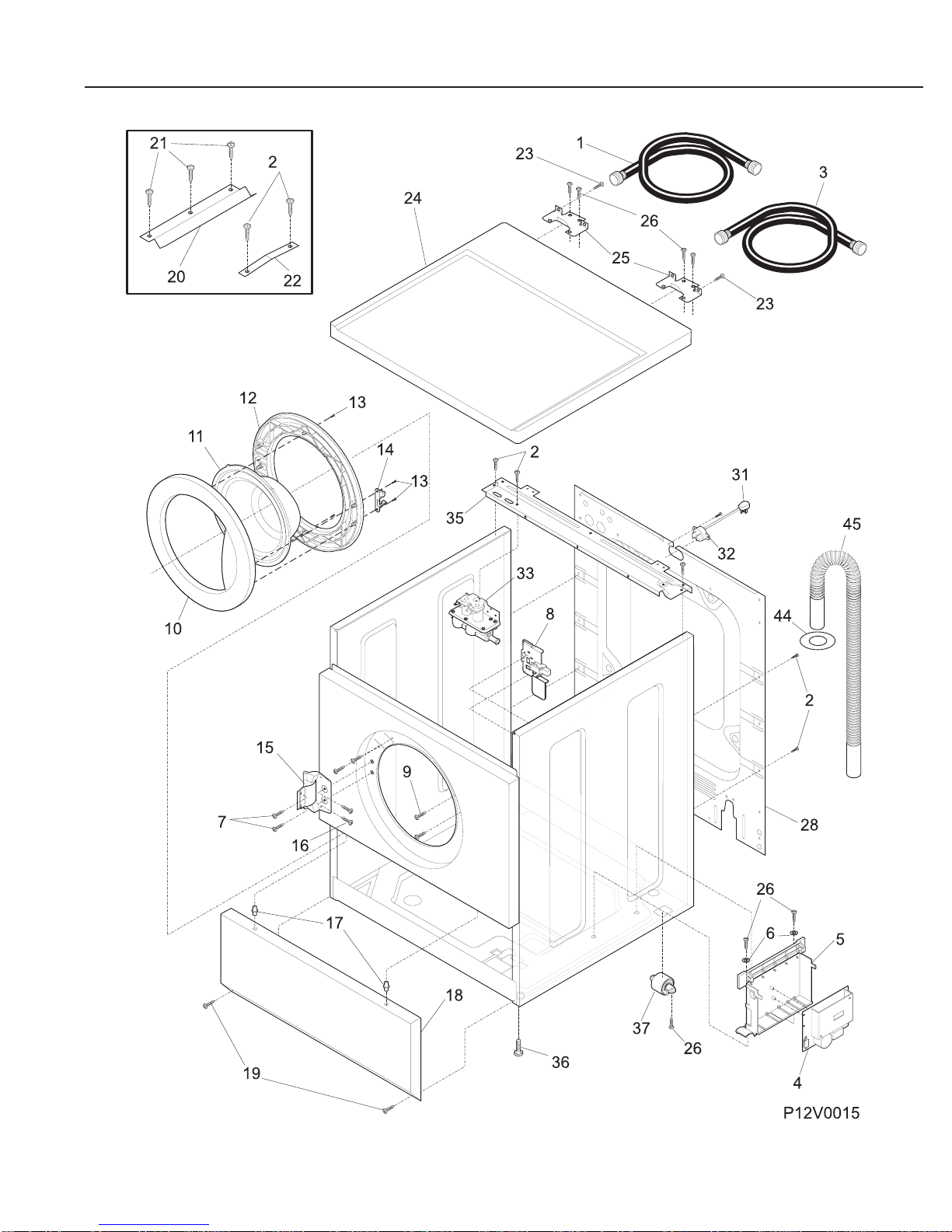

CABINET,DOOR &TOP

POS. NO PART NO DESCRIPTION

1 131279602 Asmy-Inlet Hose Cold

2 131168200 Screw, 8-18 x 0.31

3 131279603 Asmy-Inlet Hose-Hot

4 131725300 Control Speed

5 131268900 Box-control

6 131304300 Washer .21 x .71 x .06

7 131205300 Screw-door, 10-16 x .75

8 # 131763200 Door lock/switch USCC

9 131303300 Screw-lock, ph ab, 10-16 x .50

10 131278700 Door-outer

11 131278800 Glass-door

12 131278900 Door-inner

13 131302901 Screw, 10-16 x .75

14 131763300 Catch-door

15 131269300 Hinge-door

16 131696300 Screw 10-16 x .312 quad pn hd

17 131346400 Pin-locating

18 131279300 Panel-service white

19 131358400 Screw-panel, hwhd ab, 8-18 x 1.125

20 131460900 Bracket-top front

21 131243700 Screw, pan head, 8-18AB x 0.375,

cr/sq drive

22 131279500 Retainer-spring

23 131243800 Screw-brkt top, pan hd locking,

8-32CA x 0.375, cr/sq drive

24 131677308 Panel-top

25 131668200 Bracket-top pnl

26 131311900 Screw, quadrex ph ab, 8-18 x 1/2

28 131734800 Panel-back

31 5303208765 Cord-service

32 5303209428 Bushing-cord

33 # 5303207418 Valve-water

35 131732900 Back-reinforcement

36 131003900 Leg, pad/nut

37 131304200 Roller Assy

44 131707800 Ring-drain hose

45 # 131461200 Hose-drain, 90 inch

* 131453001 Bushing-top panel

01/2000 6

Publication No. FWT449GFS2

5995331625 TUB & MOTOR

# = Functional Part 7 01/2000

* = Non-Illustrated Part

FWT449GFS2 Publication No.

5995331625

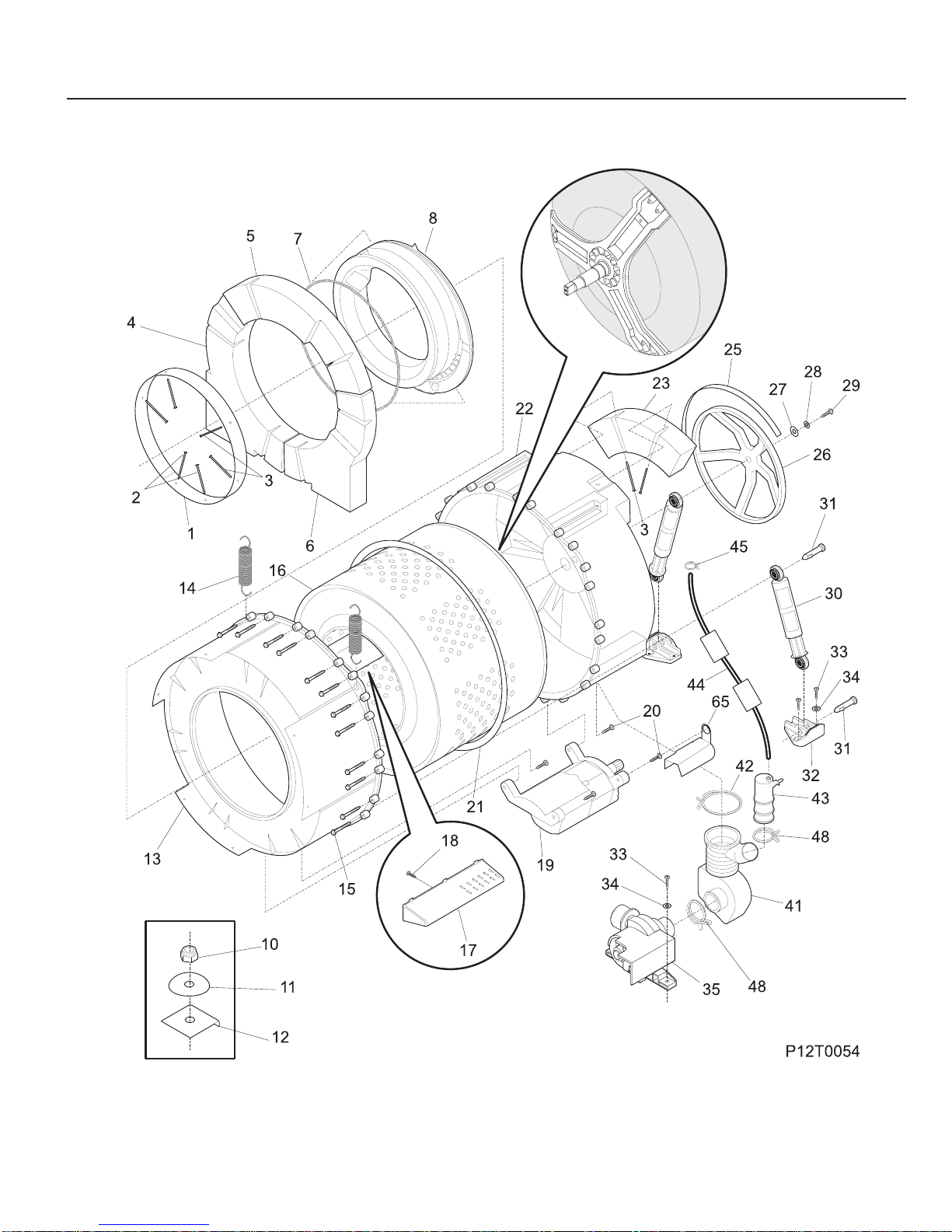

TUB & MOTOR

POS. NO PART NO DESCRIPTION

1 131793400 Ring-weight

2 131793301 Bolt-carriage 1/4-20 x 4.50

3 131793300 Bolt-carriage 1/4-20 x 4.15

4 131276500 Weight-lwr left

5 131276600 Weight-top front

6 131851900 Counterweight-lower right

7 131277300 Spring-boot

8 131277100 Boot

10 131304700 Nut

11 131276900 Washer-spring

12 131793500 Plate-weight

13 131618600 Shell-front tub

14 131663600 Spring/sleeve

15 131303900 Screw, hxwhd a, 1/4-10 x 2.165

16 131618500 Tub-spin

17 131274600 Vane

18 131302800 Screw-vane, quad ph ab, 10-16 x .375

19 # 131276200 Motor-main, 850

20 131303500 Screw-motor, hwhd ab, 12-14 x 1.50

21 131275900 Seal-shell

22 131462800 Shell-rear/bearing

23 131709300 Weight-upper back

25 # 131276300 Belt

26 # 131632500 Pulley-drum

27 131304400 Washer .41 x 1.500 x .120

28 131304500 Washer-lock, 3/8

29 131303700 Screw-pulley, m10 x .92

30 131268200 Level-shock

31 131268300 Pin-level

32 131268100 Bracket-shock

33 131303100 Screw-bracket, hwhd ab, 10-16 x .625

34 131304300 Washer .21 x .71 x .06

35 131723500 Pump-drain

41 131784700 Hose-coin trap-tub to pump

42 131333101 Clamp

43 131277500 Chamber-air

44 131277600 Tube-pressure

45 131306202 Clamp

48 131306234 Clamp-pump

65 131702200 Shield-motor

* 131560000 Sleeve-lower spring, tub

* 131592200 Sleeve-upper spring, tub

01/2000 8

Publication No. FWT449GFS2

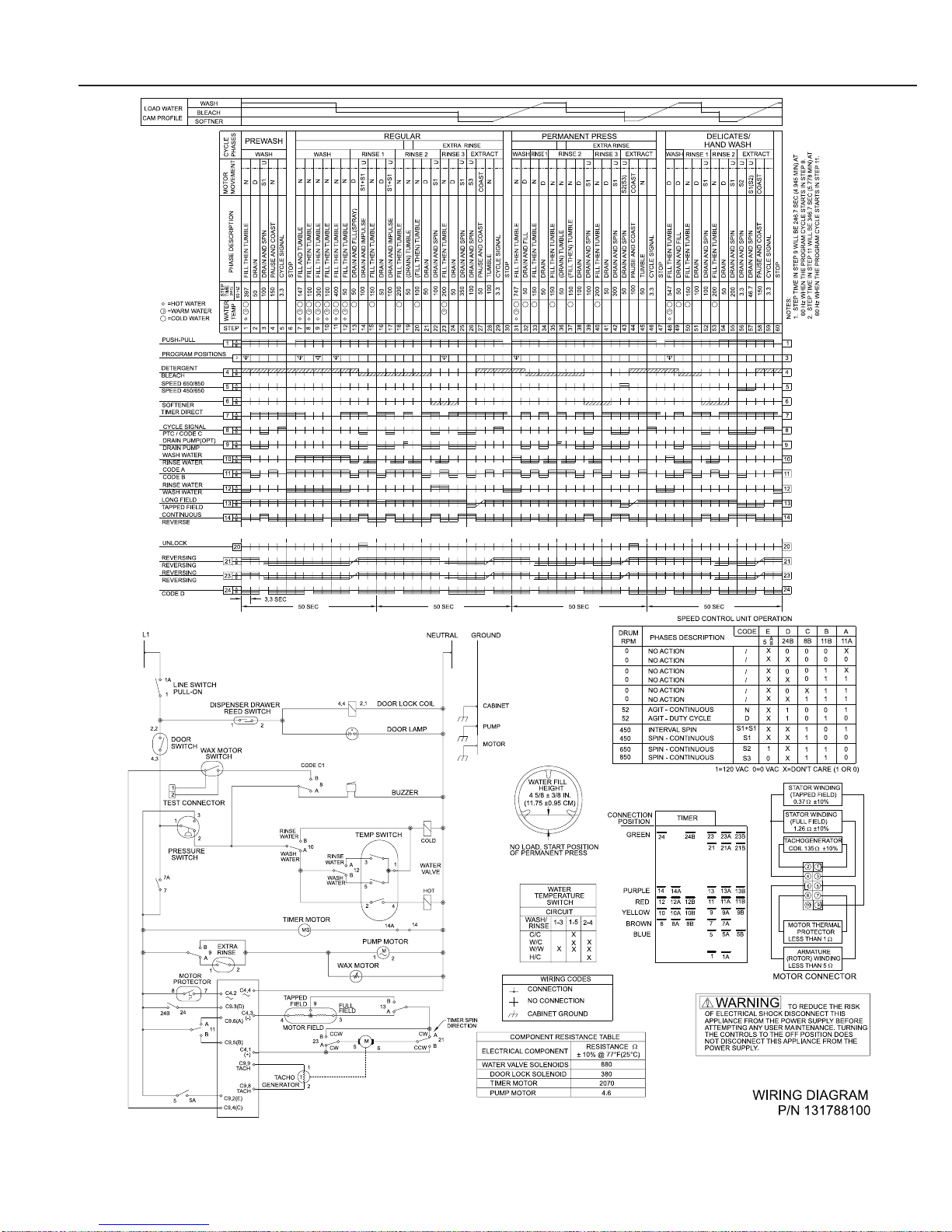

5995331625 WIRING DIAGRAM
