Frigidaire FLBY15GGAWFD Manual de usuario

FLBY15GGAWFD

FLBY15GGAWF

Electrolux Major Appliances International,

10200 David Taylor Drive, Charlotte, NC 28262, USA

Made in china

Features:

Spiral strong water flow,wash more clean.

New wash mode,remove the dirt on the clothes thoroughly.

Multi water level indication,save water and energy.

Rinse and foam-removing spinning,clean and fast.

Content

Before using

Name of part ............................1

Attention ..................................2

Installation and adjustment ........3

Main functions ..........................4

Preparation before washing........4

Using process

Washing attentions .......................5

Use of detergent............................5

Washing sequence........................6

After using..................................8

Clean lint filter..............................

Clean machine..............................

When the remained water is frozen..

Trouble-shooting...........................9

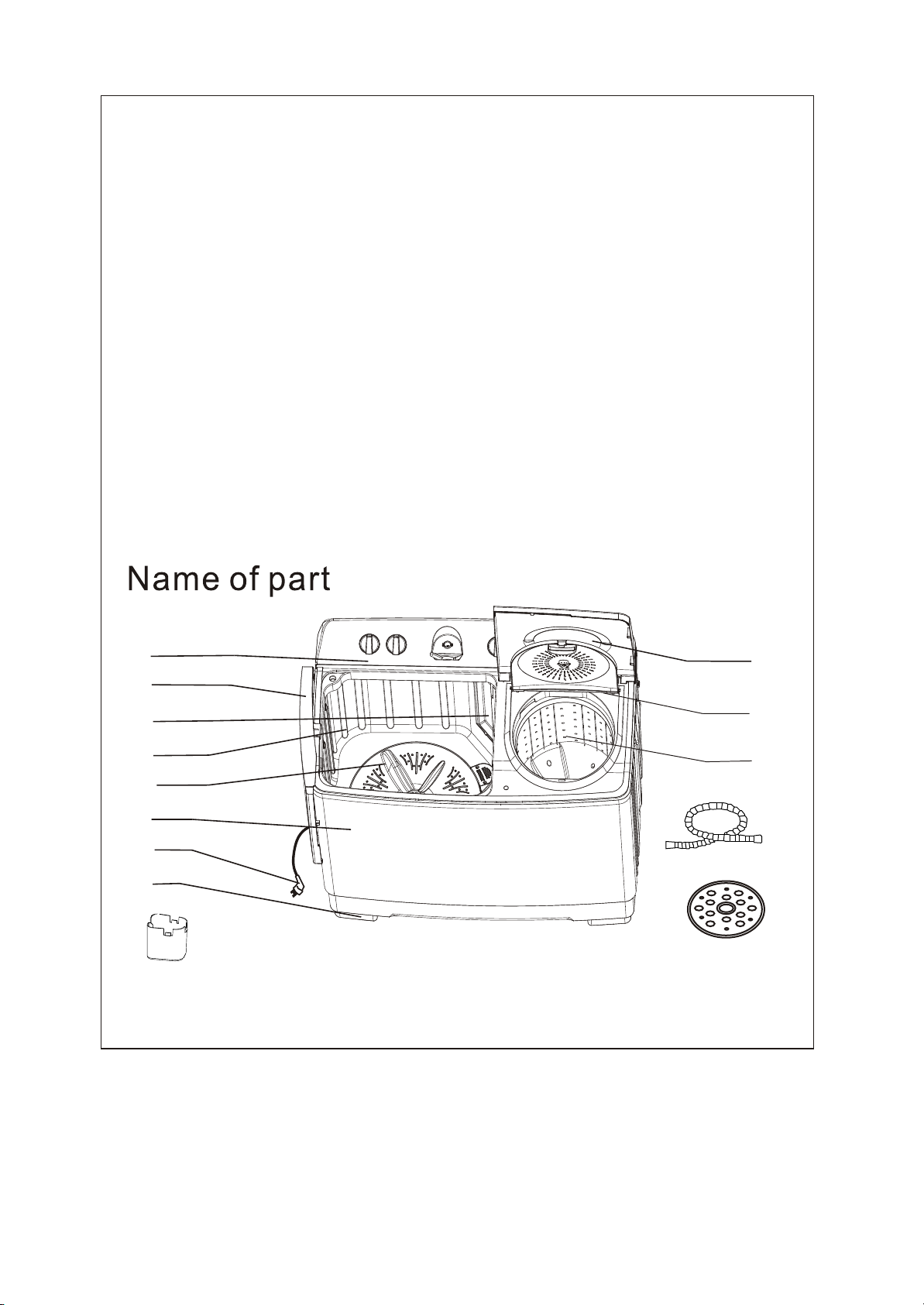

BEFORE USINGBEFORE USING

If the pictureof washing machinehere is different from thereal products,we arenot going tochange it.

Spin cover

Spin tub

Frame

Water Inlet hose

Safety Cover

Wash cover

Control panel

Lint filter

Pulsator

Case

Wash tub

Plug

Base

Footstraps

Don't put itat damp place, like bathroom.

Never clean it with water.

Don't put the wet clothes on the control panel.

The water over 50 is forbidden.

Don't put your hand into the spin or wash

tub while it is working even though it runs

very slowly, especially take care of the

children.

Don't separate it apart, repair or refit it by

yourself.

Don't put any hot or heavy object on the

machine.

The clothes with the volatile

materials(such as thinner,fuel) is forbidden

to wash.

The children without care or the

handicapped are forbidden to use.

Keep the machine away from direct

sunlight and heat source like the heater.

ATTENTION BEFORE USINGBEFORE USING

Use 3-phase socket,the

earthing should be well

connected.

Pull out the plug while no

power, move no use or

cleaning.

If the wire is destroyed,

for safe, please ask our

after -sale service

technician to change or

repair it. Keep the pins

of the plug clean.

50 C

INSTALLATION & ADJUSTMENT BEFORE USINGBEFORE USING

The use of drain hose

The ex factory installation position of the

drain hose is shown in Figure 1.

The hose protrudes out from washing

side.

Lay down the machine on the soft object

with its face towards the ground. Take the

hose out from the fixing groove. (Figure 2)

Along with the groove of the washing tub

side, insert the hose with the step 1 to 3

and spread it to the washing side. (Figure

Insert the hose in the groove by hand, do

not destroy the hose.

Change the direction of the drain hose

Please install andadjust your washingmachine according tothe reguirements of the instruction

manual.It's important to your safe and correct operation of the washing machine.

Figure 1

Figure 2

Figure 3

Soft object

Back

Front

Soft object

Drain

10cm

The hose should drain smoothly

1. The height of the hose should be less than

10cm, or it can not drain completely(down drain).

2. Maximum fixation height for hanging the

hose(with a hook)over a drain outlet(eg.drain

pipe,bath or sink)should not be higher than

1.2metres above the floor.(This is for pump drain

model only)

3. Do not trample or press the hose.

MAIN FUNCTIONS

BEFORE USINGBEFORE USING

The comprehensive performance of the machine is excellent and its appearance is nice .

As to the noise-proof design, the machine uses the enclosed base and low-noise motor

which can lower the noise greatly. We assure you will have a quiet world when use it.

Preparation before washing

Attention before washing

Be sure of the special request of the

clothes.

Take coins, sand and

hairpins out of the

clothes

Fasten the buttons and

the zippers.

When the pulsator is

running, the buttons may

cause sound. For safe, put

the clothes with button in

the middle of the cloth.

The quantity of the Clothes

should not exceed the

rated value.The big clothes

like jeans should be put in

loosely.

1.Install the inlet hose. The max water pressure

permitted is 0.6MPa,the min is 0.03MPa.

2.Be sure the earthing is ok and insert the plug. And

the earthing should not join with gas pipe or water

hose.

3.Lay down the drain hose.(Down drain)

4.Put up the drain hose.(Up drain)

5.Please keep machine level, otherwise it will cause

an abnormal sound.

2.It can remove the

extra detergent liquid

and save time and

water.

Hand washing can

improve the

washing ability.

1.Rinse and foam-

removing spinning 2.Hand washing

Air drying is the mechanical technique applying to

home appliances. Suction holes which are made

at the centre of spin cover can create strong wind.

This washing machine dries clothes by strong

wind and high-speed spin not by conventional

heating, so it won't cause any damage to clothes.

Besides, it can prevent indoor temperature and

humidity from rising.

3.Air-dry function

WASHING ATTENTIONS

USING PROCESSUSING PROCESS

Reference weight

How to use the bleacher

Fill the water to the specified level, and pour the bleacher into wash tub.

The colourful clothes are apt to fade, so the bleacher is forbidden to use.

The bleacher should not contact with clothes directly.

The use of bleacher, refers to its instruction.

The powder bleacher can be used after dissolved.

How to use washing powder

he rated capacity of washing , spinning refers to the max weight of the dry

clothes. The weight of the clothes to be washed should be below the rated capacity.

The capacity will be affected by the thickness, size and type of the clothes.

If the weight of the clothes is below 2kg,do not select the high water level, so as

to prevent splashing of water.

Dissolved in the tub

1.Fill small quantity of water..

2.Add some washing powder run for 30 seconds to dissolve it completely.

3.Put the clothes in and select the proper water level.

Quick dissolving

1.prepare warm water of 30 and a container.

2.put the powder in and stir.

The powder is more prone to pollute the clothes than the detergent,therefore please

use it with proper quantity.

For different powder, the dosage is different.

Work

clothes

(1120g)

Pajamas

(200g) Shirt

(300g)

Undershirt

(180g)

Blanket

(900g)

Sock

(50g)

Underwear

(70g) Jacket

(800g)

Coat

(800g)

Jeans

(800g)

Bedsheet

(600g)

USE OF DETERGENT

WASHING SEQUENCE USING PROCESSUSING PROCESS

1.Put the clothes into the spin tub smoothly.

2.Spin.

(1)Press the safety cover properly.

Even though a few clothes, press the cover

too.

(2)Close the spin cover .

(3)Spin for 1- 2 minutes.

3.Rinse and foam-removing spinning

(1)Open the spin cover.

(2)Put the inlet hose into the spin inlet and

fill water for 1 minute.

(3)Close the cover, spin for 1-2 minutes.

Midway spinning

2.Fill the water

and add

dissolved

washing powder

to the specified

level

3.Put in the clothes,

Please add the water if

the water is not enough

4.Select

the

program

according

to the

clothes.

5.Select

the wash

time

according

to clothes.

6.After

washing,

set the

selector

to the

"drain".

1. Put the water inlet hose

into the wash inlet

Spin timer

Wash timer Wash selector Drain selector

WASH

LAVADO

DELICADO

GENTLE

WASH SELECTOR DRAIN SELECTOR

DELICADO

GENTLE

WASH

LAVADO

WASHING SEQUENCE USING PROCESSUSING PROCESS

Rinse(filling water)

1.Put clothes in the washing tub and select the suitable water flow according

to the clothes.

2.Fill water to the specified level.

3.Rinse

Adjust the wash timer to 2-3 minutes to do rinsing.

When the weight of clothes is below 3kg, use standard water flow. If you use

the strong water flow,it may make water splash.

1.Put clothes in the wash tub and select the suitable water flow according to

the clothes.

2.Rinse

Adjust the wash timer to 5-7minutes to do rinsing.

Rinse with water(Repeat the midway spinning and rinse for 2-3 times.)

Spinning

1.Put the clothes in spin tub smoothly.

2.Press the safety cover properly and close the

spin cover

3.Spinning

Select the spin time according to clothes and

do spinning.

While spinning, there may be abnormal sound.

It is because clothes are not put properly,

please switch it off, and arrange the clothes

again.

While spinning,open spin cover, spinning will

stop; Close it, it will resume the spinning.

Clothes Spin time(m)

Bedsheet, blanket

Underwear(knitwear)

Sweater(fabric)

Thin clothes

About4~5

About2~4

About1~2

Within 1

Selection of spin time

Rinsing

Todo spinning and draining or rinsing(filling water) together,please

first do spinningfor about 1minute,then do draining or rinsing,

otherwise the spinningwill stop owing to too much water stored in the

spin tub.

AFTER USING

After washing, clean the lint and foreign objects on the lint filter and the frame, or

it will affect the next use.

Before cleaning, pull the plug out.

During washing,the lint-filter must

be used.

Be sure to clean it after use.

1.Take the filter down.

Put your hand on the groove, press

it and take it down.

2.Cleaning

When the lint is wet, put it into the

water and clean.

3.Install the filter

After cleaning, insert the filter into

the frame, and press in its upper part.

Clean lint filter

Clean the machine

Clean machine with soft cloth.

Clean with neutral detergent if is too dirty.

Never wash it directly with water.

After washing, take off the water inlet hose.

Pull out the plug, hang up the wire.

Do not keep water in wash tub for a long time.

After washing, drain immediately.

Clean the outside and inside of the machine with

soft cloth. Open upper cover and close it again

after 1 hour .

Hang up the drain hose well.

When the remained water is frozen

Prevent the freezing(after washing, drain water

completely)

After complete draining,set the program/drain

selector to the strong or standard position.

If it is on the drain position, ice is hard to melt

When the water is frozen.

Pour water below 50 degree into wash tub to

soak.Then turn the pulsator with your hands

gently until it can drain, After that,you can use it

again.

2-3 L

Phenomena Reason

TROUBLE-SHOOTING

If there is something wrong with the machine, pull plug out before checking. Some

phenomena may be not faults. Before repair, be sure again. If sure, contact with the

repair station or after-sale service department. Do not repair by yourself.

The machine dose not work

Power is failure or not

Plug is in or not

Pulsator is twisted or not

The draining does not work

Drain hose is put down or not

Drain hose freezes or not

Drain hose is blocked or not

There is clothes outside of spinning tub or not

Abnormal noise during

washing

There are hairpins, coins, or metal items in

washing tub or not

Abnormal noise and violent

vibration during spinning

Machine is level or not

Press in the safety cover smoothly or not

Clothes is in the outside of the spinning tub or

not .

Clothes is too much in the spin tub or not

Some water flows from the drain

hose in the first use

It is the water remained in the factory

inspection of performance.

WARNING

3.This appliance is not intended for use by persons(including children) with reduced

physical,sensory or mentalcapabilities or lack of experience and knowledge,unless

they have been given supervision or instruction concerning use of the appliance by

a person responsiblefor their safety.

4.Children should be supervised to ensure that they do not play with the appliance.

1.If the supply cord is damage,it must be replaced by the manufacturer

or its service agent or similarly qualified persons in order to avoid a hazard.

2.For washing machine with ventilation openings in the base,that a carpet

must not obstruct the opening.

NOTE

1.Maximum pressure allowed at the water inlet:0.6MPa.

3.The new hose-setssupplied with the appliance are to be used andthat old hose-sets

should not be reused.

2.Minimum pressure allowed at the water inlet:0.03MPa.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Frigidaire

Frigidaire

Frigidaire FTF2140F Manual de usuario

Frigidaire

Frigidaire FAFS4272LA Instrucciones de instalación

Frigidaire

Frigidaire FTFB2940F Manual de usuario

Frigidaire

Frigidaire GLWS1439F Manual de usuario

Frigidaire

Frigidaire NLPWD15 Manual de usuario

Frigidaire

Frigidaire GLTR1670AS1 Manual de usuario

Frigidaire

Frigidaire FWF 71243W Manual de usuario

Frigidaire

Frigidaire FAFW3577K W Manual de usuario

Frigidaire

Frigidaire ATFB7000ES1 Manual de instrucciones

Frigidaire

Frigidaire FTF2140ES2 Manual de usuario

Frigidaire

Frigidaire FTFB4000FS0 Manual de usuario

Frigidaire

Frigidaire GLTF1570ES1 Manual de usuario

Frigidaire

Frigidaire LTF2940F Manual de usuario

Frigidaire

Frigidaire GLWS1233AS3 Manual de usuario

Frigidaire

Frigidaire FLSE72RB Manual de usuario

Frigidaire

Frigidaire GLWS1749AS5 Manual de usuario

Frigidaire

Frigidaire FFFW5000QW0 Manual del propietario

Frigidaire

Frigidaire FWSC235RF Manual de usuario

Frigidaire

Frigidaire FRFW3700LW0 Manual de usuario

Frigidaire

Frigidaire GLWY1343AS0 Manual de usuario

Frigidaire

Frigidaire FRFW3700LW Manual de usuario

Frigidaire

Frigidaire CRWS1879AS0 Manual de usuario

Frigidaire

Frigidaire ATF6700FS - Affinity 3.5 Cu. Ft. Capacity Front Load... Manual de usuario

Frigidaire

Frigidaire FRFW3700L W Instrucciones de uso

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
