Frigidaire PLRT217TA Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

PLRT217TAB0 PLRT217TA R134a Professional black (right) 115

PLRT217TAK0 PLRT217TA R134a Professional black (left) 115

MARKET

North America

Publication No.

5995354445

010608

-EN/SERVICE/KHB

357

TOP MOUNT

REFRIGERATOR

Model No.

PLRT217TA

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - # 240398801

OWNER’S GUIDE - # 240400103

SERVICE DATA SHEET -# 240379005

06/01 2

Publication No. PLRT217TA

5995354445

DOOR

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

PLRT217TA Publication No.

5995354445

A = PLRT217TA (PLRT217TAB0)

B = PLRT217TA (PLRT217TAK0)

POS. NO PART NO DESCRIPTION

1 # 240390705 A B Gasket-frzr door,black ,magnetic

2 # 240390704 A B Gasket-refr door,black ,magnetic

7 240338303 A B Door-dairy

11 240450317 A - Panel-frzr door, stainless steel, complete assy

11 240450318 - B Panel-frzr door, stainless steel, complete assy

12 240449704 A B Nameplate,black

13 240312405 A B Door Stop,black ,ref

13A 240312406 A B Door Stop,white ,frzr

15 240450419 A - Panel-refr door, stainless steel, complete assy

15 240450420 - B Panel-refr door, stainless steel, complete assy

18 240413701 A B Handle-door, stainless steel, with insert

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240311202 A B Bearing-hinge,black ,(8)

27A 240396102 A B Retainer,tall bottle

48 240338101 A B Bin-door,Pseudo ,bottom

48A 240430301 A B Bin-door,gallon

49 240337802 A B Bin-door,clear ,frzr

79 218755402 A B Screw-set,10-32 x 0.375

80 218755501 A B Screw-shoulder,#10 AB ,handle mounting

96 240345504 A B Plug-foam hole,black

* 218490900 A B Cleaner,stainless steel

DOOR

06/01 4

Publication No. PLRT217TA

5995354445

CABINET

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

PLRT217TA Publication No.

5995354445

A = PLRT217TA (PLRT217TAB0)

B = PLRT217TA (PLRT217TAK0)

POS. NO PART NO DESCRIPTION

1 240355404 A B Cover-fan

5 # 5308000010 A B Fan Blade,red ,evaporator fan

8 5300157666 A B Bushing-motor mtg,(2)

9 5303292396 A B Bracket-motor mtg,front

10 240313603 A B Cover-evap coil

10* 240371303 A B Seal-coil cover

10*# 240385302 A B Wiring Harness,freezer section

11 5303208309 A B Plug-hole,factory test

13 # 240369701 A B Motor-evap fan

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg,rear

14* 240433201 A B Screw-8-18 x 3/8, hex washer head

15 215812200 A B Light Bulb/Lamp,25W

16 218906801 A B Socket-light/lamp

18 240345801 A B Support-evap cover,(2)

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 215774918 A B Plug-button,black ,upr hinge holes

28 240335501 A B Bolt-roller adj, hex wshr hd,1/4-20 x 4.020, (2), special

30 240314003 A B Bracket-lower hinge

34 240311301 A B Washer,hinge ,nylon ,(2)

35 240313803 A B Bracket-ctr hinge,black

35A 240336801 A B Spacer-hinge,center

36 240313901 A B Pin-center hinge

37 240337603 A B Trim-cabinet corner,black

38 240313701 A B Bracket-upper hinge

40 240354404 A B Cover-upper hinge,black

41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH

42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B Roller Assy,front ,(2)

47 218233300 A B Channel-shelf mtg,side ,(2)

48 5303292395 A B Channel-shelf mtg,center

49 218362500 A B Screw,hex washer head ,8-18AB x 1.250

56 240314101 A B Pin-lower hinge

58 5303001343 A B Screw,hex washer head ,8-15A x 0.500

59 240442703 A B Screw-#10-32 X 3/4,black

72 240368203 A B Grille/Kickplate,black

74 240354301 A B Shield-light,frzr

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B Roller,comp base ,rear ,(2)

83 215164200 A B Pin-roller,(2)

89 240326115 A B Cover-access,w/label

89* 241500301 A B Screw,#8 18 x .500 ,(3)

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

114# 240413601 A B Switch-light/lamp

* 218990901 A B Clip-wire

* 5303305345 A B Paint,touch-up ,black

CABINET

06/01 6

Publication No. PLRT217TA

5995354445

SHELVES

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

PLRT217TA Publication No.

5995354445

A = PLRT217TA (PLRT217TAB0)

B = PLRT217TA (PLRT217TAK0)

POS. NO PART NO DESCRIPTION

11 240358003 A B Shelf-freezer

11* 5303299664 A B Spacer-shelf

12 240417802 A B Diffuser-air,top

13 240362601 A B Diffuser-air,bottom

14 # 240413601 A B Switch-light/lamp

15 # 5303001179 A B Light Bulb/Lamp,40 W

16 241500701 A B Socket-light/lamp

17 240407301 A B Box-control

17*# 240388701 A B Wiring Harness,control box

18 240360801 A B Knob-control

21 # 5304421256 A B Control-temperature

22A 240468201 A B Tube,sensor sleeve ,plastic ,white

23 # 215846606 A B Timer-defrost, 60 Hz, 120 V, 10 hour/30 min

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240355228 A B Shelf-"Spill-Safe", cantilever, half width, fixed

24A 240350119 A B Shelf-"Spill-Safe",cantilever ,sliding

25 240364718 A B Cover-crisper pan

25B 240361201 A B Control-humidity

25C 240361301 A B Damper-humidity control

26 240343803 A B Pan-crisper,(2)

28 3201150 A B End Cap-shelf,protector ,frzr shelf

31 240371403 A B Pan-meat

34 240385201 A B Container-ice

42 240356501 A B Hanger-meat pan,RH

42 240365401 A B Hanger-meat pan,white ,LH

47 240443301 A B Insert-pan cover,glass

66 5303295947 A B Rack-wine

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

120 240366401 A B Guide-follower

121 240366602 A B Cam follower

122 240366501 A B Cam-damper

123 215005100 A B Screw-roller/hanger,8-10 x 0.438

130 240366101 A B Damper-control box

131 240366201 A B Retainer-damper

132 240366302 A B Control Rod,damper

* 3205266 A B Edge Protector,wiring harness

* 240443401 A B Seal-air supply

SHELVES

06/01 8

Publication No. PLRT217TA

5995354445

SYSTEM

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

PLRT217TA Publication No.

5995354445

A = PLRT217TA (PLRT217TAB0)

B = PLRT217TA (PLRT217TAK0)

POS. NO PART NO DESCRIPTION

1 # 240345601 A B Condenser,dynamic

4 # 218944001 A B Drier-filter,R134a System

6 # 240375301 A B Wiring Harness, machine compt, w/service cord

6* # 240385302 A B Wiring Harness,freezer section

6* # 240388701 A B Wiring Harness,control box

14 # 5303918247 A B Defrost Heater Kit

15 # 5303918250 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater,aluminum ,(2)

17 240434002 A B Trough-drain

18 240362301 A B Insulation Block,RH

20 240362401 A B Insulation Block,LH

21 # 5303918202 A B Thermostat-defrost,kit

22 240330001 A B Plate-compr mtg

22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 A B Grommet-compr mtg,(4)

25 240491501 A B Screw-compressor mtg,1/4-28 x 1.16,shoulder,typ CF

26 240332602 A B Pan-defrost drain

29 # 5303918249 A B Compressor,w/electricals

30 # 218721113 A B Starter-PTC

32 218740800 A B Clamp,elec cont mtg ,compressor

34 240405201 A B Grommet-cond mtg,(4)

41 218897001 A B Screw,hex washer head ,8-32 x 1/4

41* 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, (7), serrtd hd

44 5303001199 A B Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad

57 240403601 A B Clip-wiring harness

58 215004600 A B Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16, (2)

59 240315501 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal,shroud

59* 240359401 A B Screw-fan shroud,(2)

59A 240346501 A B Bracket-support,cond mtr ,(3)

59B 240346601 A B Grommet-bracket,(3)

60 # 240334001 A B Motor-condenser fan

61 # 240315401 A B Fan Blade,galv steel ,condenser fan

61A 215004700 A B Nut,speed

61B 215004800 A B Grommet-silencer

82 5304418225 A B Roller,comp base ,rear ,(2)

83 215164200 A B Pin-roller,(2)

84 240359601 A B Tube-drain,lower

85 240346201 A B Tube-connector,suction

86 240409302 A B Spacer-cond tube,black

* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500, wiring clamps

* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural

* # 5303918210 A B Heat Exchanger Kit,suction line

* 5304421289 A B Hot Tube Repair Kit,Service

SYSTEM

06/01 10

Publication No. PLRT217TA

5995354445

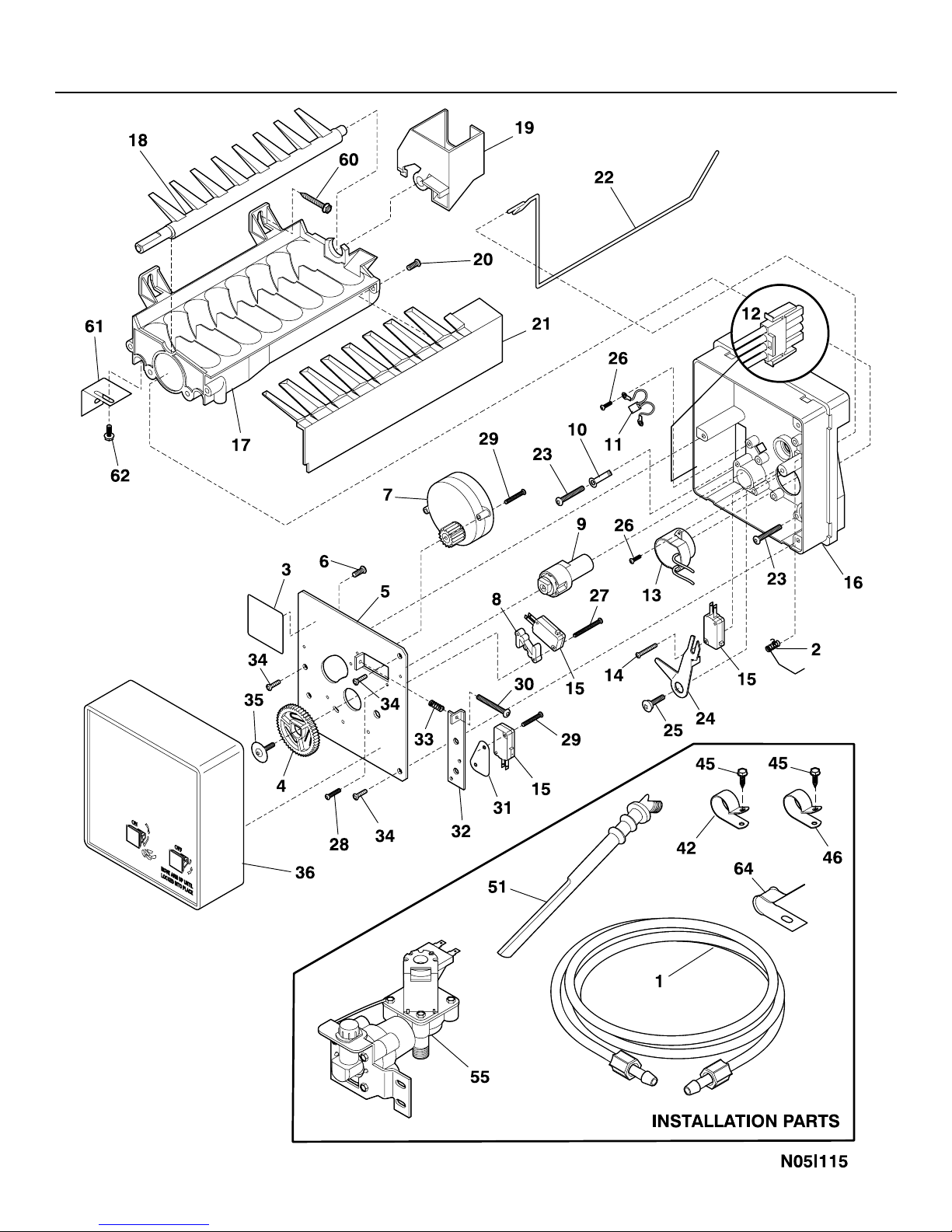

ICE MAKER
