Frigidaire GLHS67EFP Manual de usuario

N58L00001.eps N58FFCBBC1.eps N58RFCBBC6.eps N58BAAAAB3.eps

N58SKDCBD11.eps N58TCAAAB4.eps N58CAAAAC6.eps N58XEAAAA0.eps

N58YAAAAA0.eps N58I115.eps W241660401.eps S241660401.eps

Product No. GLHS67EFPB0 GLHS67EFPW0

Series R134a Gallery R134a Gallery

Color black (smooth) white (smooth)

Volts 115 115

Wiring Diagram 241660401 241660401

Owner's Guide 241695100 241695100

Market North America North America

Energy Guide 241649230 241649230

Service Data Sheet 240389624 240389624

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459228

06/01/23

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

GLHS67EFP

Publication No: 5995459228 GLHS67EFP

01/06 2

FREEZER DOOR

GLHS67EFP Publication No: 5995459228

# Functional Parts 3 01/06

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AGLHS67EFP (GLHS67EFPB0)

BGLHS67EFP (GLHS67EFPW0)

POS. NO PART NO. DESCRIPTION

1 # 241674806 A - Gasket-frzr door, black, magnetic

1 # 241674802 - B Gasket-frzr door, white, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

4C 240351701 A B Bin-door, frzr-dispenser

11 241526780 A - Door-frzr, black, complete assy

11 241526779 - B Door-frzr, white, complete assy

13A 240581906 A - Door Stop, black, frzr

13A 240581902 - B Door Stop, white, frzr

18 240536810 A - Handle-door, black

18 240536809 - B Handle-door, white

21A 240598401 A B Screw, 10-32 x 1/2

22A 240328204 A - Bearing-hinge(frz), black, closer

22A 240328202 - B Bearing-hinge(frz), closer

22C 240328404 A - Bearing-hinge, black, upper

22C 240328402 - B Bearing-hinge, natural, upper

68 241525101 A B Chute-ice

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

* 240352102 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995459228 GLHS67EFP

01/06 4

REFRIGERATOR DOOR

GLHS67EFP Publication No: 5995459228

# Functional Parts 5 01/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AGLHS67EFP (GLHS67EFPB0)

BGLHS67EFP (GLHS67EFPW0)

POS. NO PART NO. DESCRIPTION

2 # 241674805 A - Gasket-refr door, black, magnetic

2 # 241674801 - B Gasket-refr door, white, magnetic

4 240323002 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

12 240449710 A - Nameplate

12 240449708 - B Nameplate

13 240581905 A - Door Stop, black, ref

13 240581901 - B Door Stop, white, refr

15 241534574 A - Door-refr, black, complete assy

15 241534573 - B Door-refr, white, complete assy

18 240536810 A - Handle-door, black

18 240536809 - B Handle-door, white

21A 240598401 A B Screw, 10-32 x 1/2

22 240328203 A - Bearing-hinge, black, closer

22 240328201 - B Bearing-hinge(ref), closer

22B 240328404 A - Bearing-hinge, black, upper

22B 240328402 - B Bearing-hinge, natural, upper

27A 240396102 A B Retainer, tall bottle

49 240430311 A B Bin-door, gallon

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995459228 GLHS67EFP

01/06 6

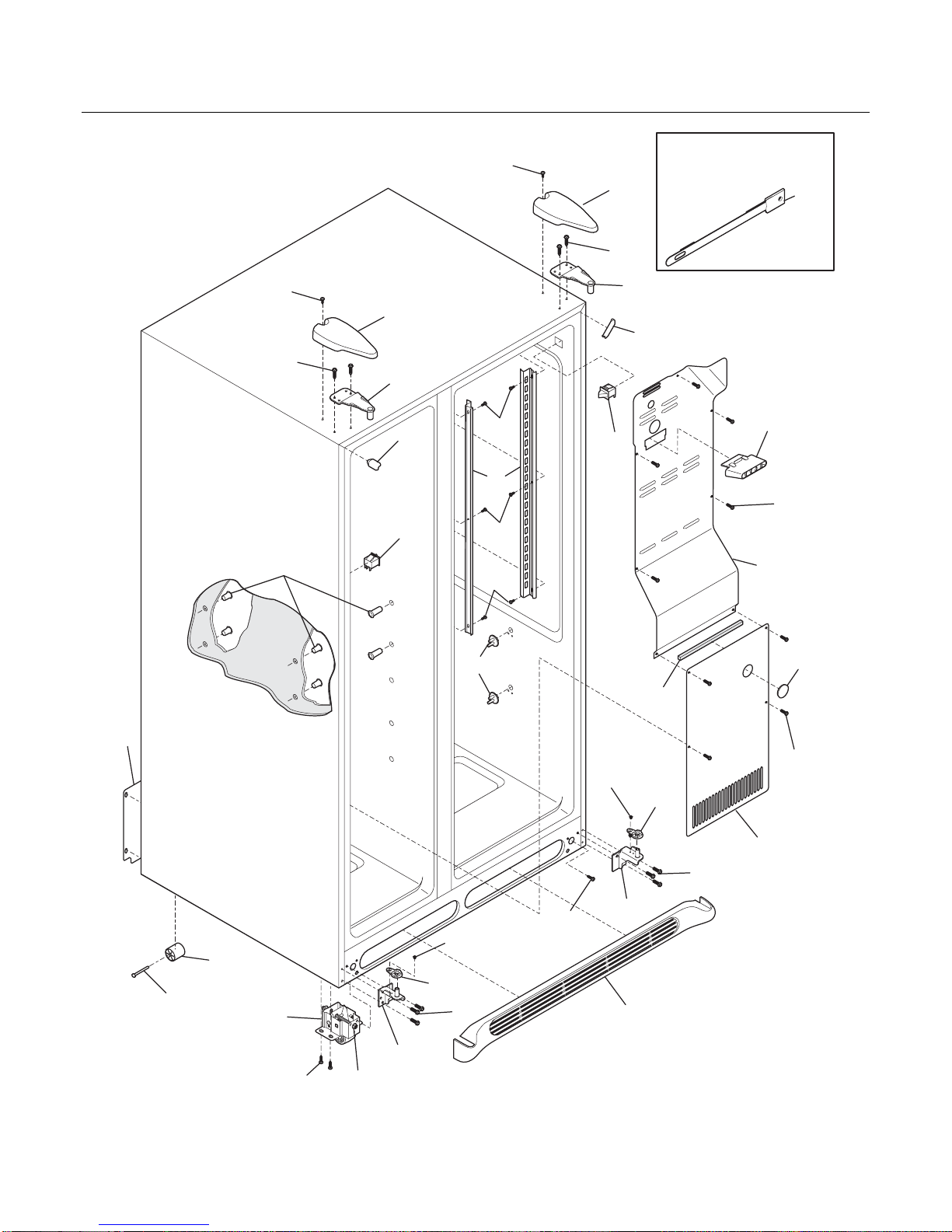

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB3

GLHS67EFP Publication No: 5995459228

# Functional Parts 7 01/06

* Non-Illustrated Parts

CABINET

Model Index: AGLHS67EFP (GLHS67EFPB0)

BGLHS67EFP (GLHS67EFPW0)

POS. NO PART NO. DESCRIPTION

10 240435906 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A - Plate-door closer

22 240457701 - B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B Bracket-lower hinge, ref

30A 241603702 A B Bracket-lower hinge

37 240337603 A - Trim-cabinet corner, black, (2)

37 240337601 - B Trim-cabinet corner, white, (2)

38 240327201 A B Bracket-upper hinge

40 240327007 A - Cover-upper hinge, black

40 240327005 - B Cover-upper hinge, white

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66 5304424968 A B Damper Cover Assy

66* 240518802 A B Pin-push, push-in, plastic

72 240324406 A - Grille/Kickplate, black

72 240324402 - B Grille/Kickplate, white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B Cover access

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240481601 A B Shim-lower hinge

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 5303321321 A - Paint, touch-up, black

* 5303321319 - B Paint, touch-up, white

Publication No: 5995459228 GLHS67EFP

01/06 8

SHELVES

11A

126

52A

109

51A

49B

101

N58SKDCBD11

100

25A

47A

15A

16A

26A

42A

123

24A

140

120

11C

24B

GLHS67EFP Publication No: 5995459228

# Functional Parts 9 01/06

* Non-Illustrated Parts

SHELVES

Model Index: AGLHS67EFP (GLHS67EFPB0)

BGLHS67EFP (GLHS67EFPW0)

POS. NO PART NO. DESCRIPTION

2 241510604 A B Trim-basket

11 240350668 A B Shelf-freezer, glass, lower

11A 240350667 A B Shelf-freezer, glass, upper

11C 240324101 A B Shelf-pizza

15A 241555401 A B Light Bulb

16A# 241513901 A B Socket-light

16A* 241537602 A B Harness-wiring

21 5303001001 A B Screw, hx wshr hd sems, 8-15A x 0.625

24 240355203 A B Shelf-"Spill-Safe", fixed

24A 240355205 A B Shelf-"Spill-Safe", fixed

24B 240350106 A B Shelf-"Spill-Safe", cantilever, sliding

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351205 A B Pan-crisper, lower

39 240367602 A B Trim-shelf, front

42 240356501 A B Track, meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

47 240350602 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

49B 240530504 A B Basket-sliding, upper, full

51 240343002 A B Hanger-basket, RH

51A 240395502 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

52A 240395602 A B Hanger-basket, LH

62 240342805 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545306 A B Water Tank

100 240326302 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

120 240342901 A B Shelf-ice cream

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

126 241674401 A B Channel, auger mtg, LH

126 241674402 A B Channel, auger mtg, RH

140 240430501 A B Channel, wtr tube cover

Publication No: 5995459228 GLHS67EFP

01/06 10

CONTROLS

149

139

138

198

199

137

200

151

150

21A

115

101

N58TCAAAB4
