Frigidaire GLHS267ZA Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

GLHS267ZAB0 GLHS267ZA R134a Gallery black 115

GLHS267ZAQ0 GLHS267ZA R134a Gallery bisque 115

GLHS267ZAW0 GLHS267ZA R134a Gallery white 115

MARKET

North America

Publication No.

5995356507

010724

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

GLHS267ZA

WIRING DIAGRAM - 240443001

OWNER’S GUIDE - 240389301

SERVICE DATA SHEET - 240389604

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

07/01 2

Publication No. GLHS267ZA

5995356507

FREEZER DOOR

# = Fast-moving Parts 3 07/01

* = Non-Illustrated Parts

GLHS267ZA Publication No.

5995356507

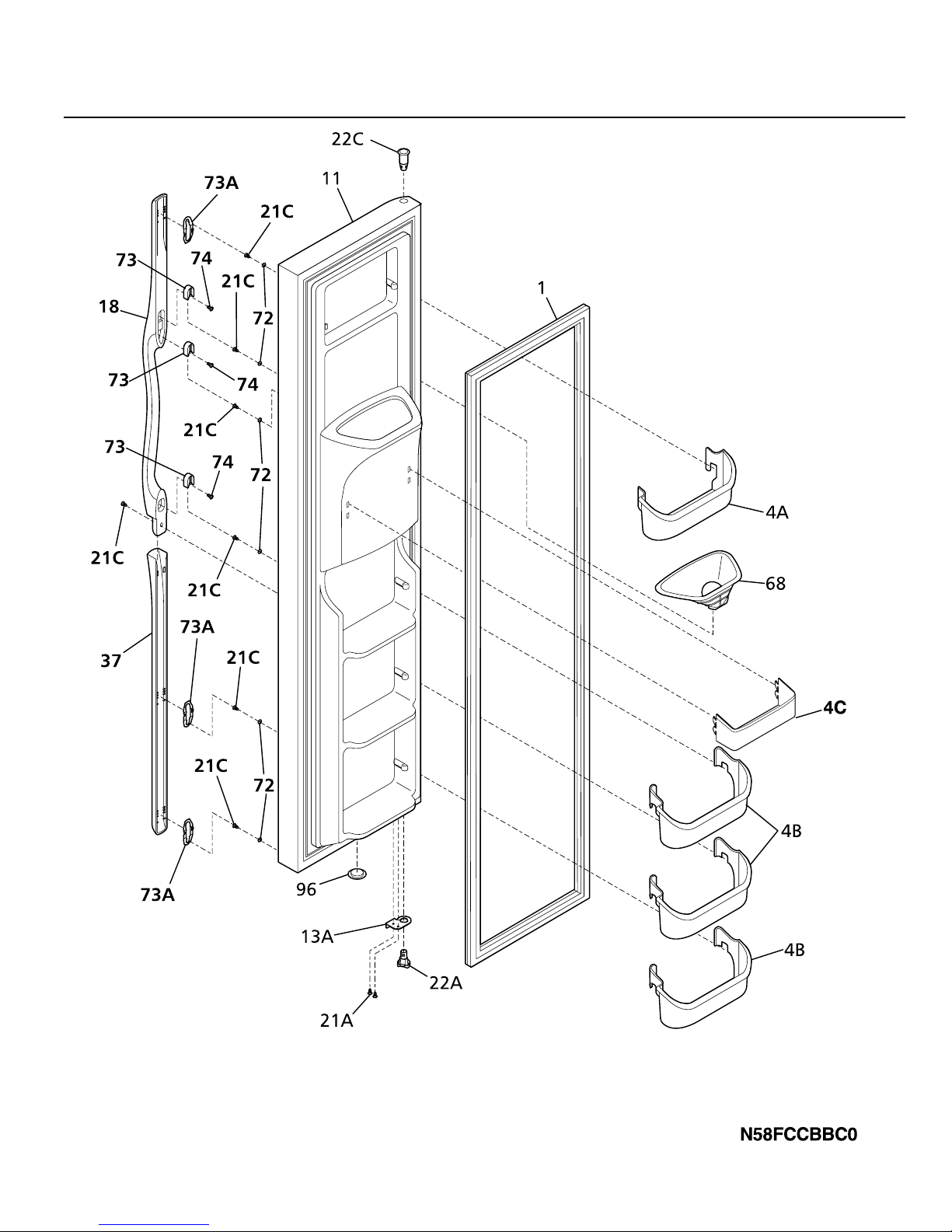

FREEZER DOOR

A = GLHS267ZA (GLHS267ZAB0)

B = GLHS267ZA (GLHS267ZAQ0)

C = GLHS267ZA (GLHS267ZAW0)

POS. NO PART NO DESCRIPTION

1 # 240390606 A - - Gasket-frzr door,black ,magnetic

1 # 240390602 - B C Gasket-frzr door,white ,magnetic

4A 240334202 A B C Bin-door,frzr-upper

4B 240351602 A B C Bin-door

4C 240351702 A B C Bin-door,frzr-dispenser

11 240451813 A - - Door-frzr,black ,complete assy

11 240451806 - B - Door-frzr,bisque ,complete assy

11 240451800 - - C Door-frzr,white ,complete assy

13A 240456906 A - - Door Stop,black ,frzr

13A 240456904 - B - Door Stop,bisque ,frzr

13A 240456902 - - C Door Stop,white ,frzr

18 240359108 A - - Handle-door,black

18 240359109 - B - Handle-door,bisque

18 240359106 - - C Handle-door

21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 A B C Screw,pan head ,8-18 x 0.625

22A 240328202 A B C Bearing-hinge,closer

22C 240328404 A - - Bearing-hinge,black ,upper

22C 240328402 - B C Bearing-hinge,upper

37 240359203 A - - Trim-handle,30.13" ,black ,lower

37 240359204 - B - Trim-handle,30.13" ,bisque ,lower

37 240359201 - - C Trim-handle,30.13" ,white ,lower

68 240467701 A B C Chute-ice

72 240421701 A B C Button-handle mtg,dovetail

73 218396700 A B C Block-handle mtg,dovetail

73A 240339101 A B C Clip-trim

74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500

96 240345504 A - - Plug-foam hole,black

96 240345503 - B C Plug-foam hole,white

* 240323202 A B C Harness-wiring,door

* 240352101 A B C Connector-water,straight

* 5303918256 A B C Dispenser heater kit

07/01 4

Publication No. GLHS267ZA

5995356507

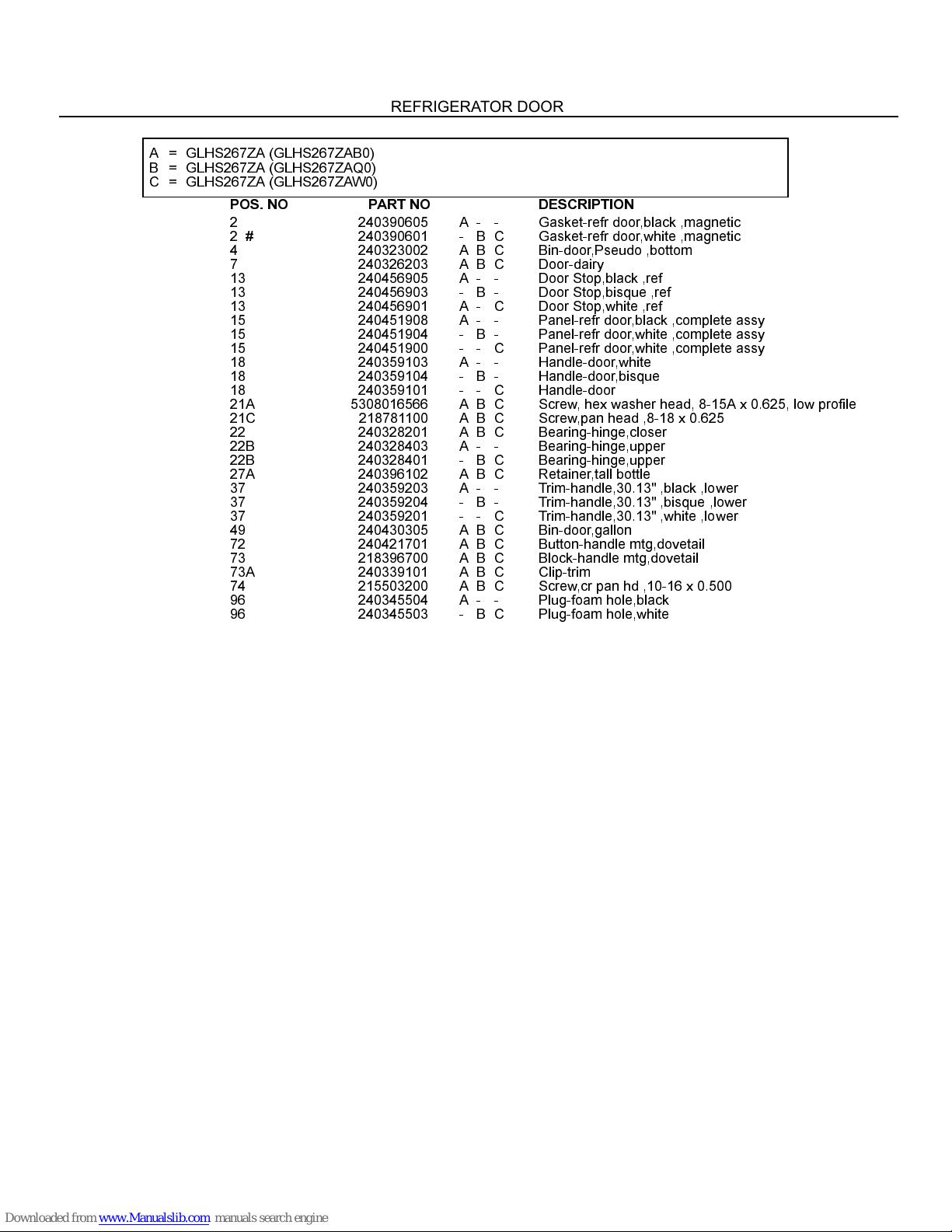

REFRIGERATOR DOOR

# = Fast-moving Parts 5 07/01

* = Non-Illustrated Parts

GLHS267ZA Publication No.

5995356507

A = GLHS267ZA (GLHS267ZAB0)

B = GLHS267ZA (GLHS267ZAQ0)

C = GLHS267ZA (GLHS267ZAW0)

POS. NO PART NO DESCRIPTION

2 240390605 A - - Gasket-refr door,black ,magnetic

2 # 240390601 - B C Gasket-refr door,white ,magnetic

4 240323002 A B C Bin-door,Pseudo ,bottom

7 240326203 A B C Door-dairy

13 240456905 A - - Door Stop,black ,ref

13 240456903 - B - Door Stop,bisque ,ref

13 240456901 A - C Door Stop,white ,ref

15 240451908 A - - Panel-refr door,black ,complete assy

15 240451904 - B - Panel-refr door,white ,complete assy

15 240451900 - - C Panel-refr door,white ,complete assy

18 240359103 A - - Handle-door,white

18 240359104 - B - Handle-door,bisque

18 240359101 - - C Handle-door

21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 A B C Screw,pan head ,8-18 x 0.625

22 240328201 A B C Bearing-hinge,closer

22B 240328403 A - - Bearing-hinge,upper

22B 240328401 - B C Bearing-hinge,upper

27A 240396102 A B C Retainer,tall bottle

37 240359203 A - - Trim-handle,30.13" ,black ,lower

37 240359204 - B - Trim-handle,30.13" ,bisque ,lower

37 240359201 - - C Trim-handle,30.13" ,white ,lower

49 240430305 A B C Bin-door,gallon

72 240421701 A B C Button-handle mtg,dovetail

73 218396700 A B C Block-handle mtg,dovetail

73A 240339101 A B C Clip-trim

74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500

96 240345504 A - - Plug-foam hole,black

96 240345503 - B C Plug-foam hole,white

REFRIGERATOR DOOR

07/01 6

Publication No. GLHS267ZA

5995356507

CABINET

# = Fast-moving Parts 7 07/01

* = Non-Illustrated Parts

GLHS267ZA Publication No.

5995356507

A = GLHS267ZA (GLHS267ZAB0)

B = GLHS267ZA (GLHS267ZAQ0)

C = GLHS267ZA (GLHS267ZAW0)

POS. NO PART NO DESCRIPTION

10 240435902 A B C Cover-air duct

10A 240475902 A B C Cover-evap coil,lower

11 5303208309 A B C Plug-hole,factory test

14 # 240413601 A B C Switch-light/lamp

14A# 215486600 A B C Switch-light/lamp

21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B C Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2),special

30 240419101 A B C Bracket-lower hinge, ref

30A 240419102 A B C Bracket-lower hinge

37 240337603 A - - Trim-cabinet corner,black

37 240337604 - B - Trim-cabinet corner,bisque ,(2)

37 240337601 - - C Trim-cabinet corner,white ,(2)

38 240327201 A B C Bracket-upper hinge

40 240327003 A - - Cover-upper hinge,black

40 240327002 - B - Cover-upper hinge,bisque

40 240327001 - - C Cover-hinge

41 240358701 A B C Grommet-shelf mtg,1.40" long

41* 240358801 A B C Grommet-shelf mtg,.875" long

42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B C Roller Assy,front ,(2)

45 5303001343 A B C Screw,hex washer head ,8-15A x 0.500

47 240349401 A B C Channel-shelf mtg,side ,(2)

58 218749600 A B C Screw,#10 pan hd ,8-18 x .5

66 240470201 A B C Cover-damper

66A 240470301 A B C Damper-meat keeper

66B 240355901 A B C Insulation-damper

72 240324406 A - - Grille/Kickplate,black

72 240324404 - B - Grille/Kickplate,bisque

72 240324402 - - C Grille/Kickplate,white

81 5308016566 A B C Screw,hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller,compressor base ,rear ,(2)

83 5303316859 A B C Rivet,flat head ,1/4 OD x 1-3/4, roller pin

89 240326104 A B C Cover-access,w/ label

89* 241500301 A B C Screw,#8 18 x .500 ,(3)

90 218249808 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 A B C Support-crspr cover,(4)

100* 240350802 A B C Support-crspr cover,(4)

150 240368701 A B C Guide-control bulb

* 5303305345 A - - Paint,touch-up ,black

* 5304414035 - B - Paint,touch-up ,bisque

* 5303305324 - B C Paint,touch-up ,white

* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural

CABINET

07/01 8

Publication No. GLHS267ZA

5995356507

SHELVES

# = Fast-moving Parts 9 07/01

* = Non-Illustrated Parts

GLHS267ZA Publication No.

5995356507

A = GLHS267ZA (GLHS267ZAB0)

B = GLHS267ZA (GLHS267ZAQ0)

C = GLHS267ZA (GLHS267ZAW0)

POS. NO PART NO DESCRIPTION

2 240434602 A B C Trim-basket

11 240350668 A B C Shelf-freezer,glass ,lower

11A 240350667 A B C Shelf-freezer,glass ,upper

11C 240324101 A B C Shelf-pizza

15A 215812200 A B C Light Bulb/Lamp,25W

16A 218906801 A B C Socket-light/lamp

24 240355203 A B C Shelf-"Spill-Safe",fixed

24B 240350106 A B C Shelf-"Spill-Safe",cantilever ,sliding

25 240350701 A B C Cover-crisper pan,upper

25* 240362101 A B C Clip-slide,cover-crisper

25A 240350901 A B C Cover-crisper pan,lower

26 240351005 A B C Pan-crisper,upper

26* 240349801 A B C Clip-slide,pan-crisper

26A 240362201 A B C Control-humidity

27 240351205 A B C Pan-crisper,lower

39 240367602 A B C Trim-shelf,front

42 240356501 A B C Hanger-meat pan,RH

42A 240349701 A B C Hanger-meat pan,LH

42A* 240350001 A B C Spring-meat pan rail

42A* 240349901 A B C Block-meat pan rail,LH

47 240350602 A B C Insert-pan cover,glass

47A 240350603 A B C Insert-pan cover,glass

49 240338402 A B C Basket-sliding

49A 240338502 A B C Basket-sliding,upper ,half

49B 240338504 A B C Basket-sliding,upper ,full

51 240343001 A B C Hanger-basket,RH

51A 240395501 A B C Hanger-basket,RH

52 240343101 A B C Hanger-basket,LH

52A 240395601 A B C Hanger-basket,LH

54 240351901 A B C Plug-hanger,right hand

55 240352001 A B C Plug-hanger,left hand

62 240342805 A B C Pan-meat

66 5303295947 A B C Rack-wine

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 240453003 A B C Water Tank Assy,with tubes

100 240326302 A B C Cover-water tank

101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4

101* 215005000 A B C Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger

109 240351301 A B C Base-crisper light socket

120 240342902 A B C Shelf-ice cream

123 215005100 A B C Screw-roller/hanger,8-10 x 0.438

126 218867401 A B C Channel,auger mtg ,LH

126 218867402 A B C Channel,auger mtg ,RH

SHELVES

07/01 10

Publication No. GLHS267ZA

5995356507

CONTROLS
