Frigidaire GLHS239ZC Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLT

GLHS239ZCB0 GLHS239ZC R134a Gallery black 115

GLHS239ZCW0 GLHS239ZC R134a Gallery white 115

MARKET

North America

Publication No.

5995390076

030505

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

GLHS239ZC

ENERGY GUIDE - 240592213

OWNER’S GUIDE - # 240389311

SERVICE DATA SHEET - #240389610

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

05/03 2

Publication No. GLHS239ZC

5995390076

FREEZER DOOR

# = Fast-moving Parts 3 05/03

* = Non-Illustrated Parts

GLHS239ZC Publication No.

5995390076

FREEZER DOOR

A = GLHS239ZC (GLHS239ZCB0)

B = GLHS239ZC (GLHS239ZCW0)

POS. NO PART NO DESCRIPTION

1 # 240390608 A - Gasket-frzr door, black, magnetic

1 240390604 - B Gasket-frzr door, white

4A 240367302 A B Bin-door, frzr-upper

4B 240359002 A B Bin-door

4C 240358402 A B Bin-door, frzr-dispenser

11 240451833 A - Panel-frzr door, black, complete assy

11 240451823 - B Panel-frzr door,white, complete assy

13A 240537106 A - Door Stop, black, frzr

13A 240537102 - B Door Stop, white, frzr

18 240359108 A - Handle-door, black ,LH

18 240359106 - B Handle-door, white

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 5308016566 A B Screw, hex washer hd, 8-15A x 0.625, low profile

21C 240521302 A B Screw,#8-18 x 3/4

22A 240561602 A B Bearing-hinge, closer

22C 240328404 A - Bearing-hinge, black, upper

22C 240328402 - B Bearing-hinge,upper

37 240359203 A - Trim-handle,30.13" ,black ,lower

37 240359201 - B Trim-handle,30.13" ,white ,lower

68 240465801 A B Chute-ice

72 240421701 A B Button-handle mtg,dovetail

73 218396700 A B Block-handle mtg,dovetail

74 215503200 A B Screw,cr pan hd ,10-16 x 0.500

* 240470401 A B Connector-amp

* 240545101 A B Connector-water,straight

* 240552102 A B Harness-wiring,door

* 5303918256 A B Dispenser heater kit

05/03 4

Publication No. GLHS239ZC

5995390076

REFRIGERATOR DOOR

# = Fast-moving Parts 5 05/03

* = Non-Illustrated Parts

GLHS239ZC Publication No.

5995390076

A = GLHS239ZC (GLHS239ZCB0)

B = GLHS239ZC (GLHS239ZCW0)

POS. NO PART NO DESCRIPTION

2 # 240390607 A - Gasket-refr door, black, magnetic

2 # 240390603 - B Gasket-refr door, white, magnetic

4 240363702 A B Bin-door,2-liter

7 240338303 A B Door, dairy, clear

12 240449707 A - Nameplate, black

12 240449705 - B Nameplate, white

13 240537105 A - Door Stop, black, ref

13 240537101 - B Door Stop, white, ref

15 240451919 A - Door-refr, black, complete assy

15 240451913 - B Door-refr, white, complete assy

18 240359103 A - Handle-door, black ,RH

18 240359101 - B Handle-door, white

21 218781100 A B Screw, pan head ,8-18 x 0.625

21A 5308016566 A B Screw,hex washer head ,8-15A x 0.625, low profile

21C 240521302 A B Screw,#8-18 x 3/4

22 240561601 A B Bearing-hinge,closer

22B 240328403 A - Bearing-hinge,upper

22B 240328401 - B Bearing-hinge,upper

27A 240396102 A B Retainer,tall bottle

37 240359203 A - Trim-handle,30.13" ,black ,lower

37 240359201 - B Trim-handle,30.13" ,white ,lower

49 240430310 A B Bin-door,gallon

72 240421701 A B Button-handle mtg,dovetail

73 218396700 A B Block-handle mtg,dovetail

74 215503200 A B Screw,cr pan hd ,10-16 x 0.500

REFRIGERATOR DOOR

05/03 6

Publication No. GLHS239ZC

5995390076

CABINET

# = Fast-moving Parts 7 05/03

* = Non-Illustrated Parts

GLHS239ZC Publication No.

5995390076

A = GLHS239ZC (GLHS239ZCB0)

B = GLHS239ZC (GLHS239ZCW0)

POS. NO PART NO DESCRIPTION

10 240435901 A B Cover-air duct

10A 240475901 A B Cover-evap coil,lower

11 5303208309 A B Plug-hole,factory test

14 # 240505801 A B Switch,light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj,hex wshr hd,1/4-20 x 4.020,(2),special

30 240419103 A B Bracket-lower hinge, ref

30A 240419104 A B Bracket-lower hinge

37 240337603 A - Trim-cabinet corner,black ,(2)

37 240337601 - B Trim-cabinet corner,white ,(2)

38 240327202 A B Bracket-upper hinge

40 240327007 A - Cover-upper hinge,black

40 240327005 - B Cover-upper hinge,white

41 240358701 A B Grommet-shelf mtg,1.40" long

41* 240358801 A B Grommet-shelf mtg,.875" long

42 240578901 A B Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 A B Roller Assy,front ,(2)

45 241500301 A B Screw,hex washer head ,8-18AB x 0.500

47 240349402 A B Channel-shelf mtg,side ,(2)

58 218749600 A B Screw,#10 pan hd ,8-18 x .5

66 240504901 A B Cover-damper

66A 240505001 A B Damper-meat keeper

66B 240355901 A B Insulation-damper

66B* 240518802 A B Pin-push,push-in ,plastic

72 240324405 A - Grille/Kickplate,black

72 240324401 - B Grille/Kickplate,white

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 A B Cover, access, system compt ,with label

89* 240345702 A B Screw, truss hd, drill, #10-16 x 0 .500, #2 Pozi-drive

90 218249807 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw, hex washer hd ,1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

150 240368701 A B Guide-control bulb

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes

* 240481601 A B Shim-lower hinge

* 5303305345 A - Paint, touch-up, black

* 5303305324 - B Paint, touch-up, white

CABINET

05/03 8

Publication No. GLHS239ZC

5995390076

SHELVES

# = Fast-moving Parts 9 05/03

* = Non-Illustrated Parts

GLHS239ZC Publication No.

5995390076

A = GLHS239ZC (GLHS239ZCB0)

B = GLHS239ZC (GLHS239ZCW0)

POS. NO PART NO DESCRIPTION

2 240434603 A B Trim-basket

11 240350648 A B Shelf-freezer, glass, lower

11A 240350647 A B Shelf-freezer, glass, upper

15 240588001 A B Light Bulb

15A 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 240590401 A B Socket-light

16* 240587702 A B Harness-wiring

16A 218906801 A B Socket-light/lamp

24 240355201 A B Shelf-"Spill-Safe", fixed, (1)

24A 240350103 A B Shelf-"Spill-Safe", sliding, (2)

24B 240424603 A B Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240354502 A B Cover-crisper pan,upper

25* 240362101 A B Clip-slide,cover-crisper

25A 240354602 A B Cover-crisper pan,lower

26 240354716 A B Pan-crisper,upper

26* 240349801 A B Clip-slide,pan-crisper

26A 240351101 A B Control-humidity

27 240354817 A B Pan-crisper,lower

39 240367601 A B Trim-shelf,front

42 240356501 A B Track,meat pan hanger ,RH

42A 240349701 A B Hanger-meat pan,LH

42A* 240349901 A B Block-meat pan rail,LH

42A* 240350001 A B Spring-meat pan rail

47 240350613 A B Insert-pan cover,glass

47A 240350614 A B Insert-pan cover,glass

49 240564301 A B Basket-sliding

49A 240530501 A B Basket-sliding,upper ,half

49B 240530503 A B Basket-sliding,upper ,full

51 240343002 A B Hanger-basket, RH

51A 240395502 A B Hanger-basket, RH

51B 240579801 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

52A 240395602 A B Hanger-basket, LH

52B 240579802 A B Hanger-basket, LH

62 240355517 A B Pan-meat

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

97 240545303 A B Water Tank Assy, coiled tubing, front filter

100 240326301 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

120 240342902 A B Shelf-ice cream

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 A B Channel, auger mtg, LH

126 218867406 A B Channel, auger mtg, RH

136 240424501 A B Dispenser-can, white

140 240430501 A B Channel, wtr tube cover

140A 240430503 A B Channel, wtr tube cover

141 240585403 A B Bracket-light socket

142 240582701 A B Shield-light,deli pan

SHELVES

05/03 10

Publication No. GLHS239ZC

5995390076

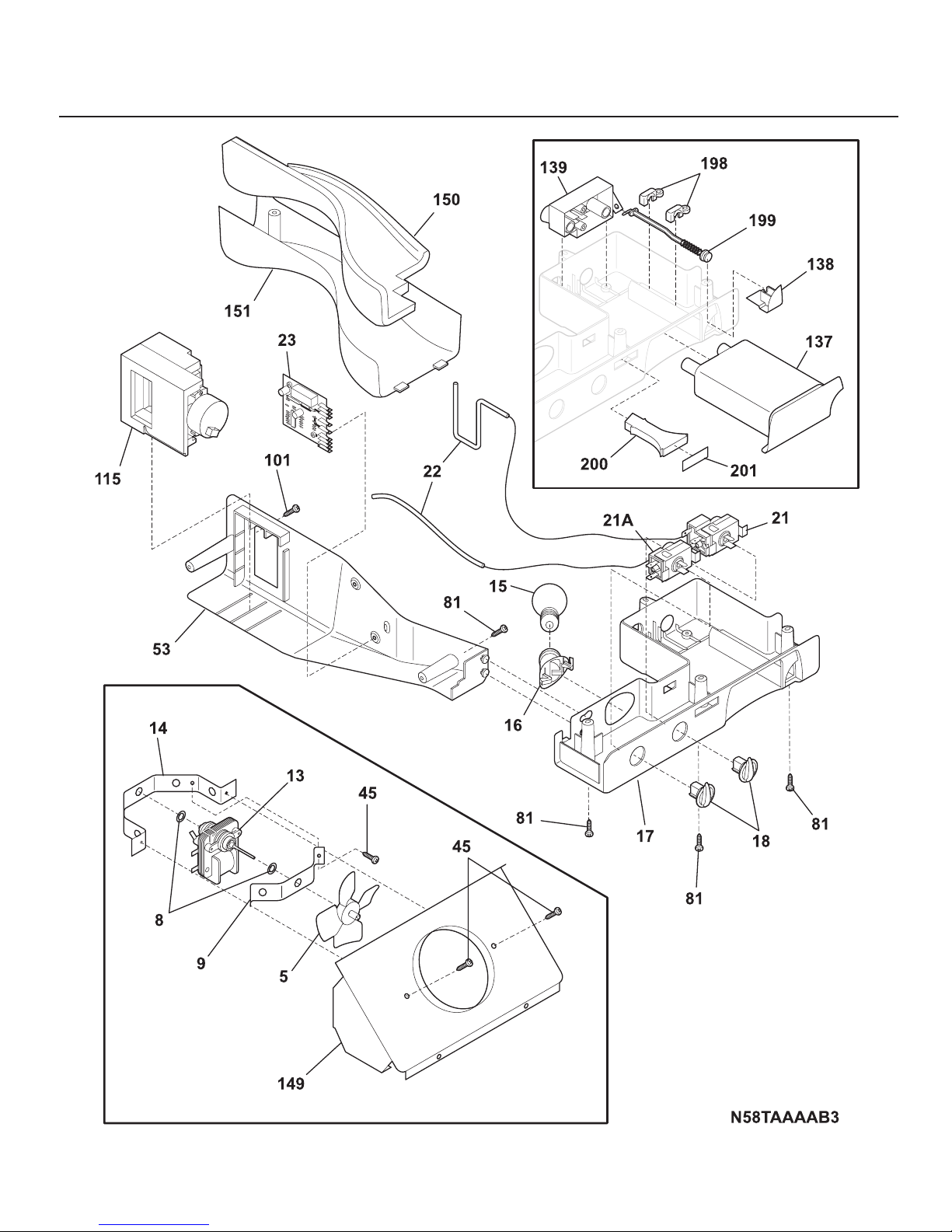

CONTROLS
