Frigidaire GHSC39ETE Manual de usuario

E23CS75DSS0.eps N58FKGBGA0.eps N58RKGCHB0.eps N58BABAAD2.eps

N58SDHLBE1.eps N58TBAAAB2.eps N58CACBAA3.eps N58XEBAAA1.eps

N58YDAAAC0.eps N58I115T.eps W241638600.eps S241638600.eps

Product No. GHSC39ETES1

Series counter depth

Color stain/blk

Volts 115

Wiring Diagram 241638600

Owner's Guide 241540301

Market North America

Energy Guide 241607588

Service Data Sheet 241639000

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995436861

05/05/16

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

GHSC39ETE

Publication No: 5995436861 GHSC39ETES1

05/05 2

FREEZER DOOR

21B

37A

37B

22C

13A

22A

21A

N58FKGBGA0

GHSC39ETES1 Publication No: 5995436861

# Functional Parts 3 05/05

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241510204 Gasket-frzr door, black, magnetic

4B 241511606 Bin-door, pseudo, frzr

5 241545001 Bin-tilt out, tilt-out

11 240554287 Door-frzr, black, complete assy

13A 240537106 Door Stop, black, frzr

18 241533607 Handle-frzr door, aluminum

21 218781100 Screw, pan head, 8-18 x 0.625

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21B 241543201 Screw, #10-16 x 2

22A 240328202 Bearing-hinge(frz), closer

22C 240328404 Bearing-hinge, black, upper

37 241533707 Trim-door, black, side

37A 241534207 Trim-door, aluminum, top

37B 241533807 Trim-door, aluminum, bottom

68 241525101 Chute-ice

* 240352102 Connector-water, straight

* 240411501 Clip-dispenser cover

* 240552102 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995436861 GHSC39ETES1

05/05 4

REFRIGERATOR DOOR

N58RKGCHB0

49A

22B

21A

37B

21B

37A

27A

GHSC39ETES1 Publication No: 5995436861

# Functional Parts 5 05/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241510203 Gasket-refr door, black, magnetic

5 241516102 Rack-can

6 241515901 Lug-dairy compartment

7 241515601 Door-dairy

13 240537105 Door Stop, black, ref

15 241534515 Door-refr, black, complete assy

18 241533608 Handle-refr door, aluminum

21 218781100 Screw, pan head, 8-18 x 0.625

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21B 241543201 Screw, #10-16 x 2

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

27A 240396102 Retainer, tall bottle

37 240337603 Trim-cabinet corner, black, (2)

37 241533708 Trim-door, aluminum, side

37A 241534208 Trim-door, aluminum, top

37B 241533808 Trim-door, aluminum, bottom

48 241511704 Bin-door, ref

49 240430321 Bin-door, 2-liter

49A 240430322 Bin-door, gallon

50 241508401 Cover-magnet

70 241515801 Compartment-dairy, removable

Publication No: 5995436861 GHSC39ETES1

05/05 6

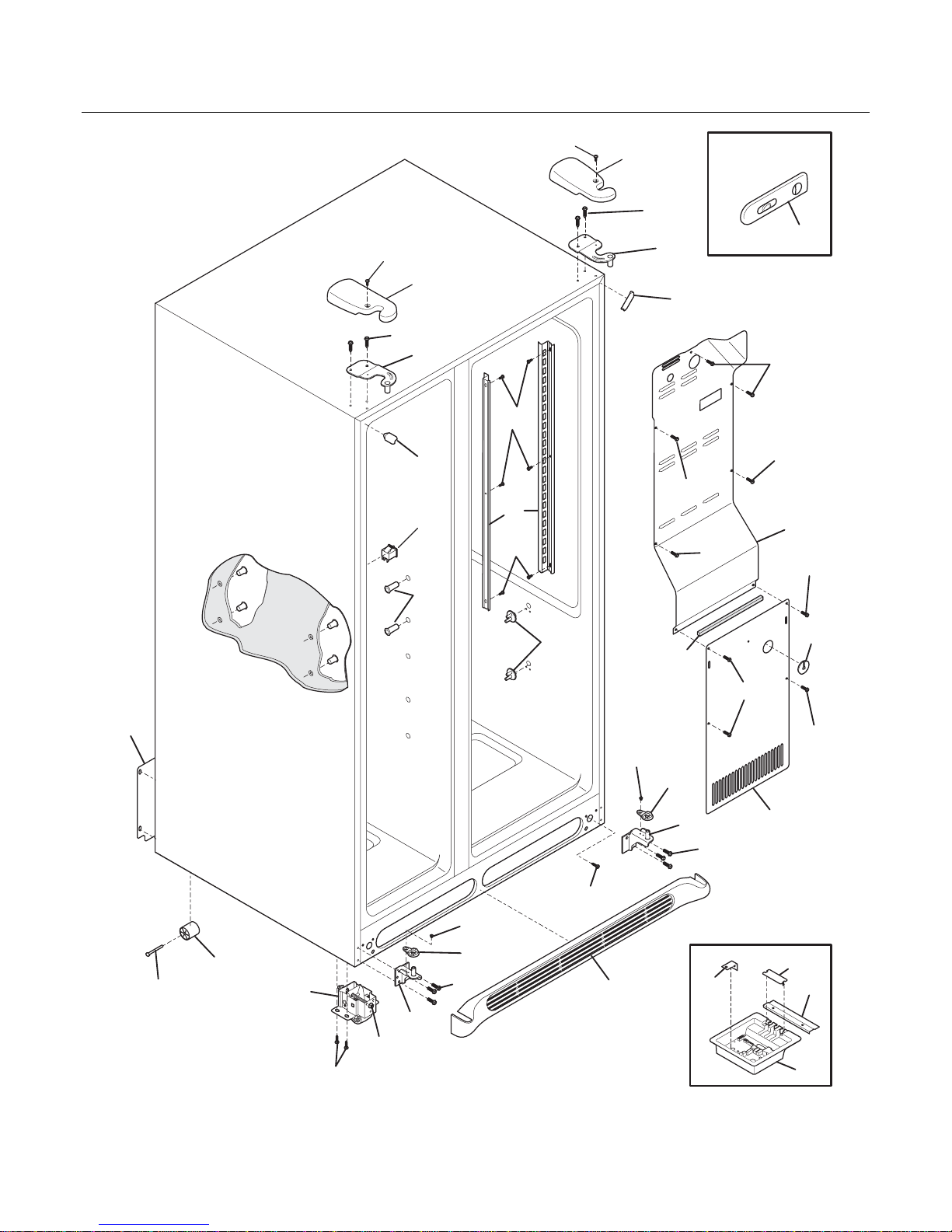

CABINET

100

38A

30A

21C

10A

N58BABAAD2

14A

21C

40A

GHSC39ETES1 Publication No: 5995436861

# Functional Parts 7 05/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 241509802 Cover-air duct

10A 240475907 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14A 241547901 Switch-light/lamp, frzr door

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 Bracket-lower hinge, ref

30A 241603702 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 241617901 Bracket-upper hinge

38A 241617902 Bracket-upper hinge

40 241519205 Cover-hinge, black

40A 241519206 Cover-hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, adjustable, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 241513001 Channel-shelf mtg, side, (2)

50 241511102 Board-main power

50* 241524801 Seal-Mother Board Housing

50* 241532501 Clip-harness

54 241532401 Channel

66 241513601 Damper Assy

72 241521610 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 Cover access

90 218249808 Seal-coil cover

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 240479601 Plug, button, cab liner holes, (2)

* 241591701 Louver

* 5303305345 Paint, touch-up, black

Publication No: 5995436861 GHSC39ETES1

05/05 8

SHELVES

51A

140

136

126

122

121

120

109

108

107

101

100

52B

52A

51B

51A

49B

49A

47B

47A

27A

26A

25B

25A

24C

24B

N58SDHLBE1

11A

GHSC39ETES1 Publication No: 5995436861

# Functional Parts 9 05/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510605 Trim-basket

11 240443353 Shelf-freezer, glass, lower

11A 240443354 Shelf-freezer, glass, upper

15 241552801 Light Bulb

16 241507803 Socket-light

16* 241513101 Harness-wiring

24 240355239 Shelf-"Spill-Safe", fixed

24B 240350126 Shelf-"Spill-Safe", cantilever, sliding

24C 240424607 Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240599301 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

25B 240599801 Cover-meat pan

26 240351021 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26* 240423101 Channel-divider

26* 240423201 Retainer

26* 240423301 Divider-crisper pan

26A 241552301 Control-humidity

26A* 241552401 Frame-humidity control, upper

27 240351218 Pan-crisper, lower

27A 240362201 Control-humidity

39 240367603 Trim-shelf, 11.65", front

41 241571201 Trim-shelf, rear

47 240350602 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

47B 240443352 Insert-pan cover, glass

49 241515001 Basket-sliding

49A 241528001 Basket-sliding, upper, half

49B 241514901 Basket-sliding, upper, full

51 241514501 Hanger-basket, RH

51A 241514701 Hanger-shelf glass, RH

51B 240579803 Hanger-basket, RH

52 241514601 Hanger-basket, LH

52A 241514801 Hanger-shelf glass, LH

52B 240579804 Hanger-basket, LH

60 218362500 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

62 240599704 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 241532002 Water Tank

100 241549901 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

107 241513401 Shield-light, crisper

108 241513301 Cover-wiring, crisper light

109 241513202 Base-crisper light socket

120 241504501 Shelf-ice cream

121 241504701 Rail-ice cream shelf, LH

122 241504702 Rail-ice cream shelf, RH

126 241630701 Channel, auger mtg, LH

126 241630702 Channel, auger mtg, RH

136 240424502 Dispenser-can, clear

140 240430505 Channel, wtr tube cover

Publication No: 5995436861 GHSC39ETES1

05/05 10

CONTROLS

201

199

198

151

149

139

138

137

116

115

N58TBAAAB2
