Frigidaire FRT21HR6A Manual de usuario

Product No. FRT21HR6AB5 FRT21HR6AQ5 FRT21HR6AW5

Series R134a R134a R134a

Color black bisque white

Volts 115 115 115

Wiring Diagram 240398801 240398801 240398801

Owner's Guide 240400110 240400110 240400110

Market North America North America North America

Energy Guide

Service Data Sheet 240379013 240379013 240379013

Installation Instructions 240568300 240568300 240568300

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995399481

03/12/01

(EN/SERVICE/KHB)

357

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21HR6A



2003 Electrolux Home Products, Inc.

Publication No: 5995399481 FRT21HR6A

12/03 2

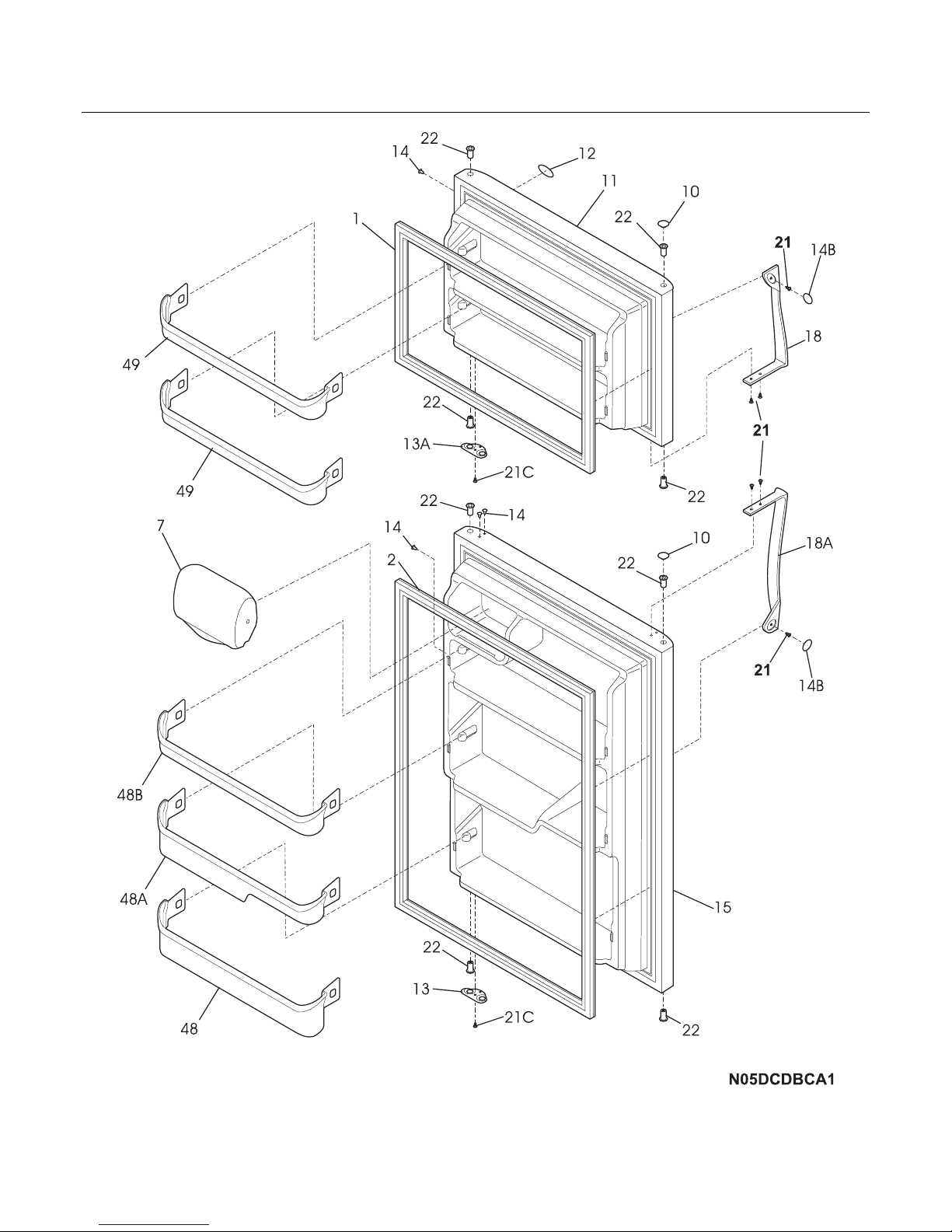

DOOR

FRT21HR6A Publication No: 5995399481

# Functional Parts

3 12/03

* Non-Ilustrated Parts

DOOR

Model Index: AFRT21HR6A (FRT21HR6AB5)

BFRT21HR6A (FRT21HR6AQ5)

CFRT21HR6A (FRT21HR6AW5)

POS. NO PART NO. DESCRIPTION

1 # 240514611 A - - Gasket, seal, black, frzr door, magnetic

1 # 240514607 - B C Gasket, seal, white, frzr door, magnetic

2 # 240514612 A - - Gasket, seal, black, refr door, magnetic

2 # 240514608 - B C Gasket, seal, white, refr door, magnetic

7 240337703 A B C Door-dairy, w/o graphics, clear

10 240381303 A - - Plug-button, black, hinge brg hole

10 240381302 - B - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - - C Plug-button, white, hinge brg hole, (2)

11 240450312 A - - Door, frzr, black

11 240450306 - B - Door, frzr, bisque

11 240450302 - - C Door, frzr, white

12 240416304 A - - Nameplate, black

12 240416303 - B - Label-nameplate, bisque

12 240416301 - - C Label-nameplate, white

13 240312405 A - - Door Stop, black, refr

13 240312407 - B - Door Stop, bisque, ref

13 240312403 - - C Door Stop, white, ref

13A 240312406 A - - Door Stop, black, frzr

13A 240312408 - B - Door Stop, bisque, frzr

13A 240312404 - - C Door Stop, white, frzr

14 240494003 A - - Plug-button, black

14 240494002 - B - Plug-button, bisque

14 240494001 - - C Plug-button, white

14B 240383603 A - - Plug-button, black, door handle

14B 240383602 - B - Plug-button, bisque, door handle

14B 240383601 - - C Plug-button, white, door handle

15 240450412 A - - Door, refr, black

15 240450406 - B - Door, refr, bisque

15 240450402 - - C Door, refr, white

18 240339203 A - - Handle-door, black

18 240339204 - B - Handle-door, bisque

18 240339201 - - C Handle-door, white

18A 240339208 A - - Handle-door, black

18A 240339209 - B - Handle-door, bisque

18A 240339206 - - C Handle-door, white

21 240383401 A B C Screw, truss hd quad, #10-16 x .500

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A - - Bearing-hinge, black

22 240527101 - B C Bearing-hinge, natural color

48 240338101 A B C Bin-door, pseudo, bottom

48A 240337901 A B C Bin-door, refr

48B 240338001 A B C Bin-door, pseudo, gallon, refr

49 240495804 A B C Bin-door, pseudo, frzr

Publication No: 5995399481 FRT21HR6A

12/03 4

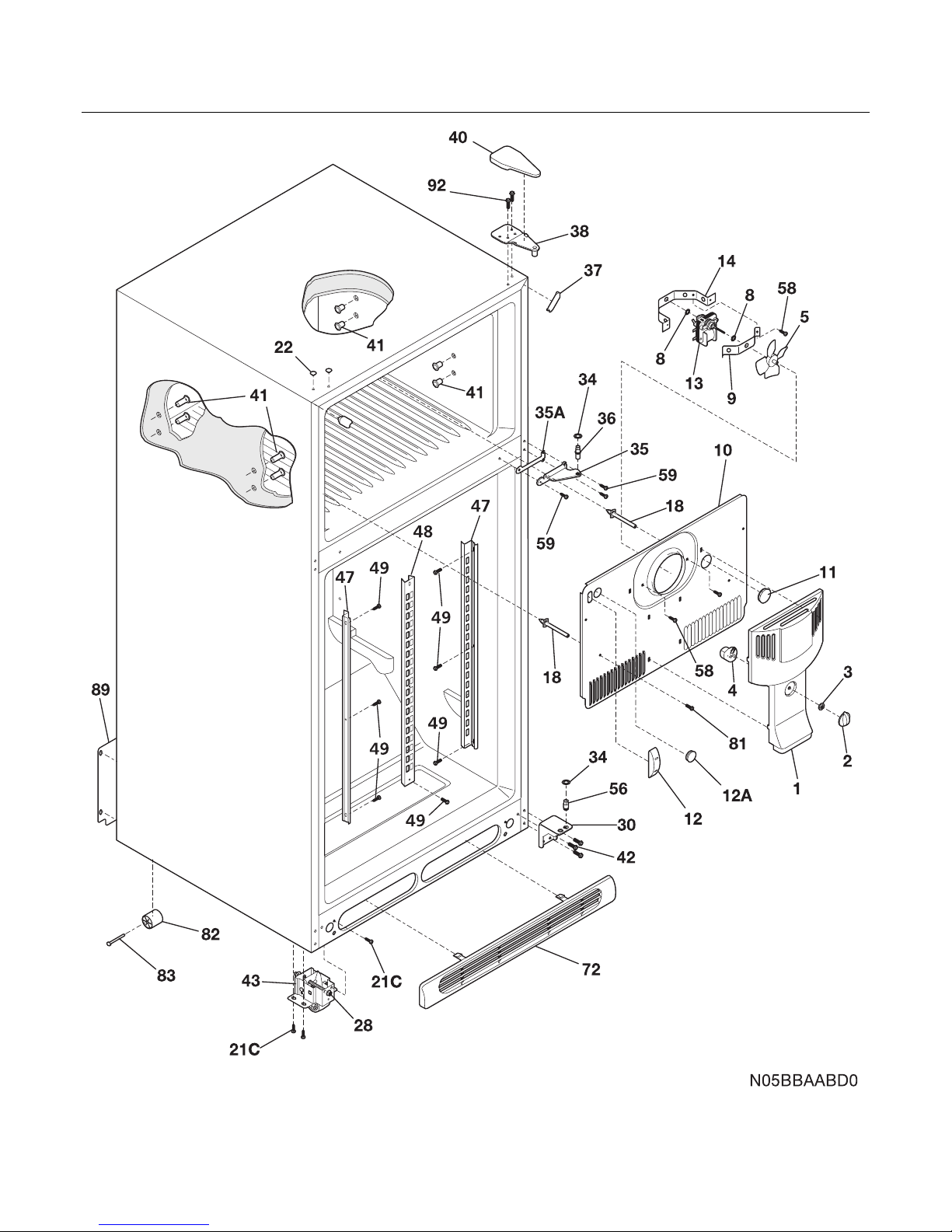

CABINET

FRT21HR6A Publication No: 5995399481

# Functional Parts

5 12/03

* Non-Ilustrated Parts

CABINET

Model Index: AFRT21HR6A (FRT21HR6AB5)

BFRT21HR6A (FRT21HR6AQ5)

CFRT21HR6A (FRT21HR6AW5)

POS. NO PART NO. DESCRIPTION

1 240355402 A B C Cover-fan

2 240367001 A B C Knob-damper control

3 5303001028 A B C Nut, push-on

4 240367401 A B C Damper-fan cover

5 # 5308000010 A B C Fan Blade, red, evaporator fan

8 5300157666 A B C Bushing-motor mtg, (2)

9 5303292396 A B C Bracket-motor mtg, front

10 240313610 A B C Cover-evap coil, w/o light

10* 240568606 A B C Seal-coil cover

10*# 240524701 A B C Wiring Harness, freezer section

11 5303208309 A B C Plug-hole, factory test

12 240366801 A B C Plug-ice maker harness, rectangular

12* 218843800 A B C Screw, hex wshr hd, 8-15A x 0.500

12A 240374401 A B C Plug-wtr inlet tube, round, 1"

13 # 240369701 A B C Motor-evap fan

13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B C Bracket-motor mtg, rear

14* 240433201 A B C Screw, hex washer head, 8-18 x 0.375

18 240411901 A B C Support-evap cover, (2)

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A - - Plug-button, black, upr hinge holes

22 215774919 - B - Plug-button, bisque, upr hinge holes

22 215774901 - - C Plug-button, white, upr hinge holes

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A - - Bracket-lower hinge, black

30 240314004 - B - Bracket-lower hinge, bisque

30 240314002 - - C Bracket-lower hinge, white

34 240311303 A B C Washer, hinge, nylon, (2)

35 240313803 A - - Bracket-ctr hinge, black

35 240313804 - B - Bracket-ctr hinge, bisque

35 240313802 - - C Bracket-ctr hinge, white

35A 240336802 A B C Spacer-hinge, center

36 240516401 A B C Pin-center hinge

37 240337603 A - - Trim-cabinet corner, black, (2)

37 240337604 - B - Trim-cabinet corner, bisque, (2)

37 240337601 - - C Trim-cabinet corner, white, (2)

38 240313701 A B C Bracket-upper hinge

40 240354404 A - - Cover-upper hinge, black

40 240354403 - B - Cover-upper hinge, bisque

40 240354401 - - C Cover-upper hinge, white

41 5303001609 A B C Grommet, shelf mtg, 0.69", RH

41* 5308009759 A B C Grommet, shelf mtg, 1.25", LH

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, front, (2)

47 218233300 A B C Channel-shelf mtg, side, (2)

48 5303292395 A B C Channel-shelf mtg, center

49 218362500 A B C Screw, hex washer head, 8-18AB x 1.250

56 240516501 A B C Pin-lower hinge

Publication No: 5995399481 FRT21HR6A

12/03 6

CABINET

FRT21HR6A Publication No: 5995399481

# Functional Parts

7 12/03

* Non-Ilustrated Parts

CABINET

Model Index: AFRT21HR6A (FRT21HR6AB5)

BFRT21HR6A (FRT21HR6AQ5)

CFRT21HR6A (FRT21HR6AW5)

POS. NO PART NO. DESCRIPTION

58 5303001343 A B C Screw, hex washer head, 8-15A x 0.500

59 240442703 A - - Screw-#10-32 X 3/4, black

59 240442704 - B - Screw-#10-32 X 3/4, bisque

59 240442702 - - C Screw-#10-32 X 3/4, white

72 240368207 A - - Grille/Kickplate, black

72 240368206 - B - Grille/Kickplate, bisque

72 240368205 - - C Grille/Kickplate, white

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326115 A B C Cover-access, with label

89* 241500301 A B C Screw, hex washer head, 8-18AB x 0.500

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 A B C Plug, button, cab liner holes, (2)

* 5303305345 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303305324 - - C Paint, touch-up, white

Publication No: 5995399481 FRT21HR6A

12/03 8

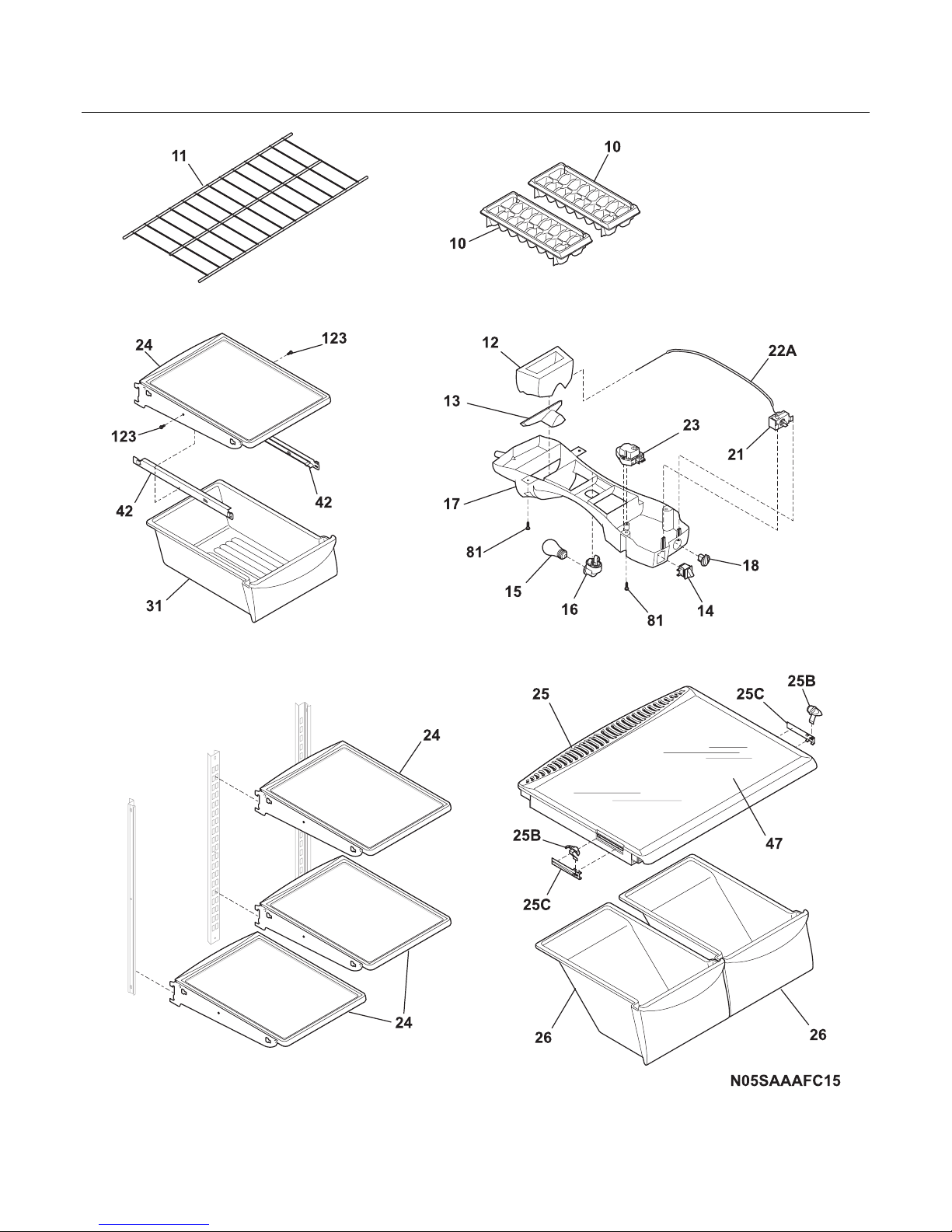

SHELVES

FRT21HR6A Publication No: 5995399481

# Functional Parts

9 12/03

* Non-Ilustrated Parts

SHELVES

Model Index: AFRT21HR6A (FRT21HR6AB5)

BFRT21HR6A (FRT21HR6AQ5)

CFRT21HR6A (FRT21HR6AW5)

POS. NO PART NO. DESCRIPTION

10 215667501 A B C Tray, ice cube, plastic

11 240358003 A B C Shelf, freezer, full-width, wire

12 240545901 A B C Diffuser-air, top

13 240362601 A B C Diffuser, air, bottom

14 # 240505801 A B C Switch, light/lamp

15 240436702 A B C Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241500701 A B C Socket-light/lamp

17 240368101 A B C Control Box

17*# 240388701 A B C Wiring Harness, control box

18 240360801 A B C Knob, temp control

21 # 5304421256 A B C Control, temperature

22A 240468201 A B C Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 A B C Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240355214 A B C Shelf-"Spill-Safe", cantilever, fixed

25 240364718 A B C Cover-crisper pan

25B 240361201 A B C Control-humidity

25C 240361301 A B C Damper, humidity cont.

26 240343803 A B C Pan, crisper, (2)

31 240530903 A B C Pan-meat, w/o graphics, clear

42 240356501 A B C Track, meat pan hanger, RH

42 240365401 A B C Track, meat pan hanger, LH

47 240350654 A B C Insert-pan cover, glass

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438

* 3205266 A B C Edge Protector, wiring harness

Publication No: 5995399481 FRT21HR6A

12/03 10

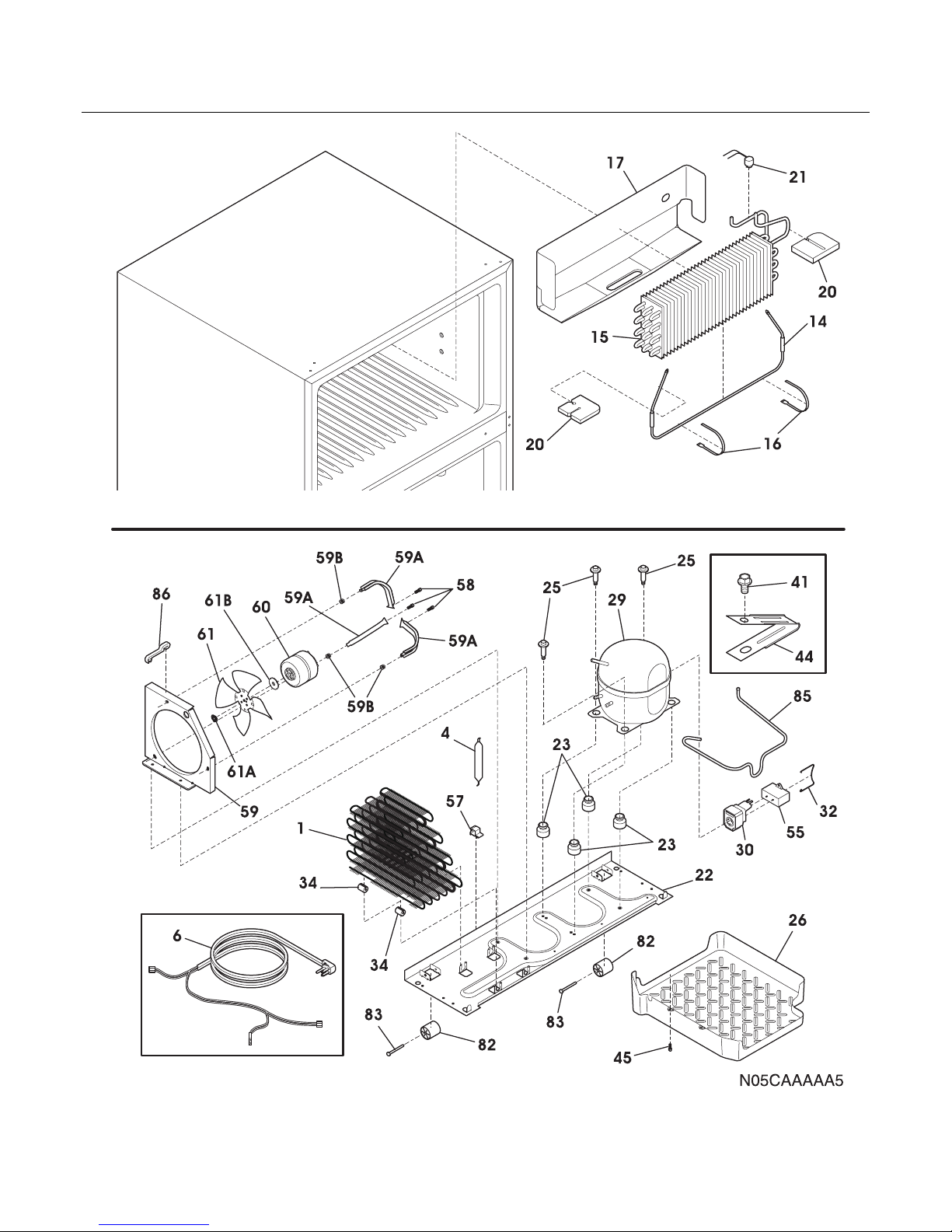

SYSTEM
