Frigidaire FRT21HC5D Manual de usuario

N05L00004.eps N05DBDCKA0.eps N05BBAABA17.eps N05SAAAEA13.eps

N05CAAAAC6.eps 240398801.eps 240398601.eps

Product No. FRT21HC5DW5 FRT21HC5DW7

Series R134a R134a

Color white white

Volts 115 115

Wiring Diagram 240398801 240398801

Owner's Guide 240400112 240400112

Market North America North America

Energy Guide 241538743 241538743

Service Data Sheet 240379014 240379014

Installation Instructions 240568300 240568300

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995428454

05/02/07

(EN/SERVICE/KHB)

357

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21HC5D

Publication No: 5995428454 FRT21HC5D

02/05 2

DOOR

21A

18A

13A

21C

22 18A

21A

N05DBDCKA0

FRT21HC5D Publication No: 5995428454

# Functional Parts 3 02/05

* Non-Illustrated Parts

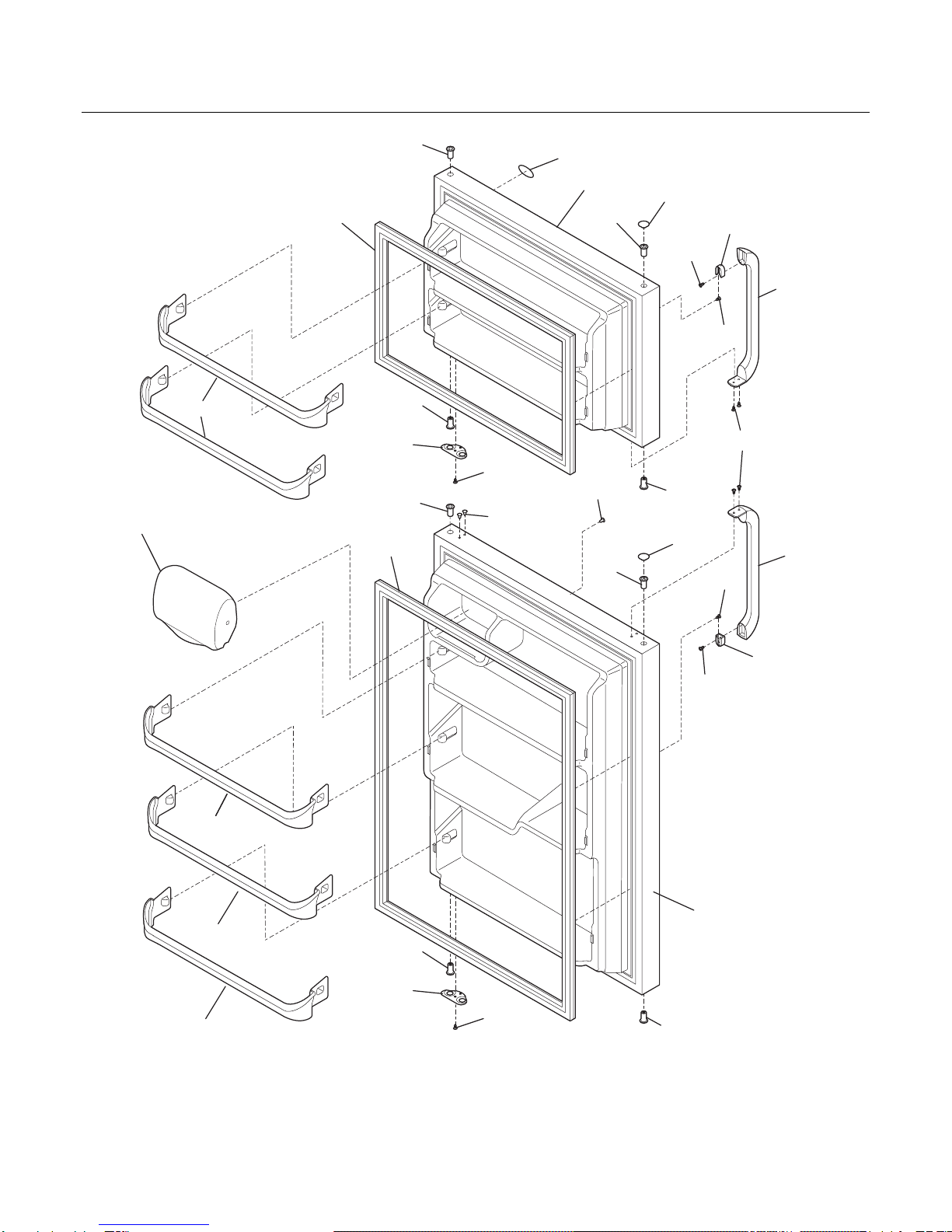

DOOR

Model Index: AFRT21HC5D (FRT21HC5DW5)

BFRT21HC5D (FRT21HC5DW7)

POS. NO PART NO. DESCRIPTION

1 # 240514607 A B Gasket, seal, white, frzr door, magnetic

2 # 240514608 A B Gasket, seal, white, refr door, magnetic

4 240534901 A B Rack-door

4B 240534701 A B Rack-door, 4B

7 240337703 A B Door-dairy, w/o graphics, clear

8 240534801 A B Rack-door

10 240381301 A B Plug-button, white, hinge brg hole, (2)

11 240450301 A B Door, frzr, white

12 240415201 A B Label-nameplate, white

13 240312403 A B Door Stop, white, ref

13A 240312404 A B Door Stop, white, frzr

14 240494001 A B Plug-button, white

15 240450401 A B Door, refr, white

18A 218428101 A B Handle-door, white, w/block & screw

21 240383401 A B Screw, truss hd quad, #10-16 x .500

21A 240521301 A B Screw, #10-16 x 1/2

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B Bearing-hinge, natural color

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995428454 FRT21HC5D

02/05 4

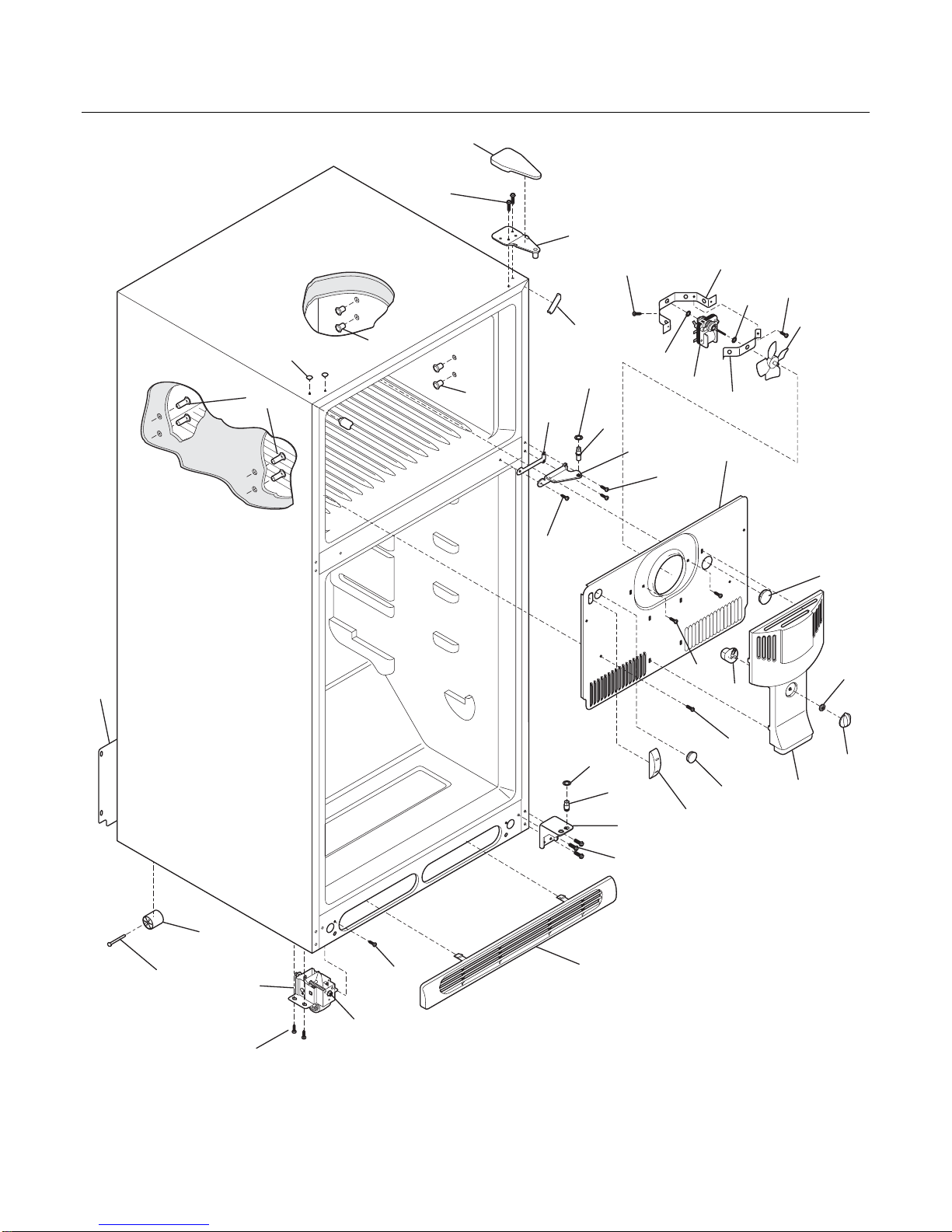

CABINET

12A

35A 36

N05BBAABA17

43 21C

21C

FRT21HC5D Publication No: 5995428454

# Functional Parts 5 02/05

* Non-Illustrated Parts

CABINET

Model Index: AFRT21HC5D (FRT21HC5DW5)

BFRT21HC5D (FRT21HC5DW7)

POS. NO PART NO. DESCRIPTION

1 240355402 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 241523701 A B Damper-fan cover

5 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 240313610 A B Cover-evap coil, w/o light

10* 240568606 A B Seal-coil cover

10*# 240524701 A B Wiring Harness, freezer section

11 5303208309 A B Plug-hole, factory test

12 240366801 A B Plug-ice maker harness, rectangular

12A 240374401 A B Plug-wtr inlet tube, round, 1"

12A* 241586701 A B Plug-foam-wtr-inlet, round

13 240369702 A B Motor-evap fan

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 240433201 A B Screw, hex washer head, 8-18 x 0.375

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 A B Plug-button, white, upr hinge holes

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314001 A B Bracket-lower hinge, zinc

34 240311303 A B Washer, hinge, nylon, (2)

35 240313801 A B Bracket-ctr hinge, zinc

35A 240336802 A B Spacer-hinge, center

36 240516401 A B Pin-center hinge

37 240337601 A B Trim-cabinet corner, white, (2)

38 240313701 A - Bracket-upper hinge

38 241622601 - B Hinge-upper

40 240354401 A - Cover-upper hinge, white

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, front, (2)

56 240516501 A B Pin-lower hinge

58 5303001343 A B Screw, hex washer head, 8-15A x 0.500

59 240442701 A B Screw-#10-32 X 3/4, zinc

72 240368205 A B Grille/Kickplate, white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 A B Cover-access, w/label

89* 241500301 A B Screw, hex washer head, 8-18AB x 0.500

92 216850900 A - Screw, hex washer hd, 1/4 x 7/8, hinge mtg

92 241624300 - B Screw-hinge mtg, hex head, 1/4-20 x 1.00

* 240479601 A B Plug, button, cab liner holes, (2)

* 5303305324 A B Paint, touch-up, white

Publication No: 5995428454 FRT21HC5D

02/05 6

SHELVES

FRT21HC5D Publication No: 5995428454

# Functional Parts 7 02/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRT21HC5D (FRT21HC5DW5)

BFRT21HC5D (FRT21HC5DW7)

POS. NO PART NO. DESCRIPTION

10 215667501 A B Tray, ice cube, plastic

11 240358003 A B Shelf, freezer, full-width, wire

12 240545901 A B Diffuser-air, top

13 240362601 A B Diffuser, air, bottom

14# 241554901 A B Switch-light/lamp

15 241555401 A B Light Bulb

16 241559801 A B Socket-light

17 240368101 A B Control Box

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 5303916855 A B Tube, sensor sleeve, plastic, clear

23 # 215846606 A B Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360904 A B Shelf, sliding, wire

25 240364717 A B Cover-crisper pan

25B 240361202 A B Knob, humidity cont.

25C 240361301 A B Damper, humidity cont.

26 240343801 A B Pan-crisper, (2)

30 240361801 A B Cover, meat pan hanger, drop through

31 240530803 A B Pan-meat, w/o graphics, clear

47 240350609 A B Insert-pan cover, glass

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995428454 FRT21HC5D

02/05 8

SYSTEM

59B

59A

59A 58

N05CAAAAC6

FRT21HC5D Publication No: 5995428454

# Functional Parts 9 02/05

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT21HC5D (FRT21HC5DW5)

BFRT21HC5D (FRT21HC5DW7)

POS. NO PART NO. DESCRIPTION

1 240444401 A B Condenser, dynamic

4 # 218944001 A B Drier-filter, R134a System

6 # 241607001 A B Harness-wiring, machine compt

6* # 240388701 A B Wiring Harness, control box

6* # 240524701 A B Wiring Harness, freezer section

14 # 5303918247 A B Defrost Heater Kit

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241551801 A B Trough-drain

20 241551902 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241602001 A B Base-compressor

22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332602 A B Pan-defrost drain

29 5303918312 A B Compressor Kit

30 # 241527804 A B Starter

32 241527901 A B Clamp, elec cont mtg, compressor

34 240405201 A B Grommet, rubber, black, cond tube/wire

41 240555001 A B Screw-#8-32 X 3/8

44 215174700 A B Clamp-service cord, strain relief, galv steel

45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

55 218909915 A B Capacitor-run, 220 VAC, 15 microfarad

57 240542601 A B Clip-wiring harness

58 240569201 A B Screw, 8-18 x 0.500

59 240315501 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal, shroud

59* 240359401 A B Screw-fan shroud, (2)

59A 240346501 A B Bracket-support, cond mtr, (3)

59B 240346601 A B Grommet-bracket, (3)

60 241584301 A B Motor-condenser fan

60* 240569501 A B Screw, 8-18 X 1 3/4, (2)

61 241536201 A B Blade-condenser fan

61B 240564001 A B Bracket-support, cond mtr, (3)

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 240553501 A B Tube-connector, suction

86 240409302 A B Spacer-cond tube, black

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* # 5303918210 A B Heat Exchanger Kit, suction line

* # 5304421289 A B Hot Tube Repair Kit, service

Publication No: 5995428454 FRT21HC5D

02/05 10

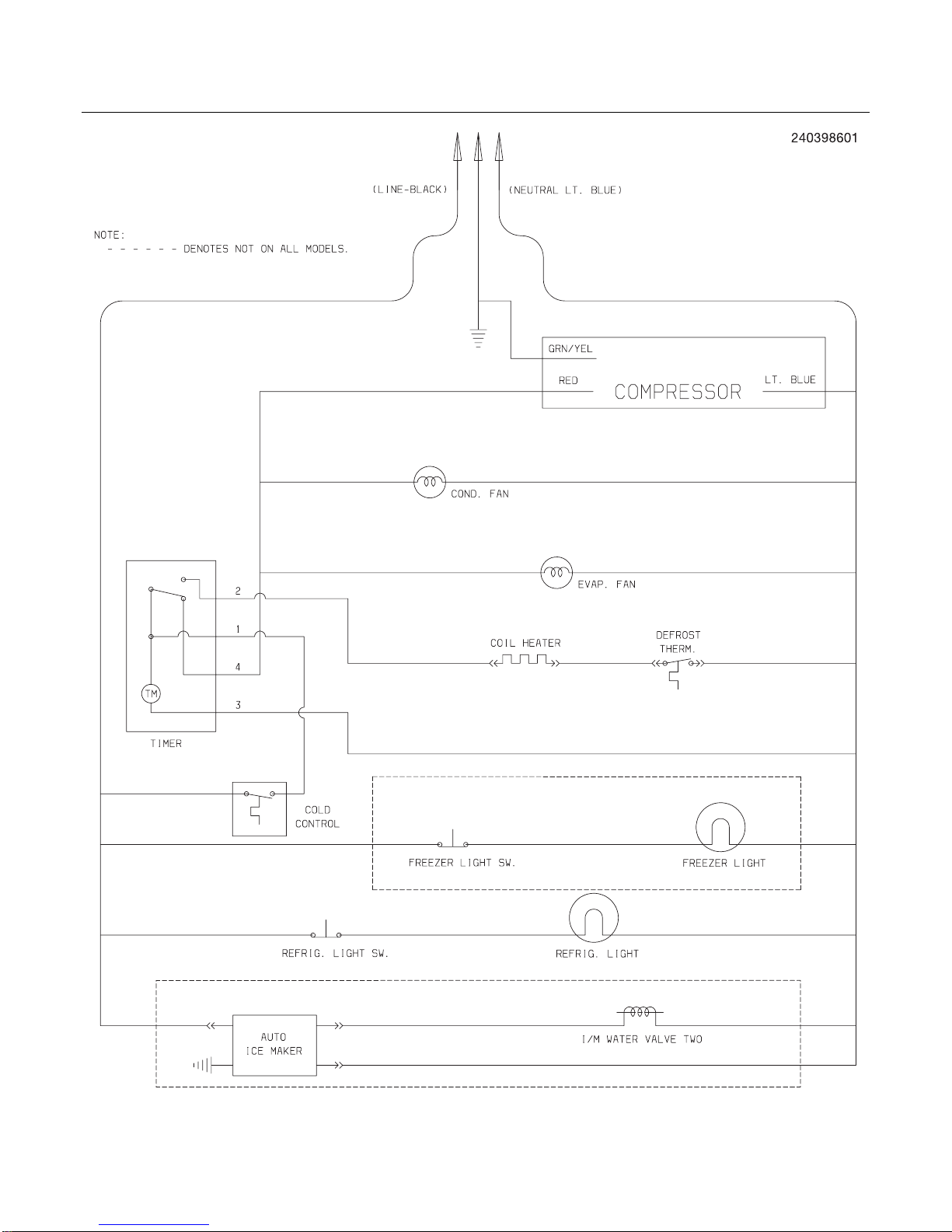

WIRING SCHEMATIC
