PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT21FG4CQ0 FRT21FG4C R134a bisque 115

FRT21FG4CW0 FRT21FG4C R134a white 115

MARKET

North America

Publication No.

5995389128

030416

-EN/SERVICE /ECL

357

TOP MOUNT

REFRIGERATOR

Model No.

FRT21FG4C

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - # 240379010

OWNER’S GUIDE - # 240400109

SERVICE DATA SHEET - # 240379010

04/03 2

Publication No. FRT21FG4C

5995389128

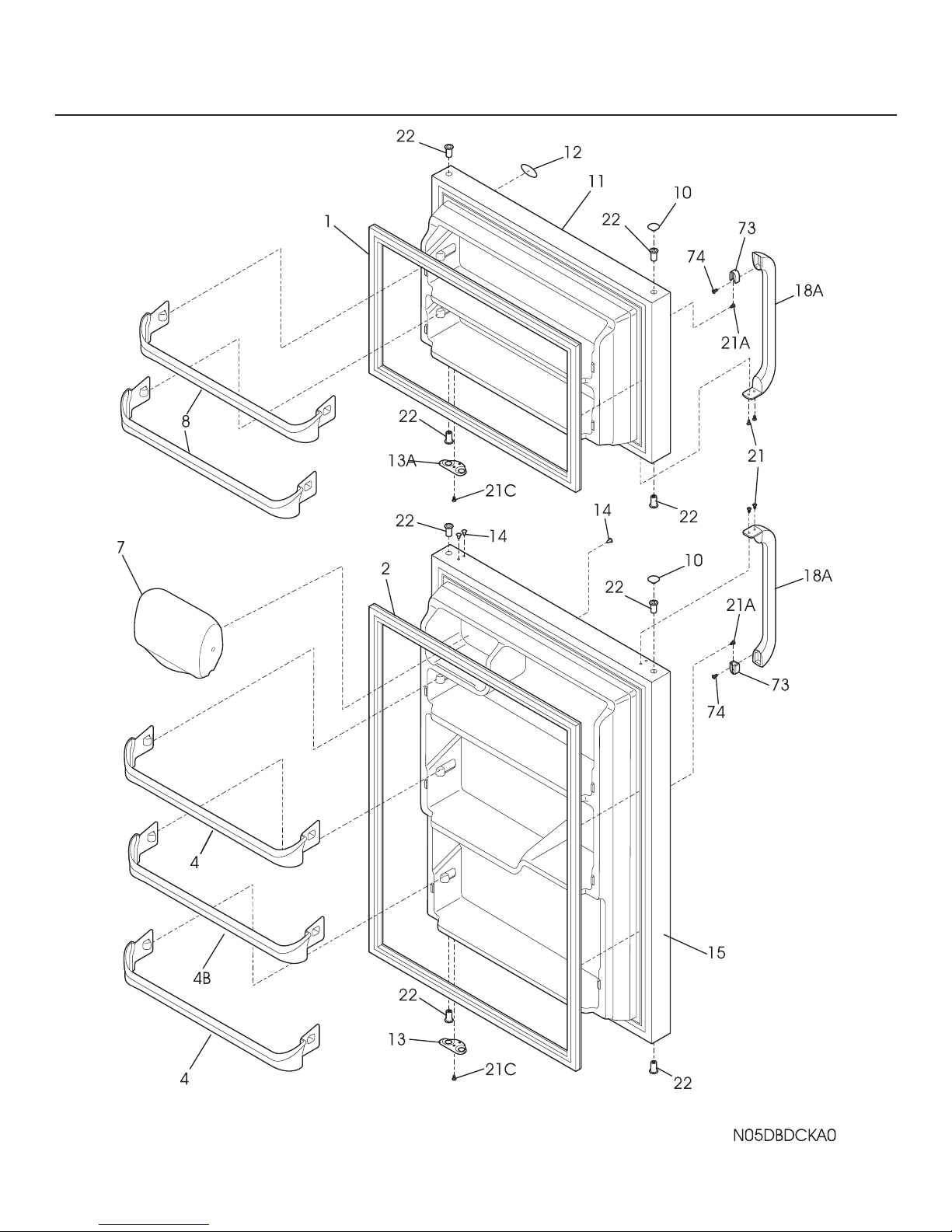

DOOR

# = Fast-moving Parts 3 04/03

* = Non-Illustrated Parts

FRT21FG4C Publication No.

5995389128

A = FRT21FG4C (FRT21FG4CW0)

B = FRT21FG4C (FRT21FG4CQ0)

POS. NO PART NO DESCRIPTION

1 # 240514607 A B Gasket,seal ,white ,frzr door ,magnetic

2 # 240514608 A B Gasket,seal ,white ,refr door ,magnetic

4 240534901 A B Rack-door

4B 240534701 A B Rack-door,4B

7 240337701 A B Door-dairy,w/o graphics ,white

8 240534801 A B Rack-door

10 240381301 A - Plug-button,white ,hinge brg hole ,(2)

10 240381302 - B Plug-button,bisque ,hinge brg hole ,(2)

11 240450301 A - Door,frzr ,white

11 240450305 - B Door,frzr ,bisque

12 240415201 A - Label-nameplate,white

12 240415203 - B Label-nameplate,bisque

13 240312403 A - Door Stop,white ,ref

13 240312407 - B Door Stop,bisque ,ref

13A 240312404 A - Door Stop,white ,frzr

13A 240312408 - B Door Stop,bisque ,frzr

14 240494001 A - Plug-button,white

14 240494002 - B Plug-button,bisque

15 240450401 A - Door,refr ,white

15 240450405 - B Door,refr ,bisque

18A 218428101 A - Handle-door,white ,w/block & screw

18A 218428119 - B Handle-door,bisque ,w/block & screw

21 240383401 A B Screw,truss hd quad ,#10-16 x .500

21A 240521301 A B Screw,#10-16 x 1/2

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240527101 A B Bearing-hinge,natural color

73 218396700 A B Block-handle mtg,dovetail

74 215503200 A B Screw,cr pan hd ,10-16 x 0.500

DOOR

04/03 4

Publication No. FRT21FG4C

5995389128

CABINET

# = Fast-moving Parts 5 04/03

* = Non-Illustrated Parts

FRT21FG4C Publication No.

5995389128

A = FRT21FG4C (FRT21FG4CW0)

B = FRT21FG4C (FRT21FG4CQ0)

POS. NO PART NO DESCRIPTION

1 240355402 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut,push-on

4 240367401 A B Damper-fan cover

5 5308000010 A B Fan Blade,red ,evaporator fan

8 5300157666 A B Bushing-motor mtg,(2)

9 5303292396 A B Bracket-motor mtg,front

10 240313608 A B Cover-evap coil

10*# 240524701 A B Wiring Harness,freezer section

10* 240568606 A B Seal-coil cover

11 5303208309 A B Plug-hole,factory test

13 # 240369701 A B Motor-evap fan

13* 218931001 A B Clamp-motor wiring,nylon ,w/adhesive tape

14 5303292397 A B Bracket-motor mtg,rear

14* 240433201 A B Screw,hex washer head ,8-18 x 0.375

18 240411901 A B Support-evap cover,(2)

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 215774901 A - Plug-button,white ,upr hinge holes

22 215774919 - B Plug-button,bisque ,upr hinge holes

28 240335501 A B Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special

30 240314002 A - Bracket-lower hinge,white

30 240314004 - B Bracket-lower hinge,bisque

34 240311301 A B Washer,hinge ,nylon ,(2)

35 240313802 A - Bracket-ctr hinge,white

35 240313804 - B Bracket-ctr hinge,bisque

35A 240336801 A B Spacer-hinge,center

36 240516401 A B Pin-center hinge

37 240337601 A - Trim-cabinet corner,white ,(2)

37 240337604 - B Trim-cabinet corner,bisque ,(2)

38 240313701 A B Bracket-upper hinge

40 240354401 A - Cover-upper hinge,white

40 240354403 - B Cover-upper hinge,bisque

41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH

42 240578901 A B Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 A B Roller Assy,front ,(2)

56 240516501 A B Pin-lower hinge

58 5303001343 A B Screw,hex washer head ,8-15A x 0.500

59 240442702 A - Screw-#10-32 X 3/4,white

59 240442704 - B Screw-#10-32 X 3/4,bisque

72 240368205 A - Grille/Kickplate,white

72 240368206 - B Grille/Kickplate,bisque

81 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

89 240326115 A B Cover-access,with label

89* 241500301 A B Screw,hex washer head ,8-18AB x 0.500

92 216850900 A B Screw,hex washer hd ,1/4 x 7/8 ,hinge mtg

* 218990901 A B Clip-wire

* 5303305324 A - Paint,touch-up ,white

* 5304414035 - B Paint,touch-up ,bisque

CABINET

04/03 6

Publication No. FRT21FG4C

5995389128

SHELVES

# = Fast-moving Parts 7 04/03

* = Non-Illustrated Parts

FRT21FG4C Publication No.

5995389128

A = FRT21FG4C (FRT21FG4CW0)

B = FRT21FG4C (FRT21FG4CQ0)

POS. NO PART NO DESCRIPTION

11 240358003 A B Shelf,freezer ,full-width ,wire

11* 5303299664 A B Spacer,shelf

12 240545901 A B Diffuser-air,top

13 240362601 A B Diffuser,air ,bottom

14 240505801 A B Switch,light/lamp

15 240436702 A B Light Bulb/Lamp,A-15 ,clear ,40 W ,120 V,miniature

16 241500701 A B Socket-light/lamp

17 240368101 A B Control Box

17*# 240388701 A B Wiring Harness,control box

18 240360801 A B Knob,temp control

21 # 5304421256 A B Control,temperature

22A 5303916855 A B Tube,sensor sleeve ,plastic ,clear

23 # 215846606 A B Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 hour/30 min

23* 5303001259 A B Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)

24 240372407 A B Frame-shelf,sliding ,full width

24A 240372408 A B Frame-shelf,sliding ,full width ,w/hanger tabs

25 240364756 A B Cover-crisper pan

26 240343801 A B Pan-crisper,(2)

29 240357704 A B Trim-shelf,front

31 240530901 A B Pan-meat

34 240385201 A B Container,ice bin

40 240443310 A B Glass-shelf,full shelf

41 240561502 A B Trim-shelf,rear

42 240530601 A B Track,meat pan hanger ,LH

42 240530701 A B Track,meat pan hanger ,RH

47 240350609 A B Insert-pan cover,glass

66 240488101 A B Rack-wine

81 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

123 215005100 A B Screw,hanger/rlr mtg ,8-10 x 0.438

* 3205266 A B Edge Protector,wiring harness

* 240572187 A B Label-energy

SHELVES

04/03 8

Publication No. FRT21FG4C

5995389128

SYSTEM

# = Fast-moving Parts 9 04/03

* = Non-Illustrated Parts

FRT21FG4C Publication No.

5995389128

A = FRT21FG4C (FRT21FG4CW0)

B = FRT21FG4C (FRT21FG4CQ0)

POS. NO PART NO DESCRIPTION

1 # 240444401 A B Condenser,dynamic

1* 240409301 A B Spacer-cond tube,black

4 # 218944001 A B Drier-filter,R134a System

6 # 240496101 A B Wiring Harness,machine compt ,w/electric cord

6* # 240388701 A B Wiring Harness,control box

6* # 240524701 A B Wiring Harness,freezer section

14 # 5303918247 A B Defrost Heater Kit

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater,aluminum ,(2)

17 240434002 A B Trough-drain

18 240362301 A B Insulation,evap block ,foam ,RH

20 240518401 A B Insulation,evap block ,foam ,LH/RH

21 # 5303918202 A B Thermostat-defrost,kit

22 240330006 A B Plate-compr mtg

22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 A B Grommet-compr mtg,(4)

25 240491501 A B Screw-comp,hx wshr hd ,1/4-28 x 1.16,shoulder,typ CF

26 240332602 A B Pan-defrost drain

29 # 5303918264 A B Compressor,w/electricals

30 # 218721120 A B Starter,PTC

32 240493301 A B Clamp,elec cont mtg ,compressor ,bale wire

34 240405201 A B Grommet,rubber ,black ,cond tube/wire

41 240555001 A B Screw-#8-32 X 3/8

44 215174700 A B Clamp-service cord,strain relief ,galv steel

45 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

55 # 218909901 A B Capacitor,run ,50/60 Hz ,220 VAC ,15 microfarad

57 240542601 A B Clip-wiring harness

58 215004600 A B Screw,hx serr wshr hd ,8-36 x 7/16 ,cond fan motor,(2)

59 240315501 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal,shroud

59* 240359401 A B Screw-fan shroud,(2)

59A 240346501 A B Bracket-support,cond mtr ,(3)

59B 240346601 A B Grommet-bracket,(3)

60 # 240334001 A B Motor,condenser fan

61 # 240315401 A B Fan Blade,galv steel ,condenser fan

61A 215004700 A B Nut,speed

61B 215004800 A B Grommet-silencer

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

84 240500801 A B Tube-drain,rubber ,lower

85 240493101 A B Tube-connector,suction

86 240409302 A B Spacer-cond tube,black

* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural

* # 5303918210 A B Heat Exchanger Kit,suction line

* # 5304421289 A B Hot Tube Repair Kit,Service

SYSTEM

04/03 10

Publication No. FRT21FG4C

5995389128

ICE MAKER
