Frigidaire FRT18C2J Manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18C2JW1 FRT18C2J R134a System white (right) 115

FRT18C2JZ1 FRT18C2J R134a System white (left) 115

MARKET

North America

Publication No.

5995344446

001009

-EN/SERVICE/KHB

390

REFRIGERATOR

Model No.

FRT18C2J

FACTORY PARTS CATALOG

REFRIGERATOR

WIRING DIAGRAM - #218758400

OWNER’S GUIDE - # 218989100

SERVICE DATA SHEET - # 218758400

101 Masters Blvd.

Anderson, SC 29624

10/00 2

Publication No. FRT18C2J

5995344446

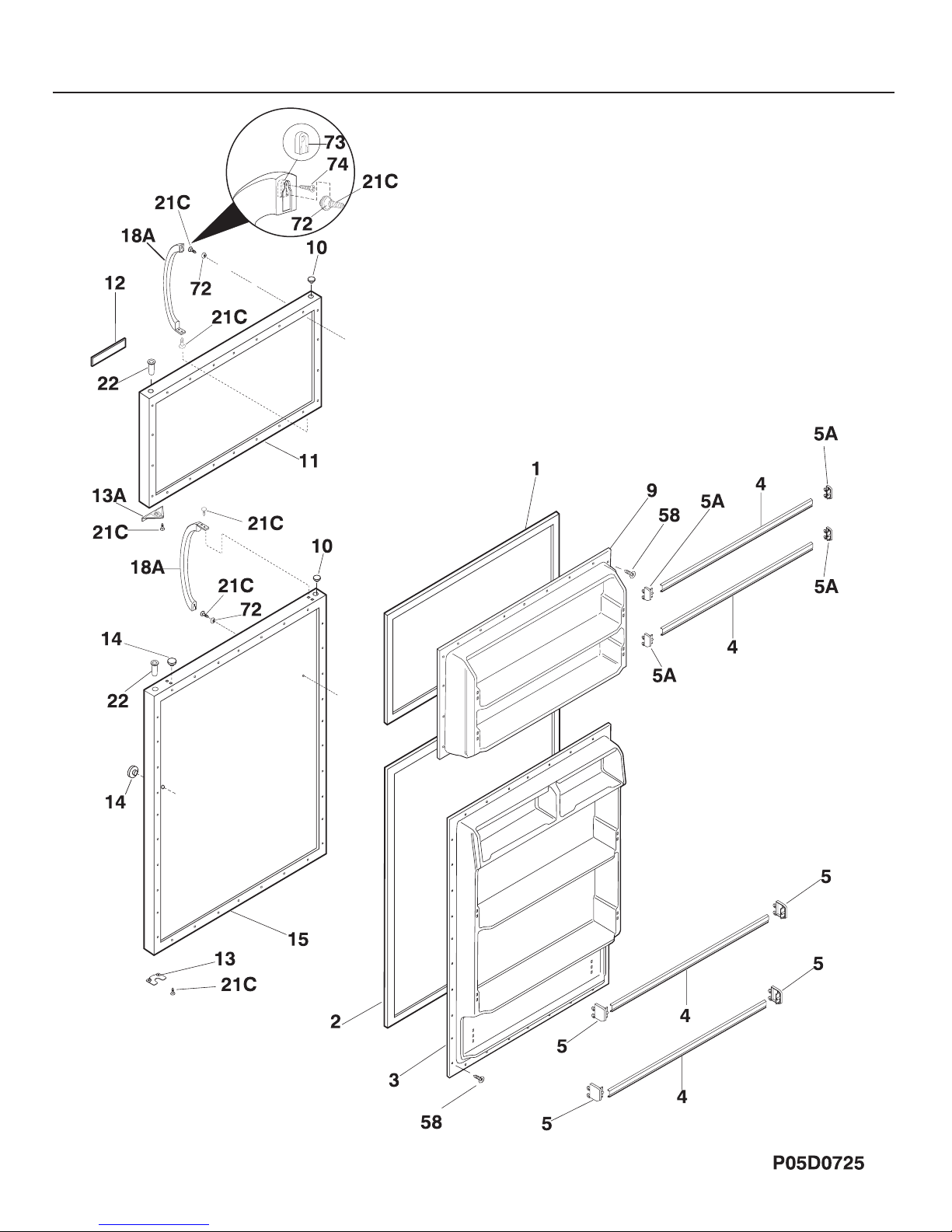

DOOR

# = Fast-moving Parts 3 10/00

* = Non-Illustrated Parts

FRT18C2J Publication No.

5995344446

DOOR

A = FRT18C2J (FRT18C2JW1)

B = FRT18C2J (FRT18C2JZ1)

POS. NO PART NO DESCRIPTION

1 # 215608916 A B Gasket-frzr door,white ,magnetic

2 # 218730605 A B Gasket-refr door,white ,magnetic

3 218360003 A B Panel-inner door,refr

4 218027022 A B Rack-door,23.81" x 1.62"

5 215267701 A B Support-door rack,"2-liter" ,RH/LH

5A 215473602 A B Support-door rack,RH/LH

9 218360101 A B Panel-inner door,frzr

10 5308000134 A B Plug-button,white ,hinge brg hole

11 5303917805 A B Panel-frzr door,white ,w/insulation

12 218439152 A B Nameplate Assy, Frigidaire, white, w/mtg tape

12 316095402 A B • Label-nameplate, Frigidaire, white

13 218800300 A B Door Stop,plated

13A 218249001 A B Door Stop,white ,frzr section

14 218915701 A B Plug-button,white

15 5303917806 A B Panel-refr door,white ,w/insul & brace

18A 218428101 A B Handle-door,white ,w/block & screw

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 218519300 A B Bearing-hinge

58 218749600 A B Screw,#10 pan hd ,8-18 x .5

72 218397000 A B Button-handle mtg,dovetail

73 218396700 A B Block-handle mtg,dovetail

74 215503200 A B Screw,cr pan hd ,10-16 x 0.500

* 5303917276 A B Insulation-door,fiberglass ,(bulk)

10/00 4

Publication No. FRT18C2J

5995344446

CABINET

# = Fast-moving Parts 5 10/00

* = Non-Illustrated Parts

FRT18C2J Publication No.

5995344446

A = FRT18C2J (FRT18C2JW1)

B = FRT18C2J (FRT18C2JZ1)

POS. NO PART NO DESCRIPTION

1 218672501 A B Cover-fan

2 5303307351 A B Knob-damper control

3 5303001028 A B Nut,push-on

4 218722200 A B Damper-fan cover,black

5 # 218649000 A B Fan Blade,black

6 218448301 A B Cover,white ,lwr hinge hole

8 5300157666 A B Bushing-motor mtg,(2)

9 5303205118 A B Bracket-motor mtg,front

10 218985301 A B Cover-evap coil

10* 5303209814 A B Nut,"U" type ,8-15A ,fan mtr mtg

11 5303208309 A B Plug-hole,factory test

12 215079000 A B Plug-harness hole,round

12 215079100 A B Plug-wtr inlet tube,round

13 # 218878701 A B Motor-evap fan

14 5303322992 A B Bracket-motor mtg,rear

17 218973201 A B Trough-drain

18 215245000 A B Support-evap cover,(2)

19 5303001198 A B Tube,rubber

22 215774901 A B Plug-button,white ,upr hinge holes

23 5303269702 A B Tube-drain,w/seal ring

24 5303207353 A B Seal Ring,drain tube

25 215774100 A B Spout-drain tube,w/mounting pins

29 5308000007 A B Washer,.34 x .62 x .05 ,nylon

29* 5308000186 A B Washer,.34 x .62 x .10 ,nylon

30 5303917777 A B Bracket-lower hinge,zinc plate

30* 215882300 A B Tapping Plate,lower hinge ,(2)

32 215217701 A B Plug-button,white ,cabinet base ,(2)

35 218998901 A B Bracket-ctr hinge,light gray

36 218251300 A B Pin-center hinge

37 5303321081 A B Trim-cabinet corner,white

38 3206100 A B Bracket-upper hinge

40 3206101 A B Cover-upper hinge,white

42 215880100 A B Screw-hinge mtg, hex washer head, 1/4-20 x 0.685, (2)

43 218724000 A B Roller Assy,front ,complete

43* 218703002 A B Roller

43* 5308009761 A B Bolt-roller adj

43* 5308009790 A B Spring-roller adj

43* 5308011326 A B Washer,.34 x .62 x .02 ,nylon

44 5303283014 A B Roller Assy,metal housing

45 5303001343 A B Screw,hex washer head ,8-15A x 0.500

56 218220300 A B Pin-lower hinge

59 218188000 A B Screw,pan hd ,10-32 x 0.625, hinge/mull, thrd forming

78 5303274237 A B Screw-bracket, hex wshr hd, 8-32CA x 0.500

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

83 5308000107 A B Bracket-connector

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

98 215099701 A B Plug-button,white

* 5303305324 A B Paint,touch-up ,white

* 5308016571 A B Plug-button,cab liner holes

CABINET

10/00 6

Publication No. FRT18C2J

5995344446

SHELVES

# = Fast-moving Parts 7 10/00

* = Non-Illustrated Parts

FRT18C2J Publication No.

5995344446

SHELVES

A = FRT18C2J (FRT18C2JW1)

B = FRT18C2J (FRT18C2JZ1)

POS. NO PART NO DESCRIPTION

1 218874301 A B Mullion,white

5 # 218781003 A B Heater-mullion

6 218845602 A B Tapping Plate,mullion mtg ,(2)

7 218814800 A B Panel-top,refr cavity

8 218872903 A B Divider,styrofoam ,w/foil tape

8* # 218878500 A B Wiring Harness,control/divider

9 218814700 A B Panel-bottom,frzr cavity

12 218730000 A B Deflector-air

12* 5303001449 A B Seal-air deflector,foam plastic ,(2)

13 218631001 A B Cover-air deflector

14 # 5309918806 A B Switch-light/lamp

15 # 5303001179 A B Light Bulb/Lamp,40 W

16A# 218906801 A B Socket-light/lamp

17 5304414816 A B Control Box

17* 5308016567 A B Nut-anchor

18 5303311079 A B Knob-temp control

19 # 5303286905 A B Switch-energy saver,rocker type

21 5303321453 A B Control-temperature

21* 5303001260 A B Screw-control mtg,pan hd ,6-32 x 0.250

22A 5303916855 A B Tube,sensor sleeve ,plastic ,clear

22B 218731104 A B Tube, PVC, white, @ air deflector, insulator

23 # 215846605 A B Timer-defrost, 60 Hz, 120 V, 10 hour/21 min

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 5303307451 A B Shelf,sliding ,wire ,refr section

25 5303207340 A B Cover-crisper pan, with beam, less insert

26 3206438 A B Pan-crisper

46 5303304709 A B Front-crisper pan

47 5303281398 A B Insert-pan cover,glass

59 218188000 A B Screw, pan hd, 10-32 x 0.625, hinge/mull, thrd forming

81 5303001380 A B Screw,truss head ,8-10 x 1.625

145 218660800 A B Clip,plastic ,temp sensor mtg ,snap-in

10/00 8

Publication No. FRT18C2J

5995344446

SYSTEM

# = Fast-moving Parts 9 10/00

* = Non-Illustrated Parts

FRT18C2J Publication No.

5995344446

SYSTEM

A = FRT18C2J (FRT18C2JW1)

B = FRT18C2J (FRT18C2JZ1)

POS. NO PART NO DESCRIPTION

1 # 218173900 A B Condenser

1* 5303208866 A B Spacer-cond tube,black

2 5308000296 A B Bracket,condenser mtg ,(4)

2* 5308009617 A B Washer,ext tooth lock ,#10 ,grounding

4 # 218944001 A B Drier-filter,R134a System

5 218878500 A B Wiring Harness,control/divider

6 # 215257004 A B Wiring Harness,compressor

7 # 5316254901 A B Cord-electric power

8 5303001197 A B Cover-wiring

13 # 218429306 A B Heat Exchanger,suction line

14 # 3206453 A B Heater-defrost

15 # 218955901 A B Evaporator

16 5308000110 A B Strap-evap/heater,aluminum ,(2)

17 218973101 A B Insulator-evap

18 5308013648 A B Insulation Block,RH

19 5303007287 A B Insulation Plug,RH

20 5308017227 A B Insulation Block,LH

21 # 218969902 A B Thermostat-defrost

22 218802500 A B Plate-compr mtg,with rail

23 218254500 A B Grommet-compr mtg,(4)

24 5308003633 A B Washer-compr mtg

25 5308003596 A B Clip-compressor mtg

26 215372500 A B Pan-defrost drain

27 5303001348 A B Nut-lock,1/4-20 ,drain pan mtg

28 5303916001 A B Pan Retainer Kit,Service

29 # 218846902 A B Compressor,R134a ,w/o electricals

30 # 218721103 A B Starter/Overload Assy

32 218740800 A B Clamp,elec cont mtg ,compressor

41 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, (7),serrated hd

43 5303001199 A B Clamp-wiring harness, strain relief, galv steel

44 5308000133 A B Clamp,nylon ,.625 ID

45 5303001343 A B Screw,hex washer head ,8-15A x 0.500

45* 218843800 A B Screw,hex wshr hd, 8-15A x 0.500, wiring clamps

45* 5300141713 A B Screw,hex wshr hd ,8-32 x 0.625 ,spec

55 218909901 A B Capacitor-run,220 VAC ,15 microfarad

* # 3916557 A B Hot Tube Repair Kit,Service
