Frigidaire FRS26ZNJS Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS26ZNJSB0 FRS26ZNJS R134a stain/black 115

MARKET

North American

Publication No.

5995344008

000926

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26ZNJS

FACTORY PARTS CATALOG

SIDE BY SIDE

REFRIGERATOR

WIRING DIAGRAM - # 218903201

OWNER’S GUIDE - # 218987800

SERVICE DATA SHEET - # 218909400

101 Masters Blvd.

Anderson, SC 29624

This catalog supercedes

Publication No. 5995338604.

09/00 2

Publication No. FRS26ZNJSB0

5995344008

FREEZER DOOR

# = Fast-moving Parts 3 09/00

* = Non-Illustrated Parts

FRS26ZNJSB0 Publication No.

5995344008

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 215734323 Gasket-frzr door,black ,magnetic

5 5303288950 Support-door rack,RH/LH

6 5303323484 Support-door rack,white ,LH

6A 5303323485 Support-door rack,white ,RH

8 218807028 Rack-door,w/end caps

8A 215474052 Rack-door

9 218510401 Panel-inner door,frzr

11 5303918179 Panel-ext frzr door, stainless, w/foam insulatn

13 5303289522 Door Stop

18 218762708 Handle-door,gunmetal

21A 218578600 Screw-door stop mtg, phl truss hd, 10-16 x 3/4

22A 215615300 Bushing-door,bronze

23 5303001020 Screw,cr flat head ,8-32D x 1/2

37 218811641 Trim-door handle,gunmetal ,upper

37A 218811640 Trim-door handle,gunmetal ,lower

47 218922901 Wiring Harness,frzr door

58 218781100 Screw,pan head ,8-18 x 0.625

68 218495200 Chute-ice

140 218922801 Elbow-water tube

141 218929601 Tool-Push Connector

* 215598900 Washer-flat, .691x1x.05, zinc, I&W hinge brkt

* 218490900 Cleaner,stainless steel

* 218789501 Heater-lower flange

* 5303917276 Insulation-door,fiberglass ,(bulk)

09/00 4

Publication No. FRS26ZNJSB0

5995344008

REFRIGERATOR DOOR

# = Fast-moving Parts 5 09/00

* = Non-Illustrated Parts

FRS26ZNJSB0 Publication No.

5995344008

POS. NO PART NO DESCRIPTION

2 # 215734324 Gasket-refr door,black ,magnetic

3 215403201 Panel-inner door,refr

7 5303304563 Door-dairy

13 5303289522 Door Stop

15 5303918180 Panel-ext refr door, stainless steel, w/foam insulatn

18 218762708 Handle-door,gunmetal

21A 218578600 Screw-door stop mtg, phl truss hd, 10-16 x 3/4

22 5303289320 Bearing-hinge

37 218811641 Trim-door handle,gunmetal ,upper

37A 218811640 Trim-door handle,gunmetal ,lower

49 218592325 Bin-door,2-liter

58 218781100 Screw,pan head ,8-18 x 0.625

* 218490900 Cleaner,stainless steel

* 5303917276 Insulation-door,fiberglass ,(bulk)

REFRIGERATOR DOOR

09/00 6

Publication No. FRS26ZNJSB0

5995344008

CABINET

# = Fast-moving Parts 7 09/00

* = Non-Illustrated Parts

FRS26ZNJSB0 Publication No.

5995344008

POS. NO PART NO DESCRIPTION

10 215637602 Cover-air duct

10* 5303209814 Nut,"U" type ,8-15A ,fan mtr mtg

10A 215637401 Cover-evap coil,lower

10A* 5308009617 Washer,ext tooth lock ,#10 ,grounding

11 5303208309 Plug-hole,factory test

12 215230400 Plug-harness hole

18 5303289043 Support-air duct cvr,2.55" long

18* 5303289044 Support-air duct cvr,1.83" long

28 5303289062 Bolt-roller adj,hex head ,5/16-24 x 7/8

29 215314301 Washer,.40 x .75 x .06 ,nylon

29* 215598900 Washer-flat, .691x1x.05, zinc, I&W hinge brkt

29* 218871201 Washer,nylon ,0.363 ID w/nibs

30 215008900 Bracket-lower hinge,RH ,w/hinge pin

30* 218979701 Tapping Plate,lower hinge

30A 215009100 Bracket-lower hinge,LH ,w/hinge pin

30A* 218979601 Tapping Plate,lower hinge

37 5303321083 Trim-cabinet corner,black

38 218215246 Bracket-upper hinge, with closer, black, LH

38 218215248 Bracket-upper hinge, with closer, black, RH

40 5303323268 Cover-upper hinge,black

41 5303001609 Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 Grommet,shelf mtg ,1.25" ,LH

43 218615300 Roller Assy,front ,(2)

43* 5308017044 Screw-roller mtg, spcl ind hex hd, 5/16-18(23)x7/8

44 218738300 Roller Assy,rear ,(2)

45 5303001343 Screw,hex washer head ,8-15A x 0.500

47 218659500 Channel-shelf mtg,side, (2)

52 215454600 Tube-water,ice mold fill ,elbow

66 215050201 Damper-meat keeper

66A 218171301 Cover-meat kpr dmpr

72 218359609 Grille/Kickplate,black

77 5303001216 Washer-nylon, 3/16 x 5/8 OD

78 5303274237 Screw-bracket, hex wshr hd, 8-32CA x 0.500

80 218249802 Seal-coil cover,(2)

81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

85 218922706 Cover-lower hinge,black

89 218871501 Cover-machine compt

90 215022602 Seal-foam

90* 5303322647 Tape-foam

91 218964701 Deflector-air,air duct cover

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 5303288973 Support-pan cover

101 215305702 Seal-foam

101* 218663103 Gasket-air duct cvr

* 218902101 Cap-protector, lower hinge

* 5303305345 Paint,touch-up ,black

CABINET

09/00 8

Publication No. FRS26ZNJSB0

5995344008

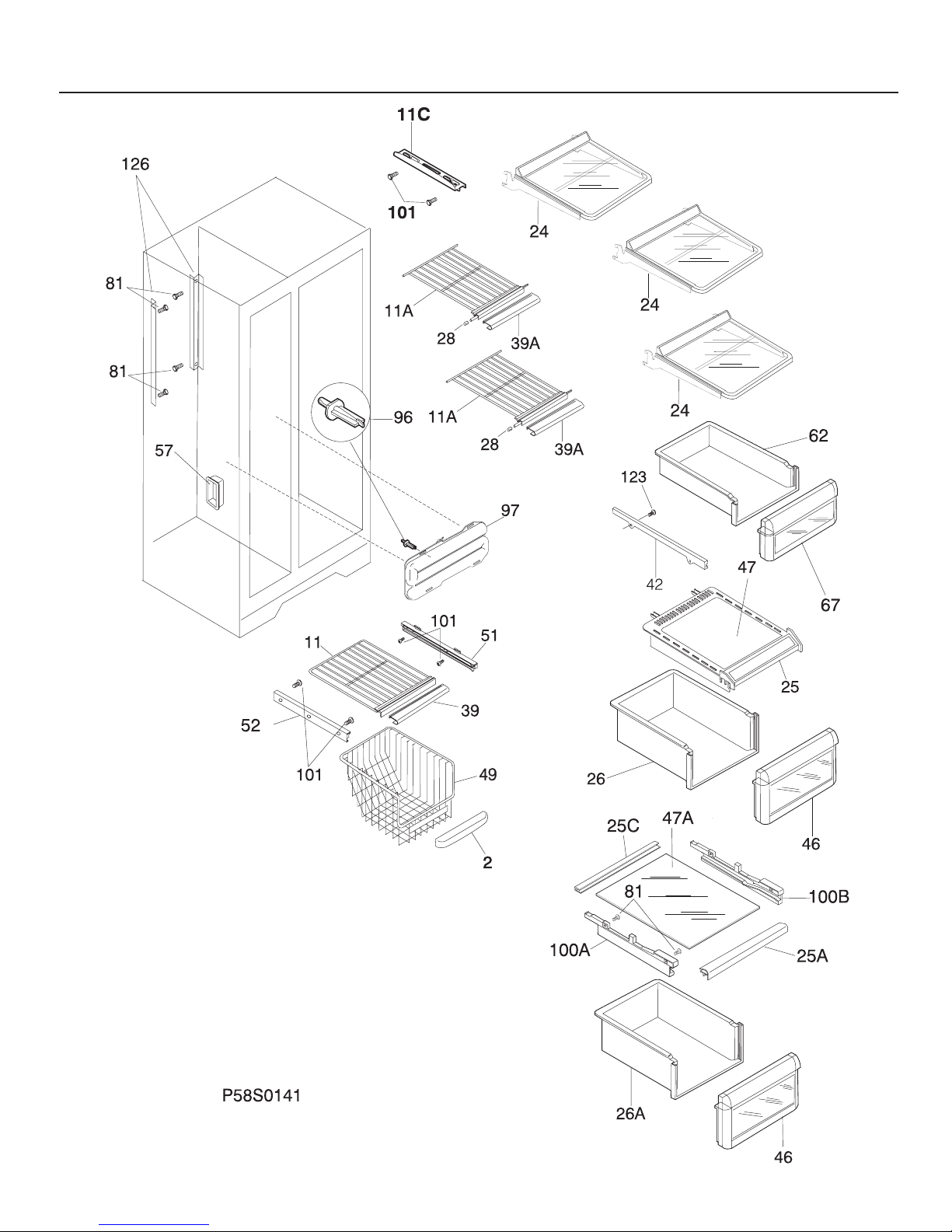

SHELVES

# = Fast-moving Parts 9 09/00

* = Non-Illustrated Parts

FRS26ZNJSB0 Publication No.

5995344008

POS. NO PART NO DESCRIPTION

2 5303298147 Trim-basket

11 218298003 Shelf-freezer,sliding ,wire

11A 5304405879 Shelf-freezer,fixed wire

11C 240324101 Shelf-pizza

24 215029009 Shelf-"Spill-Safe",cantilever ,sliding

25 215124343 Cover-storage pan

25* 5303301393 Control-humidity

25* 5304412757 Trim-storage pan cvr, upper, w/humidity hole

25A 218015302 Trim-storage pan cvr,snap-on ,front

25C 218015402 Trim-storage pan cvr,snap-on ,rear

26 5303289500 Pan-storage,upper

26A 5303289501 Pan-storage,lower

28 08013638 End Cap-shelf, protector, lower fzr shelf

39 215217543 Trim-frzr shelf

39A 215217558 Trim-frzr shelf

42 215002301 Hanger-pan/tray,LH

42* 215002401 Hanger-pan/tray,RH

46 5304411659 Front-storage pan

47 218498182 Insert-pan cover,glass

47A 215723552 Insert-pan cover,16.31" x 17.32" ,glass

49 5303296573 Basket-sliding

51 5303296575 Hanger-basket,RH

52 215162502 Hanger-basket,LH,with spring

52* 5303299662 Hanger-basket,LH

57 5303271653 Ferrule-inner

62 5303289517 Tray-deli

67 5304411662 Front-deli tray

81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

96 215192600 Support-water tank

97 218942701 Water Tank

100A 218015501 Support-pan cover,LH

100B 218015601 Support-pan cover,RH

101 215005000 Screw,hex wshr hd , 8-18AB x 0.750, gusset/hanger

123 215005100 Screw-roller/hanger,8-10 x 0.438

126 218867401 Channel,auger mtg ,LH

126 218867402 Channel,auger mtg ,RH

* 215328300 Clip-shelf

SHELVES

09/00 10

Publication No. FRS26ZNJSB0

5995344008

CONTROLS
