Frigidaire FRS26KF7A Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS26KF7AB5 FRS26KF7A R134a black 115

FRS26KF7AQ5 FRS26KF7A R134a bisque 115

FRS26KF7AW5 FRS26KF7A R134a white 115

MARKET

North America

Publication No.

5995376877

020814

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26KF7A

WIRING DIAGRAM - 240389607

OWNER’S GUIDE - 240389307

SERVICE DATA SHEET - 240389607

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

08/02 2

Publication No. FRS26KF7A

5995376877

FREEZER DOOR

# = Fast-moving Parts 3 08/02

* = Non-Illustrated Parts

FRS26KF7A Publication No.

5995376877

FREEZER DOOR

A = FRS26KF7A (FRS26KF7AB5)

B = FRS26KF7A (FRS26KF7AQ5)

C = FRS26KF7A (FRS26KF7AW5)

POS. NO PART NO DESCRIPTION

1 # 240390606 A - - Gasket-frzr door,black ,magnetic

1 # 240390602 - B C Gasket-frzr door,white ,magnetic

4A 240334201 A B C Bin-door,frzr-upper

4B 240351601 A B C Bin-door

11 240451814 A - - Panel-frzr door,black ,complete assy

11 240451809 - B - Panel-frzr door,bisque ,complete assy

11 240451803 - - C Panel-frzr door,white ,complete assy

13A 240537106 A - - Door Stop,black ,frzr

13A 240537104 - B - Door Stop,bisque ,frzr

13A 240537102 - - C Door Stop,white ,frzr

18 240359108 A - - Handle-door,black ,LH

18 240359109 - B - Handle-door,bisque

18 240359106 - - C Handle-door,white

21 218781100 A B C Screw,pan head ,8-18 x 0.625

21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521301 A B C Screw,#10-16 x 1/2

22A 240328202 A B C Bearing-hinge,closer

22C 240328404 A - - Bearing-hinge,black ,upper

22C 240328402 - B C Bearing-hinge,upper

37 240359203 A - - Trim-handle,30.13" ,black ,lower

37 240359204 - B - Trim-handle,30.13" ,bisque ,lower

37 240359201 - - C Trim-handle,30.13" ,white ,lower

68 240467701 A B C Chute-ice

72 240421701 A B C Button-handle mtg,dovetail

73 218396700 A B C Block-handle mtg,dovetail

73A 240339101 A B C Clip-trim

74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500

96 240345506 A - - Plug,door foam hole ,black

96 240345505 - B C Plug,door foam hole ,white

* 240545101 A B C Connector-water,straight

* 240552101 A B C Harness-wiring,door

* 5303918256 A B C Dispenser heater kit

08/02 4

Publication No. FRS26KF7A

5995376877

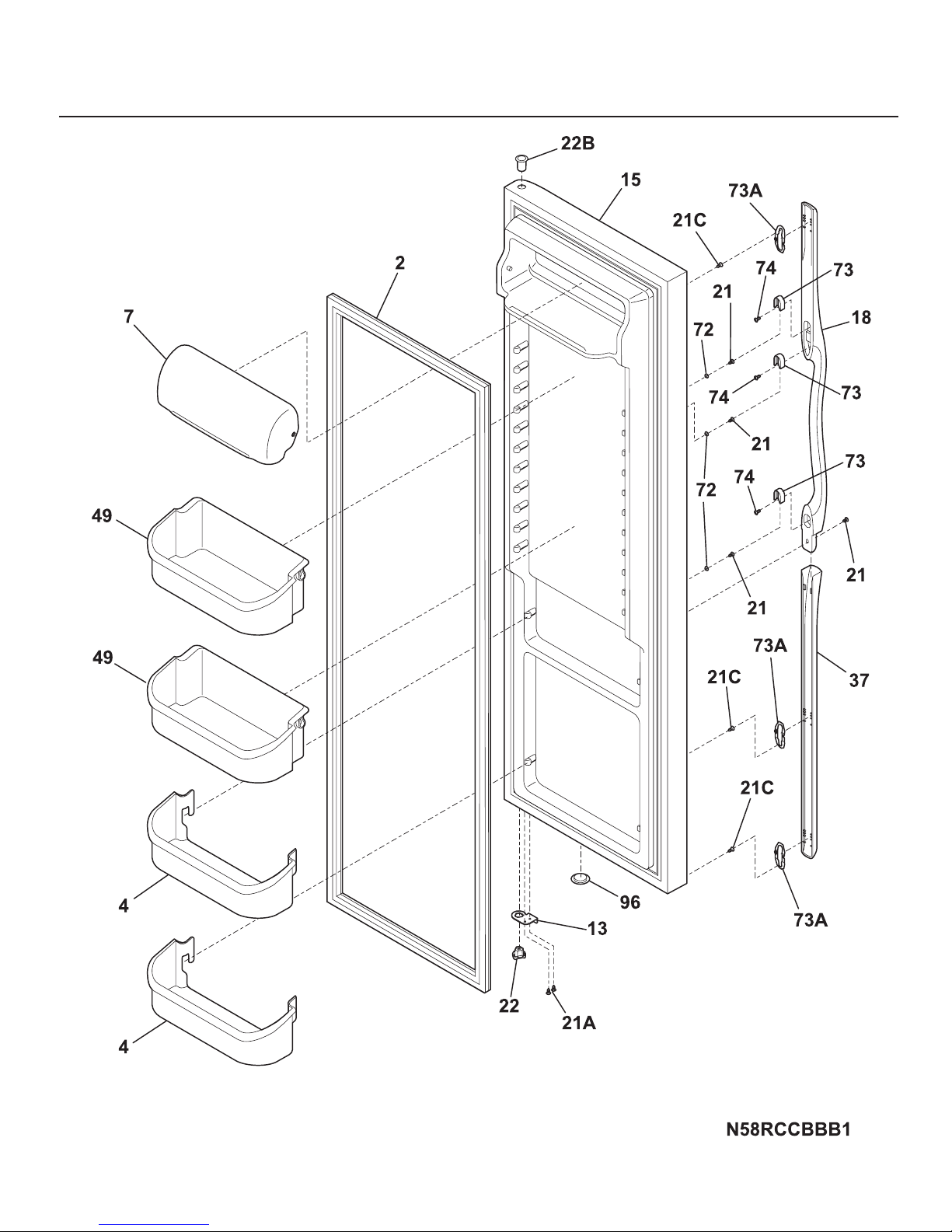

REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/02

* = Non-Illustrated Parts

FRS26KF7A Publication No.

5995376877

A = FRS26KF7A (FRS26KF7AB5)

B = FRS26KF7A (FRS26KF7AQ5)

C = FRS26KF7A (FRS26KF7AW5)

POS. NO PART NO DESCRIPTION

2 240390605 A - - Gasket-refr door,black ,magnetic

2 # 240390601 - B C Gasket-refr door,white ,magnetic

4 240323001 A B C Bin-door,pseudo ,bottom

7 240326203 A B C Door-dairy

13 240537105 A - - Door Stop,black ,ref

13 240537103 - B - Door Stop,bisque ,ref

13 240537101 - - C Door Stop,white ,ref

15 240451908 A - - Panel-refr door,black ,complete assy

15 240451904 - B - Panel-refr door,bisque ,complete assy

15 240451900 - - C Panel-refr door,white ,complete assy

18 240359103 A - - Handle-door,black ,RH

18 240359104 - B - Handle-door,bisque

18 240359101 - - C Handle-door,white

21 218781100 A B C Screw,pan head ,8-18 x 0.625

21A 5308016566 A B C Screw,hex washer head ,8-15A x 0.625, low profile

21C 240521301 A B C Screw,#10-16 x 1/2

22 240328201 A B C Bearing-hinge,closer

22B 240328403 A - - Bearing-hinge,upper

22B 240328401 - B C Bearing-hinge,upper

37 240359203 A - - Trim-handle,30.13" ,black ,lower

37 240359204 - B - Trim-handle,30.13" ,bisque ,lower

37 240359201 - - C Trim-handle,30.13" ,white ,lower

49 240356401 A B C Bin-door,gallon

72 240421701 A B C Button-handle mtg,dovetail

73 218396700 A B C Block-handle mtg,dovetail

73A 240339101 A B C Clip-trim

74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500

96 240345506 A - - Plug,door foam hole ,black

96 240345505 - B C Plug,door foam hole ,white

REFRIGERATOR DOOR

08/02 6

Publication No. FRS26KF7A

5995376877

CABINET

# = Fast-moving Parts 7 08/02

* = Non-Illustrated Parts

FRS26KF7A Publication No.

5995376877

A = FRS26KF7A (FRS26KF7AB5)

B = FRS26KF7A (FRS26KF7AQ5)

C = FRS26KF7A (FRS26KF7AW5)

POS. NO PART NO DESCRIPTION

10 240435902 A B C Cover-air duct

10A 240475902 A B C Cover-evap coil,lower

11 5303208309 A B C Plug-hole,factory test

14 # 240505801 A B C Switch,light/lamp

14A# 215486600 A B C Switch-light/lamp

21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B C Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2),special

30 240419103 A B C Bracket-lower hinge, ref

30A 240419104 A B C Bracket-lower hinge

37 240337603 A - - Trim-cabinet corner,black ,(2)

37 240337604 - B - Trim-cabinet corner,bisque ,(2)

37 240337601 - - C Trim-cabinet corner,white ,(2)

38 240327202 A B C Bracket-upper hinge

40 240327007 A - - Cover-upper hinge,black

40 240327006 - B - Cover-upper hinge,bisque

40 240327005 - - C Cover-upper hinge,white

41 240358701 A B C Grommet-shelf mtg,1.40" long

41* 240358801 A B C Grommet-shelf mtg,.875" long

42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B C Roller Assy,front ,(2)

45 241500301 A B C Screw,hex washer head ,8-18AB x 0.500

47 218659500 A B C Channel-shelf mtg,side ,(2)

58 218749600 A B C Screw,#10 pan hd ,8-18 x .5

66B 240374301 A B C Diffuser-air

66B* 240518802 A B C Pin-push,push-in ,plastic

72 240324406 A - - Grille/Kickplate,black

72 240324404 - B - Grille/Kickplate,bisque

72 240324402 - - C Grille/Kickplate,white

81 5308016566 A B C Screw,hex washer head ,8-15A x 0.625, low profile

82 5304418225 A B C Roller,compressor base ,rear ,(2)

83 5303316859 A B C Rivet,flat head ,1/4 OD x 1-3/4, roller pin

89 240326104 A B C Cover,access ,system compt ,with label

90 218249808 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 A B C Support,crisper cover ,front ,(4)

100* 240350802 A B C Support,crisper cover ,rear ,(4)

150 240368701 A B C Guide-control bulb

* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural

* 240479601 A B C Plug,button ,cab liner holes

* 240481601 A B C Shim-lower hinge

* 5303305345 A - - Paint,touch-up, black

* 5304414035 - B - Paint,touch-up, bisque

* 5303305324 - - C Paint,touch-up, white

CABINET

08/02 8

Publication No. FRS26KF7A

5995376877

SHELVES

# = Fast-moving Parts 9 08/02

* = Non-Illustrated Parts

FRS26KF7A Publication No.

5995376877

A = FRS26KF7A (FRS26KF7AB5)

B = FRS26KF7A (FRS26KF7AQ5)

C = FRS26KF7A (FRS26KF7AW5)

POS. NO PART NO DESCRIPTION

2 240434604 A B C Trim-basket

11 240338802 A B C Shelf-freezer,flip-up

11A 240338702 A B C Shelf-freezer,fixed wire

11B 240338704 A B C Shelf-freezer,fixed wire

11C 240324101 A B C Shelf-pizza

15A 240436702 A B C Light Bulb, A-15, clear, 40 W, 120 V, miniature

16A 218906801 A B C Socket-light/lamp

24 240355205 A B C Shelf-"Spill-Safe",fixed

24B 240350106 A B C Shelf-"Spill-Safe",cantilever ,sliding

24C 240424602 A B C Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240350702 A B C Cover-crisper pan,upper

25* 240362101 A B C Clip-slide,cover-crisper

25A 240350902 A B C Cover-crisper pan,lower

26 240351005 A B C Pan-crisper,upper

26* 240349801 A B C Clip-slide,pan-crisper

26A 240362201 A B C Control-humidity

27 240351205 A B C Pan-crisper,lower

39 240430706 A B C Trim-shelf,11.21" ,front

39A 240430702 A B C Trim-shelf,12.39" ,front

42 240356501 A B C Track,meat pan hanger ,RH

42 240365401 A B C Track,meat pan hanger ,LH

47 240350602 A B C Insert-pan cover,glass

47A 240350603 A B C Insert-pan cover,glass

49 240530402 A B C Basket-sliding

51 240343002 A B C Hanger-basket,RH

52 240343102 A B C Hanger-basket,LH

54 240351901 A B C Plug-hanger,right hand

55 240352001 A B C Plug-hanger,left hand

62 240342806 A B C Pan-meat

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B C Water Tank Assy,coiled tubing, front filter

100 240326302 A B C Cover-water tank

101 218493100 A B C Screw, hex washer head ,8-18AB x 1-3/4

101* 215005000 A B C Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger

109 240351301 A B C Base-crisper light socket

120 240342901 A B C Shelf-ice cream

123 215005100 A B C Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867401 A B C Channel,auger mtg ,LH

126 218867402 A B C Channel,auger mtg ,RH

140 240430501 A B C Channel,wtr tube cover

SHELVES

08/02 10

Publication No. FRS26KF7A

5995376877

CONTROLS
