Frigidaire FRS24BGG Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS24BGGB9 FRS24BGG R134a black 115

FRS24BGGW9 FRS24BGG R134a white 115

MARKET

North America

Publication No.

5995345872

001031

-EN/SERVICE /ECL

099

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS24BGG

FACTORY PARTS CATALOG

SIDE BY SIDE

REFRIGERATOR

WIRING DIAGRAM - # 5304416100

OWNER’S GUIDE - # 5304413840

SERVICE DATA SHEET - # 5304416100

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

10/00 2

Publication No. FRS24BGG

5995345872

FREEZER DOOR

# = Fast-moving Parts 3 10/00

* = Non-Illustrated Parts

FRS24BGG Publication No.

5995345872

FREEZER DOOR

A = FRS24BGG (FRS24BGGB9)

B = FRS24BGG (FRS24BGGW9)

POS. NO PART NO DESCRIPTION

001 5304413840 A B Owner’s Guide

001 5304416100 A B Technical Guide,mini manual ,wiring diagram

003 5304406358 A B Fastener-tubular,(2)

011 5304406359 A - Trim-disp recess,black

011 5304406360 - B Trim-disp recess,white

012 5304406361 A B Door Stop,(2)

014 5304406363 A - Gasket-frzr door,black ,magnetic

014 5304406362 - B Gasket-frzr door,white ,magnetic

015 5304406365 A - Door Closer,cam ,black ,frzr section

015 5304406364 - B Door Closer,cam ,white ,frzr section

019 5304413798 A B Panel-inner door,frzr section

023 5304406367 A B Rack-door,top-frzr

029# 5304415910 A - Wiring Harness,frzr door

029# 5304419383 - B Wiring Harness,frzr door

075 5304413799 A B Tube-water,frzr door ,w/grommet

076 5304406370 A B Sleeve-water tube

080 5304406353 A B Nut-compression,5/16 ,union

081 5304413800 A B Plug button,inner dr panel

122 5304406372 A B Bin-door,(2)

124 5304406373 A B Rack-door,bottom-frzr ,w/end caps

150 5304406374 A B Screw-panel mtg,8-15 ,(84)

552 5304406375 A B Screw,12-24TT x 0.900 ,(12)

608# 5304419384 A B Switch-light/lamp,frzr door

900 5304413824 A - Panel-frzr door,black ,w/foam insul

900 5304413823 - B Panel-frzr door,white ,w/foam insul

901 5304406379 A - Strike-door,black ,(2) ,magnetic

901 5304406380 - B Strike-door,white ,(2) ,magnetic

903 5304406382 A - Bearing-door hinge,black ,bottom

903 5304406381 - B Bearing-door hinge,white ,bottom

904 5304406383 A B Screw,10-32 x 1 ,(12)

911 5304406385 A - Bearing-door hinge,black ,top ,(2)

911 5304406384 - B Bearing-door hinge,white ,top ,(2)

921 5304406387 A B Brace-frzr handle,lower

922 5304406388 A - Trim-frzr handle,end cap ,black ,bottom

922 5304406389 - B Trim-frzr handle,white ,bottom

924 5304406390 A - Trim-frzr door,black ,bottom

924 5304406391 - B Trim-frzr door,white ,bottom

925 5304406633 A - Handle-frzr door,black

925 5304406634 - B Handle-frzr door,white

926 5304406394 A - Trim-frzr door,black ,side

926 5304406395 - B Trim-frzr door,white ,side

927 5304406396 A - Trim-frzr door,black ,top

927 5304406397 - B Trim-frzr door,white ,top

940 5304406635 A B Brace-handle,(4)

10/00 4

Publication No. FRS24BGG

5995345872

ICE & WATER DISPENSER

# = Fast-moving Parts 5 10/00

* = Non-Illustrated Parts

FRS24BGG Publication No.

5995345872

A = FRS24BGG (FRS24BGGB9)

B = FRS24BGG (FRS24BGGW9)

POS. NO PART NO DESCRIPTION

031 5304406398 A - Drip Tray,black ,dispenser

031 5304406399 - B Drip Tray,white ,dispenser

032 5304415911 A - Housing-dispenser,black

032 5304406400 - B Housing-dispenser,white

033# 5304406402 A B Heater-disp housing

034# 5304406403 A B Wiring Harness,disp light sw

036# 5304406404 A B Solenoid-dispenser

039# 5304406405 A B PC Board-dispenser,time delay

041 5304406406 A B Cradle-actuator

045 5304406407 A B Retainer-disp door

046 5304406408 A - Pad-actuator,black

046 5304406409 - B Pad-actuator,white

047 5304406410 A B Support-act pad,black

048 5304406412 A - Knob-dispenser,black ,(2)

048 5304406411 - B Knob-dispenser,white ,(2)

053 5304406413 A - Nameplate-dispenser,black

053 5304406414 - B Nameplate-dispenser,white

054 5304406415 A B Insulation-housing,foam ,dispenser

056 5304406416 A B Reflector-lamp skt

056 5304406417 A B Lamp,7C7

058 5304413801 A - Shield-dispenser,black

058 5304406419 - B Shield-dispenser,white

060 5304406420 A B Cover-electrical,disp housing

061 5304406421 A B Socket-light/lamp,E12

062 5304406422 A B Door-ice dispenser

063 5304406423 A B Spring-disp door

067 5304406424 A B Crank-disp door

069 5304406425 A B Funnel-disp shield,black

070 5304406426 A - Support-fnl shield,black

070 5304406427 - B Support-fnl shield,white

071 5304406428 A B Deflector-ice disp,black

072 5304406429 A B Switch,cradle actuator

073 5304406430 A B Chute-ice

ICE & WATER DISPENSER

10/00 6

Publication No. FRS24BGG

5995345872

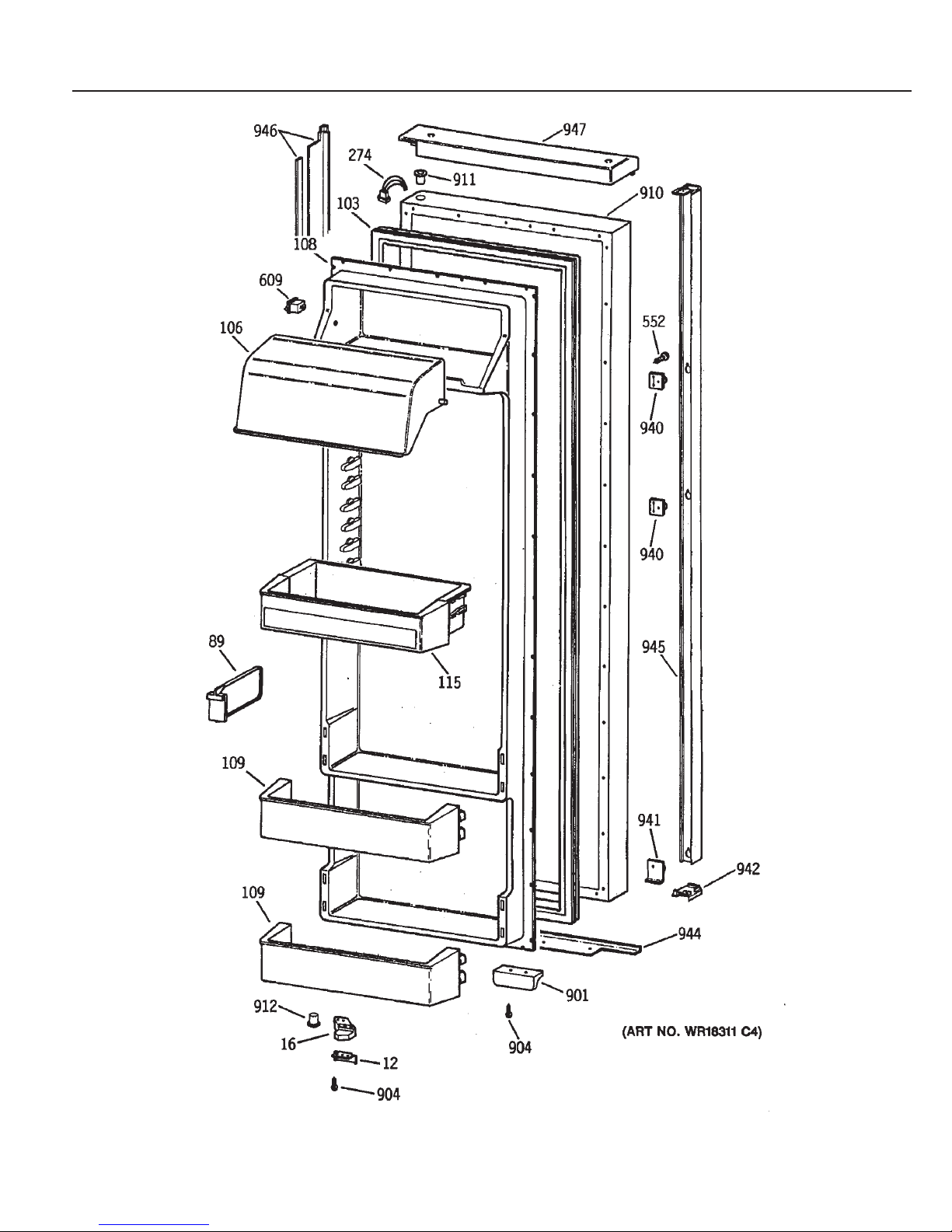

REFRIGERATOR DOOR

# = Fast-moving Parts 7 10/00

* = Non-Illustrated Parts

FRS24BGG Publication No.

5995345872

A = FRS24BGG (FRS24BGGB9)

B = FRS24BGG (FRS24BGGW9)

POS. NO PART NO DESCRIPTION

012 5304406361 A B Door Stop,(2)

016 5304406432 A - Door Closer,cam ,black ,refr section

016 5304406433 - B Door Closer,cam ,white ,refr section

089 5304406434 A B Retainer-bottle,(2)

103 5304406435 A - Gasket-refr door,black ,magnetic

103 5304406436 - B Gasket-refr door,white ,magnetic

106 5304406437 A B Door-dairy,clear

108 5304406438 A B Panel-inner door,refr section

109 5304406439 A B Rack-door,bottom-refr ,(2) ,w/end caps

115 5304406440 A B Bin-door,(2)

274# 5304406441 A B Wiring Harness,refr light sw

552 5304406375 A B Screw,12-24TT x 0.900 ,(12)

609# 5304419378 A B Switch-light/lamp,refr door

901 5304406379 A - Strike-door,black ,(2) ,magnetic

901 5304406380 - B Strike-door,white ,(2) ,magnetic

904 5304406383 A B Screw,10-32 x 1 ,(12)

910 5304413826 A - Panel-refr door,black ,w/foam insul

910 5304413825 - B Panel-refr door,white ,w/foam insul

911 5304406385 A - Bearing-door hinge,black ,top ,(2)

911 5304406384 - B Bearing-door hinge,white ,top ,(2)

912 5304406445 A - Bearing-door hinge,black ,bottom

912 5304406446 - B Bearing-door hinge,white ,bottom

940 5304406635 A B Brace-handle,(4)

941 5304406449 A B Brace-refr handle,lower

942 5304406450 A - Trim-refr handle,end cap ,black ,bottom

942 5304406451 - B Trim-refr handle,end cap ,white ,bottom

944 5304406452 A - Trim-refr door,black ,bottom

944 5304406453 - B Trim-refr door,white ,bottom

945 5304406639 A - Handle-refr door,black

945 5304406640 - B Handle-refr door,white

946 5304406456 A - Trim-refr door,black ,side

946 5304406457 - B Trim-refr door,white ,side

947 5304406458 A - Trim-refr door,black ,top

947 5304406459 - B Trim-refr door,white ,top

REFRIGERATOR DOOR

10/00 8

Publication No. FRS24BGG

5995345872

FREEZER CABINET

# = Fast-moving Parts 9 10/00

* = Non-Illustrated Parts

FRS24BGG Publication No.

5995345872

A = FRS24BGG (FRS24BGGB9)

B = FRS24BGG (FRS24BGGW9)

POS. NO PART NO DESCRIPTION

175 5304406494 A B Screw,ind hex wshr hd ,8-18AB x 0.625 ,(18)

175 5304406641 A B Screw,ind hex wshr hd ,8-18AB x 0.625 ,(4)

214 5304406642 A B Cover-evaporator

228# 5304406461 A B Evaporator,low side assy

230# 5304413837 A B Heater-defrost,with bracket

230# 5304413836 A B Wiring Harness,defrost heater

240# 5304413827 A B Thermostat-defrost

247 5304413828 A B Housing-evap fan

248 5304406644 A B Seal-fan housing,foam strip

261 5304406467 A - Bracket-lower hinge,black ,frzr ,w/hinge pin

261 5304406468 - B Bracket-lower hinge,white ,frzr ,w/hinge pin

261 5304406469 A B Washer-thrust,hinge bracket

267# 5304406646 A B Wiring Harness,evaporator

447 5304406474 A - Cover-upper hinge,black ,frzr section

447 5304406471 - B Cover-upper hinge,white ,frzr section

448 5304413804 A B Bracket-upper hinge,frzr section

452 5304419379 A B Shim,0.062 in. thick ,bottom hinge

552 5304406375 A B Screw,12-24TT x 0.900 ,(12)

578 5304406477 A B Screw-hinge cover,8-32 x 0.375 ,(2)

610# 5304406647 A B Motor-evap fan

611 5304406648 A B Bracket-evap fan,small

612 5304406649 A B Bracket-evap fan,large

613 5304413805 A B Blade-evap fan

613 5308067917 A B Ring-compression,fan blade

615 5304406650 A B Grommet-evap fan,spacer ,(2)

617 5304406651 A B Grommet-screw,(3) ,closed

843 5304406482 A - Lever-door closer,black ,frzr section

843 5304406483 - B Lever-door closer,white ,frzr section

847 5304406484 A B Spring-door closer,(2)

FREEZER CABINET

10/00 10

Publication No. FRS24BGG

5995345872

FREEZER SHELVES
