Frigidaire FRS23H7CS Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS23H7CSB0 FRS23H7C R134a Gallery black 115

MARKET

North America

Publication No.

5995391876

030616

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS23H7CS

ENERGY GUIDE - 240592210

OWNER’S GUIDE - 240389311

SERVICE DATA SHEET - 240389610

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

06/03 2

Publication No. FRS23H7CSB0

5995391876

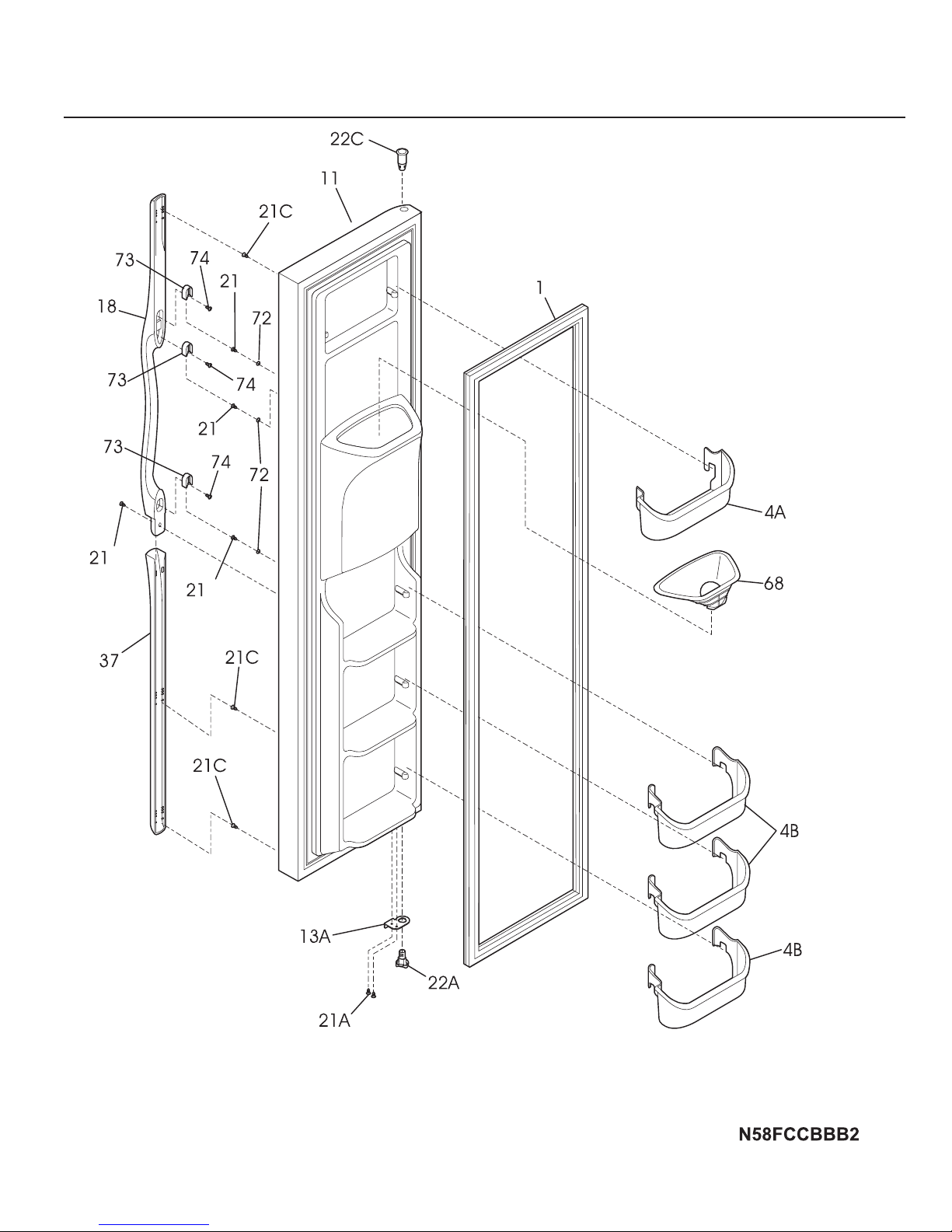

FREEZER DOOR

# = Fast-moving Parts 3 06/03

* = Non-Illustrated Parts

FRS23H7CSB0 Publication No.

5995391876

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 240390608 Gasket-frzr door, black, magnetic

4A 240367301 Bin-door, frzr-upper

4B 240359001 Bin-door

11 240554224 Door-frzr, stainless steel, complete assy

13A 240581906 Door Stop, black, frzr

18 240359108 Handle-door, black, LH

21 218781100 Screw,pan head ,8-18 x 0.625

21A 240598401 Screw,10-32 x 1/2

21C 240521302 Screw,#8-18 x 3/4

22A 240328202 Bearing-hinge, closer

22C 240328404 Bearing-hinge, black, upper

37 240359203 Trim-handle, 30.13", black, lower

68 240465801 Chute-ice

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490900 Cleaner, stainless steel

* 240470401 Connector-amp

* 240545101 Connector-water, straight

* 240552102 Harness-wiring, door

* 5303918256 Dispenser heater kit

06/03 4

Publication No. FRS23H7CSB0

5995391876

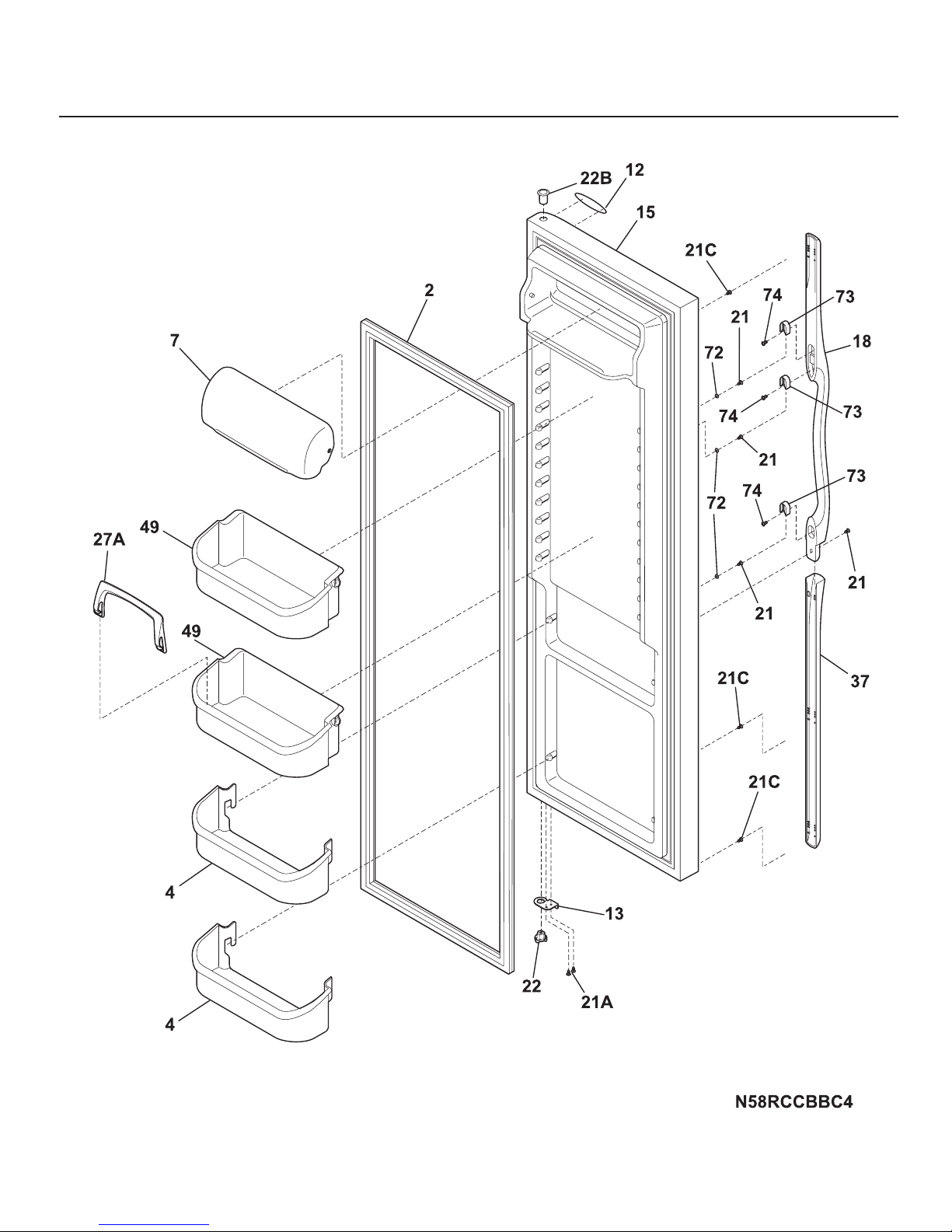

REFRIGERATOR DOOR

# = Fast-moving Parts 5 06/03

* = Non-Illustrated Parts

FRS23H7CSB0 Publication No.

5995391876

POS. NO PART NO DESCRIPTION

2 # 240390607 Gasket-refr door, black, magnetic

4 240363702 Bin-door, 2-liter

7 240338303 Door, dairy, clear

12 240572601 Label-nameplate

13 240581905 Door Stop, black, ref

15 240451979 Door-refr, stainless steel, complete assy

18 240359103 Handle-door,black ,RH

21 218781100 Screw,pan head ,8-18 x 0.625

21A 240598401 Screw,10-32 x 1/2

21C 240521302 Screw,#8-18 x 3/4

22 240328201 Bearing-hinge,closer

22B 240328403 Bearing-hinge,upper

27A 240396102 Retainer,tall bottle

37 240359203 Trim-handle,30.13" ,black ,lower

49 240324511 Bin-door,gallon

72 240421701 Button-handle mtg,dovetail

73 218396700 Block-handle mtg,dovetail

74 215503200 Screw,cr pan hd ,10-16 x 0.500

* 218490900 Cleaner,stainless steel

REFRIGERATOR DOOR

06/03 6

Publication No. FRS23H7CSB0

5995391876

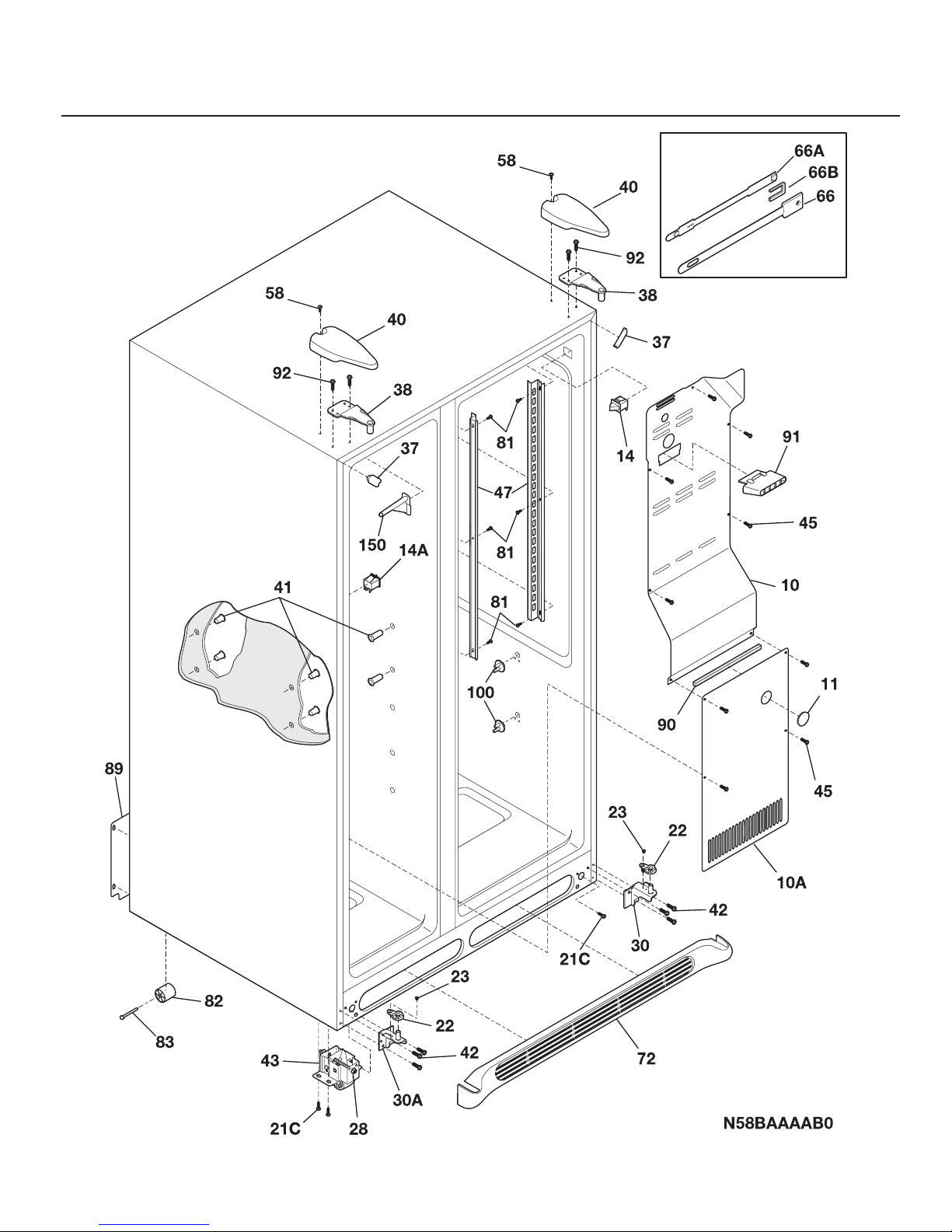

CABINET

# = Fast-moving Parts 7 06/03

* = Non-Illustrated Parts

FRS23H7CSB0 Publication No.

5995391876

POS. NO PART NO DESCRIPTION

10 240435901 Cover-air duct

10A 240475901 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

14 # 240505801 Switch,light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj,hex washer hd, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 240358701 Grommet-shelf mtg, 1.40" long

41* 240358801 Grommet-shelf mtg, .875" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 218749600 Screw,#10 pan hd, 8-18 x .5

66 240504901 Cover-damper

66A 240505001 Damper-meat keeper

66B 240355901 Insulation-damper

66B* 240518802 Pin-push, push-in, plastic

72 240324405 Grille/Kickplate, black

81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 Cover, access, system compt, with label

90 218249807 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 218515401 Clip

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

CABINET

06/03 8

Publication No. FRS23H7CSB0

5995391876

SHELVES

# = Fast-moving Parts 9 06/03

* = Non-Illustrated Parts

FRS23H7CSB0 Publication No.

5995391876

POS. NO PART NO DESCRIPTION

2 240434603 Trim-basket

11 240350648 Shelf-freezer, glass, lower

11A 240350647 Shelf-freezer, glass, upper

15 240588001 Light Bulb

15A 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 240590401 Socket-light

16A 218906801 Socket-light/lamp

16A* 240587702 Harness-wiring

24 240355204 Shelf-"Spill-Safe", fixed, (3)

24A 240350101 Shelf-"Spill-Safe", cantilever, sliding

24C 240355201 Shelf-"Spill-Safe", fixed, (1)

25 240354502 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240354602 Cover-crisper pan, lower

26 240354717 Pan-crisper,upper

26* 240349801 Clip-slide, pan-crisper

26A 240351101 Control-humidity

27 240354818 Pan-crisper, lower

39 240367601 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

47 240350613 Insert-pan cover, glass

47A 240350614 Insert-pan cover, glass

49 240564301 Basket-sliding

49B 240530503 Basket-sliding, upper, full

51 240343002 Hanger-basket, RH

51A 240395502 Hanger-basket, RH

52 240343102 Hanger-basket, LH

52A 240395602 Hanger-basket, LH

62 240355518 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326301 Cover-water tank

101 218493100 Screw,hex washer head ,8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 240342901 Shelf-ice cream

123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867405 Channel,auger mtg ,LH

126 218867406 Channel,auger mtg ,RH

136 240424501 Dispenser-can,white

140 240430501 Channel,wtr tube cover

140A 240430503 Channel,wtr tube cover

141 240585403 Bracket-light socket

142 240582701 Shield-light,deli pan

SHELVES

06/03 10

Publication No. FRS23H7CSB0

5995391876

CONTROLS
