Frigidaire FPHI2187k F/R* Manual de usuario

Top Mount Refrigerators

FPHI2187K F/R*

frigidaire.com

21 Cu. Ft. Top Mount

Performance-Driven Style

Textured Cabinet

Quiet Pack

SpaceWise™ Design

Refrigerator –

Half-Width Fixed SpillSafe™ Glass Shelf

3 Half-Width Sliding SpillSafe™ Glass Shelves

Clear Deli-Drawer

2 Clear Crispers with Adjustable

Humidity Controls

Wine Rack/Can Dispenser

4 Adjustable Clear Gallon Door Bins

Fixed White Door Bin

Freezer –

Full-Width Fixed Wire Shelf

Clear Fixed Door Bin

Tilt-Out Wire Door Shelf

Large Ice Container

Light

Factory Ice Maker

ENERGY STAR®

Capacities

Total Capacity 20.61 Cu. Ft.

Refrigerator Volume 15.35 Cu. Ft.

Freezer Volume 5.26 Cu. Ft.

Overall Exterior Dimensions

Height 69"

(Including Hinges & Rollers)

Width 29-5/8"

Depth 31-3/4"

Available in:

*Left-Swing Door

Signature Features

Bright Lighting

Our bright lighting makes it easy to

see what's inside.

Real Stainless Steel

Real stainless steel with a protective

coating that reduces fingerprints and

smudges so it's easy to clean.

SpaceWise™

Organization System

Our SpaceWise™ Organization system

makes it easy to keep food organized

and easy to find when you need it.

SpillSafe™ Shelves

Designed to keep spills contained,

making cleanup a breeze.

Stainless

(F/R)

Top Mount Refrigerators

FPHI2187K F/R 21 Cu. Ft.

FRIGIDAIRE®

USA

•

250 Bobby Jones Expressway

•

Martinez, GA 30907

•

1-800-FRIGIDAIRE •frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Specifications

subject to change.

Top Mount Refrigerator - 21 Cu. Ft.

Professional

Top Mount Refrigerator Specifications

•Product Shipping Weight (approx.) – 220 Lbs.

•An electrical supply with grounded three-prong receptacle is

required. The power supply circuit must be installed in accordance

with current edition of National Electrical Code (NFPA 70) and

local codes & ordinances.

•Voltage Rating – 120V / 60 Hz / 15 Amps

•Connected Load (kW Rating) @ 120 Volts = .54 kW

•Amps @ 120 Volts = 4.5 Amps

•Always consult local and national electric & plumbing codes.

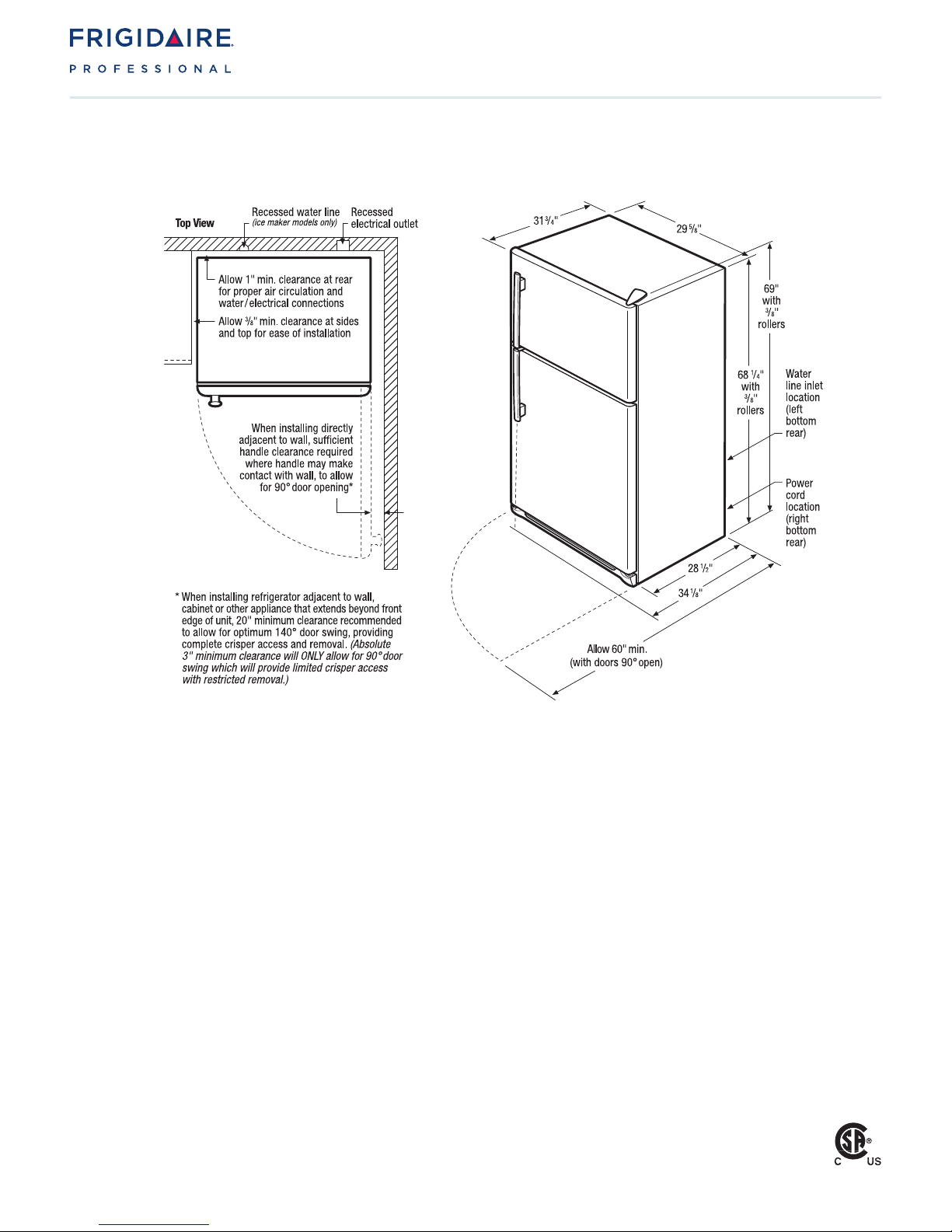

•Floor should be level surface of hard material, capable of supporting

fully loaded refrigerator.

•Minimum 3/8" clearance required for sides and top of refrigerator

with 1" clearance at rear to allow for ease of installation, proper air

circulation, and plumbing / electrical connections.

•

When installing refrigerator adjacent to wall, cabinet or other

appliance that extends beyond front edge of unit, 20" minimum

clearance recommended to allow for optimum 140° door swing,

providing complete crisper access and removal. (Absolute 3"

minimum clearance will ONLY allow for 90° door swing which

will provide limited crisper access with restricted removal.)

•To ensure optimum performance, do not install in areas where

temperature drops below 55° F or rises above 110° F and

avoid installing in direct sunlight or close proximity to range,

dishwasher or other heat source.

•For proper ventilation, front grille MUST remain unobstructed.

•Recess electrical outlet when possible.

•Water recess on rear wall recommended to prevent water line damage.

•Water Pressure – Cold water line must provide between 30 and 100

pounds per square inch (psi).

•Copper tubing with 1/4" O.D. recommended for water supply line

with length equal to distance from rear of unit to household water

supply line plus 7 additional feet. Optional Water Supply Installation

Kits available.

•Adjustable front rollers to assist with door alignment.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.
