Frigidaire FKC17F7QT? Manual de instalación y operación

frigidaire.com

More Easy-To-Use Features

Signature Features

Product Dimensions

Frost Free 17 Cu. Ft.

FKC17F7QT

2-in-1 Convertible Freezer / Refrigerator

Bright Lighting

Our bright lighting makes it easy to see

what’s inside.

Frost-Free Operation

Never defrost your freezer again.

Built with American Pride

Appliances that are high-performing,

more accessible, and more innovative

than ever — designed, built, and

engineered in the U.S.A.

Convertible Freezer to

Refrigerator

Select the option to use as an all freezer

or all refrigerator when it’s best for

your needs.

Store-More™ Adjustable Door Bins

Flexible storage options, with door bins

designed to reposition with ease to fit

your needs.

Adjustable Temperature Control

Select the correct temperature for your

needs.

Color-Coordinated Handle

Reversible Door Swing Option

2 Clear Crispers w/ Humidity

Controls

3 Full-Width Glass Shelves

Gallon Door Storage

Clear Dairy Door

Available in:

Height (Including Hinges) 65-7/8"

Width 32"

Depth (Including Door) 26-5/8"

Classic Slate

(T)

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Convertible Freezer / Refrigerator

FKC17F7QT 17 Cu. Ft.

Features

Door Handle Design

Reversible Door

Automatic Door Closer

Leveling Legs

Defrost

Adjustable Temperature Control

Interior Lighting

Full-Width Adjustable Shelves

Full-Width Fixed Shelves

Crisper Drawer

Humidity Controls

Store-More™ Adjustable Door Bins

Full-Width Door Bins

Convertible

Certiﬁcations

CSA Rating

Speciﬁcations

Total Capacity (Cu. Ft.)

Shelf Area (Sq. Ft.)

Annual Energy (kWH)

Annual Energy Cost (.1065 / kWH)

Power Supply Connection Location

Voltage Rating

Connected Load (kW rating) @ 120 Volts1

Amps @ 120 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Reach-Through

Yes

Frost Free

Yes

Bright

2 Glass

1 Glass

2 Clear

4 Clear

1 White

Yes

Household

16.7

17.6

615

$65

Lower Right Rear

120V / 60Hz / 15A

205 Lbs.

1An electrical supply with grounded three-prong receptacle is required. The

power supply circuit must be installed in accordance with current edition

of National Electrical Code (NFPA 70) and local codes & ordinances.

NOTE: For planning purposes only. Always consult local and national

electric and plumbing codes. Refer to Product Installation Guide for

detailed installation instructions on the web at frigidaire.com.

Product Dimensions

A - Height (Including Hinges)

B - Width

C - Depth (Including Door)

D - Depth with Door Open 90˚

65-7/8"

32"

26-5/8"

57-1/2"

Upright Freezers_w/reach-through arc

handle_Right Hand Swing_Frigidaire Baseline

* When installing freezer adjacent

to wall, cabinet or other appliance

that extends beyond front edge of

unit, 20" minimum clearance

recommended to allow for

optimum 140°door swing,

providing complete basket access

and removal. (Absolute 3"

minimum clearance will ONLY

allow for 90°

door swing which

will provide limited basket access

with restricted removal.)

When installing directly

adjacent to wall, sufficient

handle clearance required

where handle may make

contact with wall, to allow

for 90°door opening*

For adequate air circulation,

allow 3" minimum

clearance on all sides and top

with 1" at bottom

Top View

Recessed

electrical outlet

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

FKC17F7QT 17 Cu. Ft.

Convertible Freezer / Refrigerator

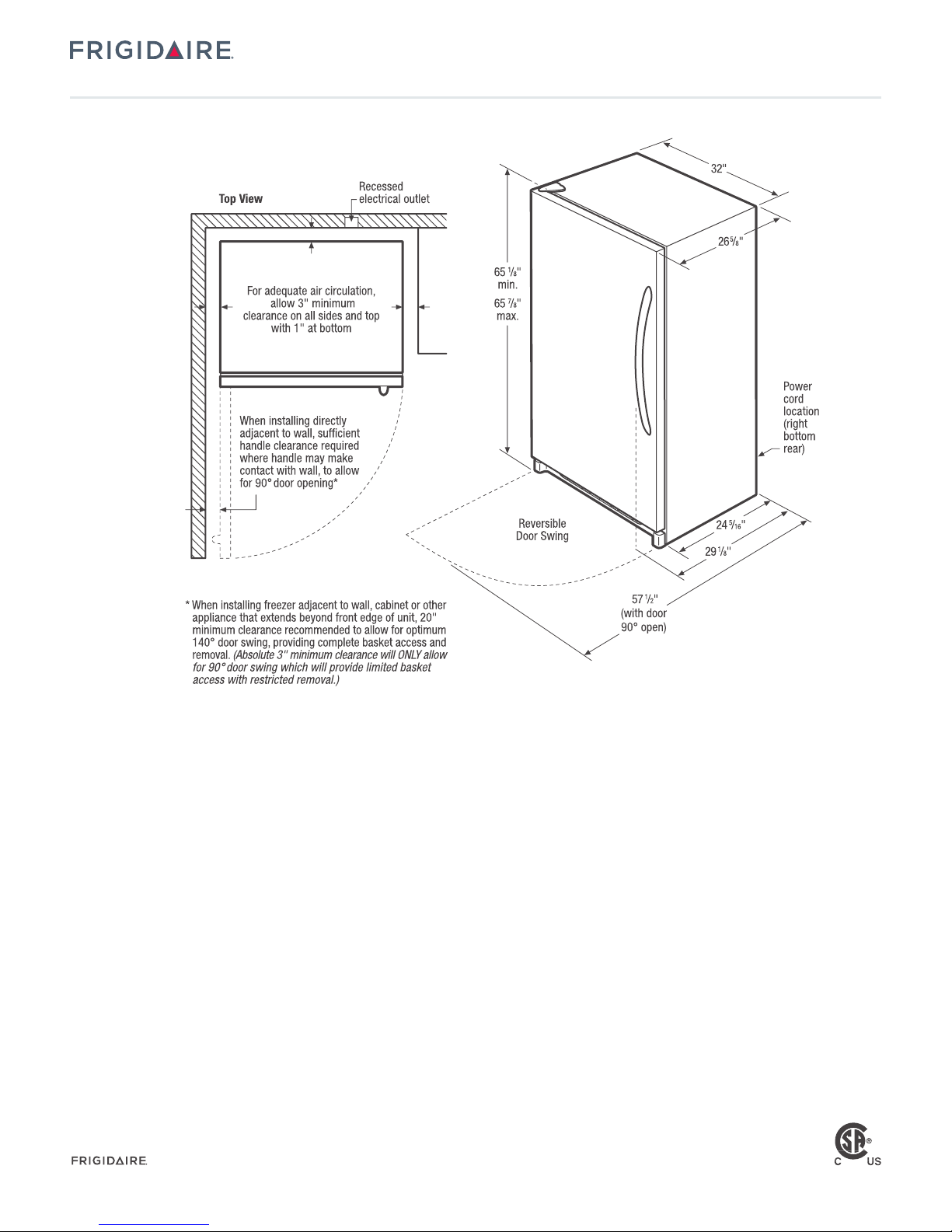

Convertible Freezer / Refrigerator Specifications

• Product Shipping Weight (approx.) – 205 Lbs.

• An electrical supply with grounded three-prong receptacle is

required. The power supply circuit must be installed in accordance

with current edition of National Electrical Code (NFPA 70) and

local codes & ordinances.

• Voltage Rating – 120V

• Connected Load (kW Rating) @ 120 Volts = 0.6 kW

• Amps @ 120 Volts = 5 Amps

• Always consult local and national electric codes.

• For adequate air circulation, allow 3" minimum clearance on all

sides and top with 1" at bottom.

• When installing freezer adjacent to wall, cabinet or other

appliance that extends beyond front edge of unit, 20" minimum

clearance recommended to allow for optimum 140° door swing,

providing complete basket access and removal. (Absolute 3"

minimum clearance will ONLY allow for 90° door swing which

will provide limited basket access with restricted removal.)

• Locate where surrounding air temperature will not exceed 110° F,

to ensure optimum performance. (Temperatures 32° F and below

will NOT affect operation.)

• All bottom corners of unit MUST rest firmly on solid level surface

of hard material, same height as flooring. Surface must be strong

and stable enough to support unit when fully loaded.

• Equipped with adjustable leveling legs to ensure unit is level,

which is required in order to function properly.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

17 Cu. Ft. Convertible Freezer/Refrigerator_

Reversible Door Swing_Baseline
