Frigidaire Gallery GLEC36S8E Manual de usuario

GLEC36S8E.eps LA01CP80425-1B.eps LA01CT80425-1A.eps 318046807-1.eps

318046807-2.eps

Product No. GLEC36S8EBA GLEC36S8EQA GLEC36S8ESA

3805642355461 3805644355441 3805643355411

Series 36" elec 36" elec 36" elec

Color black bisque white

Market North America North America North America

Wiring Diagram 318046807 318046807 318046807

Owner's Guide 318200612 318200612 318200612

Installation Instructions 316201426 318201426 318201426

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995449757

05/09/30

(EN/SERVICE/ECL)

377

ELECTRIC COOK-TOP

RANGE

Model No.

GLEC36S8E

Publication No: 5995449757 GLEC36S8E

09/05 2

CONTROL PANEL

36 36A

36C

36A 74

54B

54A

54C

LA01CP80425-1B

GLEC36S8E Publication No: 5995449757

# Functional Parts 3 09/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLEC36S8E (GLEC36S8ESA)

BGLEC36S8E (GLEC36S8EBA)

CGLEC36S8E (GLEC36S8EQA)

POS. NO PART NO. DESCRIPTION

16 318096320 A B C Box, instrument mtg

36 318196633 A - - Knob, control, white

36 318196634 - B - Knob, control, black

36 318196635 - - C Knob, control, bisque

36A 318196630 A - - Knob, dual control, white

36A 318196631 - B - Knob, dual control, black

36A 318196632 - - C Knob, dual control, bisque

36C 318196636 A - - Knob, warmer, white

36C 318196637 - B - Knob, warmer, black

36C 318196638 - - C Knob, warmer, bisque

51 # 318044820 A - C Light, indicator, red

51 # 318044822 - B - Light, indicator, clear

54 # 318220071 A B C Switch, surface unit, small

54A# 318220073 A B C Switch, surface unit, large

54B# 318191000 A B C Switch, infinite, dual

54C# 318078801 A B C Switch, element, 6", warmer

69 5303323134 A B C Screw, 8-32 x 0.188

74 318148900 A B C Bushing, switch

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

* 5303323140 A B C Screw, ground, 10-32 x 0.375

Publication No: 5995449757 GLEC36S8E

09/05 4

MAIN TOP/SURFACE UNITS

GLEC36S8E Publication No: 5995449757

# Functional Parts 5 09/05

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

Model Index: AGLEC36S8E (GLEC36S8ESA)

BGLEC36S8E (GLEC36S8EBA)

CGLEC36S8E (GLEC36S8EQA)

POS. NO PART NO. DESCRIPTION

15 # 318198817 A B C Element, surface, 6", 1200 W, (2)

15A# 318258201 A B C Element, bridge, 1800/2600

15B# 318198925 A B C Element, surface, 6/9, 1200/2500W, dual radiant

15C# 318198825 A B C Element, surface, warmer, 100 W

16 318282514 A - - Main Top Assy, glass/steel, white

16 318282516 - B - Main Top Assy, glass/steel, black

16 318282515 - - C Main Top Assy, glass/steel, bisque

20 318121902 A B C Bracket, retainer

23 5303297401 A B C Panel, service

46 318077227 A B C Burner Box

52 318122006 A B C Spring, element mtg, small

52A 318122008 A B C Spring, element mtg

52B 318122010 A B C Spring, element mtg, 1000W/2500W

52C 318122004 A B C Spring, element mtg, 700W & 2100W

159 318125122 A B C Deflector

162 318125211 A B C Deflector

163 318014110 A B C Spacer, (6)

164 318125302 A B C Plate, connection

170 318124910 A B C Screen, thermal, (4)

* # 318078531 A B C Box & wires assy

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

* 5303323129 A B C Screw, 8 X 0.750

* 5303323140 A B C Screw, ground, 10-32 x 0.375

Publication No: 5995449757 GLEC36S8E

09/05 6

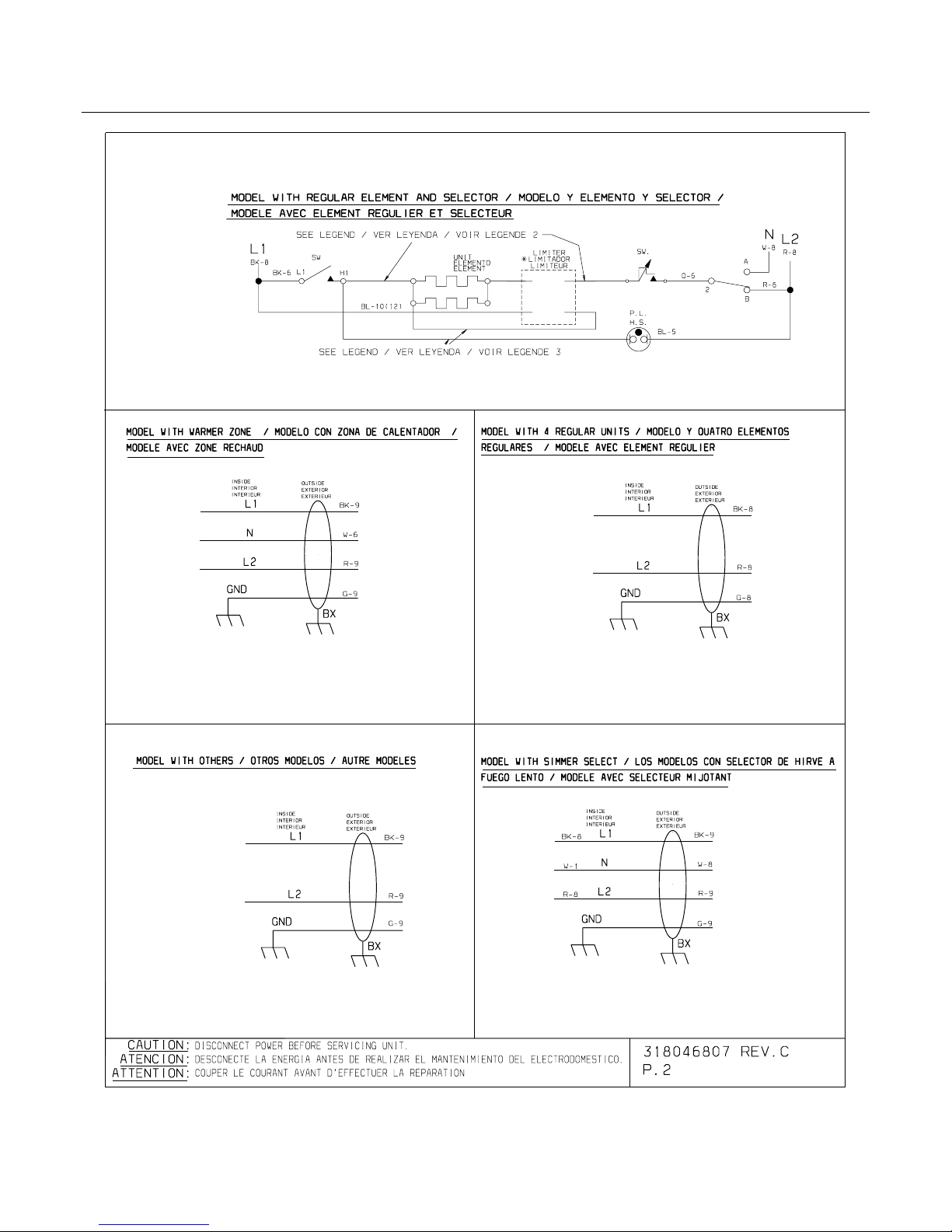

WIRING DIAGRAM

GLEC36S8E Publication No: 5995449757

# Functional Parts 7 09/05

* Non-Illustrated Parts

WIRING DIAGRAM
