Frigidaire FRS300ESC Manual de instrucciones

FES300E.eps la20bg0022.eps BFES300ESC.eps LA20CT0045.eps DC970-501021.eps

318271902.eps

Product No. FES300EBC FES300ESC

37954315A5063 37954315A5013

Series 30" slide-in 30" slide-in

Color black white

Market North America North America

Wiring Diagram 318271902 318271902

Owner's Guide 318203810 318203810

Installation Instructions 318201611 318201611

Timer Guide 318200144 318200144

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995474714

06/09/20

(EN/SERVICE/BJH)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

FES300E

Publication No: 5995474714 FES300E

09/06 2

BACKGUARD

FES300E Publication No: 5995474714

# Functional Parts 3 09/06

* Non-Illustrated Parts

BACKGUARD

Model Index: AFES300E (FES300EBC)

BFES300E (FES300ESC)

POS. NO PART NO. DESCRIPTION

14 # 318293900 A B Light, indicator, 125v, (2)

16 318299102 A - Console, assy., black

16 318299100 - B Console, assy., white

16* 5304447071 A B Clip, console, (2)

19 318235135 A - Panel, control, black

19 318235134 - B Panel, control, white

19A 318224400 A B Panel, control mtg.

20 # 318185333 A - Clock/Timer, EOC, black, ES100

20 # 318185332 - B Clock/Timer, EOC, white, ES100

20* 318213810 A - Overlay, clock, white, ES105

20* 318213800 - B Overlay, clock, white, ES100

20* 5304453707 A B Screw, control mtg.

24 # 316005602 A - Switch, rocker, black

24 # 316005607 - B Switch, rocker, white

35 318183100 A - Support, glass, black

35 318183101 - B Support, glass, white, (4)

36 316223027 A - Knob, control, black

36 316223028 - B Knob, control, white

42 318298011 A B Trim, vent, black, upper

46 318228300 A B Lens, indicator light

54 # 318220080 A B Switch, surface unit, single

54A# 318220081 A B Switch, surface unit, large

69 5303323134 A B Screw, 8-32 x 0.188

99A 318223900 A B Gasket, dark grey

* 318301100 A B Wiring Harness, backguard

* # 318224817 A B Harness, wiring, timer

* # 318224815 A B Harness, wiring, infinite switch

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303300265 A B Screw, 8-18 X 1/2, (2)

* 5303311333 A B Screw, 8-32 x 3/8

Publication No: 5995474714 FES300E

09/06 4

BODY

170

200

201

166A

166

166A

166

163

58A

29 127

58B

BFES300ESB

163

90A

285

165

162

87A

FES300E Publication No: 5995474714

# Functional Parts 5 09/06

* Non-Illustrated Parts

BODY

Model Index: AFES300E (FES300EBC)

BFES300E (FES300ESC)

POS. NO PART NO. DESCRIPTION

1 318259204 A B Back, main

1A 318225110 A B Panel, main back, upper

2 318258902 A B Shield, insulation, upper

3 318225210 A B Panel, bodyside, upper RH

3A 318225211 A B Panel, bodyside, upper LH

4 318073906 A B Panel, subtop

5 318175503 A B Screw, leveling

6 318345207 A B Rack, oven

9 5303317977 A B Pan, broiler

10 5303317976 A B Insert, broiler pan

14 318224000 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, light

16 08011086 A B Lens, oven light, glass

17 5304400195 A B Retainer, light cover

29 318147411 A B Bumper, (2)

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

58A 318285074 A B Insulation, oven wrapper

58B 318285075 A B Insulation, oven back

59 318072572 A B Tube, vent, oven

62 5303935061 A B Terminal Block Kit

62* 5303323139 A B Screw, 10-24 x 0.906

62* 5303323144 A B Nut, 10-32

63 318264200 A B Plate, grounding strap

66 # 318255600 A B Element, broil, 2750W

67 # 318255002 A B Element, bake, 3000W

68 5304403015 A B Support, hanger, (2), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260007 A B Panel, rear box

76 318056216 A B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

82 318258707 A B Shield, insulation, lower

83 318261403 A B Liner, oven assy

86 5303310524 A B Receptacle, hinge

87 318260608 A B Bracket, cable mtg.

87A 318111804 A B Plate, cord set mtg

90 318296904 A - Panel, filler, black, RH

90 318296902 - B Panel, filler, white, RH

90A 318296905 A - Panel, filler, black, LH

90A 318296903 - B Panel, filler, white, LH

127 318317000 A B Adapter, vent tube

162 318225810 A B Box, extension

163 318014110 A B Spacer, (6)

165 318322600 A B Plate, shield

166 318298410 A B Bracket, base support, (2)

166A 318298403 A B Bracket, base support, lower, (2)

170 318335500 A B Anti-tip & accessories

Publication No: 5995474714 FES300E

09/06 6

BODY

170

200

201

166A

166

166A

166

163

58A

29 127

58B

BFES300ESB

163

90A

285

165

162

87A

FES300E Publication No: 5995474714

# Functional Parts 7 09/06

* Non-Illustrated Parts

BODY

Model Index: AFES300E (FES300EBC)

BFES300E (FES300ESC)

POS. NO PART NO. DESCRIPTION

200 318335600 A B Frame & Wheel Assembly, black

201 318298210 A B Frame, drawer

285 318236201 A B Shield, hidden wires

* # 318224920 A B Harness, wiring, main

* 318235300 A B Connector assy., w/3 lugs, & instructions

* 3051050 A B Screw, shoulder

* 5303211311 A B Screw, 8 x 0.500

* 5303307980 A B Screw, 8-32 x 0.437, (4)

* 5303323129 A B Screw, 8 X 0.750

* 5304415832 A B Screw, 8-18 x 0.406

* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995474714 FES300E

09/06 8

TOP/DRAWER

FES300E Publication No: 5995474714

# Functional Parts 9 09/06

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFES300E (FES300EBC)

BFES300E (FES300ESC)

POS. NO PART NO. DESCRIPTION

1 318107105 A B Drawer

4 318298903 A - Panel, drawer, black, front

4 318298901 - B Panel, drawer, white, front

7 318332200 A B Roller, nylon

11 318298601 A B Bracket, drawer support, (2)

13 318018100 A B Channel, drawer, RH

13A 318018101 A B Channel, drawer, LH

15 # 5303012223 A B Element, surface, 8", large

15A# 08067762 A B Element, surface, 6", small

16 318225601 A - Main Top, black

16 318225602 - B Main Top, white

17 3051554 A B Rod, support, main top panel

18 318227710 A B Hinge, maintop, (2)

19 # 318067056 A B Pan, surface element, large, chrome

19A# 318067046 A B Pan, surface element, small, chrome

27 # 5303912666 A B Terminal Block Kit, surface element

28 3017801 A B Medallion, stainless steel, surf elem

28 5303017715 A B Medallion, 1 1/2"dia, black, surface element

93 318122500 A B Support, terminal block, (4)

* # 318301000 A B Wiring Harness, surface units

* 5303325171 A B Washer, plastic

* 5303211311 A B Screw, 8 x 0.500

* 5303300265 A B Screw, 8-18 X 1/2, (2)

* 5303311333 A B Screw, 8-32 x 3/8

Publication No: 5995474714 FES300E

09/06 10

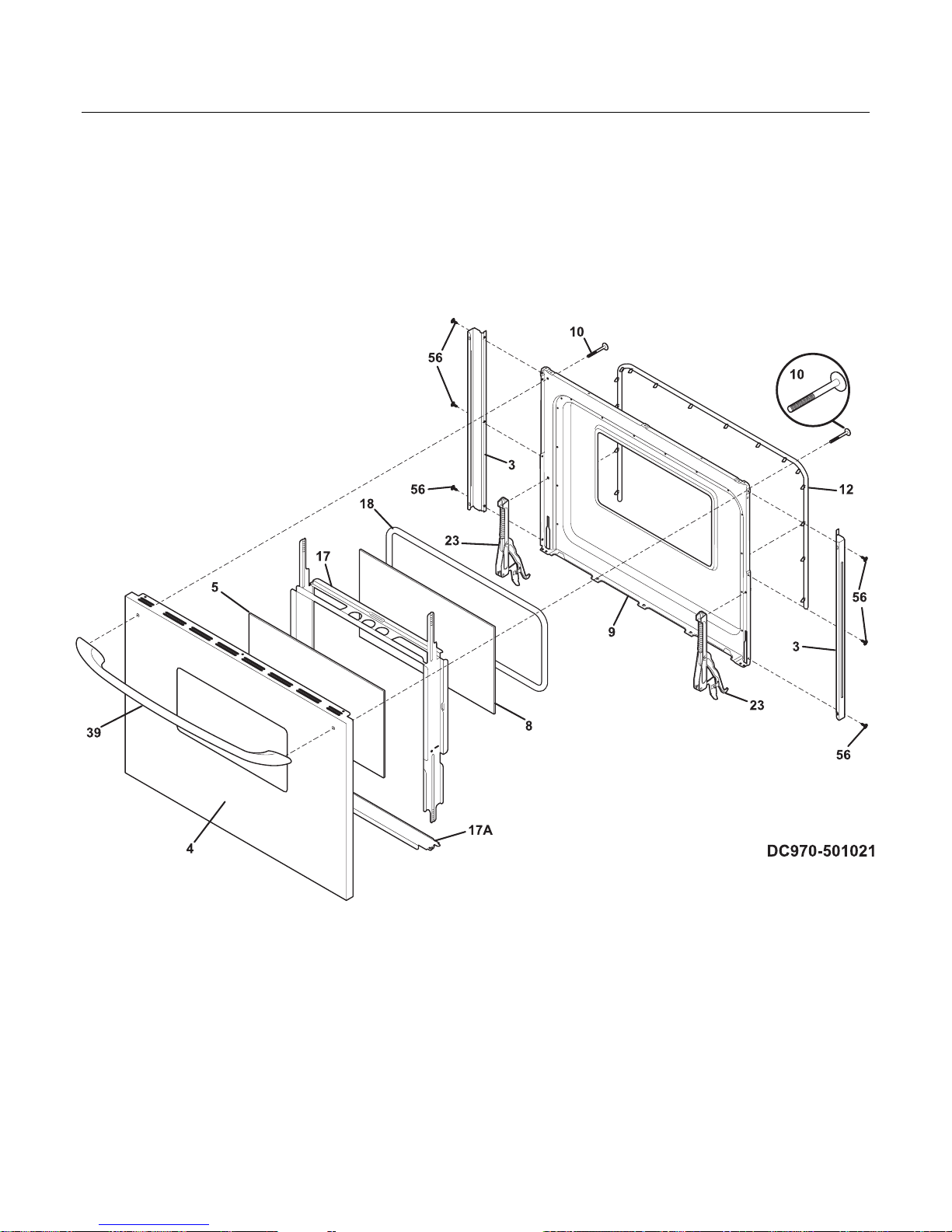

DOOR
