FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF379WECR FGF379WE stainless/black USA

FGF379WECS FGF379WE stainless/black USA

Publication No.

5995343836

000922

-EN/SERVICE /CML

369

WIRING DIAGRAM # - 316002166

OWNER’S GUIDE # - 316000283/316000299

INSTALLATION GUIDE # - 316105808/316105822 GAS - RANGE

FGF379WECR

FGF379WECS

09/00 2

Publication number

5995343836 FGF379WECR, FGF379WECS

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 09/00

Publication number

FGF379WECR, FGF379WECS 5995343836

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FGF379WE (FGF379WECR)

B = FGF379WE (FGF379WECS)

POS. NO PART NO DESCRIPTION

1 316028701 A B Shield-backguard,rear wall

2 316038800 A B Shield-backguard,inner

13A# 316095500 A B Switch-warmer,infinite ,drawer/zone

14A 3131963 A B Light-indicator,warmer dwr/zone

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

16 316042613 A B Plate,instrument mtg

18 316021800 A B End Cap,black ,RH

18A 316021801 A B End Cap,black ,LH

19 316028381 A B Panel-control,assy ,glass ,stainless , black

19* 5303272836 A B Clip-backguard

20 # 316080102 A B Clock/Timer,EOC

21 316039201 A B Trim-canopy/shield

24 # 316083101 A B Switch-rocker,oven light ,black ,RH

28 316015102 A B Push Button,clock/timer/EOC ,black

28A 316080600 A B Shaft-push button,clock/timer/EOC , black

31A 316095700 A B Knob-warmer,black ,(2)

36 316085000 A B Knob-top valve,(4)

40 316086824 A B Panel-manifold

42 5303272839 A B Trim-vent

44 5303272831 A B Bracket-backguard,(2)

51 316082300 A B Nameplate,black

56 316074907 A B Deflector-flue,black

60 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

70 316069700 A B Rack-spice,stainless

70A 5303500001 A B Support,spice rack

* 218490900 A B Cleaner,stainless steel

* 316001435 A B Harness-wiring,backguard

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,ind lght brkt,manifold pnl

* 5303288574 A B Screw,truss head ,8-10 x 0.375 ,handle (3)

* 316000283 A - Owner’s Guide

* 316000299 - B Owner’s Guide

* 316105808 A - Installation Instr.

* 316105822 - B Installation Instr.

09/00 4

Publication number

5995343836 FGF379WECR, FGF379WECS

CAUTION: Use the part number on all orders, not the position number.

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 5 09/00

Publication number

FGF379WECR, FGF379WECS 5995343836

CAUTION: Use the part number on all orders, not the position number.

A = FGF379WE (FGF379WECR)

B = FGF379WE (FGF379WECS)

POS. NO PART NO DESCRIPTION

1 # 316066201 A B Manifold Pipe

2 # 5303935130 A - Valve-top burner,9K

2 # 316127500 - B Valve-top burner,9K

2* 316048200 A B Screw-,hex washer head ,1/4-20 x 0.31 ,w/gasket

2A # 5303935132 A - Valve-top burner, 11K

2A # 316127502 - B Valve-top burner, 11K

3 # 316103600 A B Switch-ignitor,(4)

4 # 316059612 A B Tube-burner,red ,RF

5 # 316059613 A B Tube-burner,green ,LF

6 # 316059614 A B Tube-burner,nat. ,RR

7 # 316059615 A B Tube-burner,black ,LR

8 # 5303280394 A B Spark Module

8* 5303289034 A B Harness-wiring,module/igniter

10 # 5303935025 A B Burner Assy-top,sealed ,small ,9000 BTU

10A# 5303935075 A B Burner Assy-top,sealed ,large ,

11,100 BTU,(2), includes ,11,37,44,45

11 # 316011200 A B Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B Tube,aluminum ,rgltr to manf , with fittings

14 # 316091706 A B Regulator-pressure

14* 316021104 A B Screw-regulator/brkt,hex ,8-18 x 3/8 , nick, 3

15 316091600 A B Bracket-regulator

16 # 316065003 A B Tube-valve to rgltr,3/8

17 # 5303208499 A B Valve-safety,dual

18 # 3131290 A B Burner-oven

19 # 5303935066 A B Ignitor-oven

20 3131284 A B Baffle-oven burner

21 5303013272 A B Nut,hex head sems

22 # 316065002 A B Tube-valve to mixer

23 # 316087900 A B Burner-broiler

24 # 316070400 A B Mixer Elbow

25 5303210379 A B Baffle-broiler

26 # 5308067970 A B Ignitor-broiler

37 316089500 A B Screw,10-16 x .486 ,safety valve , handle,(4)

44 5303210090 A B Orifice-top burner,small

45 316011100 A B Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B Plate-burner tube

47 5303307190 A B LP Conversion Kit

BURNER

09/00 6

Publication number

5995343836 FGF379WECR, FGF379WECS

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 09/00

Publication number

FGF379WECR,FGF379WECS 5995343836

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGF379WE (FGF379WECR)

B = FGF379WE (FGF379WECS)

POS. NO PART NO DESCRIPTION

1 316029412 A B Back-main

2 3131314 A B Shield-oven top

3 316081026 A B Panel-bodyside,black ,RH

3* 08067992 A B Shield-insulation

3* 316081027 A B Panel-bodyside,black ,LH

3* 316088100 A B Shield-heat,body side

4 316011914 A B Burner Box

5 316129200 A B Leg-leveling,plastic w/stop

6 316083800 A B Rack-oven

7 316007005 A B Hinge-oven door,(2)

7* 5303012323 A B Clip,hinge ,(4)

8 5303212540 A B Panel-oven bottom

8* 316064600 A B Support-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 3014073 A B Socket-light/lamp,oven

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp,glass ,oven

17 316087500 A B Retainer-lens

18 # 316036300 A B Latch-door

21 3014099 A B Spacer-bodyside,(8)

25A 316092300 A B Shield-warmer,upper

30 316059200 A B Bracket-main top,RH

30A 316059201 A B Bracket-main top,LH

33 316014401 A B Shield,rear wall

35 08067965 A B Gasket-flue

36 5303272844 A B Flue

37 # 3204593 A B Probe-oven temp

38 316051700 A B Shield-heat

38A 316097100 A B Insulator,shield

39 # 3131425 A B Cord-electric power

39* 08067961 A B Fastener-power cord

40 3200836 A B Shield-heat baffle

40* 5303288570 A B Screw-heat shield,hd shldr sqdr , 8-18 X 1/2

41 3131570 A B Cover-hinge cutout

42 5303288578 A B Shield-bake burner

43 3131732 A B Screw-oven bottom,8-18 x 1.438

44 3131903 A B Bumper-door/drawer,rubber

49 3051124 A B Clip-spring mtg

53 5303288579 A B Shield-main front

53* 08067973 A B Insulation,main front

58A 316047705 A B Insulation,oven wrapper

58B 316054200 A B Insulation, 2" ,oven back

58C 3131304 A B Insulation,oven top

72 5303285692 A B Cover-light/switch rod

77 316105500 A B Rail-drawer, outer

88 316026400 A B Rod-latch,auto

89 # 316028103 A B Motor-latch/lock

09/00 8

Publication number

5995343836 FGF379WECR, FGF379WECS

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 9 09/00

Publication number

FGF379WECR, FGF379WECS 5995343836

CAUTION: Use the part number on all orders, not the position number.

BODY

155 316095201 A B Shield-drawer,front warmer

170 316107200 A B Anti-tip bracket

170* 5303935180 A B Kit-Anti-tip bracket (complete w/template & screws)

170* 316116000 A B Screw-Anti-tip, 1.75” concrete

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316045000 A B Clip-wire,harness ,main top

09/00 10

Publication number

5995343836 FGF379WECR, FGF379WECS

CAUTION: Use the part number on all orders, not the position number.

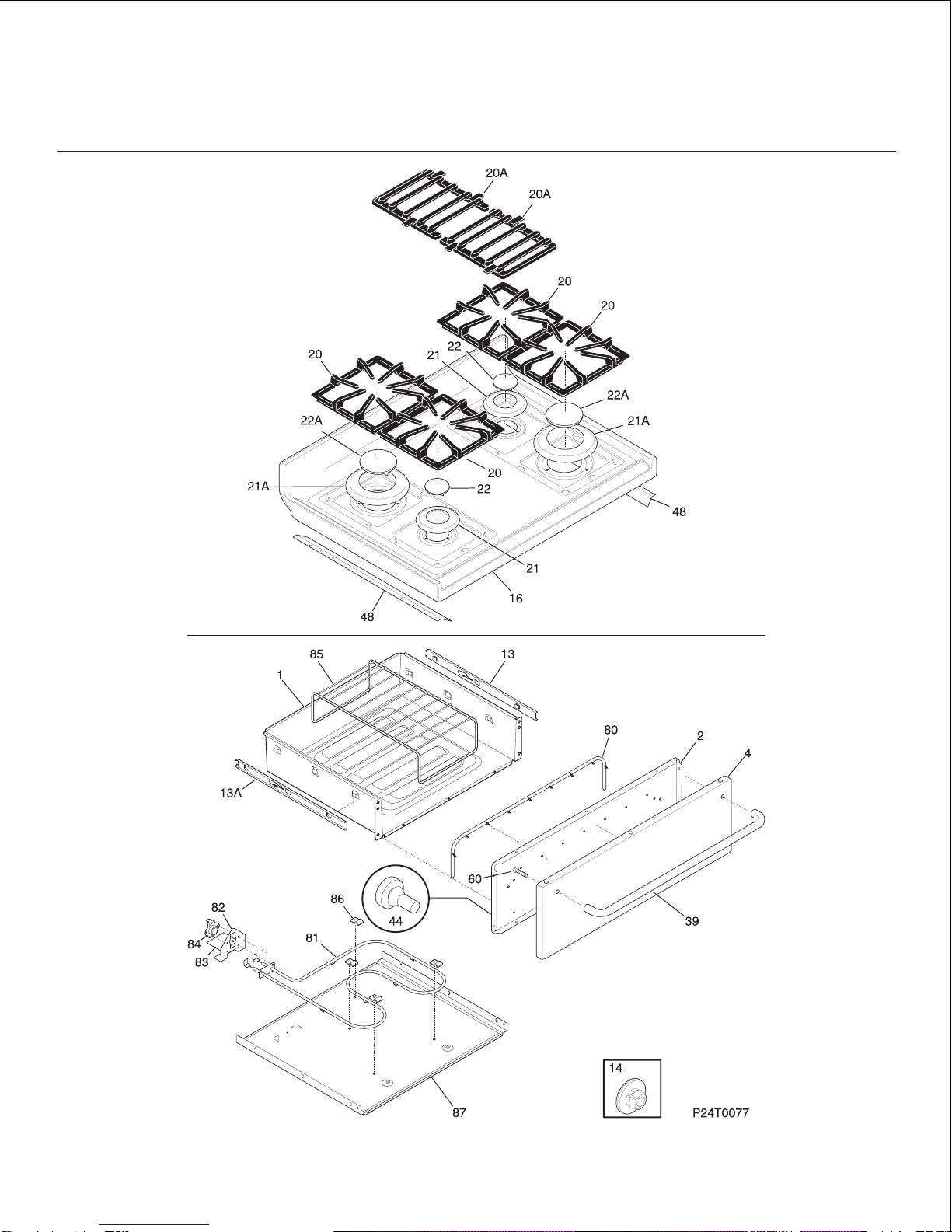

TOP/DRAWER
