Frigidaire FGF375G Manual de usuario

FGF375FC.eps T24G0030.eps T24B0008.eps T24V0026.eps T24T0047.eps

T24D0033.eps 316002174d.eps 316002174s.eps

Product No. FGF375GCA

Series 30" f/s gas

Color stainless

Market North America

Owner's Guide 316417121

Installation Instructions 316259336

Service Data Sheet 316441705

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995477808

06/10/31

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

FGF375G

Publication No: 5995477808 FGF375GCA

10/06 2

BACKGUARD

FGF375GCA Publication No: 5995477808

# Functional Parts 3 10/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

2 316051600 Shield, backguard, inner

2A 316235100 Shield, top, inner

14 316022500 Light/Lamp, indicator, 125 V

15 316411405 Support, backguard, black, RH

15A 316411404 Support, backguard, black, LH

19 316456507 Panel, control, stainless

20 # 316418203 Clock/Timer, electronic, ES300

20A 316419103 Overlay, clock, black, ES300

23 316441600 Bracket-clock mtg, black

24 # 316448700 Switch, rocker, black, oven light

24C# 316496100 Switch-rocker, black

36 316220002 Knob, top valve, black, 4

40 316204990 Panel, manifold, black

42 316416200 Trim, extrusion, black

46 318228300 Lens, indicator light

56 316230701 Shield, backguard, inner

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995477808 FGF375GCA

10/06 4

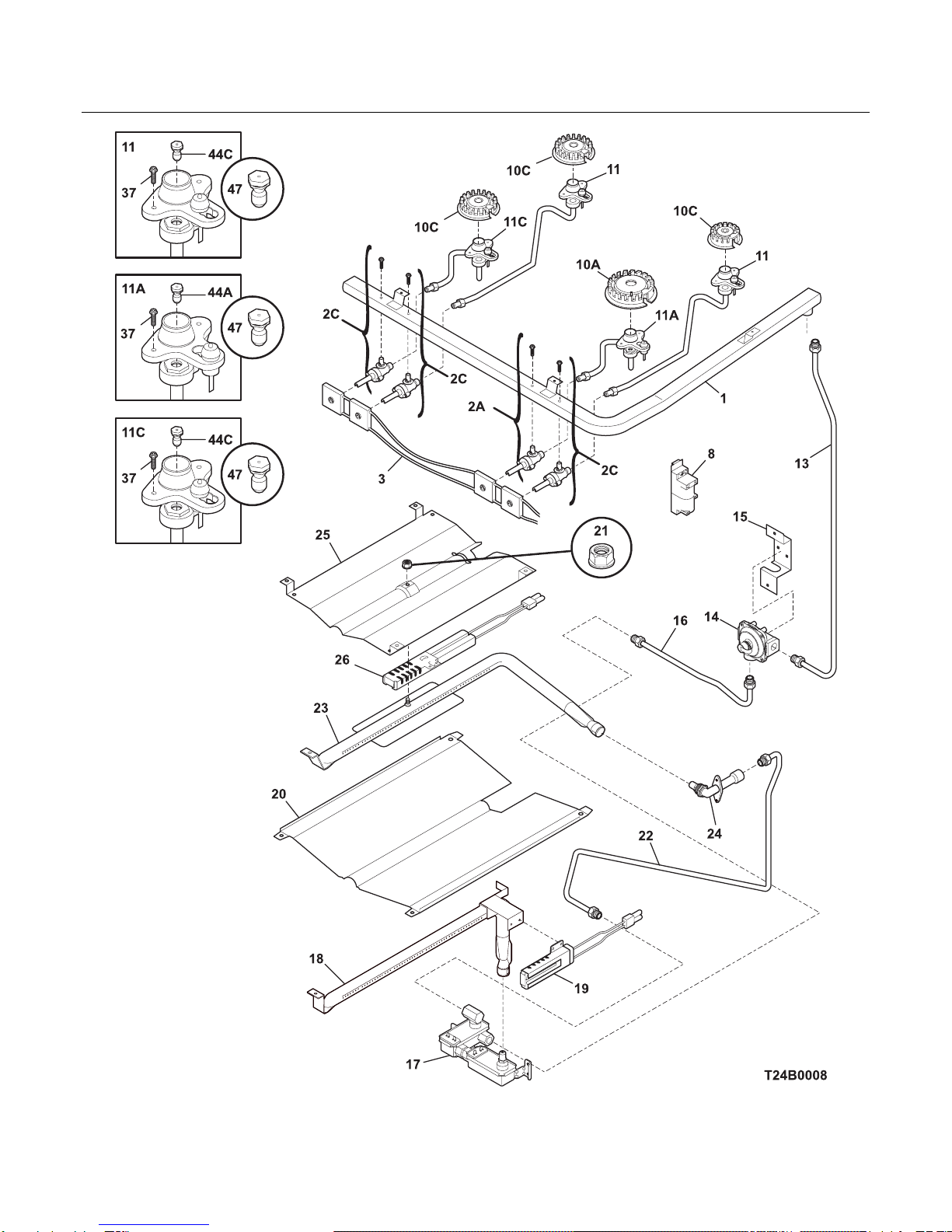

BURNER

FGF375GCA Publication No: 5995477808

# Functional Parts 5 10/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 316219500 Pipe, manifold

2A # 5303935236 Valve, 14K burner, w/mtg screw

2C # 5303935234 Valve, 9.5K burner, w/mtg screw

3 # 316219004 Wiring Harness, w/igntr switch

8 # 316135701 Module, spark

10A# 316223400 Burner, sealed, 14K

10C# 316212400 Burner, sealed, 9.5K

11 # 316237701 Ignitor/orifice assy., top burner, rear, 9.5K, w/holder, tube

11A# 316272000 Ignitor/orifice assy., top burner, front

11C# 316237800 Ignitor/orifice assy., top burner, front

13 # 316405300 Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 Regulator, pressure

14* 316021104 Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 Bracket, regulator

16 # 316405500 Tube, valve to regul., 3/8

17 # 316404901 Valve, safety

17* 08068018 Shield, wire, safety valve

18 # 316404400 Burner, oven

19 # 316489400 Ignitor, oven burner

20 316401401 Baffle, oven burner

21 5303013272 Nut, hex head sems

22 # 316405401 Tube, valve to mixer

23 # 316404300 Burner, broiler

24 # 316409700 Elbow, mixer

25 316401301 Baffle, broil burner

26 # 316489401 Ignitor, burner

26* 316401500 Cover, broil Ignitor

37 316240600 Screw, assy mtg, ignitor/orifice

44A 316237900 Orifice, top burner, 14K

44C 316237902 Orifice, top burner, 9.5K

47 GRLP2 LP Conversion Kit, w/instructions

47* 316248105 Instructions, LP kit

* # 316253700 Wiring Harness, ignitor module

* 316001003 Screw, ground wire

* 316215600 Screw, valve mtg., 1/4 - 20

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995477808 FGF375GCA

10/06 6

BODY

FGF375GCA Publication No: 5995477808

# Functional Parts 7 10/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401600 Back, main

2 316402201 Shield, oven top

2* 316437100 Brace, oven top

3 316400118 Panel, bodyside, black, RH

3 316400119 Panel, bodyside, black, LH

4 316201403 Burner Box

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407201 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 Rack, oven

8 316400603 Panel, oven bottom

12 316445501 Switch, oven light, door frame

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

25 316406200 Shield, heat, lower

29 316407301 Glide, drawer, front

30 316217700 Bracket, hinge, RH, main top

30A 316217701 Bracket, hinge, LH, main top

33 316402500 Shield, rear wall

35 316116600 Gasket, flue

36 316208901 Flue

37 # 316217001 Probe, oven temp

39 3202006 Cord, electric power

42 316400703 Shield, wool, lower

43 3131732 Screw, 8-18 x 1.438, oven bottom

44 316246501 Spacer, oven door

49 316234200 Clip, maintop mtg, (2)

54 316404200 Shield, heat

55 316404800 Shield, flue

58A 316403700 Insulation, oven wrapper

58B 316403600 Insulation, oven back

58G 08067973 Insulation, main front

82 316400801 Shield, bake burner

82* 316432800 Clip, wire

86 316441300 Receptacle, hinge

86* 316418901 Screw, trilobe, 10-32 x 5/16"

87 316401200 Bracket, harness

88 316232700 Rod, auto latch

89 # 316464300 Motor-latch

90 316401100 Shield, main front

91 316401000 Shield, front, burner

106 316404100 Bracket, motor mtg.

107 316026701 Cover, fan

108# 316415700 Motor, convection

109 316136400 Blade, fan

110 316136500 Washer, flat

111 316136600 Nut, fan retainer

151 316404600 Shield, bodyside

Publication No: 5995477808 FGF375GCA

10/06 8

BODY

FGF375GCA Publication No: 5995477808

# Functional Parts 9 10/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

264 316404700 Bracket, air dam

* # 316416601 Harness, wiring, main

* 316231800 Cover, hole, conv. element

* 5303321321 Paint, touch-up, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316021132 Screw, 8-18 X 11/16, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995477808 FGF375GCA

10/06 10

TOP/DRAWER
