Frigidaire FGF351SG Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF351SGWA FGF351SG white USA

Publication No.

5995307955

980602

-EN/SERVICE /VLM

369

GAS - RANGE

Model No.

FGF351SG

FACTORY PARTS CATALOG

GAS RANGE

WIRING DIAGRAM # - 316002168

OWNER’S GUIDE # - 316000271

INSTALLATION INSTRUCTIONS # - 316002989

104 Warren Road

Augusta, GA30907-3755

BACKGUARD

Publication No. FGF351SGWA

5995307955

6/98 2

POS. NO PART NO DESCRIPTION

1 316028701 Shield-backguard,rear wall

2A 316053802 Shield-backguard,inner/top

11 316061856 Trim-wrapper,black

15 316023108 Support-backguard,RH

15A 316023109 Support-backguard,LH

19 316100530 Panel-control,metal ,black

20 # 316101100 Clock/Timer,Trimline

20* 316101521 Overlay-clock

23 316100300 Bracket-clock mtg

32 316101400 Knob-thermostat

36 316049304 Knob-top valve,(4)

40 316009268 Panel-manifold

42 316055200 Trim-vent

56 316074907 Deflector-flue,black

* 316001465 Harness-wiring,backguard

* 316002989 Instructions,installation

* 316021105 Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316071902 Gasket-edge

BACKGUARD

FGF351SGWA Publication No.

5995307955

# = Functional Part 3 6/98

* = Non-Illustrated Part

BURNER

Publication No. FGF351SGWA

5995307955

6/98 4

POS. NO PART NO DESCRIPTION

1 # 316066201 Manifold Pipe

2 # 5303935130 Valve-top burner

2* 316048200 Screw-top valve mtg,hex washer head ,

1/4-20 x 0.31,w/gasket

3 # 316103600 Switch-ignitor,(4)

4 # 316059612 Tube-burner,red ,RF

5 # 316059613 Tube-burner,green ,LF

6 # 316059614 Tube-burner,nat. ,RR

7 # 316059615 Tube-burner,black ,LR

8 # 5303280394 Spark Module

8* 5303289034 Harness-wiring,module/igniter

10 # 5303935025 Burner Assy-top,sealed ,small ,9000 BTU

11 # 316011200 Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 Regulator-pressure

14* 316021104 Screw-regulator/brkt,hex ,8-18 x 3/8 ,

nick, 3

15 316091600 Bracket-regulator

16 # 316065003 Tube-valve to rgltr,3/8

17 # 5303208499 Valve-safety,dual

18 # 3131290 Burner-oven

19 # 5303935066 Ignitor-oven

20 3131284 Baffle-oven burner

21 5303013272 Nut,hex head sems

22 # 316065002 Tube-valve to mixer

23 # 316087900 Burner-broiler

24 # 316070400 Mixer Elbow

25 5303210379 Baffle-broiler

26 # 5308067970 Ignitor-broiler

37 316069301 Screw, metric

44 5303210090 Orifice-top burner,small

45 316011100 Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 Plate-burner tube

47 5303286386 LP Conversion Kit

50 5303935026 Burner-top,small ,includes 37

50 # 316010700 Burner-top,includes,37

BURNER

FGF351SGWA Publication No.

5995307955

# = Functional Part 5 6/98

* = Non-Illustrated Part

BODY

Publication No. FGF351SGWA

5995307955

6/98 6

POS. NO PART NO DESCRIPTION

1 316029412 Back-main

2 3131314 Shield-oven top

3 316081028 Panel-bodyside,white ,RH

3* 316081029 Panel-bodyside,white ,LH

4 316011912 Burner Box,black

5 5303203397 Screw-leveling

5* 3934058 Anti-tip Kit

5* 316078600 Screw,anti-tip ,(4)

5* 5303288460 Nut,T-type ,leveling screw

6 316067902 Rack-oven

7 316007003 Hinge-oven door,assembly

7* 5303012323 Clip,hinge ,(4)

8 5303212540 Panel-oven bottom

8* 316064600 Support-oven bottom

9 316073800 Pan-broiler

10 3205234 Insert-broiler pan

12 # 316027701 Switch-oven light

13 316026800 Rod-light switch /door

14 3014073 Socket-light/lamp,oven

15 5303013071 Light Bulb/Lamp

16 08011086 Lens-light/lamp,glass ,oven

17 316087500 Retainer-lens

18 # 316036300 Latch-door

21 3014099 Spacer-bodyside,(8)

25 5303288580 Shield-heat,lower

26 08067757 Cover Plate

28 3011813 Clip-wire,bodyside

29 3051162 Glide-drawer,front

30 316059200 Bracket-main top,RH

30A 316059201 Bracket-main top,LH

33 316014401 Shield,rear wall

35 08067965 Gasket-flue

36 5303272844 Flue

37 # 316111200 Probe-oven temp

38 316051700 Shield-heat

39 3202006 Cord-electric power

39* 08067961 Fastener-power cord

40 3200836 Shield-heat baffle

40* 5303288570 Screw-heat shield,hd shldr sqdr ,

8-18 X 1/2

41 3131570 Cover-hinge cutout

42 5303288578 Shield-bake burner

43 3131732 Screw-oven bottom,8-18 x 1.438

44 3131903 Bumper-door/drawer,rubber

45 08068018 Shield-wire

49 3051124 Clip-spring mtg

53* 5303288579 Shield-main front

53A 08067992 Shield-insulation,galv steel

55 316107800 Shield-flue

58A 316047708 Insulation,oven wrapper

58B 316054200 Insulation,oven back

58C 3131304 Insulation,oven top

58G 08067973 Insulation,main front

72 5303285692 Cover-light/switch rod

88 316026400 Rod-latch,auto

89 # 316028101 Motor-latch/lock

* 316001632 Harness-wiring,chassis

* 316021105 Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

BODY

FGF351SGWA Publication No.

5995307955

# = Functional Part 7 6/98

* = Non-Illustrated Part

TOP/DRAWER

Publication No. FGF351SGWA

5995307955

6/98 8

POS. NO PART NO DESCRIPTION

1 316011501 Drawer-utility

2 3131975 Shield-panel

4 316084405 Panel-drawer,white

4* 316021112 Screw-drawer pnl

7 3051163 Glide-drawer,rear

16 5303301546 Main Top,white

20 # 316088900 Grate,black ,(4)

21 316011300 Trim Ring-burner,black ,small

22 # 316010901 Cap-burner,gloss black ,small ,(4)

* 316089600 Spacer-drawer,(2)

* 316021105 Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316089500 Screw,10-16 x .486 ,safety valve ,

handle,(4)

* 5303280311 Screw,waf hd sdr ,10-32 x 5/16 ,(2)

TOP/DRAWER

FGF351SGWA Publication No.

5995307955

# = Functional Part 9 6/98

* = Non-Illustrated Part

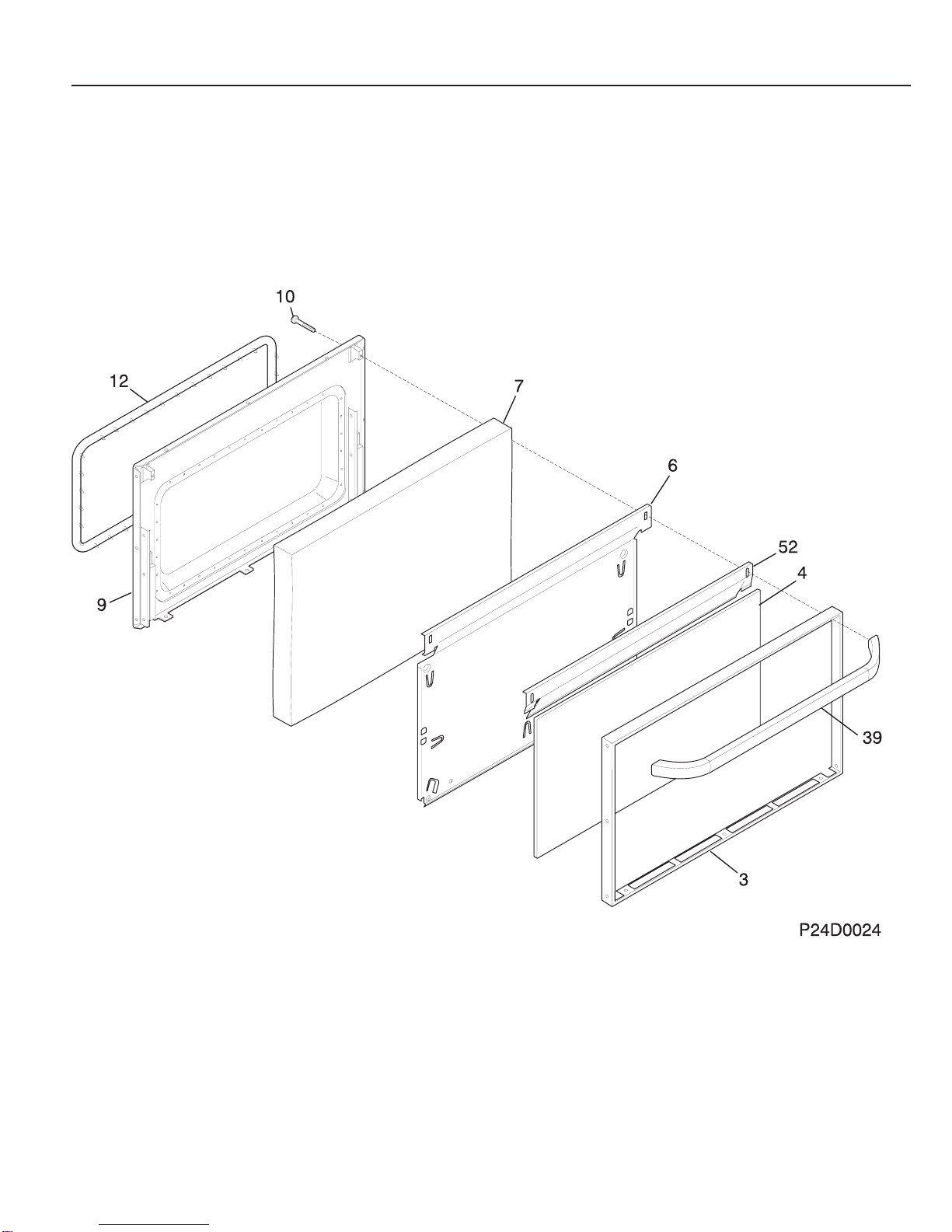

DOOR

Publication No. FGF351SGWA

5995307955

6/98 10
