Frigidaire FGF326WGSD Manual de usuario

FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF326WGSD FGF326WG WHITE/WHITE USA

FGF326WGSE FGF326WG WHITE/WHITE USA

FGF326WGSF FGF326WG WHITE/WHITE USA

FGF326WGTD FGF326WG ALMOND/ALMOND USA

FGF326WGTE FGF326WG ALMOND/ALMOND USA

FGF326WGTF FGF326WG ALMOND/ALMOND USA

Publication No.

5995323374

990519

-EN/SERVICE/SBR

369

WIRING DIAGRAM # - 316002152

OWNER’S GUIDE # - 316000647,316000655

INSTALLATION GUIDE # - 316105808,316105822 GAS - RANGE

FGF326WGSD

FGF326WGSE

FGF326WGSF

FGF326WGTD

FGF326WGTE

FGF326WGTF

05/98 2

Publication number

5995323374 FGF326WG

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FGF326WG 5995323374

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FGF326WG (FGF326WGSD)

B = FGF326WG (FGF326WGSE)

C = FGF326WG (FGF326WGSF)

D = FGF326WG (FGF326WGTD)

E = FGF326WG (FGF326WGTE)

F = FGF326WG (FGF326WGTF)

POS. NO PART NO DESCRIPTION

* 316000647 A B - D E - Owner’s guide

* 316000655 - - C - - F Owner’s Guide

* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black

* 316105822 - - C - - F Installation Instr

* 316112500 A B C D E F Template, Anti-tip bracket

1 3131123 A B C D E F Shield-backguard,rear wall

9 316043611 A B C - - - Trim-splasher,white

9 316043615 ---DEF Trim-splasher,almond

11 316083716 A B C - - - Trim-wrapper,white

11 316083717 ---DEF Trim-wrapper,almond

12 # 316032404 A B C D E F Thermostat

15 5303131237 A B C D E F Support-backguard,(2)

16 316042601 A B C D E F Plate,instrument mtg

19 316034131 A B C - - - Panel-control,white

19 316034133 ---DEF Panel-control,metal ,almond ,19

20# 316113200 A B C D E F Clock-timer

24 # 316005607 A B ---- Switch-rocker,oven light ,white

24 # 316005608 ---DE- Switch-rocker,oven light ,almond

24# 316118101 A B C - - - Switch-rocker,oven light ,white

24# 316118102 ---DEF Switch-rocker,oven light ,almond

28 316017303 A B C - - - Button-clock,white , CLOCK SET

28 316017304 ---DEF Button-clock,clock set ,almond ,(2)

29 316028402 A B C - - - Button-selector,clock/timer ,white

29 316028403 ---DEF Button-selector,clock/timer ,almond

30A 316064300 A B C D E F Nut,nylon

32 316102303 A B C - - - Knob-thermostat,black

32 316102315 ---DEF Knob-thermostat

36 316009036 A B C - - - Knob-top valve,(4)

36 316102319 ---DEF Knob-top valve,almond ,36 ,(4)

40 316062354 A B C - - - Panel-manifold

40 316086837 ---DEF Panel-manifold,almond

44 3131468 A B C D E F Bracket,backguard

45A 316056903 A B C - - - Bolt-fastener,nylon ,white

45A 316056904 ---DEF Bolt-fastener,nylon ,almond ,(2)

05/98 4

Publication number

5995323374 FGF326WG

CAUTION: Use the part number on all orders, not the position number.

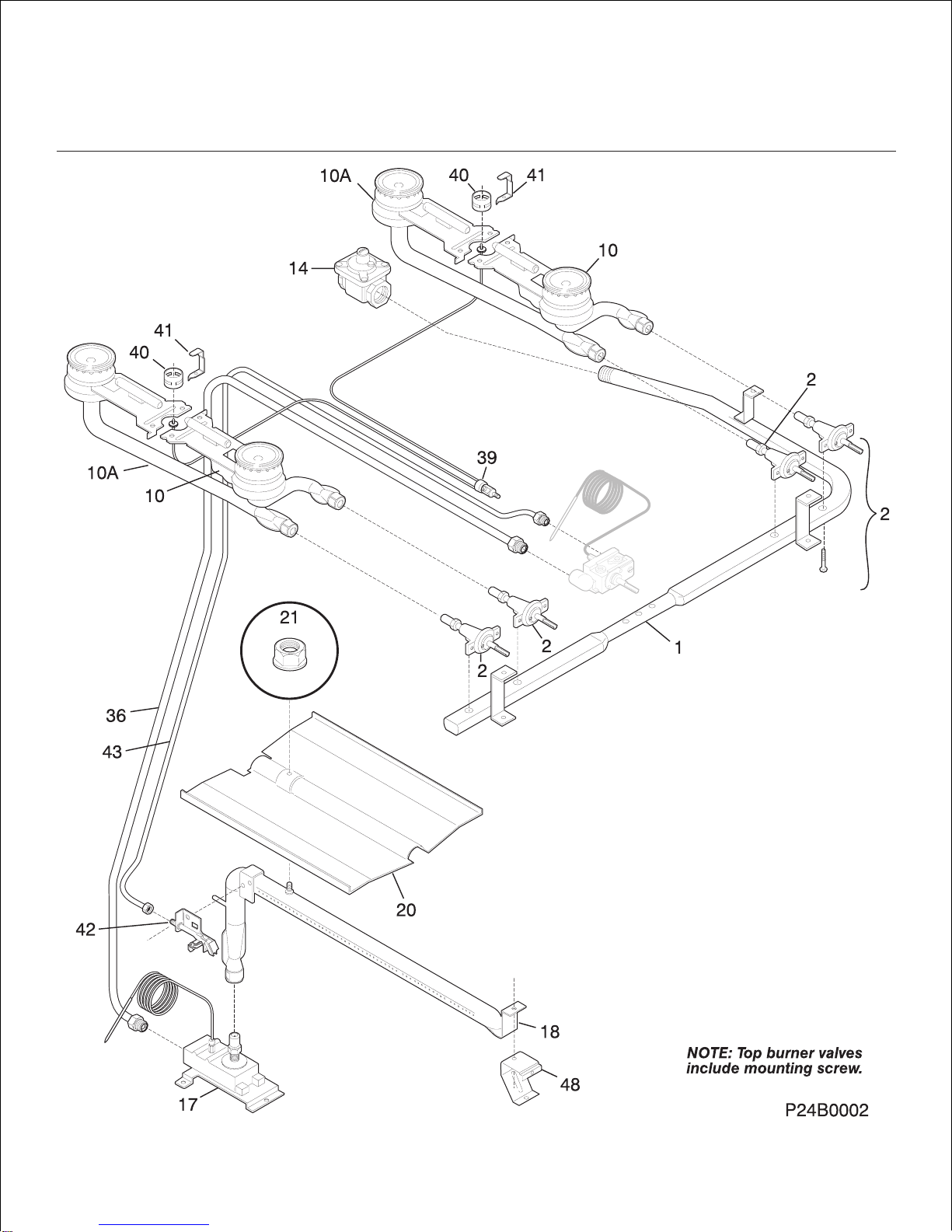

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 5 05/98

Publication number

FGF326WG 5995323374

CAUTION: Use the part number on all orders, not the position number.

A = FGF326WG (FGF326WGSD)

B = FGF326WG (FGF326WGSE)

C = FGF326WG (FGF326WGSF)

D = FGF326WG (FGF326WGTD)

E = FGF326WG (FGF326WGTE)

F = FGF326WG (FGF326WGTF)

POS. NO PART NO DESCRIPTION

* 5303271648 A B C D E F Screw, wafer hd sq dr , 8-18AB x 1/2

1 316113801 A B C D E F Manifold-pipe

2 # 316127500 - - C - - F Valve-top burner

2 # 5303935130 A B - D E - Valve-top burner

2* 316048200 A B C D E F Screw-,hex washer head ,1/4-20 x 0.31 ,

w/gasket

3 # 316103600 A B C D E F Switch-ignitor,(4)

4 # 316059612 A B C D E F Tube-burner,red ,RF

5 # 316059613 A B C D E F Tube-burner,green ,LF

6 # 316059614 A B C D E F Tube-burner,nat. ,RR

7 # 316059615 A B C D E F Tube-burner,black ,LR

8 # 5303280394 A B C D E F Spark Module

8* 5303289034 A B C D E F Harness-wiring, module/igniter

10 # 5303935025 A B C D E F Burner Assy-top,sealed ,small ,9000 BTU

11 316011200 A B C D E F Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B C D E F Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 A B C D E F Regulator-pressure

14* 316021104 A B C D E F Screw-regulator/brkt, hex , 8-18 x 3/8 ,

nick, 3

15 316091600 A B C D E F Bracket-regulator

16 # 316065006 A B C D E F Tube-valve to rgltr,3/8

17 # 3203459 A B C D E F Valve-safety

18 # 316114300 A B C D E F Burner-oven

19 # 5303935066 A B C D E F Ignitor-oven

20 3203265 A B C D E F Baffle-oven burner

21 5303013272 A B C D E F Nut, hex head sems

37 316069301 A B C D E F Screw-burner mtg

44 5303210090 A B C D E F Orifice-top burner,small

45 316011100 A B C D E F Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B C D E F Plate-burner tube

47 # 5303286386 A B C D E F LP Conversion Kit

48 3018603 A B C D E F Bracket-support,oven burner

49 3131438 A B C D E F Bracket,safety valve

BURNER

05/98 6

Publication number

5995323374 FGF326WG

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 05/98

Publication number

FGF326WG 5995323374

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGF326WG (FGF326WGSD)

B = FGF326WG (FGF326WGSE)

C = FGF326WG (FGF326WGSF)

D = FGF326WG (FGF326WGTD)

E = FGF326WG (FGF326WGTE)

F = FGF326WG (FGF326WGTF)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316073400 A B C D E F Plate-weight,(3)

1 316029412 A B C D E F Back-main

3 316081034 A B C - - - Panel-bodyside, white ,RH

3 316081035 A B C - - - Panel-bodyside, white , LH

3 316081036 ---DEF Panel-bodyside,almond ,RH

3 316081037 ---DEF Panel-bodyside,almond ,LH

4 316011916 A B C D E F Burner Box

5 316107300 A B C D E F Screw-leveling

6 316067902 A B C D E F Rack-oven

7 316007003 A B C D E F Hinge-oven door,assembly

8 5303212540 A B C D E F Panel-oven bottom

8* 316064600 A B C D E F Support-oven bottom

14 316116400 A B C D E F Socket-light

15 5303013071 A B C D E F Light Bulb/Lamp

21 3014099 A B C D E F Spacer-bodyside, (8)

27 5303284616 A B C D E F Clip-thermo bulb

28 3011813 A B C D E F Clip-wire, bodyside

33 316055601 A B C D E F Shield-spark module

34 3018607 A B C D E F Cover Plate

35 316116600 A B C D E F Gasket-flue

36 316103901 A B C D E F Flue,black

39 3202006 A B C D E F Cord-electric power

40* 5303288570 A - - D - - Screw-heat shield, hd shldr sqdr ,

8-18 X 1/2

41 3131570 A B C D E F Cover-hinge cutout

43 3131732 A B C D E F Screw-oven bottom, 8-18 x 1.438

44 3131903 A B C D E F Bumper-door/drawer, rubber

49 3051124 A B C D E F Clip-spring mtg

54A 5303271606 A B C D E F Housing-oven light

58A 3017142 A B C D E F Insulation,oven wrapper

58B 3203541 A B C D E F Insulation,oven back

60 5303015372 A B C D E F Cover-oven front

73 316109902 A B C D E F Base-low broil

93 316110000 A B C D E F Shield,metal ,galvanized ,ignitor

170 316107200 A B C D E F Anti-tip bracket

170* 316116000 A B C D E F Screw-Anti tip, 1.75" concrete

185 316112900 A B C D E F Shield-thermo bulb

05/98 8

Publication number

5995323374 FGF326WG

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 9 05/98

Type your model numbers here

CAUTION: Use the Kenmore part number on all orders, not the position number.

TOP/DRAWER

A = FGF326WG (FGF326WGSD)

B = FGF326WG (FGF326WGSE)

C = FGF326WG (FGF326WGSF)

D = FGF326WG (FGF326WGTD)

E = FGF326WG (FGF326WGTE)

F = FGF326WG (FGF326WGTF)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black

* 316021112 A B C - - - Screw-8-18x1/2 Tr Sqd White

* 316021113 ---DEF Screw-8-18x1/2 Tr Sqd Almond

* 316021120 - B C - E F Screw, 8-18 x 5/8 ,SHOULDER SQDR ,(2)

* 316072100 A B C D E F Bushing,wire

* 5303280311 A B C D E F Screw, waf hd sdr , 10-32 x 5/16 , (2)

1 316110201 A B C D E F Carriage, broiler

2 316110101 A B C D E F Liner-low broil

2A 316110800 A B C D E F Shield-broiler

4 316056205 A B C - - - Panel-drawer,white

4 316056206 ---DEF Panel-drawer,almond

5 3131387 A B C D E F Fastener-spacer,push-in nut ,nylon

9 316073800 A B C D E F Pan-broiler

10 3205234 A B C D E F Insert-broiler pan

13 316111500 A - - D - - Glide-drawer,outer

13 316111502 - B C - E F Glide-Low Broil, Inner

13A 316111600 A B C D E F Glide-drawer,inner

13B 316111501 A B C D E F Glide low broil outer

16 316017108 ---DE- Maintop assm.-Almond,metal ,enamel ,

almond

16 316104409 A B C - - - Maintop assm.-White,metal ,enamel ,

white

18 08067747 A B C D E F Bracket-hinge,main top RH

18A 08067746 A B C D E F Bracket-hinge,main top LH

20 316104410 ---DEF Grate,almond ,20 ,(4)

20 # 316088900 A B C D E F Grate,black ,(4)

21 316011300 A B C D E F Trim Ring-burner,black ,small

22 # 316010901 A B C D E F Cap-burner,gloss black ,small ,(4)

25 316104500 A B C D E F Cover-vent,metal ,chrome

30 316111400 A B C D E F Insulation,broiler drawer

39 316019505 A B C - - - Handle-drawer,white

39 316019508 ---DEF Handle-drawer,almond

85 316115600 A B C D E F Rack-Low Broil

05/98 10

Publication number

5995323374 FGF326WG

CAUTION: Use the part number on all orders, not the position number.

DOOR
