Frigidaire FGF326WG Manual de usuario

FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF326WGSA FGF326WG WHITE/WHITE USA

FGF326WGTA FGF326WG ALMOND/ALMOND USA

FGF326WGSB FGF326WG WHITE/WHITE USA

FGF326WGTB FGF326WG ALMOND/ALMOND USA

Publication No.

5995320180

990326

-EN/SERVICE /VLM

369

WIRING DIAGRAM # - 316002152

OWNER’S GUIDE # - 316000644

INSTALLATION GUIDE # - 316002979 GAS - RANGE

FGF326WG

04/99 2

Publication number

5995320180 FGF326WGSA, FGF326WGSB, FGF326WGTA, FGF326WGTB

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FGF326WGSA, FGF326WGSB, FGF326WGTA, FGF326WGTB 5995320180

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FGF326WG (FGF326WGSB)

B = FGF326WG (FGF326WGTB)

C = FGF326WG (FGF326WGSA)

D = FGF326WG (FGF326WGTA)

POS. NO PART NO DESCRIPTION

* 316000644 A B C D Owner’s Manual

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D Screw-8-18x1/2 Tr Sqd black

1 3131123 A B C D Shield-backguard,rear wall

9 316043611 A - C - Trim-splasher,white

9 316043615 - B - D Trim-splasher,almond

11 316083716 A - C - Trim-wrapper,white

11 316083717 - B - D Trim-wrapper,almond

12 # 316032404 A B C D Thermostat

15 5303131237 A B C D Support-backguard,(2)

16 316042601 A B C D Plate,instrument mtg

19 316034131 A - C - Panel-control, metal, white

19 316034133 - B - D Panel-control,metal ,almond

20# 316113200 A B C D Clock-timer

20# 316096001 - - C D Clock-timer

24 # 316005608 - B - - Switch-rocker,oven light ,almond

24# 316005607 A - C - Switch-rocker,oven light ,white

28 316017303 A - C - Button-clock,white , clock set

28 316017304 - B - D Button-clock,clock set ,almond ,(2)

29 316028402 A - C - Button-selector,clock/timer ,white

29 316028403 - B - D Button-selector,clock/timer ,almond

30A 316064300 A B C D Nut,nylon

32 316102303 A - C - Knob-thermostat,black

32 316102315 - B - D Knob-thermostat

36 316009036 A - C - Knob-top valve, white (4)

36 316102319 - B - D Knob-top valve,almond (4)

40 316062354 A - C - Panel-manifold

40 316086837 - B - D Panel-manifold,almond

44 3131468 A B C D Bracket,backguard

45A 316056903 A - C - Bolt-fastener,nylon ,white (2)

45A 316056904 - B - D Bolt-fastener,nylon ,almond ,(2)

04/99 4

Publication number

5995320180 FGF326WGSA, FGF326WGSB, FGF326WGTA, FGF326WGTB

CAUTION: Use the part number on all orders, not the position number.

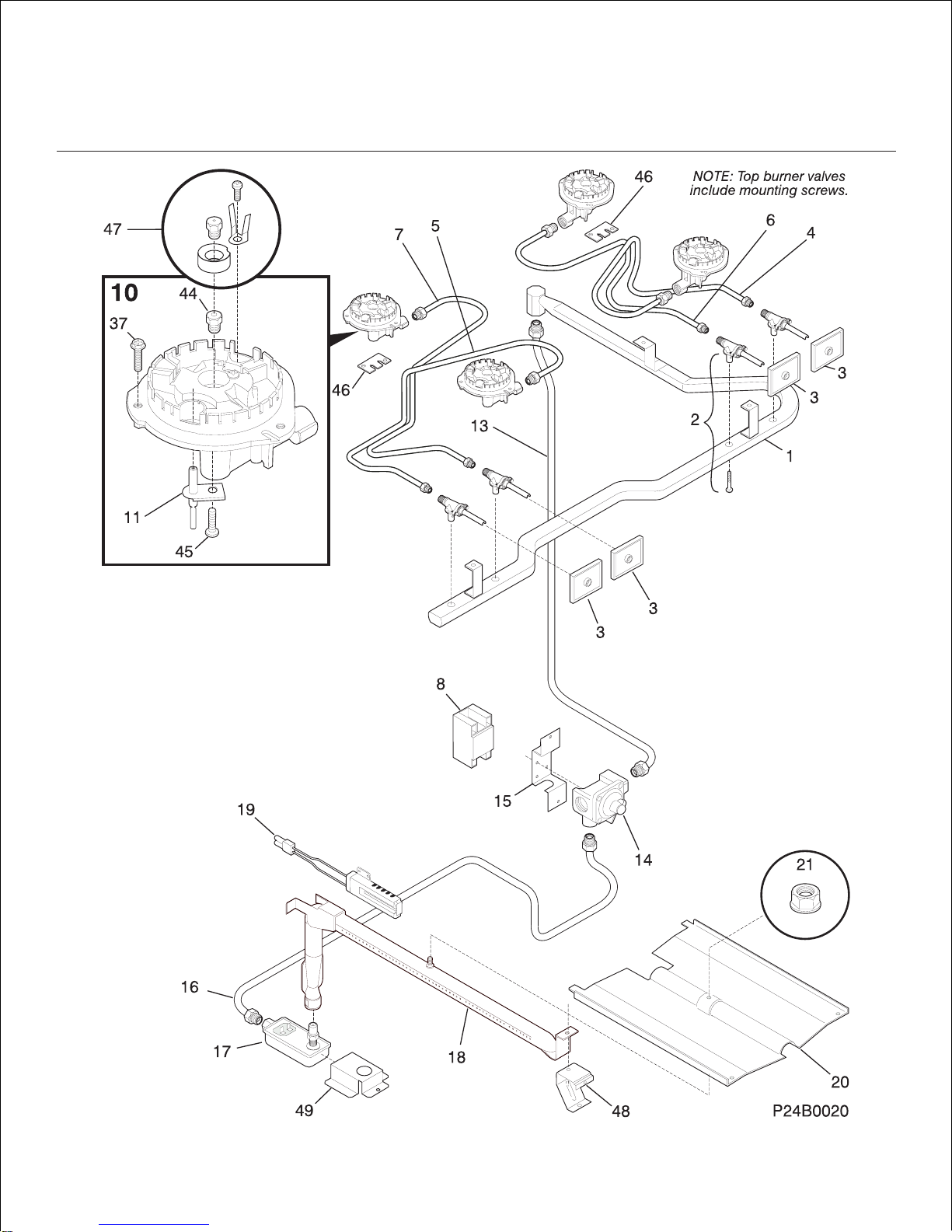

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 5 04/99

Publication number

FGF326WGSA, FGF326WGSB, FGF326WGTA, FGF326WGTB 5995320180

CAUTION: Use the part number on all orders, not the position number.

A = FGF326WG (FGF326WGSB)

B = FGF326WG (FGF326WGTB)

C = FGF326WG (FGF326WGSA)

D = FGF326WG (FGF326WGTA)

POS. NO PART NO DESCRIPTION

* 5303271648 A B C D Screw, wafer hd sq dr , 8-18AB x 1/2

1 316113801 A B C D Manifold-pipe

2 # 5303935130 A B C D Valve-top burner

2* 316048200 A B C D Screw-,hex washer head ,1/4-20 x 0.31 ,

w/gasket

3 # 316103600 A B C D Switch-ignitor,(4)

4 # 316059612 A B C D Tube-burner,red ,RF

5 # 316059613 A B C D Tube-burner,green ,LF

6 # 316059614 A B C D Tube-burner,nat. ,RR

7 # 316059615 A B C D Tube-burner,black ,LR

8 # 5303280394 A B C D Spark Module

8* 5303289034 A B C D Harness-wiring, module/igniter

10 # 5303935025 A B C D Burner Assy-top,sealed ,small ,9000 BTU

11 316011200 A B C D Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B C D Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 A B C D Regulator-pressure

14* 316021104 A B C D Screw-regulator/brkt, hex , 8-18 x 3/8 ,

nick, 3

15 316091600 A B C D Bracket-regulator

16 # 316065006 A B C D Tube-valve to rgltr,3/8

17 # 3203459 A B C D Valve-safety

18 # 3131439 A B C D Burner-oven

19 # 5303935066 A B C D Ignitor-oven

20 3203265 A B C D Baffle-oven burner

21 5303013272 A B C D Nut, hex head sems

37 316069301 A B C D Screw-burner mtg

44 5303210090 A B C D Orifice-top burner,small

45 316011100 A B C D Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B C D Plate-burner tube

47 # 5303286386 A B C D LP Conversion Kit

48 3018603 A B C D Bracket-support,oven burner

49 3131438 A B C D Bracket,safety valve

BURNER

04/99 6

Publication number

5995320180 FGF326WGSA, FGF326WGSB, FGF326WGTA, FGF326WGTB

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 04/99

Publication number

FGF326WGSA, FGF326WGSB, FGF326WGTA, FGF326WGTB 5995320180

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGF326WG (FGF326WGSB)

B = FGF326WG (FGF326WGTB)

C = FGF326WG (FGF326WGSA)

D = FGF326WG (FGF326WGTA)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316073400 A B C D Plate-weight,(3)

1 316029412 A B C D Back-main

3 316081028 A - C - Panel-bodyside,white ,RH

3 316081030 - B - D Panel-bodyside,almond ,RH

3* 316081029 A - C - Panel-bodyside,white ,LH

3* 316081031 - B - D Panel-bodyside,almond ,LH

4 316011916 A B C D Burner Box

5 5303203397 A B C D Screw-leveling

5* 3934058 A B C D Anti-tip Kit

5* 316078600 A B C D Screw,anti-tip ,(4)

5A 5303288460 A B C D Nut,T-type ,leveling screw

6 316067902 A B C D Rack-oven

7 316007003 A B C D Hinge-oven door,assembly

8 5303212540 A B C D Panel-oven bottom

8* 316064600 A B C D Support-oven bottom

14 316116400 A B C D Socket-light

15 5303013071 A B C D Light Bulb/Lamp

21 3014099 A B C D Spacer-bodyside, (8)

27 5303284616 A B C D Clip-thermo bulb

28 3011813 A B C D Clip-wire, bodyside

33 316055601 A B C D Shield-spark module

34 3018607 A B C D Cover Plate

35 316116600 A B C D Gasket-flue

36 316103901 A B C D Flue,black

39 3202006 A B C D Cord-electric power

40* 5303288570 A B C D Screw-heat shield, hd shldr sqdr ,

8-18 X 1/2

41 3131570 A B C D Cover-hinge cutout

43 3131732 A B C D Screw-oven bottom, 8-18 x 1.438

44 3131903 A B C D Bumper-door/drawer, rubber

49 3051124 A B C D Clip-spring mtg

54 5303271606 A B C D Housing-oven light

58A 3017142 A B C D Insulation,oven wrapper

58B 3203541 A B C D Insulation,oven back

60 5303015372 A B C D Cover-oven front

73 316109901 A B C D Base-broiler

93 316110000 A B C D Shield,metal ,galvanized ,ignitor

185 316112900 A B C D Shield-thermo bulb

04/99 8

Publication number

5995320180 FGF326WGSA, FGF326WGSB, FGF326WGTA, FGF326WGTB

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 9 04/99

Publication number

FGF326WGSA, FGF326WGSB, FGF326WGTA, FGF326WGTB 5995320180

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FGF326WG (FGF326WGSB)

B = FGF326WG (FGF326WGTB)

C = FGF326WG (FGF326WGSA)

D = FGF326WG (FGF326WGTA)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D Screw-8-18x1/2 Tr Sqd black

* 316021112 A - C - Screw-8-18x1/2 Tr Sqd White

* 316021113 - B - D Screw-8-18x1/2 Tr Sqd Almond

* 316072100 A B C D Bushing,wire

* 5303280311 A B C D Screw, waf hd sdr , 10-32 x 5/16 , (2)

1 316110201 A B C D Carriage, broiler

2 316110101 A B C D Liner-low broil

2A 316110800 A B C D Shield-broiler

4 316056205 A - C - Panel-drawer,white

4 316056206 - B - D Panel-drawer,almond

5 3131387 A B C D Fastener-spacer,push-in nut ,nylon

9 5303013568 A B C D Pan-broiler

10 5303131356 A B C D Insert-broiler pan

13 316111500 A B C D Glide-drawer,outer

13A 316111600 A B C D Glide-drawer,inner

13B 316111501 A B C D Glide low broil outer

16 316104409 A - C - Maintop assm.-White,metal ,enamel ,

white

18 08067747 A B C D Bracket-hinge,main top RH

18A 08067746 A B C - Bracket-hinge,main top LH

20 316104410 - B - D Grate,almond, (4)

20 # 316088900 A B C D Grate,black, (4)

21 316011300 A B C D Trim Ring-burner,black ,small

22 # 316010901 A B C D Cap-burner,gloss black ,small ,(4)

25 316104500 A B C D Cover-vent,metal ,chrome

30 316111400 A B C D Insulation,broiler drawer

39 316019505 A - C - Handle-drawer,white

39 316019508 - B - D Handle-drawer,almond

44 3131903 A B C D Bumper-door/drawer, rubber

60 316021105 A B C D Screw,hex ,8-18 x 3/8 ,back\bodyside

85 316110500 A B C D Rack,low broil

04/99 10

Publication number

5995320180 FGF326WGSA, FGF326WGSB, FGF326WGTA, FGF326WGTB

CAUTION: Use the part number on all orders, not the position number.

DOOR
