Frigidaire FGEF3042K Manual de instrucciones

FGEF3042KFA.eps CFGEF3042KFA.eps VFGEF3042KFA.eps TLGEF3045KFA.eps

DFGEF3042KFA.eps

Product No. FGEF3042KFA

Series 30" f/s elec

Color stainless

Market North America

Owner's Guide 316902203

Installation Instructions 316454912

Service Data Sheet 316904404

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995539599

09/05/06

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FGEF3042K

Publication No: 5995539599 FGEF3042KFA

05/09 2

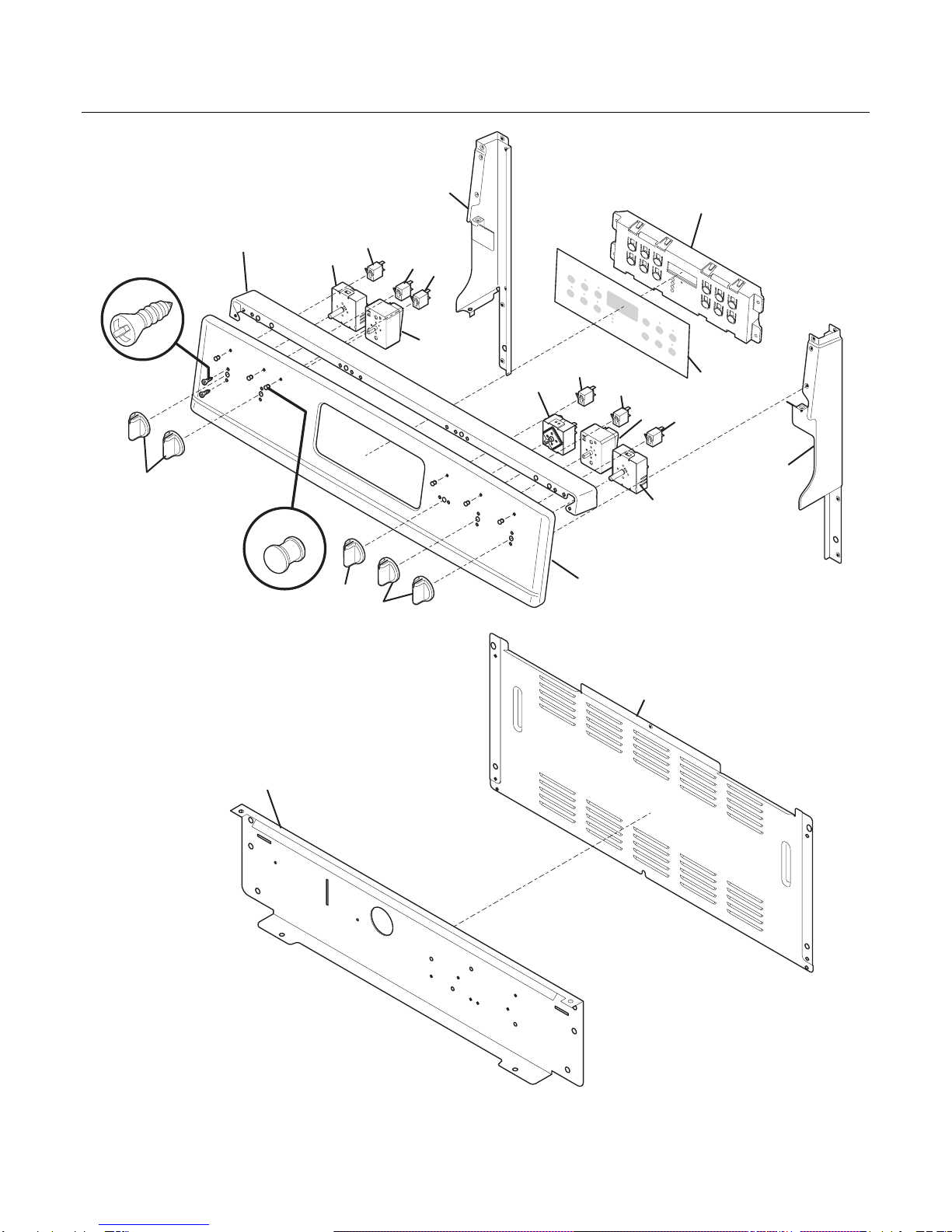

BACKGUARD

13A 14

54B

1414

CFGEF3042KFA

15A

20A

FGEF3042KFA Publication No: 5995539599

# Functional Parts 3 05/09

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316557600 Shield, rear wall

13A# 316095503 Switch, infinite, warmer

14 316022500 Light/Lamp, indicator, 125 V

15 316546702 Cap, backguard, black, RH end

15A 316546703 Cap, backguard, black, LH end

19 316572418 Panel, backguard, stainless

20 # 316557216 Controller, electronic, ES330I

* 316021110 Screw, 8-18 x 0.5, black

20A 316419336 Overlay, clock, black, ES330ISB

21 316546601 Cap, backguard, black, top

31 316564402 Knob, control, black, (5)

46 316557300 Lens-light/lamp, indicator, clear

54 316436000 Switch, infinite, small element

54B# 316238200 Switch, infinite radian, dual

56 316234013 Shield, backguard, black, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316089500 Screw, 10-16 x .486

Publication No: 5995539599 FGEF3042KFA

05/09 4

BODY

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

151

VFGEF3042KFA

109

111

106

108

58C

58D

58D 58D

107

59A

FGEF3042KFA Publication No: 5995539599

# Functional Parts 5 05/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401801 Panel, main back

3 316400118 Panel, bodyside, black, RH

3 316400119 Panel, bodyside, black, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316498900 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316496201 Rack, oven, (2)

6A 316556500 Rack, oven, auto

6B 316496205 Rack, oven

7 316546300 Link, coupler, (2), auto rack

8 316505601 Panel, oven bottom

8A 316505701 Base, bake element

8B 316506000 Bracket, support, oven bottom, (2)

8C 316505801 Support, element

9 316081900 Pan, broiler, OPTIONAL ACCESS0RY

10 316082000 Insert, broiler pan, OPTIONAL ACCESS0RY

12 316445500 Switch, oven light, door frame

14 316116400 Receptacle, oven light

15 316538901 Lamp, oven light

16 318406100 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

25 316406200 Shield, heat, lower

29 316407301 Glide, drawer, front

37 # 316490000 Probe, oven temp

42 316400701 Shield, wool, lower

43 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 3131737 Washer, black

44 316517600 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316457801 Cover, access

58A 316406601 Insulation, oven wrapper

58B 316406503 Insulation, oven back

58C 316509600 Insulation, lower shield

58D 316509700 Insulation, oven bottom

59 316208401 Vent Tube, assembly, w/catalyst

* 316089500 Screw, 10-16 x .486

59A 316208304 Tube, oven vent, upper

62 # 5303935271 Terminal Block Kit

62* 316001003 Screw, ground wire

62* 316205500 Nut, hex flange, 3/8 10-32

62* 316542200 Insulator

63 316542600 Plate, grounding strap

66 # 316203301 Element, broil

67 316505500 Element, bake, 3000W

68 316404000 Support, element, broil

71 316422304 Shield, rear wall

86 316441300 Receptacle, hinge

* 316418900 Screw, sims lp, #8-32 x 5/16", black

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

Publication No: 5995539599 FGEF3042KFA

05/09 6

BODY

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

151

VFGEF3042KFA

109

111

106

108

58C

58D

58D 58D

107

59A

FGEF3042KFA Publication No: 5995539599

# Functional Parts 7 05/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

89 # 316464300 Motor-latch

106 316404100 Bracket, motor mtg.

107 316026701 Cover, fan

* 316021132 Screw, 8-18 X 11/16, black, (3)

108# 316415800 Motor, fan

* 316008401 Washer, 3/4 OD x 1/4 ID, steel

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

151 316404600 Shield, bodyside

170 316112004 Anti Tip Kit, assembly

170* 316107200 Bracket, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

170* 316541700 Template, anti-tip

* # 316506263 Wiring Harness, main

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 Screw, 8-18 x 0.5, black

* 316231800 Cover, hole, conv. element

* 316418901 Screw, trilobe, 10-32 x 5/16", (4)

Publication No: 5995539599 FGEF3042KFA

05/09 8

TOP/DRAWER

26B

26A

15B

15A

15C

TLGEF3045KFA

FGEF3042KFA Publication No: 5995539599

# Functional Parts 9 05/09

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316408703 Drawer, utility

2 316403300 Liner, drawer

4 316409414 Panel, drawer front, stainless

7 316407400 Glide, drawer, rear

15 # 318178110 Element, surface, 6", 1200, (2), radiant

15A# 316465002 Element, surface, 9", 3000W, radiant

15B# 318198934 Element, surface, 12", 1700/2700W, dual radiant

15C# 318198832 Element, surface, warmer, 100 W

16 316531953 Maintop, steel/glass, black

18 316436600 Hinge Bracket, maintop, (2)

26 316427600 Channel, element support, (2)

26A 316498200 Bracket-support, chassis, aluminum

26B 316214202 Bracket, chassis support, front

* 316021109 Screw, 8-18 x 0.5, chrome

39 316554005 Handle, door/drawer, stainless

52 316461700 Clip, element mtg

52* 5308014215 Screw, 6-20 x 0.312

60 5304414648 Screw, handle mtg.

* # 316510647 Harness, wiring, surface

* 316468100 Cleaner, smoothtop, w/sponge

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

Publication No: 5995539599 FGEF3042KFA

05/09 10

DOOR

60B

DFGEF3042KFA

10B
