Frigidaire FEFL79F Manual de usuario

GLEFS79DC.eps T20G0028.eps T20V0052.eps T20T0062.eps T20D0029.eps

316255113D.eps 316255113S.eps

Product No. FEFL79FCA

Series 30" f/s elec

Color stainless

Market North America

Owner's Guide 316417012

Installation Instructions 316454901

Service Data Sheet 316441422

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995469896

06/07/14

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEFL79F

Publication No: 5995469896 FEFL79FCA

07/06 2

BACKGUARD

FEFL79FCA Publication No: 5995469896

# Functional Parts 3 07/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

13A 316095502 Switch, infinite, warmer

14 316022500 Light/Lamp, indicator, 125 V

15 316411405 Support, backguard, black, RH

15A 316411404 Support, backguard, black, LH

19 316436234 Panel, control, stainless

20 # 316418305 Clock/Timer, electronic, ES340

20A 316419303 Overlay, clock, black, ES340

24C 316259800 Switch-rocker, black

31 316223002 Knob, control, black

46 316040201 Lens, indicator light, red

54 # 316021500 Switch, infinite, small element

54A# 316021501 Switch, infinite, large element

54B# 316238200 Switch, infinite, dual element

56 316234013 Shield, backguard, black, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995469896 FEFL79FCA

07/06 4

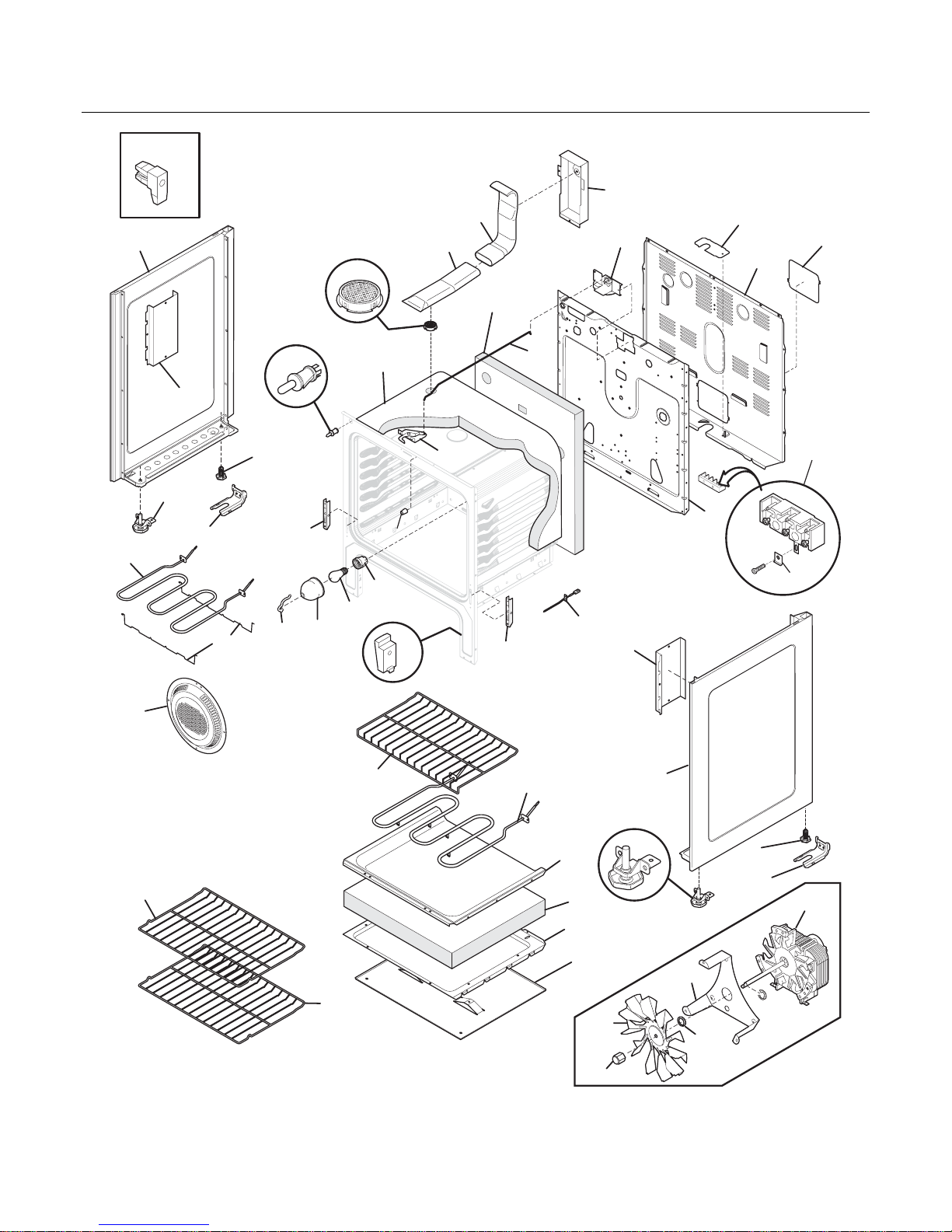

BODY

5A5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

17 16

107

170

151

T20V0052

59B

59A

110

109

111

106

108

FEFL79FCA Publication No: 5995469896

# Functional Parts 5 07/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401800 Panel, main back

3 316400118 Panel, bodyside, black, RH

3 316400119 Panel, bodyside, black, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407201 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 Rack, oven

6B 316425400 Rack, oven

8A 316411102 Base, bake element

12 316445500 Switch, oven light, door frame

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

25 316406200 Shield, heat, lower

29 316407301 Glide, drawer, front

37 # 316217001 Probe, oven temp

42 316407700 Shield, wool, lower

44 316246501 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316457800 Cover, access

58 316403801 Insulation, oven sump

58A 316406600 Insulation, oven wrapper

58B 316406500 Insulation, oven back

59 316208201 Tube, oven vent, lower

59A 316208304 Tube, oven vent, upper

59B 316247300 Catalyst, oven vent, ceramic

62 5304409888 Terminal Block Kit

62* 316085600 Insulator

62* 316205500 Nut, hex flange, 3/8 10-32

63 316278800 Plate, grounding strap

66 # 316430900 Element, broil, 4000W

67 316415900 Element, bake, 3500W, 6 pass

68 316429100 Support, element, broil

71 316422304 Shield, rear wall

86 316441300 Receptacle, hinge

86* 316418901 Screw, trilobe, 10-32 x 5/16"

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

89 # 316415400 Motor, latch/lock

106 316404100 Bracket, motor mtg.

107 316026701 Cover, fan

108# 316415800 Motor, fan

109 316136400 Blade, fan

110 316136500 Washer, flat

111 316136600 Nut, fan retainer

151 316404600 Shield, bodyside

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* # 316443006 Wiring Harness, main

* 316231800 Cover, hole, conv. element

* 5303321321 Paint, touch-up, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 Screw, 8-18 x 0.5, black

* 316021132 Screw, 8-18 X 11/16, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995469896 FEFL79FCA

07/06 6

TOP/DRAWER

FEFL79FCA Publication No: 5995469896

# Functional Parts 7 07/06

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316408701 Drawer, utility

2 316403300 Liner, drawer

4 316409405 Panel, drawer front, stainless

7 316407400 Glide, drawer, rear

15 # 318178110 Element, surface, 6", 1200, (2), radiant

15A# 316224201 Element, surface, 9", 2500W, radiant

15B# 316418401 Element, dual, 9"/6", surface, 1200W/1300W, radiant

15D# 318198804 Element, surface, warmer, 100 W

16 316456253 Main Top, smooth top, black

18 316436600 Hinge Bracket, maintop, (2)

26 316427600 Channel, element support, (2)

26A 316099202 Bracket, chassis support, rear

26B 316214200 Bracket, chassis support, front

39 316246100 Handle, door/drawer, stainless

52 316461700 Clip, element mtg

* 316466713 Harness-wiring, surface

* 316279700 Cleaner, stainless steel

* 316468100 Cleaner, smoothtop, w/sponge

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995469896 FEFL79FCA

07/06 8

DOOR

FEFL79FCA Publication No: 5995469896

# Functional Parts 9 07/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

4 316452700 Glass, oven door, black, outer

6 316406307 Shield, wool

7 316405600 Insulation, oven door

8 316117500 Glass, oven door, heat barrier

9 316423701 Liner, oven door

10 316001002 Screw, wafer head, 10-24 x 1.81, (2), handle mtg.

10B 316008401 Washer, 3/4 OD x 1/4 ID, steel

12 316405000 Seal, oven door

13 316407906 Panel, oven door, stainless, outer

17 316402403 Spacer, door glass, (2)

20 316408600 Spacer, door handle, (2)

23 316456304 Hinge, oven door, (2)

23* 316418900 Screw, sims lp, #8-32 x 5/16", black

39 316246100 Handle, door/drawer, stainless

53 316408201 Shield, door filler, black, (2)

55 316408300 Bracket, glass support, (4)

60B 316021110 Screw, 8-18 x 0.5, black

* 316433603 Label, anti-tip

* 316279700 Cleaner, stainless steel

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 316021109 Screw, 8-18 x 0.5, chrome
