30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEF366E

Publication No: 5995448502 FEF366E

09/05 2

BACKGUARD

8.8.

54A

54A 14

T20G5642

15A

20A

FEF366E Publication No: 5995448502

# Functional Parts 3 09/05

* Non-Illustrated Parts

BACKGUARD

Model Index: AFEF366E (FEF366EBB)

BFEF366E (FEF366EQB)

CFEF366E (FEF366ESB)

POS. NO PART NO. DESCRIPTION

1 316416100 A B C Shield, backguard, rear wall

14 316022500 A B C Light/Lamp, indicator, 125 V

15 316411405 A - - Support, backguard, black, RH

15 316411407 - B - Support, backguard, bisque, RH

15 316411403 - - C Support, backguard, white, RH

15A 316411404 A - - Support, backguard, black, LH

15A 316411406 - B - Support, backguard, bisque, LH

15A 316411402 - - C Support, backguard, white, LH

19 316445209 A - - Panel-backguard, black

19 316445211 - B - Panel-backguard, bisque

19 316445210 - - C Panel-backguard, white

20 # 316418200 A B C Clock/Timer, electronic, ES300

20A 316419103 A - - Overlay, clock, black, ES300

20A 316419105 - B - Overlay, clock, bisque, ES300

20A 316419104 - - C Overlay, clock, white, ES300

23 316441600 A B C Bracket-clock mtg, black

24 # 316246001 A - - Switch, rocker, black

24 316246002 - B - Switch, rocker, bisque, oven light

24 316246000 - - C Switch, rocker, white, oven light

31 316223002 A - - Knob, control, black

31 316223003 - B - Knob, control, bisque

31 316223000 - - C Knob, control, white

46 316040201 A B C Lens, indicator light, red

54 # 316436000 A B C Switch, infinite, small element

54A# 316436001 A B C Switch, infinite, large element

56 316234013 A - - Shield, backguard, black, inner

56 316234014 - B - Shield, backguard, bisque, inner

56 316234012 - - C Shield, backguard, white, inner

69 5303288565 A B C Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 A B C Screw, 8-18 x 0.5, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

Publication No: 5995448502 FEF366E

09/05 4

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

T20V0038

151

59B

59A

FEF366E Publication No: 5995448502

# Functional Parts 5 09/05

* Non-Illustrated Parts

BODY

Model Index: AFEF366E (FEF366EBB)

BFEF366E (FEF366EQB)

CFEF366E (FEF366ESB)

POS. NO PART NO. DESCRIPTION

1 316401800 A B C Panel, main back

3 316400118 A - - Panel, bodyside, black, RH

3 316400119 A - - Panel, bodyside, black, LH

3 316400120 - B - Panel, bodyside, bisque, RH

3 316400121 - B - Panel, bodyside, bisque, LH

3 316400116 - - C Panel, bodyside, white, RH

3 316400117 - - C Panel, bodyside, white, LH

5 316272900 A B C Screw, leveling, plastic, rear, (2)

5A 316407201 A B C Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 A B C Rack, oven

8 316400601 A B C Panel, oven bottom

12 316445501 A B C Switch, oven light, door frame

14 316116400 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, light

16 08011086 A B C Lens, oven light, glass

17 316087500 A B C Retainer, lens

18 # 316405800 A B C Latch Assembly, oven door

21 316408000 A B C Clip, bodyside

25 5304403169 A B C Shield, heat, lower

29 316407301 A B C Glide, drawer, front

37 # 316217001 A B C Probe, oven temp

42 316407700 A B C Shield, wool, lower

44 316246501 A B C Spacer, oven door

45 316234100 A B C Shield, wire, vent tube

57 316422400 A B C Cover, access

58 316403800 A B C Insulation, oven bottom

58A 316406600 A B C Insulation, oven wrapper

58B 316406500 A B C Insulation, oven back

59 316208201 A B C Tube, oven vent, lower

59A 316208304 A B C Tube, oven vent, upper

59B 316247300 A B C Catalyst, oven vent, ceramic

62 5303935238 A B C Terminal Block Kit, w/ground plate

62* 316085600 A B C Insulator

62* 316205500 A B C Nut, hex flange, 3/8 10-32

63 316278800 A B C Plate, grounding strap

66 # 316203200 A B C Element, broil

67 316075103 A B C Element, bake

68 316404000 A B C Support, element, broil

71 316422300 A B C Shield, rear wall

86 316441300 A B C Receptacle, hinge

86* 316418901 A B C Screw, trilobe, 10-32 x 5/16"

87 316081200 A B C Bracket, cable mtg

88 316203500 A B C Rod, auto latch

89 # 316415400 A B C Motor, latch/lock

151 316404600 A B C Shield, bodyside

170 5303935180 A B C Anti-tip Kit, w/bracket, screw

170* 316107200 A B C Bracket, anti-tip

170* 316112500 A B C Template, anti-tip

Publication No: 5995448502 FEF366E

09/05 6

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

T20V0038

151

59B

59A

FEF366E Publication No: 5995448502

# Functional Parts 7 09/05

* Non-Illustrated Parts

BODY

Model Index: AFEF366E (FEF366EBB)

BFEF366E (FEF366EQB)

CFEF366E (FEF366ESB)

POS. NO PART NO. DESCRIPTION

170* 316116000 A B C Screw, concrete, 1.75", anti-tip brkt

* # 316416422 A B C Harness, wiring, main

* 3203550 A B C Plug, button, oven bottom

* 5303305345 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303321319 - - C Paint, touch-up, white

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 A B C Screw, 8-18 x 0.5, black

* 316089500 A B C Screw, 10-16 x .486

* 5303285179 A B C Screw, wafer head, 8-32T x 0.500, black

* 5308014215 A B C Screw, 6-20 x 0.312

Publication No: 5995448502 FEF366E

09/05 8

TOP/DRAWER

26B

26A

15A

T20T 2618

FEF366E Publication No: 5995448502

# Functional Parts 9 09/05

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFEF366E (FEF366EBB)

BFEF366E (FEF366EQB)

CFEF366E (FEF366ESB)

POS. NO PART NO. DESCRIPTION

1 316408701 A B C Drawer, utility

2 316403300 A B C Liner, drawer

4 316403502 A - - Panel, drawer front, black

4 316403503 - B - Panel, drawer front, bisque

4 316403501 - - C Panel, drawer front, white

7 316407400 A B C Glide, drawer, rear

15 # 316010205 A B C Element, surface, 6", 1200 W, radiant

15A# 316224200 A B C Element, surface, 9", 2500W, radiant

16 316421239 A - - Maintop, frame/glass, black

16 316421241 - B - Maintop, frame/glass, bisque

16 316421240 - - C Maintop, frame/glass, white

18 316436600 A B C Hinge Bracket, maintop, (2)

26 316427600 A B C Channel, element support, (2)

26A 316099202 A B C Bracket, chassis support, rear

26B 316214200 A B C Bracket, chassis support, front

52 316278300 A B C Clip, element mtg

* # 316416852 A B C Harness, wiring, surface

* 316264000 A B C Cleaner, cooktop

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 A B C Screw, 8-18 x 0.5, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

* 5308014215 A B C Screw, 6-20 x 0.312

Publication No: 5995448502 FEF366E

09/05 10

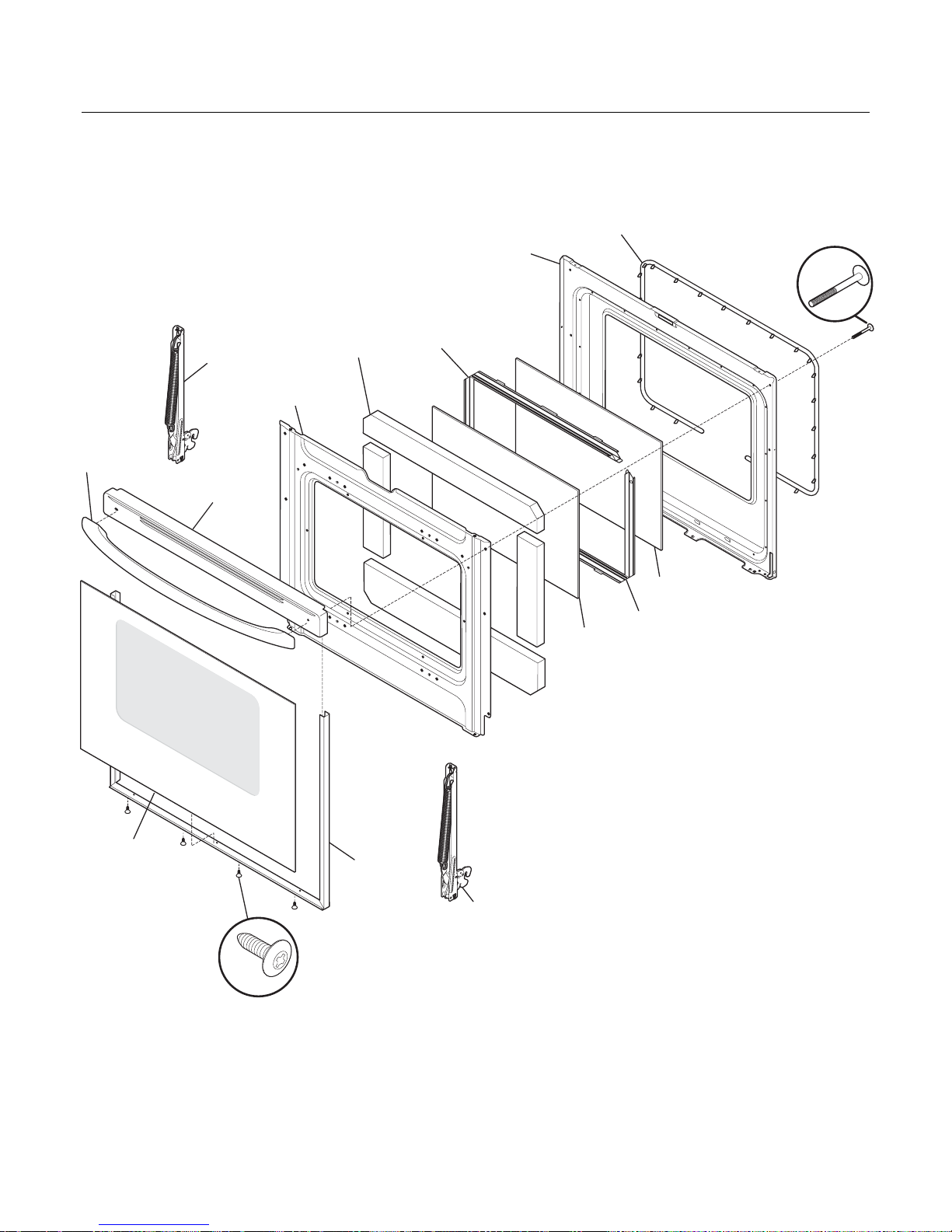

DOOR

60B

T20D0024
