Frigidaire FEF352BFWB Manual de usuario

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF352BFWB FEF352BF WHITE USA

Publication No.

5995319828

990419

-EN/SERVICE /VLM

369

WIRING DIAGRAM # - 316002625

ELECTRIC - RANGE

MEF352BFWB

04/99 2

Publication number

5995319828 MEF352BFWB

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

MEF352BFWB 5995319828

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

POS. NO PART NO DESCRIPTION

1 316081601 Shield-backguard,rear wall

2 316015907 Shield-backguard,inner

11 316061841 Trim-wrapper,black

14 316022503 Light/Lamp, indicator , surface ,250 V

15 316023108 Support-backguard,RH

15A 316023109 Support-backguard,LH

19 316076564 Panel-control,metal

19 316076566 Panel-control,metal

20 # 316101103 Clock/Timer,trimline,dial 3

20* 316101508 Overlay-clock

23 316100400 Bracket-clock mtg

24 316005602 Switch-rocker,oven light ,black

32 316101301 Knob-thermostat

36 316015203 Knob-control,(6)

40 316062329 Panel-manifold,black

46 316040201 Lens-light/lamp,indicator ,red

54 # 316021500 Switch-infinite, 6" element

54A# 316021501 Switch-infinite, 8" element

60 316021105 Screw,hex ,8-18 x 3/8 ,back\bodyside

69 5303292005 Screw-switch/handle,8-32 x 5/32

* 316021108 Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316096900 Bezel-nameplate,black

04/99 4

Publication number

5995319828 MEF352BFWB

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 04/99

Publication number

MEF352BFWB 5995319828

CAUTION: Use the part number on all orders, not the position number.

BODY

POS. NO PART NO DESCRIPTION

1 316080801 Back-main

3 316081028 Panel-bodyside,white ,RH

3* 316081029 Panel-bodyside,white ,LH

4 5303271756 Burner Box

5 5303203397 Screw-leveling

5* 3934058 Anti-tip Kit

5* 316078600 Screw,anti-tip ,(4)

5* 5303288460 Nut,T-type ,leveling screw

6 316067901 Rack-oven

7 316007002 Hinge-oven door,(2)

8 3203540 Panel-oven bottom

9 316073800 Pan-broiler

10 3205234 Insert-broiler pan

12 316027701 Switch-oven light

13 316026800 Rod-light switch /door

14 3014073 Socket-light/lamp,oven

15 5303013071 Light Bulb/Lamp

16 08011086 Lens-light/lamp,glass ,oven

17 316087500 Retainer-lens

18 # 316036300 Latch-door

21 3014099 Spacer-bodyside,(8)

25 3200848 Shield-heat,lower

29 3051162 Glide-drawer,front

30 5303283574 Bracket-hinge,main top RH

30A 5303283575 Bracket-hinge,main top LH

37 # 316111200 Probe-oven temp

41 3131570 Cover-hinge cutout

44 3131903 Bumper-door/drawer,rubber

57 316081101 Cover-access

58 3200847 Insulation,oven bottom

58A 316047708 Insulation, 2" ,oven wrapper

58B 316054202 Insulation, 1" ,oven back

58C 3131304 Insulation,oven top

59 316073600 Tube-oven vent

62 # 5303935061 Terminal Block

63 5301145190 Plate-ground strap

66 # 5303051140 Element-broil

67 # 316075102 Element-bake,lower oven

68 316075300 Support-element, broil

71 316015805 Shield-rear wall

72 5303285692 Cover-light/switch rod

82 5303289913 Shield-insulation

87 316081200 Bracket-cable mtg

88 316026400 Rod-latch,auto

89 # 316028101 Motor-latch/lock

* 3203550 Plug-button

* 316021108 Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 5303051099 Nut,hex ,#10-32

04/99 6

Publication number

5995319828 MEF352BFWB

CAUTION: Use the part number on all orders, not the position number.

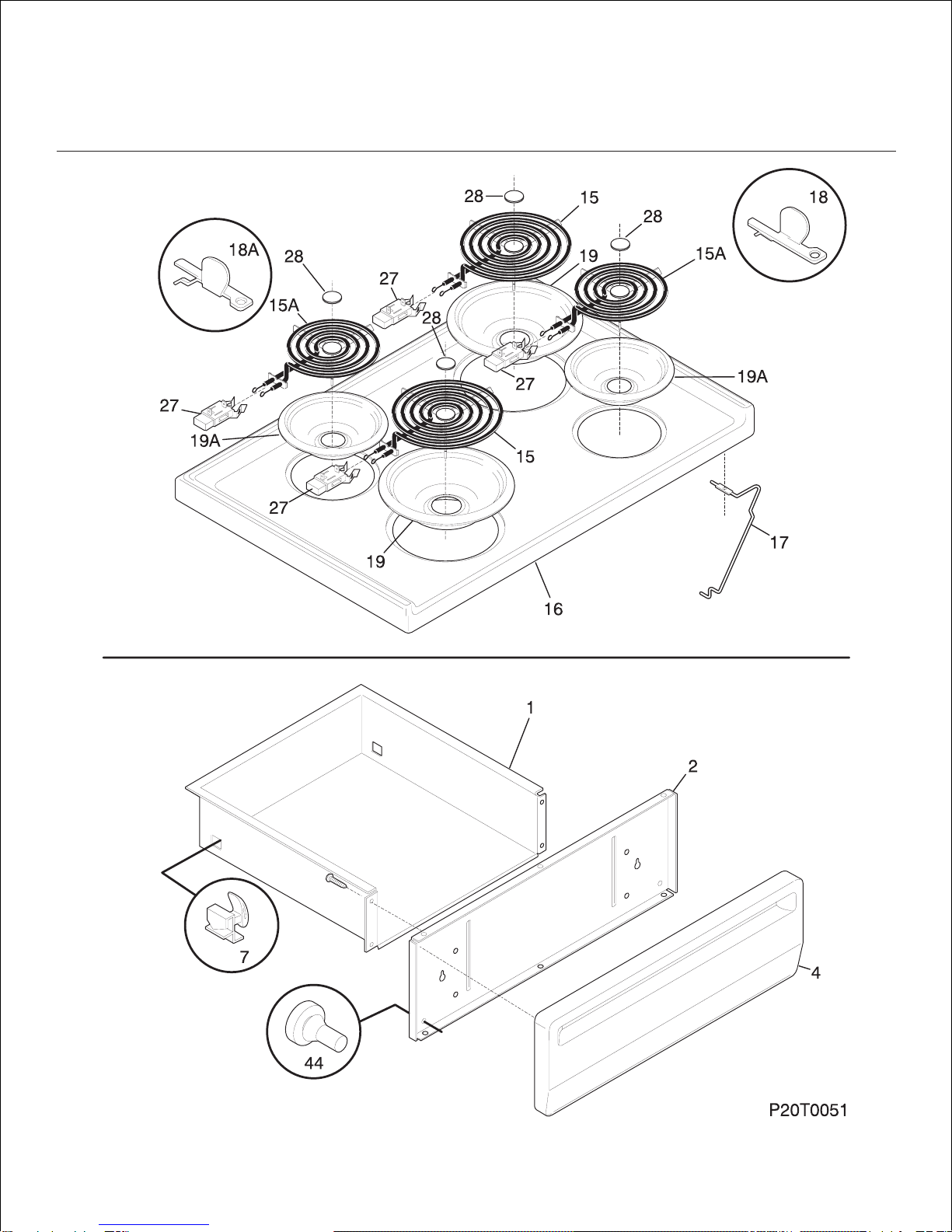

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 04/99

Publication number

MEF352BFWB 5995319828

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316011501 Drawer-utility

2 3131975 Shield-panel

4 316084405 Panel-drawer,white

4* 316021112 Screw-8-18x1/2 Tr Sqd White

7 3051163 Glide-drawer,rear

15 # 5303015715 Element-surface,large/8 inch

15A# 5303015716 Element-surface,small/6 inch

16 316020907 Main Top,white

17 316057601 Rod-maintop support

18 5303273062 Hinge-main top,RH

18A 5303273063 Hinge-main top,LH

19 5303935054 Pan-surface element,large/8 inch

19A 5303935057 Pan-surface element,small/6 inch

27 # 5303912666 Terminal Block Kit,surface element

28 3017801 Medallion,stainless steel ,surf elem

44 3131903 Bumper-door/drawer,rubber

* 316021105 Screw,hex ,8-18 x 3/8 ,back\bodyside

* 3203618 Rivet-pop,warning-plate

* 316021108 Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316089600 Spacer-drawer,(2)

* 5303280311 Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5308014215 Screw,#6-20 x 5/16 ,(4)

* # 316001725 Harness-wiring,surface element

04/99 8

Publication number

5995319828 MEF352BFWB

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 04/99

Publication number

MEF352BFWB 5995319828

CAUTION: Use the part number on all orders, not the position number.

DOOR

POS. NO PART NO DESCRIPTION

3 316067802 Trim-oven door,black

4 316089000 Glass-oven door,black ,outer

5 316088700 Glass-oven door,airwash

6 316088401 Shield-wool

7 316076403 Insulation-door

8 316088600 Glass-oven door,inner

9 316066610 Liner-oven door

10 5303281378 Screw-handle mtg,wafer head ,10-24F x 3

12 5303131601 Seal-oven door

14 5303208656 Reflector,aluminum foil

14A 5303208655 Reflector,aluminum foil

15 316081401 Bracket-glass mtg

16 316085700 Glass-oven door,heat barrier

39 5303273127 Handle-door,black ,oven

49 3016755 End Cap,black ,(2)

52 316081303 Shield-oven door,black ,top

* 316065301 Plate warning/caution

* 5303212671 Screw,cr pan hd sems ,8-32BP x 1.00

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 1/2

* 5303280311 Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5303285179 Screw-oven door,wafer head ,8-32T x 1/2

04/99 10

Publication number

5995319828 MEF352BFWB

CAUTION: Use the part number on all orders, not the position number.

WIRING DIAGRAM
