FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF336BGWD FEF336BG WHITE USA

FEF336BGDD FEF336BG ALMOND USA

Publication No.

5995319927

990407

-EN/SERVICE /VLM

369

WIRING DIAGRAM # - 316002660

OWNER’S GUIDE # - 316000290

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF336BGWD

FEF336BGDD

03/99 2

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 3/99

Publication number

FEF336BGWD, FEF336BGDD 5995319927

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A=FEF336BG (FEF336BGWD)

B=FEF336BG (FEF336BGDD)

POS. NO PART NO DESCRIPTION

* 316000290 A B Owner’s Guide

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

B ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316112500 A B Template, Anti-tip bracket

1 316081601 A B Shield-backguard,rear wall

2 316015905 A B Shield-backguard,inner

11 316083719 A B Trim-wrapper,textured ,black

12 # 316032405 A B Thermostat, oven non sc

13 # 316032500 A B Switch-selector

14 316022504 A B Light-indicator,250v

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100529 A B Panel-backguard,black

20* 316098007 A B Overlay-clock

20# 316120500 A B Clock-timer

23 316033204 A B Bracket-timer

24 # 316005602 A B Switch-rocker,oven light ,black

31 316109602 A B Knob-selector

32 316109600 A B Knob-thermostat

36 316025108 A B Knob-control, infinite sw, black

39* 5303292005 A B Screw-switch/handle,8-32 x 5/32

40 316025800 A B Panel-manifold

46 316040201 A B Lens-light/lamp,indicator ,red

54 # 316021500 A B Switch-infinite, 6" element

54A# 316021501 A B Switch-infinite, 8" element

03/99 4

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 03/99

Publication number

FEF336BGWD, FEF336BGDD 5995319927

CAUTION: Use the part number on all orders, not the position number.

BODY

A=FEF336BG (FEF336BGWD)

B=FEF336BG (FEF336BGDD)

POS. NO PART NO DESCRIPTION

* 3203550 A B Plug-button

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

A B ind lght brkt,manifold pnl

* 316045000 A B Clip-wire,harness ,main top

* 5303051099 A B Nut,hex ,#10-32

1 316080804 A B Back-main, short,dipped ,black

3 316081036 - B Panel-bodyside, almond, RH

3 316081037 - B Panel-bodyside, almond, LH

3 316081034 A Panel-bodyside,white ,RH

3 316081035 A Panel-bodyside,white ,LH

5 316107300 A B Screw-leveling

6 316067902 A B Rack-oven

7 316007001 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

14 316116400 A B Socket-light

15 5303013071 A B Light Bulb/Lamp

21 3014099 A B Spacer-bodyside,(8)

27 5303284616 A B Clip-thermo bulb

29 3051162 A B Glide-drawer,front

30 5303283574 A B Bracket-hinge,main top RH

30A 5303283575 A B Bracket-hinge,main top LH

41 3131570 A B Cover-hinge cutout

45 316066100 A B Shield-wire, s/t vent

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

59 316073603 A B Tube-oven vent

59A 316023601 A B Tube-oven vent,upper

59B 316040100 A B Bracket-mounting,vent tube

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element, broil

71 316015805 A B Shield-rear wall

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

170 316107200 A B Anti-tip bracket

170* 316116000 A B Screw-Anti tip, 1.75" concrete

03/99 6

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 03/99

Publication number

FEF336BGWD, FEF336BGDD 5995319927

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A=FEF336BG (FEF336BGWD)

B=FEF336BG (FEF336BGDD)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A B Screw-8-18x1/2 Tr Sqd White

* 316045000 A B Clip-wire,harness ,main top

* 316089600 A B Spacer-drawer,(2)

* 316112101 A B Cleaner-cooktop

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A - Panel-drawer,white

4 316084406 - B Panel-drawer, almond

7 3051163 A B Glide-drawer,rear

15 # 316010204 A B Element-surface,radiant , large/8 inch ,

2100W,limit sw incl

15A# 316010203 A B Element-surface,radiant , small/6 inch ,

1200W,limit sw incl

16 316098103 A - Main Top,white

16 316098104 - B Main Top, almond

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

26 316099101 A B Channel-support,element ,(2)

26A 316099201 A B Bracket-support, chassis

48 316100200 A B Shield-wire,main top

51 80142193 A B Indicator light

52 316099400 A B Clip-spring, element mtg,(8)

53 316099300 A B Bracket-indicator light,hot surface ,

4 hole

88 316099500 A B Pin-guide,(2)

03/99 8

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 03/99

Publication number

FEF336BGWD, FEF336BGDD 5995319927

CAUTION: Use the part number on all orders, not the position number.

DOOR

A=FEF336BG (FEF336BGWD)

B=FEF336BG (FEF336BGDD)

POS. NO PART NO DESCRIPTION

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 5303212671 A B Screw,cr pan hd sems ,8-32BP x 1.00

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 1/2

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

3 316067802 A B Trim-oven door,black

4 316089000 A B Glass-oven door,black ,outer

6 316088403 A B Shield-wool

7 316076401 A B Insulation,oven door

8 316088600 A B Glass-oven door,inner

9 316066610 A B Liner-oven door

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

12 5303202011 A B Seal-oven door,non self-clean

39 316091114 A B Handle-door,black ,oven

39* 316008401 A B Washer,3/4 x 1/4 ,steel

52 316081303 A B Shield-oven door,black ,top

03/99 10

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

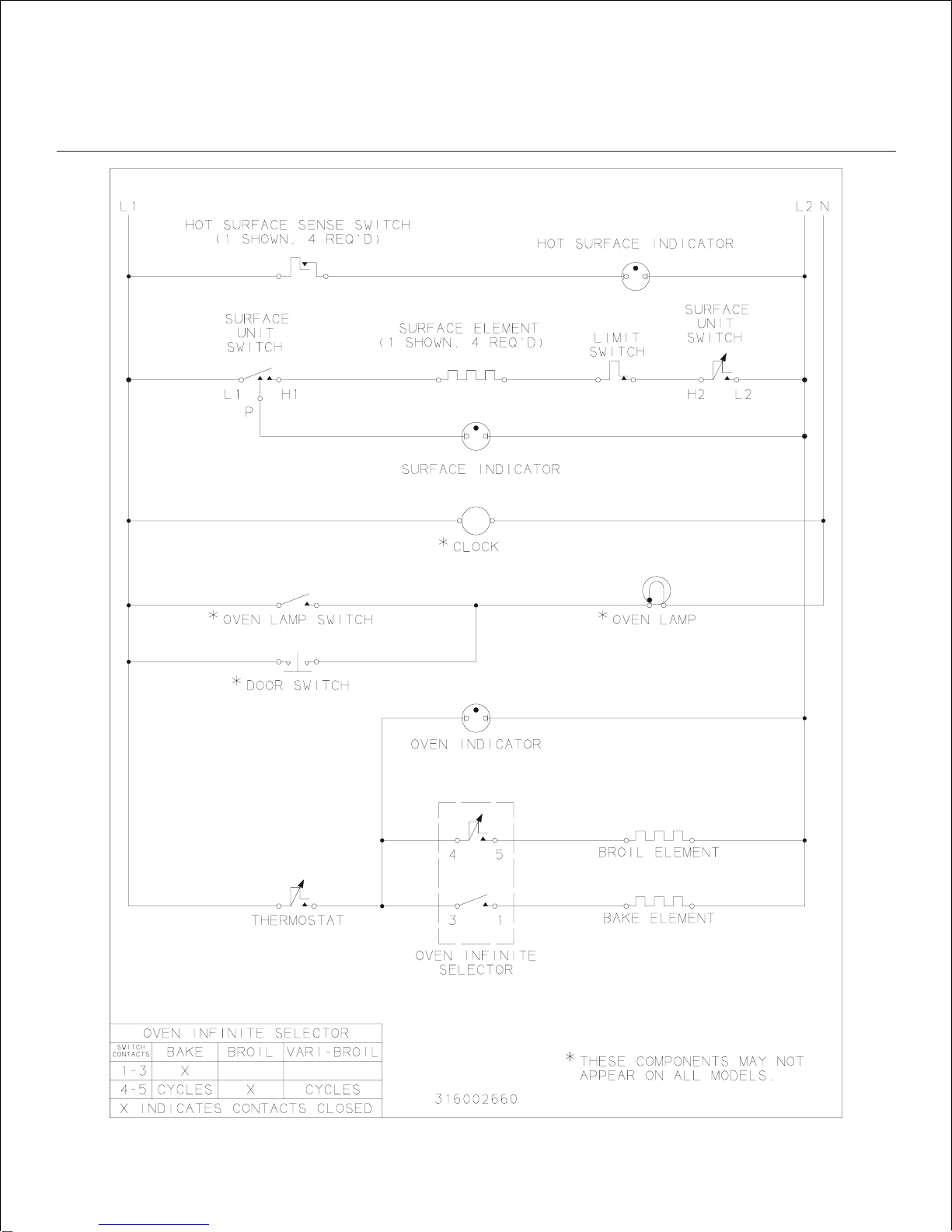

WIRING DIAGRAM
