Frigidaire FEF305PHDA Manual de usuario

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF305PHDA FEF305PH ALMOND USA

FEF305PHWA FEF305PH WHITE USA

Publication No.

5995323846

990526

-EN/SERVICE /SBR

369

WIRING DIAGRAM # - 316002675

OWNER’S GUIDE # - 316000629

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF305PHDA

FEF305PHWA

07/98 2

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

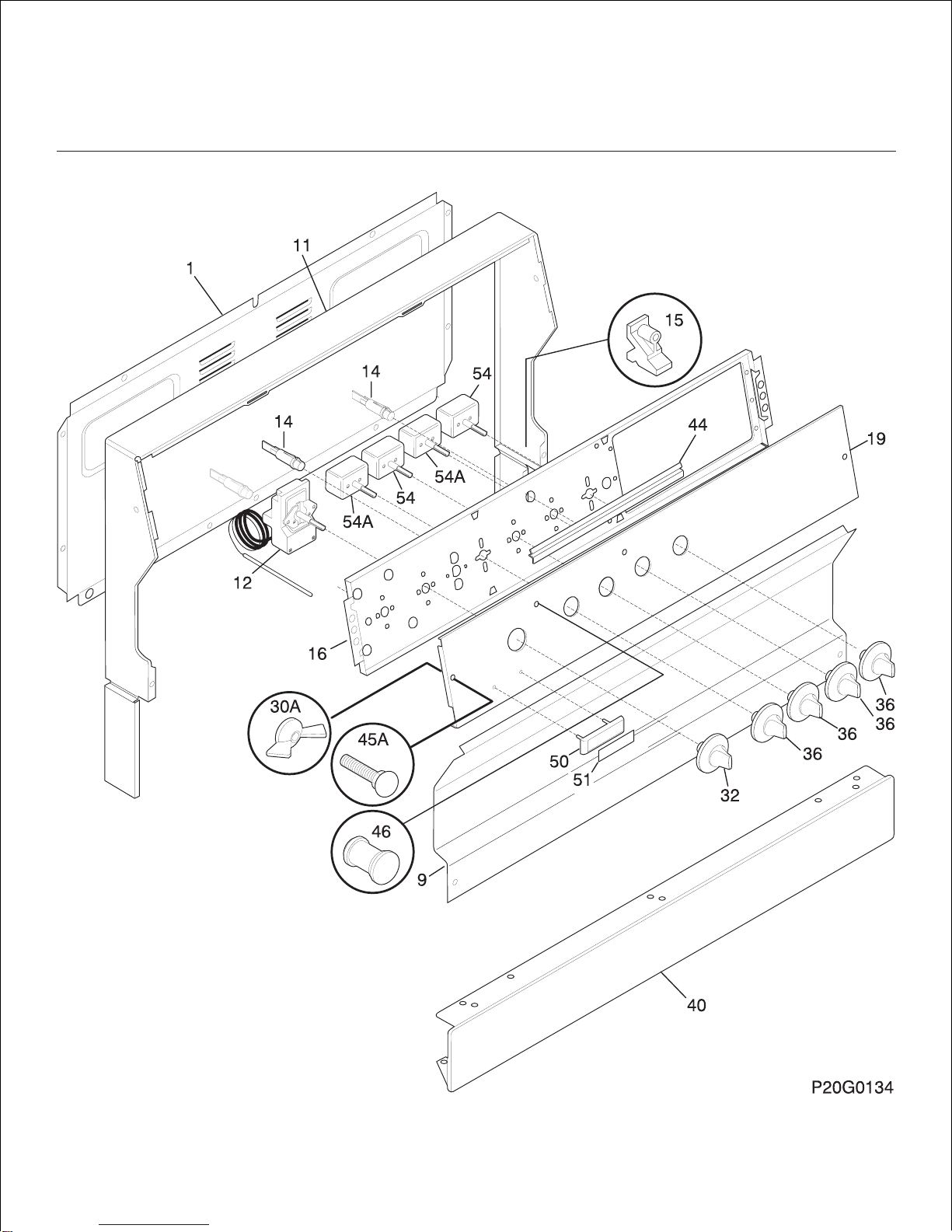

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FEF305PHDA, FEF305PHWA 5995323846

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF305PH (FEF305PHDA)

B = FEF305PH (FEF305PHWA)

POS. NO PART NO DESCRIPTION

* 316002675 A B Diagram-wiring

* 316000629 A B Owner’s Guide

* 316003025 A B Installation Instructions

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316112500 A B Template, Anti-tip bracket

* 5303272555 A B Clip-backguard

1 3131123 A B Shield-backguard,rear wall

9 316043601 - B Trim-splasher,white

9 316043602 A - Trim-splasher,almond

11 316057002 A B Trim-wrapper

12 # 5303212745 A B Thermostat-oven

14 3201726 A B Light/Lamp,indicator ,blue ,250 V

15 5303131237 A B Support-backguard,(2)

16 316042602 A B Plate,instrument mtg

19 316034120 A B Panel-control,metal

30A 316064300 A B Nut,nylon

32 316123301 A B Knob-thermostat

36 316123303 A B Knob-infinite switch, black

40 316064009 A B Panel-manifold,black

44 3131468 A B Bracket,backguard

45A 316056902 A B Bolt-fastener,nylon

46 316065801 A B Lens-light/lamp,indicator ,red

50 316096900 A B Bezel-nameplate,black

51 316095420 A B Nameplate,black

54 # 5303285142 A B Switch-6" element

54A# 5303285143 A B Switch-8" element

07/98 4

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 07/98

Publication number

FEF305PHDA, FEF305PHWA 5995323846

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF305PH (FEF305PHDA)

B = FEF305PH (FEF305PHWA)

POS. NO PART NO DESCRIPTION

* 3051367 A B Clip-wire

* 3203550 A B Plug-button

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 5303051099 A B Nut,hex ,#10-32

* 5303284616 A B Clip-thermo bulb

* 5308014215 A B Screw,8-X 1/2 ,(4)

*# 316001559 A B Harness-main

1 316080804 A B Back-main, short,dipped ,black

3 316081034 - B Panel-bodyside, white ,RH

3 316081035 - B Panel-bodyside, white , LH

3 316081036 A - Panel-bodyside,almond ,RH

3 316081037 A - Panel-bodyside,almond ,LH

4 5303271756 A B Burner Box

5 316107300 A B Screw-leveling

6 316067902 A B Rack-oven

7 316007007 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316081900 A B Pan-broiler

10 316082000 A B Insert-broiler pan

21 3014099 A B Spacer-bodyside, (8)

27 5303284616 A B Clip-thermo bulb

29 3051162 A B Glide-drawer,front

41 3131570 A B Cover-hinge cutout

44 3131903 A B Bumper-door/drawer, rubber

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047707 A B Insulation, 1" ,oven wrapper

58B 316054202 A B Insulation, 1" ,oven back

59 316073601 A B Tube-oven vent

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element, broil

69 3051218 A B Plate-oven light

71 316015805 A B Shield-rear wall

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

170 316107200 A B Anti-tip bracket

170* 316116000 A B Screw-Anti tip, 1.75" concrete

07/98 6

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 07/98

Type your model numbers here

CAUTION: Use the Kenmore part number on all orders, not the position number.

TOP/DRAWER

A = FEF305PH (FEF305PHDA)

B = FEF305PH (FEF305PHWA)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 - B Screw-8-18x1/2 Tr Sqd White

* 316021113 A - Screw-8-18x1/2 Tr Sqd Almond

* 316089600 A B Spacer-drawer,(2)

* 5303280311 A B Screw, waf hd sdr , 10-32 x 5/16 , (2)

* 5308014215 A B Screw,8-X 1/2 ,(4)

* # 316001731 A B Harness-wiring,surface element

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 - B Panel-drawer,white

4 316084406 A - Panel-drawer,almond

4* 08067785 A - Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B Glide-drawer,rear

15 # 3051450 A B Element-surface, 8" , large

15A# 3051449 A B Element-surface,6”, small

16 3013512 A - Main Top,almond

16 5303013511 - B Main Top,white

17 316066900 A B Rod-maintop support

18 08067747 A B Bracket-hinge,main top RH

18A 08067746 A B Bracket-hinge,main top LH

19 # 316048413 A B Pan-surface element,chrome ,

large/8 inch,(2)

19A# 316048414 A B Pan-surface element,chrome ,

small/6 inch,(2)

27 # 5303912666 A B Terminal Block Kit,surface element

28 5303017715 A B Medallion,1 1/2"dia ,black ,

surface element

07/98 8

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 07/98

Publication number

FEF305PHDA, FEF305PHWA 5995323846

CAUTION: Use the part number on all orders, not the position number.

DOOR

A = FEF305PH (FEF305PHDA)

B = FEF305PH (FEF305PHWA)

POS. NO PART NO DESCRIPTION

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316102200 A B Foil-aluminum

* 5303212762 A - Screw,8-18 X 1/2

* 5303271648 A B Screw, wafer hd sq dr , 8-18AB x 1/2

* 316071608 A B Anti-tip label

* 5303280311 A B Screw, waf hd sdr , 10-32 x 5/16 , (2)

9 316066611 A B Liner-oven door

10 5303281378 A B Screw-handle mtg,wafer head ,10-24F x 3

12 5303202011 A B Seal-oven door,non self-clean

13 3202315 - B Panel-oven door,white

13 3202316 A - Panel-oven door,almond

39 316020204 A B Handle-door,black ,oven

39* 316008401 A B Washer,3/4 x 1/4 ,steel

49 3016755 A B End Cap,black ,(2)

07/98 10

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

WIRING DIAGRAM
