Frigidaire FEB30T7F Manual de instrucciones

FEB30T7FC.tif CPLEB30T9FCA.eps BUFEB30T7FCE.eps BLFEB30T7FCE.eps

DFEB30S7FCC.eps 318046123.eps

Product No. FEB30T7FCE

37054383F60S5

Series 30" double

Color stainless

Market North America

Wiring Diagram 318046123

Owner's Guide 318205119

Installation Instructions 318201514

Service Data Sheet 318047309

Timer Guide 318200129

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995535241

09/03/12

(EN/SERVICE/ECL)

377

30” DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB30T7F

Publication No: 5995535241 FEB30T7FCE

03/09 2

CONTROL PANEL

FEB30T7FCE Publication No: 5995535241

# Functional Parts 3 03/09

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 318271533 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316443834 Control, electronic, ES610W2, dual oven

77 316247900 Spacer, power board

77A 316114100 Spacer

97 316443912 Board, relay, dual oven

* # 318370374 Wiring Harness, timer, to relay board

* 5303211311 Screw, 8 x 0.500

Publication No: 5995535241 FEB30T7FCE

03/09 4

UPPER OVEN

119

108

108A

185

163

58B

264

29 127

58A

82 BUFEB30T7FCE

185

59A

131

132

58D

143

142

272

107

111

109

263

125

FEB30T7FCE Publication No: 5995535241

# Functional Parts 5 03/09

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

2 318258902 Shield, insulation, upper

6 318345207 Rack, oven

9 5303317977 Pan, broilerOPTIONAL ACCESS0RY

10 5303317976 Insert, broiler panOPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

54 318222400 Housing, oven light

58A 318386100 Insulation, oven wrapper

58B 318133791 Insulation, oven back, back/bottom

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

71* 318340201 Bracket, insul. panel

76 318056292 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261404 Liner, oven assy

86 318561100 Receptacle, hinge, (2)

89 # 318261215 Motor, latch assy

* # 318402206 Wiring Harness, main, latch

* # 318199768 Wiring Harness, latch, BAS

* 318199746 Wiring Harness, latch, NO BAS

99 318252804 Support, side

107 318219405 Cover, fan

108# 318073028 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 318399800 Nut, fan retainer

119# 318004900 Switch, thermal

125# 318398200 Motor, fan

125* 5303316994 Insulation, 3.81 x 3.13

125* 318142100 Washer, motor, convection

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272901 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

163 318531703 Spacer, (4)

185 318531800 Spacer, oven shield, (2)

263 316136500 Washer, flat

264 318257701 Trim, oven, black, front

272 318249403 Tube, protector

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995535241 FEB30T7FCE

03/09 6

LOWER OVEN

143

119

108

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLFEB30T7FCE

185

59A

58D

272

107

111

109

263

125

FEB30T7FCE Publication No: 5995535241

# Functional Parts 7 03/09

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

2 318258902 Shield, insulation, upper

6 318345207 Rack, oven

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

54 318222400 Housing, oven light

56 318903604 Trim, side filler, black, RH

56A 318903605 Trim, side filler, black, LH

58A 318386100 Insulation, oven wrapper

58B 318133791 Insulation, oven back, back/bottom

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

71* 318340201 Bracket, insul. panel

76 318056292 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261404 Liner, oven assy

86 318561100 Receptacle, hinge, (2)

87 318260600 Bracket, cable mtg.

89 # 318261215 Motor, latch assy

* # 318402206 Wiring Harness, main, latch

* # 318199768 Wiring Harness, latch, BAS

* # 318199746 Wiring Harness, latch, NO BAS

90 318259803 Trim, base, stainless

99 318256201 Bracket, side, bottom, (2)

107 318219405 Cover, fan

108# 318073028 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 318399800 Nut, fan retainer

119# 318004900 Switch, thermal

125# 318398200 Motor, fan

125* 318142100 Washer, motor, convection

125* 5303316994 Insulation, 3.81 x 3.13

127 318317100 Adapter Assembly, vent tube, w/converter

142 318123910 Deflector

143 318172904 Support, wire

163 318531703 Spacer, (4)

185 318531800 Spacer, oven shield, (2)

263 316136500 Washer, flat

264 318257801 Trim, oven, black, front

272 318249403 Tube, protector

* # 318394442 Box & wires assy

* # 318370312 Wiring Harness, main

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303323136 Screw ground

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995535241 FEB30T7FCE

03/09 8

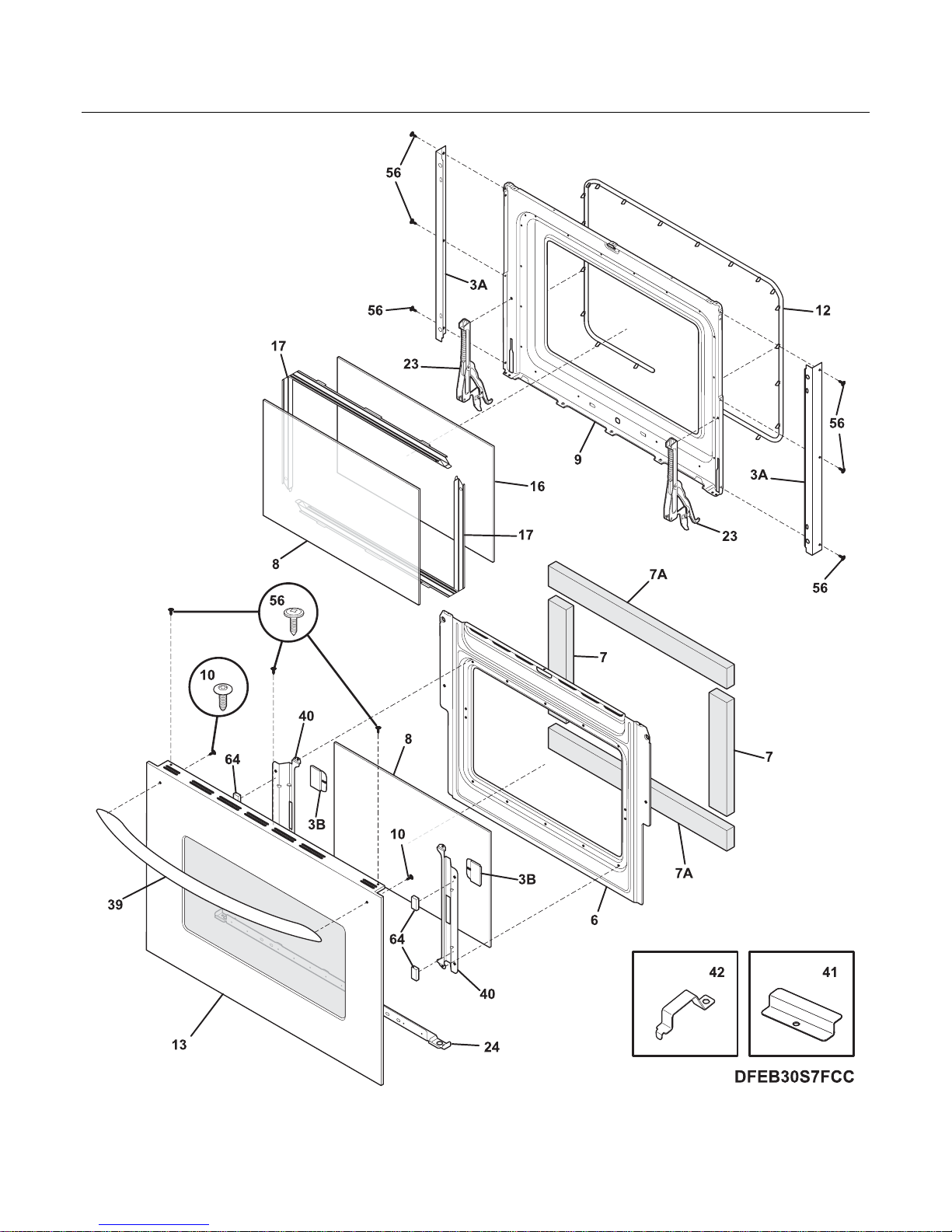

DOORS

FEB30T7FCE Publication No: 5995535241

# Functional Parts 9 03/09

* Non-Illustrated Parts

DOORS

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260522 Baffle, door

7 318372000 Insulation, door, (2)

7A 318372002 Insulation, door, (2)

8 316117500 Glass, oven door, heat barrier

9 318360108 Liner, oven door

10 5303308458 Screw, 10-24, (4)

12 318053121 Seal, oven door

13 318272188 Door Assy, glass, stainless steel, outer

16 318212210 Glass, oven door, heat barrier, lower door

17 318264710 Spacer, glass, lower, (2)

23 318567100 Hinge, oven door, (2)

24 318260301 Trim, door, black, lower

39 316246100 Handle, door/drawer, stainless

40 318242702 Bracket, glass holder, door, (2)

41 318370600 Bracket, glass retainer, (2)

42 318382301 Bracket, glass retainer, (4)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995535241 FEB30T7FCE

03/09 10

WIRING DIAGRAM
