Frigidaire FEB30S7F Manual de usuario

FEB30S7FC.tif CFEB30S7DCA.eps BFEB30S7FCA.eps DFEB30S7FCC.eps

318046237.eps

Product No. FEB30S7FCC

38254383F60S3

Series 30" single

Color stainless

Market North America

Wiring Diagram 318046237

Owner's Guide 318205119

Installation Instructions 318201514

Service Data Sheet 318047413

Timer Guide 318200189

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995492237

07/06/06

(EN/SERVICE/ECL)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB30S7F

Publication No: 5995492237 FEB30S7FCC

06/07 2

CONTROL PANEL

FEB30S7FCC Publication No: 5995492237

# Functional Parts 3 06/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 318271527 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316418523 Clock/Timer, electronic, ES350W2

* 5303211311 Screw, 8 x 0.500

* 5303311306 Screw, 8-18 x 0.375, (8)

Publication No: 5995492237 FEB30S7FCC

06/07 4

BODY

FEB30S7FCC Publication No: 5995492237

# Functional Parts 5 06/07

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259205 Back, main

2 318258902 Shield, insulation, upper

6 318345207 Rack, oven

9 5303317977 Pan, broilerOPTIONAL ACCESS0RY

10 5303317976 Insert, broiler panOPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318903704 Trim, side, black, RH

56A 318903705 Trim, side, black, LH

58A 318285055 Insulation, oven wrapper

58B 318285056 Insulation, oven back

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261404 Liner, oven assy

86 318342400 Receptacle, hinge

87 318260600 Bracket, cable mtg.

89 # 318261205 Motor, latch assy

90 318259803 Trim, base, stainless

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112701 Relay

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

125* 5303316994 Insulation, 3.81 x 3.13

126 3016303 Clip, insulator

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

Publication No: 5995492237 FEB30S7FCC

06/07 6

BODY

FEB30S7FCC Publication No: 5995492237

# Functional Parts 7 06/07

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003614 Thermostat, safety

219A 318003613 Thermostat, safety, 1.375" mtg, 105/120

263 316136500 Washer, flat

264 318257701 Trim, oven, black, front

272 318249401 Tube, protector

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* # 318078542 Box & wires assy

* 318231736 Harness, wiring, main

* 318165800 Spacer

* 3201861 Screw, 6 x 0.375, (4)

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303323136 Screw ground

* 5303323277 Screw, 8-18 X 13/32

* 5303324184 Screw, 8-18 x 5/16, black, (4)

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995492237 FEB30S7FCC

06/07 8

DOOR

FEB30S7FCC Publication No: 5995492237

# Functional Parts 9 06/07

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260520 Baffle, door

7 318372000 Insulation, door, (2)

7A 318372002 Insulation, door, (2)

8 316117500 Glass, oven door, heat barrier

9 318259605 Liner, door

10 5303325980 Screw, 10-32 x 0.437

12 318053130 Seal, oven door, upper

13 318272188 Door Assy, glass, stainless steel, outer

16 318212210 Glass, oven door, heat barrier

17 316402403 Spacer, door glass, (2)

23 318024714 Hinge, door, (2)

24 318260301 Trim, door, black, lower

39 316246100 Handle, door/drawer, stainless

40 318242702 Bracket, glass holder, upper door, (2)

41 318370600 Bracket, glass retainer, (2)

42 318382301 Bracket, glass retainer, (4)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (2)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995492237 FEB30S7FCC

06/07 10

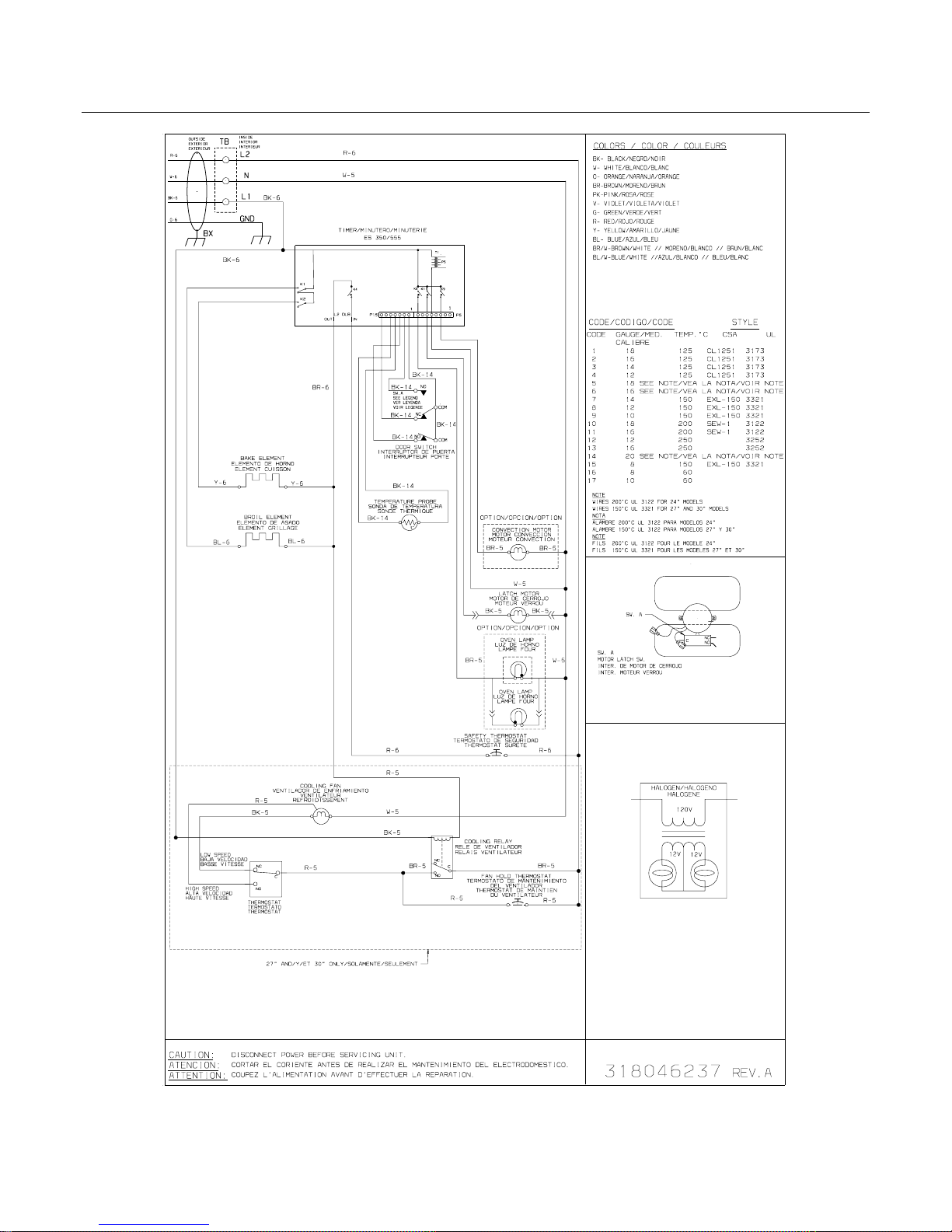

WIRING DIAGRAM
